Locate the power supply circuit first–it connects directly to the terminal block at the rear panel. Use a multimeter to verify 240V across the outer terminals and 120V from each outer terminal to the center. If readings deviate, inspect the thermal fuse (located on the blower housing) and door switch (mounted near the latch mechanism). Both components must show continuity; replace if open.
Trace the motor circuit next. The centrifugal switch on the motor shaft engages when the drum spins, completing the path to the start winding. If the motor hums but fails to start, check the start capacitor (mounted on the motor housing) with a capacitance meter–values should match the label (±10%). Replace capacitors that show bulging, leakage, or incorrect readings.
Follow the heater assembly wiring from the high-limit thermostat to the heating element coils. The thermostat (secured to the heater housing) interrupts power at 180°F; if faulty, it can falsely cut power or allow overheating. Test for continuity and proper resistance (typically 5–50 ohms). If resistance exceeds 50 ohms or reads infinite, replace the element or thermostat.
Examine the timer assembly last. The timer motor (a small synchronous motor) drives the cam stack, which controls the drying cycles. If cycles fail to advance, test the motor winding resistance (usually 1.5–3k ohms). Replace the timer if burn marks are visible or resistance falls outside spec. Label each wire with masking tape before disconnecting to avoid miswiring during reassembly.

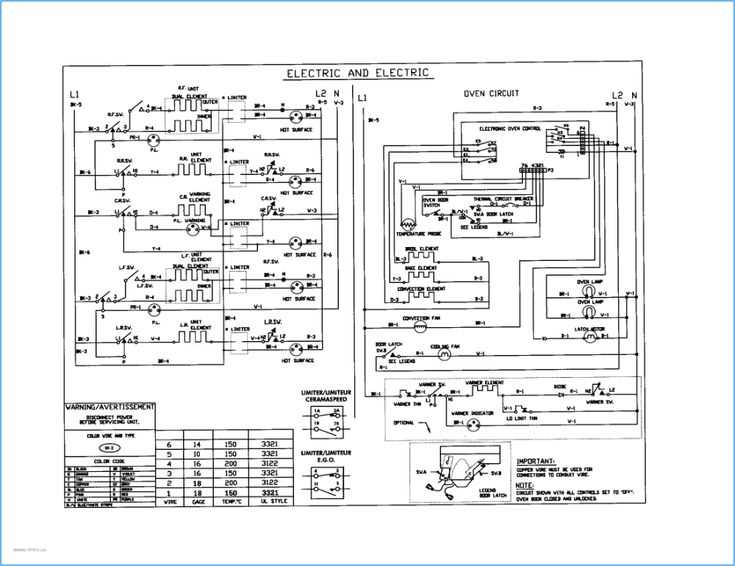

Electrical Schematic for Sears Appliance 110 Series
Locate the internal schematic attached to the machine’s rear panel or inside the control housing. This document outlines voltage paths, including a 240V main supply split into 120V branches for the motor, heater, and timer circuits. Verify the wiring colors match the labels: black and red for the main leads, white for neutral, and green or bare copper for ground.
Check the thermal fuse before any other repair. This safety cutout, mounted on the blower housing, interrupts power if temperatures exceed 390°F (199°C). Use a multimeter to confirm continuity–0 ohms indicates a functional fuse. If blown, replace it with part 279816; never bypass it, as it protects against fire hazards.
Key Connection Points
- Terminal block L1 and L2: Connects the power cord’s black and red wires.
- Neutral (white wire): Links to the terminal block’s central screw and motor’s neutral lug.
- Door switch (yellow/blue wires): Completes the circuit when the door closes; test with a multimeter for ~0 ohms.
- Heating element (gray/silver wires): Receives power via the timer switch; ensure no breaks in the coil.
- Motor windings (blue and orange wires): Check for 2-2.5 ohms resistance across start and run windings.
If the drum spins but no heat is generated, inspect the heater circuit. The element should draw between 4,000 and 5,000 watts at 240V. Measure resistance across its terminals–approximately 10-15 ohms indicates normal operation. A reading of infinity or zero suggests an open or shorted coil, requiring replacement of the heater assembly (part 279838). Also, confirm the high-limit thermostat (part 3387134) maintains continuity; if open, it cuts power to prevent overheating.
For intermittent operation, focus on the timer motor and its associated contacts. The motor’s resistance should be 2-3 kΩ; lower values indicate a failing unit (part 3407346). Examine the cam-driven contacts for pitting or corrosion–clean with emery cloth or replace the timer if arcing is visible. Always disconnect power before probing connections, and use a non-contact voltage tester to confirm the absence of live current.
Finding the Right Electrical Layout for Your Sears Appliance 110 Line
Start by checking the inner door panel–many Sears 110-series units embed a small schematic directly behind the kickplate or front access cover. Peel back the lower trim strip gently; the adhesive often secures a folded paper guide beneath.
Visit Sears PartsDirect and enter the exact 8-digit product identifier stamped on the chassis near the lint trap. Filter results by “Technical Documents”; schematics appear under labels like “Connection detail” or “Internal fuse route.”
Alternative Sources if Manufacturer Access Fails
- RepairClinic: Upload a photo of the control console’s metal tag; their database matches visual stamps to exact blueprints within 24 hours.
- ApplianceBlog forums: Search archived threads for the last three digits of your serial plate; older technicians scan and attach manuals directly.
- YouTube tear-downs: Channels such as “SamuraiRepair” pause key junctures–frame grabs of those moments often show pinouts clearly.
If physical labels or digital scans remain elusive, meter-test each terminal block in sequence. Document colors against the timer cam positions; most 110 circuits follow an orange/red bias for 240V legs, while neutral uses pure white 10-gauge wire.
Quick Verification Steps
- Unplug and tilt unit backward; rear panel screws release the main wire harness path diagram.
- Compare any found map against the terminal block: L-shaped blade terminals always link to thermal cutoffs, not motor windings.
- Cross-reference wire gauge: 12AWG handles heater loads, thinner 16AWG serves door switches.
Pinpointing Critical Elements in the Electrical Blueprint of Series 110 Appliances
Locate the thermal fuse first–positioned on the blower housing, marked TF or TCO (thermal cut-off). Its resistance should read near-zero ohms; any deviation signals failure. Test with a multimeter set to continuity mode before disassembly. The motor centrifugal switch (C/S) sits beneath the drum support bearing, identifiable by two spade connectors labeled “C” and “S.” Probe both terminals while rotating the drum by hand; an audible click confirms proper engagement. Replace if voltage at C/S terminal reads below 110V during operation.
Component Cross-Reference Table
| Label | Location | Expected Reading | Failure Indicator |
|---|---|---|---|
| Thermal Fuse | Blower housing | 0Ω continuity | OL (open loop) or infinite resistance |
| Centrifugal Switch | Drum shaft base | Click sound during rotation | Voltage |
| Heating Element | Rear panel, cylindrical housing | 20–50Ω across terminals | OL or visible break in coil |
| Door Switch | Upper front frame, behind door latch | Click upon actuation | No continuity when pressed |
Trace the heater coil circuit next–accessible via the rear access panel. Measure resistance across its terminals; values between 20–50 ohms denote functionality. Open circuits or OL readings require coil replacement. Verify the door interlock switch (mounted adjacent to the lint screen assembly) by pressing its actuator: continuity should be instantaneous. Absence of response warrants immediate swap. Check the timer motor separately–its 120V winding should hum when powered; silence indicates internal failure.
How to Interpret the Electrical Schematic of Your Appliance
Locate the thermal fuse on the illustration–its symbol resembles a vertical rectangle with a diagonal line. This component acts as a safety switch, breaking the circuit if overheating occurs. Verify its position near the blower housing inside the unit before proceeding.
Trace the power cord’s path from the plug inlet to the main terminal block. The L-shaped block should have three screws: one for the neutral (white) wire, one for the hot (black) lead, and the third grounding post (green or bare). Cross-check each connection point against the annotated labels on the chart.
Identify the motor’s windings by the circular symbols intersecting two sets of curved lines. The centrifugal switch–marked by a small arc touching a dot–engages the start winding when rotation begins. Ensure continuity between these points using a multimeter set to 200 ohms.
Examine the heating element’s depiction: a jagged line enclosed in a rectangle. This resistor converts electricity to heat. The high-limit thermostat sits parallel to it, shown as a rectangle with an internal horizontal line. Both components must register closed contacts at room temperature.
Follow the timer’s rotary switch symbols–each position corresponds to a distinct circuit path. The contacts are labeled by function (e.g., “High,” “Delicate,” “Air Fluff”). Attach one probe to the common terminal, then test each contact in sequence to confirm proper switching action.
Check the door switch’s zigzag symbol, a normally open contact that closes when the latch engages. A failed switch prevents the drum from spinning. Use a continuity tester to verify the contact closes fully when the door is shut.
Compare every wire color on the schematic (red, blue, yellow, purple) to the actual harness. Discrepancies often indicate incorrect routing or damage. Secure each connection with crimp connectors rated for 18 AWG or thicker, avoiding solder for high-vibration areas.
Diagnosing Electrical Problems in Your Classic Laundry Appliance
Begin by verifying the thermal fuse located near the blower housing. Use a multimeter set to continuity mode–if the reading shows no resistance, replace the fuse immediately. This component protects the heating element from overheating, and failure here is a frequent cause of power loss.
Examine the door switch next. A faulty switch interrupts the circuit when the door is closed, preventing operation. Probe the terminals with the multimeter; a closed door should register near-zero ohms. If readings fluctuate or show infinity, clean the contacts or install a new switch.
Trace the power cord connections where it enters the machine’s rear panel. Loose or corroded terminals often cause intermittent power issues. Tighten screws securely and scrape oxide buildup with a wire brush if conductivity tests reveal high resistance.
Inspect the motor relay if the drum spins but heat never activates. The relay, typically mounted on the motor housing, engages the heater circuit. Tap it lightly while the unit runs–an audible click confirms activation. Replace a silent relay to restore heat generation.
Check the heating element assembly for visible breaks in the coil. Disconnect power, then use a multimeter to test for continuity across the coil terminals. A broken coil reads open-circuit and requires complete replacement–partial repairs rarely succeed.
Review the timer’s rotary contacts if cycles abort prematurely. Turn the timer knob manually and listen for a distinct click as each contact closes. Scorch marks or excessive resistance indicate worn contacts–clean with fine-grit sandpaper or replace the entire timer module.
Look at the start capacitor if the drum struggles to rotate or hums without turning. Located adjacent to the motor, this capacitor provides initial torque. Discharge it safely, then measure capacitance–deviation beyond ±10% of the rated value signals failure.
Confirm proper ground connections at the chassis and neutral terminal block. A defective ground can create erratic behavior or shock hazards. Use a multimeter to verify zero volts between chassis and neutral–any reading above 0.1V demands rewiring of loose or corroded grounds.
