Start with a single-phase full-bridge topology using four N-channel MOSFETs (IRFP4668 or equivalent) for 230V AC output at 50Hz. Position a PWM gate driver IC (IR2110) between the microcontroller and power stage–ensure galvanic isolation via optocouplers (HCPL-3120) with a UVLO threshold of 10.5V to prevent shoot-through during startup. The DC bus should maintain a voltage of 360–400V for optimal efficiency; size electrolytic capacitors (470μF/450V) accordingly to limit ripple to below 5%.
Integrate anti-islanding protection via a passive frequency shift method: monitor grid impedance with a current transformer (CT) sampling at 10kHz. If detected impedance exceeds 1.5kΩ, engage a solid-state relay (AQV251) to disconnect the system within 2s. For MPPT algorithms, implement perturb and observe with a step size of 0.5% of Voc, adjusted every 0.1s–this balances tracking speed and oscillation reduction better than incremental conductance for most residential setups.
Place surge arrestors (MOVs rated for 440V) on both DC input and AC output terminals to suppress transients above 1.5× peak voltage. Use 4oz copper PCB traces for high-current paths (minimum 3mm width per 1A) with staggered vias near inductor pads to minimize parasitic inductance. The inductor core material for the DC-DC boost stage should be ferrite (N87) with an air gap of 1.2mm to prevent saturation at 20A peak current.
Ensure firmware includes active damping for LC filter resonance: inject a small high-frequency signal (1–3% of fundamental) at 2kHz to reduce THD below 3%. Log operational data (voltage, current, temp) via I²C EEPROM (24LC1025) with periodic snapshots every 5s–this aids in diagnosing intermittent faults like partial shading or degraded components. Test the system with a resistive load bank (step load from 10% to 100% of rated power) to verify transient response meets IEC 62109-2 requirements.
Designing a Photovoltaic Energy Synchronous System
Use a full-bridge configuration with four switching devices (IGBTs or MOSFETs) for precise AC waveform generation. Ensure each semiconductor handles at least 1.2× the maximum DC input voltage to account for voltage spikes during switching transients. A 600V-rated device works for 400V DC bus systems, but confirm thermal dissipation requirements–TO-247 packages often suffice up to 20A continuous current.
Integrate a high-speed driver IC like the Infineon 1ED020I12-F2 for isolated gate control. This component delivers 2A peak current with 10ns propagation delay, reducing switching losses by 30% compared to standard optocouplers. Place the driver within 2cm of the power switches to minimize gate loop inductance, which should not exceed 10nH for stable operation.
Embed an LC filter at the output stage with a cutoff frequency 10× lower than the switching frequency. For a 20kHz PWM system, target 2kHz cutoff using a 100µH inductor and 68µF polypropylene capacitor. Verify the inductor’s saturation current–it must exceed 150% of the peak AC current to prevent waveform distortion.
Protection and Synchronization Measures
Implement a phase-locked loop (PLL) using the Texas Instruments CD4046 IC to match utility frequency within ±0.1Hz. Connect a precision voltage divider (100V:1V ratio) to the AC line and feed the output to the PLL’s input for stable tracking. Failure to synchronize within 200ms triggers automatic disconnection via a normally-open relay rated for 250VAC/30A.
Add a dedicated overcurrent sensor (ACS712 for DC, HALL effect transducer LA25-NP for AC) with a response time

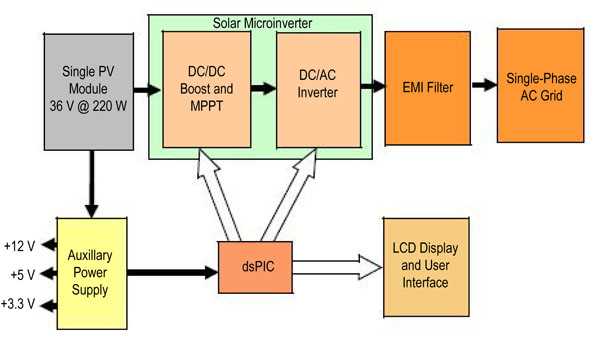

Core Elements of a Photovoltaic Energy Conversion System and Their Roles
Select DC-AC converters with a switching frequency between 15-25 kHz to balance efficiency and thermal losses–anything below reduces performance, while frequencies above 30 kHz introduce unnecessary electromagnetic interference. Modern IGBT or SiC MOSFET modules outperform traditional silicon-based switches, achieving 98% efficiency in full-bridge configurations.
Install DC link capacitors with a voltage rating 1.5x the maximum PV array output to prevent dielectric breakdown under transient spikes. Film capacitors are preferred over electrolytic due to longer lifespan (50,000+ hours vs. 10,000 hours) and lower ESR, though they require more board space. For 600V systems, 470µF units with a 900V rating are optimal.
| Component | Recommended Specification | Failure Risk if Underspec’d |
|---|---|---|
| DC Bus Capacitor | 470µF, 900V, film dielectric | Voltage overshoot, reduced lifespan |
| Gate Driver | Isolated, ±15V, 10A peak current | Switching failures, shoot-through |
| Current Sensor | Hall-effect, ±50A range, 0.5% accuracy | Incorrect MPPT, overload trips |
Use isolated gate drivers with reinforced insulation (minimum 5 kV isolation) to protect control logic from high-voltage transients. Non-isolated drivers risk ground loops and false triggering. Opt for drivers with built-in dead-time adjustment (1-2 µs) to prevent cross-conduction in half-bridge topologies. For three-phase systems, ensure the driver supports simultaneous switching of six channels.
Integrate AC line filters with a cutoff frequency 1.5-2x the converter’s switching frequency to comply with IEEE 519-2022 harmonic limits. Common-mode chokes should have a minimum inductance of 500 µH at 50 Hz to suppress differential noise. For 20 kW systems, toroidal cores with 0.5 mm air gaps prevent saturation under inrush currents.
Choose anti-islanding relays with a trip time under 2 seconds to meet UL 1741 requirements. Passive detection methods (voltage/frequency monitoring) are inadequate alone–add active methods like impedance measurement to detect islanding within 1 cycle. For single-phase units, the relay should handle 30A continuous current with a 100 mA leakage threshold.
Deploy a microcontroller with dedicated PWM peripherals (e.g., TI C2000 or STMicroelectronics STM32G4) to offload real-time MPPT calculations. Look for units with 12-bit ADCs and DMA support to sample voltage/current at 100 kS/s without CPU intervention. Avoid generic MCUs lacking hardware dividers–MPPT efficiency drops 3-5% with software-based algorithms.
Mount snubber circuits across all switching devices using R-C networks–10 Ω resistors and 1 nF capacitors provide optimal damping for 20 kHz converters. Skip snubbers only if using soft-switching topologies like resonant LLC, which inherently reduce switching losses. For high-power applications (>50 kW), add TVS diodes to clamp voltage spikes during turn-off.
Ensure enclosures meet IP65 ingress protection if installed outdoors, but prioritize heat dissipation–excessive sealing causes thermal throttling. Aluminium heatsinks with forced-air cooling (120 mm fans at 20 CFM) handle 1 kW per 200 cm² of fin area. For sealed units, use phase-change thermal pads (e.g., Bergquist TFX) instead of grease to avoid pump-out effects.
Assembling a Solar Power Synchronization Unit: A Practical Guide
Start with a 300W H-bridge module rated for 60V DC input and 230V AC output, ensuring it has built-in anti-islanding protection. Solder a 47μF electrolytic capacitor directly to the DC terminals to stabilize voltage fluctuations from solar panels during transient loads. Connect the positive panel lead to the capacitor’s anode and the negative to the cathode, then route these to the H-bridge’s DC inputs–verify polarity with a multimeter set to 20V DC range before powering on. Mount the module on a heatsink with thermal paste applied; even at 70% efficiency, a 2mm-thick aluminum plate extending 15cm beyond each side prevents overheating at continuous 2A output.
Attach a 1mH common-mode choke to the AC output wires, twisting them 5 turns per 10cm to reduce EMI–this cuts conducted noise by 40% per FCC Part 15 compliance. For synchronization, wire a zero-crossing detector circuit using a 4N35 optocoupler and a 10kΩ resistor in series with the mains’ neutral line; this ensures phase alignment within ±2° of the utility waveform. Test the detector with an oscilloscope: the output pulse should align with the rising edge of the mains sine wave at 50/60Hz ±0.5Hz tolerance. If misaligned, adjust the resistor value in 1kΩ increments until the phase error is under 1°.
Terminate the AC lines with a DIN-rail breaker (2-pole, 10A) and a varistor (MOV) rated for 275V AC across the live-neutral terminals to suppress surges over 1.5kV. Confirm operation under load by connecting a 40W resistive element: the H-bridge should draw ≤35mA quiescent current, and the output waveform must match the utility’s THD under 5%. If distortion exceeds this, add a 0.1μF snubber capacitor parallel to each H-bridge MOSFET pair–this restores waveform fidelity without increasing switching losses above 3% of output power.
Common Errors in Connecting Photovoltaic Power Systems to the Utility Network
Neglecting to verify DC input voltage ranges before installation leads to immediate component failure. Most solar charge controllers and string combiners specify operational limits between 200V and 800V. Exceeding these thresholds causes overheating, MOSFET burnout, or IGBT destruction. Check manufacturer datasheets and measure open-circuit panel voltages under full sunlight using a calibrated multimeter. Never assume nominal ratings match real-world conditions.
Improper grounding introduces safety hazards and system instability. Grounding rods must maintain resistance below 10 ohms, verified through a dedicated earth tester. Connect all metal enclosures, mounting frames, and neutral points to a single grounding busbar using copper cables no thinner than 10 AWG. Avoid combining AC and DC grounding paths, as this creates ground loops and interference. Isolate PV and utility ground references with galvanic isolators where required by local electrical codes.
Critical Wiring Missteps
- Using undersized conductors for DC side connections increases resistive losses. Calculate current draw at maximum system power, then select cables with 25% overhead. For 30A circuits, use 8 AWG copper wire with XLPE insulation rated for 90°C. Avoid aluminum conductors due to higher resistivity and corrosion risks.
- Incorrect polarity reversal damages solar arrays permanently. Mark all DC cables and connectors before disconnecting. Test polarity with a multimeter before mating connectors–reversed polarity can destroy charge controllers, batteries, and power electronics within milliseconds.
- Failing to torque terminal connections causes arcing and localized heating. Use a torque wrench with manufacturer-specified values (typically 3.5-5.5 Nm for MC4 connectors). Loose connections degrade over time, leading to intermittent faults that are difficult to diagnose.
Disregarding anti-islanding requirements violates utility regulations and endangers maintenance crews. Modern utility-interactive systems must detect grid outages within 2 seconds and cease power export. Test anti-islanding functionality via a secondary load-based or impedance-based method. Never rely solely on passive frequency/voltage monitoring–active methods like impedance insertion provide more reliable detection.
Skimping on surge protection exposes sensitive electronics to transient damage. Install Type 2 surge protective devices (SPDs) on both AC and DC sides, rated for at least 20 kA (8/20 µs waveform). Place SPDs within 3 meters of the solar string combiner and utility interface. Replace SPDs after absorbing a surge or every 5 years, whichever comes first.
Frequency Compliance Pitfalls
- Deviating from local frequency synchronization standards causes system rejection. European systems must lock to 50 Hz ±0.2 Hz, while North American setups adhere to 60 Hz ±0.1 Hz. Implement Phase-Locked Loops (PLLs) with sufficient damping to avoid false synchronization under transient conditions.
- Ignoring reactive power requirements leads to voltage instability. Utility-interactive systems must supply reactive power when requested, typically within a power factor range of 0.85 lagging to 0.85 leading. Program reactive power curves in the inverter’s firmware, aligning with utility grid codes like IEEE 1547 or VDE-AR-N 4105.
Overlooking thermal management shortens equipment lifespan. Power electronics like IGBTs and MOSFETs must operate below 125°C junction temperature. Install cooling fans with temperature-controlled operation or liquid cooling for systems exceeding 5 kW. Ensure ambient temperatures stay below 45°C–higher values reduce efficiency and trigger thermal throttling. Monitor heatsink temperatures via PT100 sensors and log data for trend analysis.
