Start by identifying the three key terminals on the control module: input, load, and ground. The input terminal receives power from the fuse box–typically a 12V source linked to the ignition or battery. The load terminal routes current to the front lamps, while the ground ensures stable operation. Connecting these incorrectly risks short circuits or dim lamp performance. Use a multimeter to verify voltage before securing any connections.
For most vehicles, the input wire should be yellow or red, carrying a constant 12V supply. Load wires–often white, blue, or green–must match the bulb wattage rating. Ground wires, usually black or brown, require a clean, corrosion-free attachment point, preferably the vehicle’s chassis. Avoid using painted surfaces; bare metal ensures reliable grounding.
When splicing wires, use heat-shrink tubing or crimp connectors instead of electrical tape. Tape degrades over time, exposing wires to moisture and vibration. For high-beam circuits, add a relay if the current exceeds 10 amps–this prevents overheating and extends lamp life. Test each circuit with the engine off, then running, to confirm proper function before finalizing installation.
If the control fails to toggle between low and high beams, check the dimmer relay or switch mechanism. A faulty relay often clicks without engaging; replace it if resistance exceeds 0.5 ohms. For vehicles with daytime running lights, ensure the wire gauge supports additional load–upgrade to 14 AWG if necessary. Misaligned circuits can trigger dashboard warnings or fuse blows; diagnose by isolating each wire and measuring continuity.
How to Connect a Multi-Vehicle Lighting Control Module
First, identify the power input terminal. Most aftermarket modules accept a 12V feed from the ignition-switched circuit or a direct battery line. Use a 20A fuse within 18 cm of the positive connection to prevent fire hazards. Label each wire with its function–common color codes include red for live, black for ground, yellow for high beams, and white for low beams–to avoid cross-wiring.
Connect the control module’s ground terminal to a bare metal chassis point using a minimum 14-gauge wire. Avoid daisy-chaining grounds; instead, run a dedicated line to the nearest unpainted frame or engine block surface. Poor grounding causes flickering, dim output, or intermittent operation. Test continuity with a multimeter before finalizing the connection.
Route the output lines to the lighting assembly through a protective conduit–split-loom tubing or corrugated plastic sleeving–to shield wires from abrasion and heat. Secure cables every 30 cm with zip ties or adhesive clips, keeping them away from moving parts, exhaust manifolds, and sharp edges. For halogen or LED upgrades, verify polarity: forward voltage drops differ, and reversing polarity can destroy the bulbs instantly.

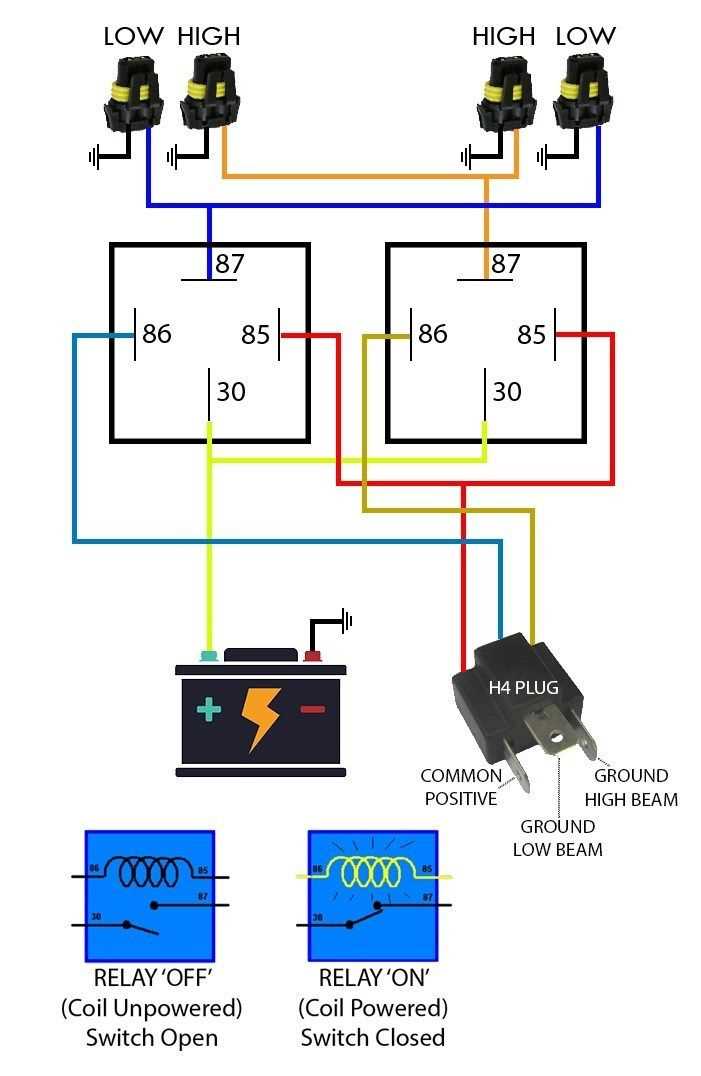

Integrate a relay if the module lacks built-in current handling. A standard 30/40A relay isolates the control signal from the power load, ensuring clean on/off switching without voltage spikes. Wire the relay coil to the module’s output terminal, the 87 terminal to the bulb socket, and the 85/86 terminals to ground and switched power respectively. Omit this step only if the documentation specifies a relay-free configuration.
Before sealing connections, perform a functional test. Activate each setting–parking, dim, bright, and fog modes–while monitoring for consistent illumination and proper indicator feedback (if equipped). Check for parasitic draw by disconnecting the battery and measuring current with an ammeter; anything above 50 mA indicates a faulty circuit requiring isolation. Document your setup with a digital photograph for future reference.
Locating Critical Connections on a Multi-Function Lighting Control

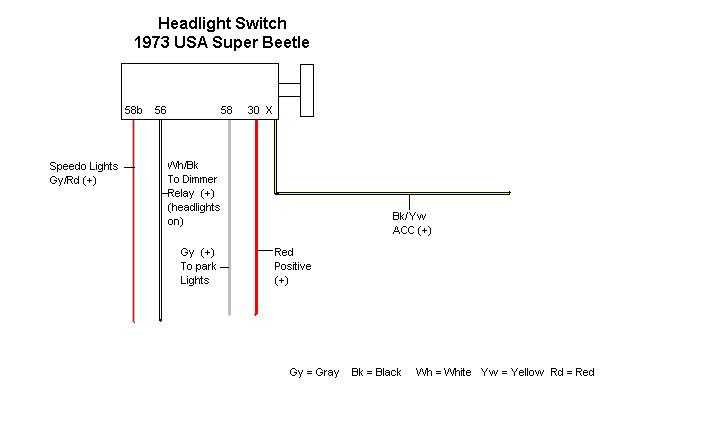

Start by identifying the Battery Input (B+) terminal–typically marked with a bold red wire or a label like “30” or “In.” This point delivers constant power from the vehicle’s electrical source, ensuring the control retains memory for settings like dimmer positions. Verify this connection with a multimeter set to DC voltage; a reading of 12-14V confirms correct linkage.
Trace the dimmer output next, often labeled “L” or “56b.” This terminal regulates the brightness of dashboard and interior lamps. If incorrectly wired, it can cause erratic behavior–flickering or failure to adjust. Test by activating the panel lights; voltage should drop from 12V to ~2V when turned to maximum dimness.
The low-beam signal (commonly “H” or “56”) demands precise attention. A current of 8-10A flows here, powering the primary illumination. Misrouting risks fusing the relay or burning the wire gauge–use 14-12 AWG copper strands for safety. Cross-check with the vehicle’s fuse box diagram; some models require an inline 15A fuse.
Ground terminals (usually “31” or “GND”) cluster near mounting points. Poor grounding leads to intermittent operation–scratch paint to bare metal and secure with a star washer. For vehicles with daytime running lights, isolate the auxiliary feed (“DRL” or “58”) to prevent backfeed into the parking circuit.
Label each terminal with heat-shrink tubing before disconnecting. Use a pinout reference specific to the control’s make–aftermarket units from Autolight, Hella, or Bosch vary subtly in pin numbering. Match wire colors to OEM schematics when available; generic aftermarket kits often invert brown (ground) and yellow (signal) leads.

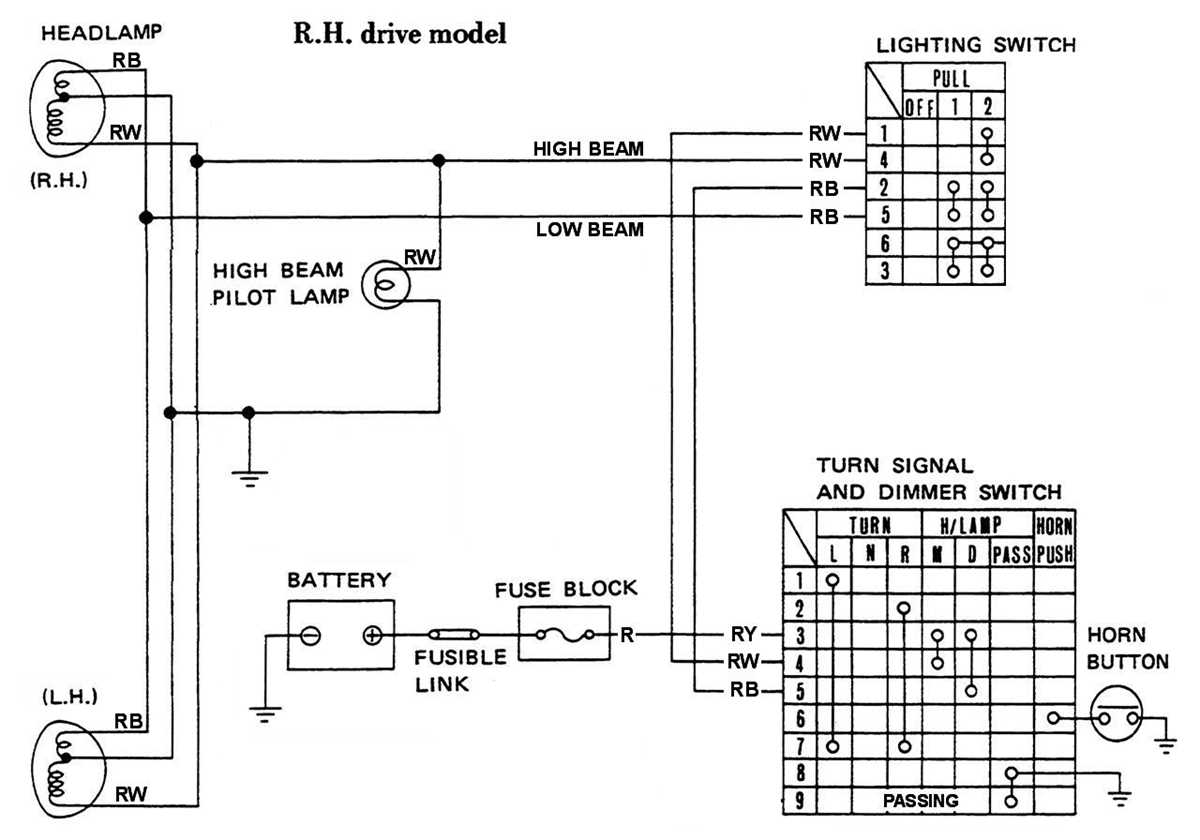

Step-by-Step Connections for Vehicle Front Lighting Circuits
Locate the main power feed from the fuse box–typically a 10–15A fuse labeled “LTS” or “EXT LAMPS”–and route a 16-gauge red wire from this terminal to the control module’s ignition-switched input. Connect a 18-gauge white wire from the module’s ground terminal to a bare metal chassis point with a star washer, ensuring resistance under 0.5 ohms. For the primary beams, attach a dual-filament bulb’s high-beam filament to a 14-gauge yellow wire leading to the module’s HB output, while the low-beam filament links to a 14-gauge light blue wire at the LB terminal. Parking lamps require a 18-gauge brown wire from their bulb socket to the PL output on the module; verify polarity with a test light before securing connections. Daytime running modules (DRMs) often integrate with the low-beam circuit–if separate, splice a 18-gauge white/black wire into the LB wire before the bulb, then route to the DRM’s input. Use waterproof crimp connectors and heat-shrink tubing for all splices, avoiding solder-only joins in high-vibration areas.
Troubleshooting Common Pitfalls
- Flickering or intermittent operation: Check for loose fuse clips–clean corrosion with a wire brush, then apply dielectric grease. Replace 20A fuses with 15A if overheating occurs.
- Single circuit failure: Probe the module’s output terminals with a multimeter (set to DC 12V). A voltage drop below 11.8V indicates a faulty relay or corroded socket–bypass the relay temporarily to isolate the issue.
- Parking lamps illuminating with ignition off: Reposition the 18-gauge brown wire to the PL output; some vehicles require a dedicated relay for parking circuits.
- DRMs not activating: Confirm voltage at the DRM input–most systems require ignition-on power. If absent, splice into the low-beam circuit before the bulb.
- Label each wire at both ends with masking tape–e.g., “LB OUT – Left Bulb” or “PL – Rear Right Socket”–before disconnecting factory harnesses.
- Test all functions with a scan tool or by cycling the stalk lever before finalizing harness ties; mock-install bumpers or grilles if necessary to avoid pinching wires.
- Route wires away from moving components (hinges, radiator fans) using split-loom tubing; secure every 6 inches with nylon zip ties.
Standard Wire Color Schemes for Automotive Lighting Controls
Black or brown wires typically carry ground signals in most factory and third-party setups–verify with a multimeter to confirm zero voltage before connecting. Factory harnesses from GM often use a dark green wire for high-beam activation, while Ford systems may employ a light blue with a white stripe for the same function; always cross-reference with the vehicle’s electrical manual before modifying.
Power feeds for primary circuits usually come via red or pink conductors, though late-model Chrysler products sometimes substitute an orange wire with a black tracer. Aftermarket replacements frequently adopt yellow for low-beam outputs–ensure this matches the original equipment color scheme to prevent back-feeding voltage into sensitive modules.
Dimmed instrument panel feeds, commonly gray or gray with a colored stripe, must be isolated from main power circuits; improper connection can damage dash illumination or trigger fault codes in CAN-based networks. Toyota and Subaru often encode park-lamp signals on a solid green conductor, while Hyundai-Kia systems can split this function across two thinner wires–purple for running lights, light green for side markers.
Auxiliary outputs like fog-beam drivers appear on gray wires with red stripes in many European brands, but Asian circuits may repurpose thin violet conductors instead. When routing replacements, keep load-carrying cables at least 1.5 mm² to prevent voltage drop under extended operation–undersized wiring risks overheating and intermittent failures.
Indicator lamps for active lighting states–high-beam or fog-beam–usually terminate on a light blue or tan wire; measure these outputs for pulsed signals if LED retrofits show flickering. Nissan and Mazda utilize a dedicated violet-lead circuit for auto-lamp sensing; bypassing this during upgrades can leave headlamp delay features non-functional.
Secondary circuits such as daytime running regulators frequently route through a white wire with black tracing–disconnecting this without proper load simulation may disable daytime running lights or cause body-control modules to log faults. Always use heat-shrink tubing on splices exposed to engine-bay temperatures above 85 °C to prevent insulation degradation.
Many late-model vehicles integrate communication lines–CAN or LIN–within multi-function control stalks; these appear as yellow-orange or green-orange harnesses and require matched-impedance termination to avoid network errors. Locate diagnostic pinouts first; inserting trial connections without resistance checks risks corrupting module firmware.
