Before modifying or troubleshooting any connections in your battery-powered utility vehicle, obtain a precise schematic tailored to your model year. Older TXT versions (pre-2015) rely on a 36V system with six 6V lead-acid accumulators arranged in series across contactor, controller, and motor terminals. Verify fuse ratings–standard 300A main fuse for 36V and 400A for 48V variants–to prevent thermal runaway during peak current draws.
Trace the positive feed from the solenoid to the speed sensor: corrosion at this junction mimics throttle failure. Use dielectric grease when reconnecting the Molex plugs–oxidized pins drop voltage by 0.5V or more, causing erratic acceleration. For 2018+ Freedom models with 72V lithium packs, note the separate 12V auxiliary circuit powering lights and accessories; misrouting here drains the main pack overnight.
Replace stock #10 AWG cables with tinned copper #4 AWG if upgrading to higher-capacity cells–the thinner wires overheat at 250A continuous. Label all ground points: frame, motor housing, and controller chassis must share a single low-resistance path to the negative battery terminal. Use a multimeter to confirm less than 0.2 ohms across each connection; readings above 0.5 ohms indicate loose mounting bolts or degraded terminal surfaces.
Install a shunt between the B- terminal and controller ground only if adding amp-hour meters–incorrect placement skews readings by 10-15%. For regenerative braking systems, confirm the diode array is oriented correctly; backward installation reverses current flow, damaging the traction motor. Keep the schematic on hand when servicing: color codes change yearly (e.g., 2012 models use orange for key switch feed, while 2020 models repurpose orange for accessory buses).

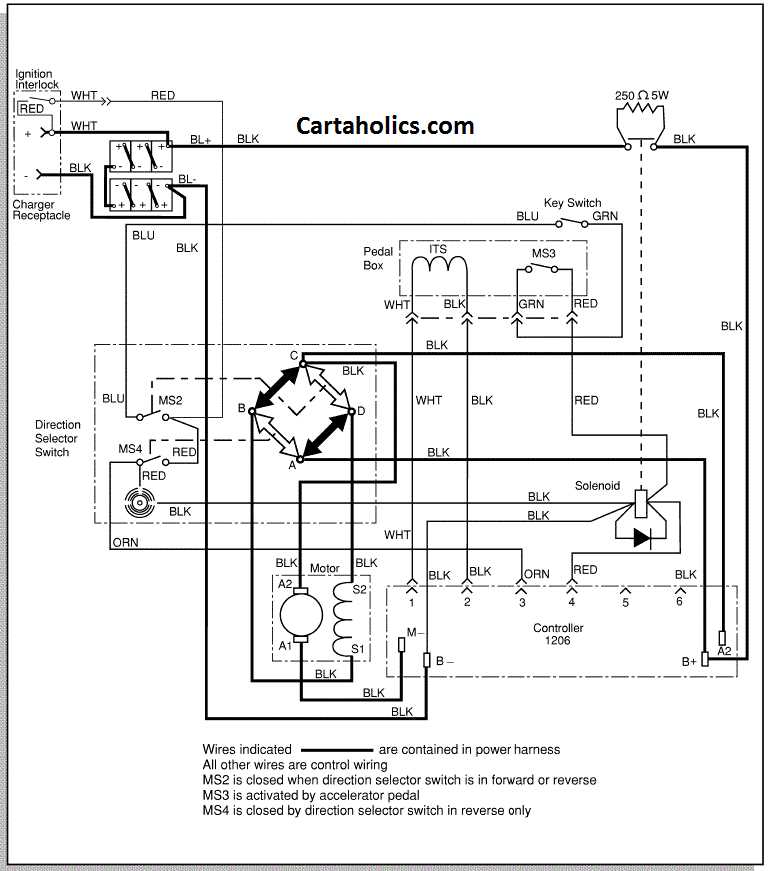

Electrical Schematic Guidance for EZGO Vehicles
Inspect the main solenoid first–locate it near the battery pack under the seat. Terminals must show zero corrosion; clean with a wire brush if oxidation appears. A multimeter reading below 10.5V across the solenoid’s large posts indicates battery failure; replace all six 6V cells if this occurs.
Trace the accelerator microswitch circuit next. The pedal assembly connects to a small four-pin plug labeled “PWR” on the controller. Pin 1 (red) carries 5V reference, pin 2 (black) is ground, pin 3 (white) signals pedal position. A broken white wire causes full-throttle stall–test continuity with the pedal pressed fully.
Verify charger interlock wiring. The DC jack on the dash has two small terminals: one to pin 15 on the speed controller, the other to pin 7. Both must read 12V when the charger plugs in; otherwise, frayed wires near the jack or faulty diodes block charging. Replace the jack assembly if voltage drops below 11.8V.
Check the key switch harness. The ignition cylinder connects to three wires–red (constant 12V), black (ground), and yellow (accessory). A loose yellow wire cuts power to the F&R switch; tighten the crimp connector secured with a 10mm nut behind the dashboard.
Examine the motor field coils. The rear cover hides two heavy cables–thick red to M+ and thick black to M−. Resistance between them should measure 0.3Ω; readings above 1 Ω confirm burned windings requiring motor rebuild or replacement.
Review solenoid relay activation. The small yellow wire from the controller feeds coil current; disconnect it and jump momentarily to the red solenoid post–clicking confirms the coil works, silence means relay failure. Swap the entire solenoid unit if no click occurs.
Monitor the reed switch circuit. The brake pedal activates a magnetic sensor mounted on the frame. Four colored wires (red, black, blue, green) plug into the rear chassis loom; blue and green should close when the pedal presses. A stuck reed switch keeps the cart braking–replace the switch assembly.
Confirm fuses and breakers. The main distribution box sits left of the seat containing three spade fuses–30A for main power, 25A for lights, 10A for accessories. Remove each fuse, check for blown filaments, and clean holder contacts with emery cloth to prevent voltage drop.
Locating Critical Parts in Your EZGO Vehicle Power System Layout

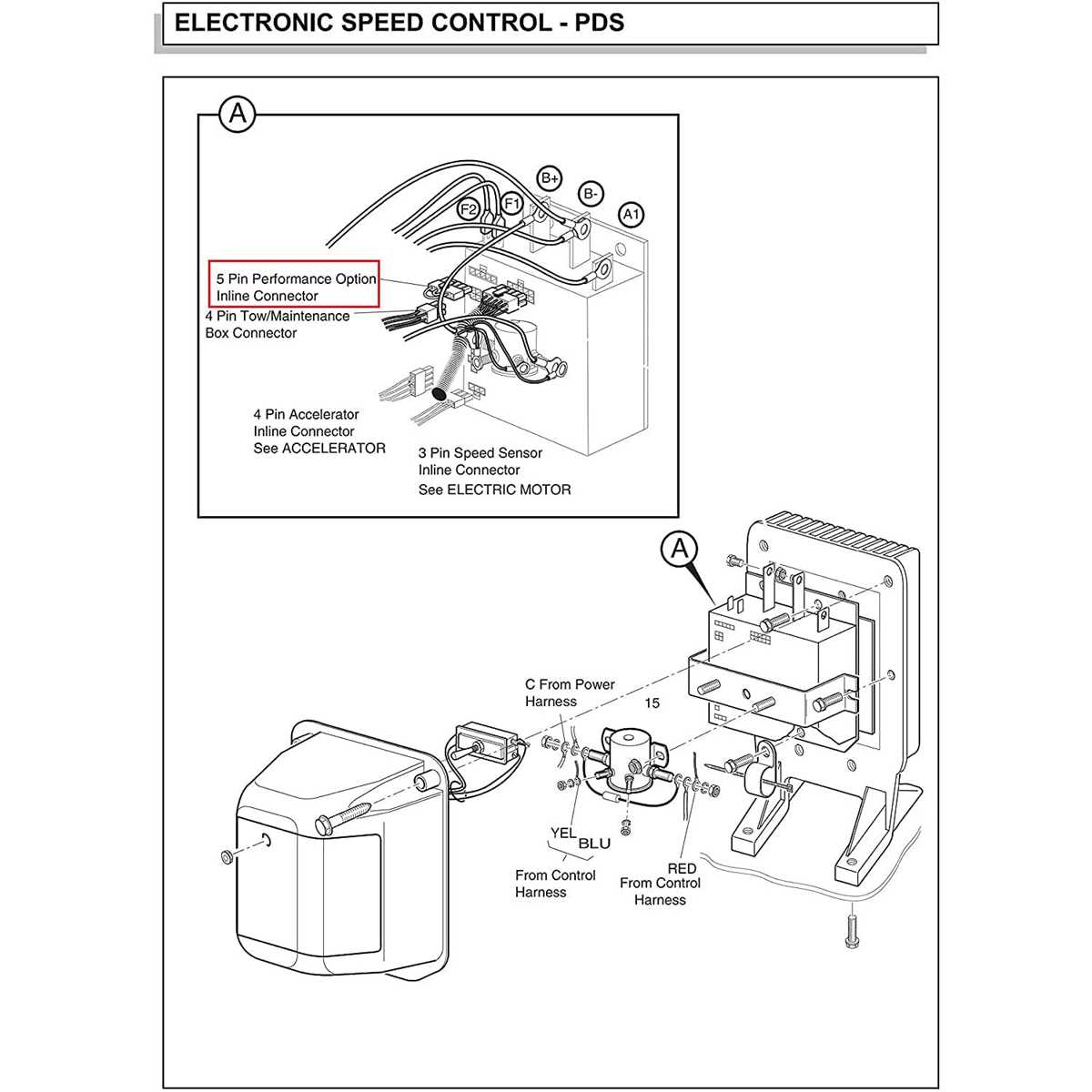

Begin by pinpointing the controller unit – typically a rectangular module with multiple connectors near the motor. This device regulates voltage flow and determines speed; verify its model (e.g., Curtis 1236 or 1266) to cross-reference terminal assignments. Mislabeling here risks incorrect connections leading to erratic acceleration or complete power failure.
Trace thick cables from the battery pack to the solenoid, identifying the positive lead (usually red) and main relay contacts. The solenoid acts as a high-current switch; inspect its activation coil wire (smaller gauge) linking to the ignition key. Corrosion on these contacts causes intermittent starting issues, so clean with a wire brush if resistance exceeds 0.5 ohms.
Examine fuse holders along the main power path – EZGO often places a 200-300 amp fuse near batteries. Replace blown fuses with identical ratings; using higher amperage fuses bypasses critical protection, risking overheating in cables rated for 4 AWG. Check for heat marks on insulation indicating past overcurrent events.
Locate the throttle potentiometer, recognizable by its three-wire harness (signal, 5V reference, ground). Test with a multimeter: resistance should vary smoothly from 0.5kΩ to 4.5kΩ as the pedal moves. Intermittent values signal a faulty unit requiring replacement to prevent uncontrollable speed fluctuations.
Identify the field coil resistor pack when working with separately excited motors. These resistors (often ceramic) sit in series with motor terminals, marked with ohmic values (e.g., 0.75Ω). Incorrect resistor selection alters torque curves; reference manufacturer specs for your specific drive train configuration.
Map auxiliary circuits last: lights run on 12V from a DC-DC converter, while accessories like radios may tap directly from main battery terminals. Use color-coded wires (yellow for key switch, green for brake) to isolate circuits during troubleshooting. Label each connection with heat-shrink identifiers to prevent cross-circuit errors during future maintenance.
Step-by-Step Guide to Tracing the Primary Current Path in EZGO Vehicles
Locate the battery pack’s positive terminal–marked by a bold red cable–and follow it directly to the solenoid. Use a multimeter set to DC voltage (200V range) to confirm a reading of 36V–48V between this terminal and the chassis ground before proceeding. This verifies the source is live and eliminates false starts.
From the solenoid’s large input post, track the thick output cable to the speed controller’s main power input. Visually inspect the cable for abrasions, corrosion, or melted insulation–common failure points in older models. If the conductor shows any discoloration, replace the entire cable harness rather than splicing repairs.
Critical Junctions and Voltage Drop Testing
Identify these key connection points and test for voltage drop under load (activate the accelerator pedal while measuring):
| Junction | Expected Voltage (Loaded) | Acceptable Drop (Max) |
|---|---|---|
| Solenoid output → Controller input | 36V–48V | 0.5V |
| Controller output → Motor lead (A) | 36V–48V | 1.0V |
| Controller output → Motor lead (F) | 12V | 0.2V |
Exceeding these thresholds indicates high-resistance connections; disassemble, clean with electrical contact cleaner, and reassemble using dielectric grease to prevent oxidation.

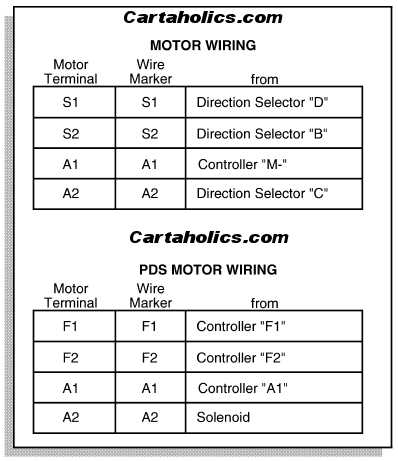

Trace the controller’s two output cables–one thick (armature) and one thin (field)–to their corresponding motor terminals. Label each with masking tape to avoid misconnection during reassembly. The thin wire typically connects to the smaller field lug, while the thick cable attaches to the larger armature lug. Reverse polarity here will damage the controller instantly.
Check the motor’s ground path by measuring continuity between the negative battery terminal and the motor housing. A reading above 1Ω suggests corroded frame ground points; scrape paint from the chassis at the grounding bolt, apply corrosion inhibitor, and retighten. Repeat the test with the multimeter’s continuity setting.
Finally, engage the accelerator and monitor the controller’s input voltage while observing the motor’s behavior. A healthy system will show smooth voltage transition from 0V to full battery voltage as pedal pressure increases. Sudden drops or erratic readings point to a failing potentiometer or controller–replace both units simultaneously to avoid cascading failures.
Frequent Electrical Problems and Diagnostic Steps in EZGO Vehicles
Check the primary power connections if the vehicle fails to start. Corrosion on battery terminals often disrupts current flow. Use a wire brush to clean terminals thoroughly, then apply dielectric grease to prevent future oxidation. Replace damaged cables immediately–frayed or exposed conductors create resistance, reducing voltage by 10-30%.
Inspect the solenoid for clicking sounds without engagement. A faulty solenoid may draw excessive current, overheating nearby components. Test it with a multimeter: voltage below 11.5V at the small terminals indicates internal failure. Replace the part if readings confirm malfunction–repairs are unreliable and short-lived.
Signs of Controller or Motor Issues
- Erratic acceleration or sudden power loss
- Burning smell near the motor housing
- Voltage drop exceeding 1V under load
If symptoms appear, first rule out loose connections at the motor. Tighten all terminals with a torque wrench (7-9 Nm). For persistent problems, test motor windings for continuity–resistance should match manufacturer specs (±5%). Deviations signal shorted or open coils, requiring motor replacement.
Replace blown fuses with exact amperage ratings. Common culprits include 30A and 50A fuses for accessory circuits. Never use higher-rated substitutes–this risks damaging sensitive electronics. Verify circuit loads with an amp clamp; currents exceeding 80% of fuse rating indicate underlying shorts.
Troubleshooting Lighting and Accessory Circuits
Dim or flickering headlights often trace to poor ground connections. Locate the main body ground (typically near the controller) and ensure it’s clean, tight, and free of paint. For 12V accessory issues, check the key switch contacts–oxidation reduces conductivity. Apply contact cleaner and operate the switch 10-15 times to restore function.
- Disconnect the battery before any diagnostic work.
- Label all connectors during disassembly to avoid miswiring.
- Use heat-shrink tubing on repaired connections to seal out moisture.
- Test systems after repairs with a load–batteries alone can mask issues.
Overheating batteries signal either overcharging or sulfation. Check charger output voltage–ideal range is 36-42V for 36V systems. For sulfated batteries, use a desulfating charger before considering replacement. Replace batteries as a complete set to maintain balanced performance.
