For independent control from two separate points, use a three-way connector setup. Connect the incoming hot line to the common terminal of the first control device. Link the traveler wires between the two controls, ensuring polarity matches–terminals marked “A” connect together, as do “B”. The second device’s common terminal carries power to the fixture. Verify compatibility with LED loads before finalizing.
Strip insulation no more than 12mm–excess bare wire risks shorts. Secure junctions with UL-listed wirenuts, twisting clockwise before capping. For metal conduit, isolate ground at each box with a green 10-gauge bonding jumper. If using Romex, loop a 6-inch tail from the box clamp to the fixture’s ground screw.
Test before closing walls: confirm power toggles correctly from both ends. If the connection fails, recheck traveler polarity–swapped wires disable functionality but pose no hazard. Dimmer-compatible models require neutral at both ends; confirm with a multimeter at 0V between neutral and ground before energizing.
Alternate approach for complex installations: splice the supply at the first box, pigtail a 14 AWG jumper to the fixture, and use dead-end lacing at unused terminals. This avoids confusion in junction boxes with multiple circuits. Always cap unused wires individually–grouping risks grounding faults.

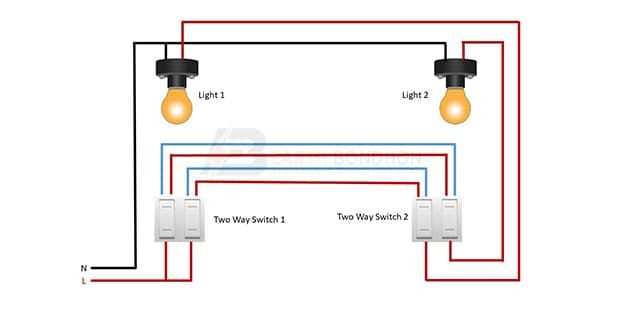

Dual-Control Circuit Schematics for Illumination
Begin by installing a three-way control mechanism at each endpoint of the circuit. These devices–typically marked with “COM,” “L1,” and “L2” terminals–must connect to 14-gauge stranded copper wire for optimal conductivity. The common terminal (COM) carries the live feed or return, while L1 and L2 alternate the circuit path. Secure connections with twist-on wire nuts rated for 600V minimum, ensuring insulation resistance exceeds 10MΩ.
Route the supply cable from the breaker panel to the first control unit. Use 12-gauge wire if the load exceeds 10A; otherwise, 14-gauge suffices. Split the neutral (white) wire directly to the fixture without passing through either control point–this prevents unintended voltage drops. The ground (bare or green) must bond to all metal junction boxes and the fixture’s grounding screw. Verify continuity with a multimeter set to ohms; resistance should read below 0.1Ω.
| Wire Gauge | Max Ampacity | Min Insulation Thickness |
|---|---|---|
| 14 AWG | 15A | 1.14 mm |
| 12 AWG | 20A | 1.52 mm |
Connect the traveler wires between both control points. These pairs–usually red and black–transmit the circuit state between mechanisms. Label them clearly at every junction to avoid miswiring, which risks shorting the system. Test each traveler path by toggling one control; the corresponding terminal on the opposite unit should show 120V when live. If voltage is absent, check for loose nuts or broken strands.
Attach the fixture by joining its hot lead to the second control’s common terminal. The return path must originate from this point back to the panel. Use a pigtail splice for secure attachment, limiting strand exposure to under 6mm. For fluorescent or LED loads, add a bypass capacitor (0.1µF, 250V) across the fixture’s terminals to suppress radio-frequency interference, measurable as a 1-3dB reduction on a spectrum analyzer.
Avoid daisy-chaining more than two controls–additional units create unreliable transitions and violate NEC 210.4. If expanded control is necessary, substitute with a low-voltage relay system (24V DC coil) or smart modules compatible with 3-way logic (e.g., Lutron Caséta). Confirm compliance with local electrical codes; some jurisdictions mandate AFCI protection for circuits feeding lighting in habitable spaces.
Final checks include a polarity test: toggle each control and observe fixture behavior. The lamp should alternate between on/off states without flicker or hum. If flicker occurs, reduce the circuit length below 50 feet or add a ferrite choke near the fixture. Document the completed schematic–mark breaker amperage, wire colors, and terminal assignments on the panel schedule for future reference.
Dual-Control Circuit Installation Guide
Begin by identifying the power source feed at the first terminal location. Use a 14-gauge solid copper conductor for standard residential loads under 15 amperes. Strip 3/8 inch of insulation from each wire end, ensuring no exposed copper extends beyond the terminal screw. Route the hot conductor from the source directly to the common screw, typically marked black on the device casing.
Connect the traveler terminals with paired wires–one set to each intermediary point. These must be identical in gauge and color to avoid misidentification. Label both traveler wires at each junction box using colored tape or tags for clarity during maintenance. Secure all connections with wire nuts rated for the conductor gauge, twisting clockwise before capping to prevent loosening under vibration.
At the secondary control point, splice the common conductor from the load device to the traveler pair using a pigtail. This creates an uninterrupted path for current flow in either position. Verify polarity by energizing the circuit momentarily and toggling both devices; the downstream fixture should respond instantly without flickering. If latency occurs, recheck traveler continuity with a multimeter set to 200-ohm range.
Grounding is non-negotiable–bond all metallic enclosures with a minimum 12-gauge bare or green-jacketed conductor. Attach one end to the grounded bus bar at the panel and the other to each device’s green grounding screw. Confirm resistance readings below 0.5 ohms between any two grounding points to ensure fault current dissipation. Omit this step only if working with non-metallic conduit systems where grounding conductors are installed separately.
Conceal all connections inside approved junction boxes, spacing conductors at least 1/4 inch apart to meet NEC box fill calculations. Snap covers in place after final functional testing–rolling both control devices through their full range to confirm smooth operation. Document the circuit path with permanent markers on box interiors for future troubleshooting reference.
Essential Gear and Supplies for a Dual-Control Illumination Setup
Start with a voltage tester–non-contact models like the Klein NCVT-3 detect live currents without direct contact, reducing risks of accidental shorts. Opt for a tester rated at least CAT III 600V for residential work to handle unexpected power surges.
Wire strippers with precision cutting edges prevent nicked conductors. Look for ones with built-in crimper jaws, like the Irwin Vise-Grip 2078300, to handle both 12-gauge solid and 14-gauge stranded copper without damaging insulation. Avoid cheap variants that fold under slight pressure.
Junction boxes must meet local codes–plastic clamshell types (e.g., Carlon B114R) suffice for single-room setups, but metal gangable boxes (Hoffman 102812) resist heat better in garages or attics. Choose deep models (minimum 3.5″ depth) to accommodate extra conductors without crowding.
Core Components
- Toggle controls: Decora-style rockers (Lutron Ariadni) offer cleaner aesthetics and easier cleaning than traditional levers, but ensure back-wiring clamps rather than side screws for secure connections.
- Conductors: Romex NM-B 14/3 cable between controls and fixture; 12/3 if circuit amperage exceeds 15A. THHN wire in conduit (10-gauge minimum) suits exposed runs where rodent damage is a risk.
- Traveler wires: Color-code with red/orange sheathing or tape to distinguish from neutral/line wires; critical for troubleshooting later.
- Fixtures: LED modules with dimmable drivers (e.g., Philips WarmGlow) eliminate flicker issues common with cheaper brands. Verify wattage compatibility–oversized drivers drain power even when off.
Fish tape (Gardner Bender GFT-60) navigates tight spaces, but lubricants like Ideal Yellow 77 reduce friction in long conduit runs. For plaster walls, steel tapes save time; fiberglass versions flex better around obstacles but require gentle handling to avoid kinking.
Safety and Ancillaries
- Circuit breaker lockout tags (Brady 71311) prevent accidental re-energizing while working; blue tags denote “Testing Only,” red for “Do Not Operate.”
- Wire nuts (3M Scotchcast 34S) rated for 600V and 90°C accommodate limited space connections; pre-twist solid wires ½” before capping for reliability.
- Conduit benders (Greenlee 544) for EMT require 10:1 ratio (1″ bend radius per 10″ length) to prevent collapsed walls; aluminum conduit stretches more than steel, requiring tighter bends.
- Multimeter (Fluke 117) with True-RMS confirms voltage drop below 3% across all paths–any higher suggests undersized conductor or loose connections.
Insulating gloves (Class 00, Ansell 31-800) protect against arcs during live-circuit checks but must fit snugly–bulky gloves reduce dexterity. Replace every 6 months or after visible punctures; UV degradation weakens rubber over time even without obvious damage.
Cable staples (Arlington NM80S) secure runs without crushing insulation–space 4.5′ apart for horizontal runs, 12″ near boxes. For bundled cables, use staples with plastic bridges (Gardner Bender NMSC) to prevent EMT thermal contraction from cutting sheathing.
Grounding straps (Bridgeport 109S) bond metal boxes to incoming ground wires, but only where conductors terminate; floating straps near moving parts (doors, hatches) risk creating unintended antennas or shock hazards. Use star washers to penetrate paint on boxes for solid electrical contact.
