Review LGA 775-based reference layouts for similar platforms before examining component placement. Focus on power delivery networks: locate PWM controllers near the CPU socket (typically 3-5 cm from retention mechanism), ensure decoupling capacitors are within 1 cm of Vcore pins. Verify trace impedance for SDRAM interfaces–target 50 Ω ±10% for DDR400 signals.
Identify critical signal groups: FSB (100/133/200 MHz), memory clock pairs, AGP/PCIe lanes. Probe test points labeled CLK, RESET#, PWRGD–these confirm proper boot sequence initiation. Cross-reference unmarked vias with known pinouts: southbridge ICH6 typically uses 24 MHz crystal with 15 pF loading caps.
Check voltage regulator modules first. Measure input rails (±5V, ±12V, 3.3V) against manufacturer specs; deviations exceeding ±3% indicate failed LDO circuits. Replace suspect MOSFETs (usually DPAK package) with identical RDS(on) ratings. For debugging, attach 1x oscilloscope probe to Phase 1 gate signal–normal operation shows clean 300-600 kHz PWM waveform.
Trace I/O connectivity systematically: USB headers (4-pin clusters), IDE (40-pin ribbon), front panel audio (AC’97 layout). Use continuity tester between solder pads and rear I/O shield–open circuits frequently occur at right-angle connectors. For SATA ports, confirm differential pairs maintain 3-inch trace length matching; skew beyond 5 ps causes link training failures.
Document all jumper configurations before modification. Default settings (e.g., 1-2 closed for CMOS reset) appear on component silkscreen. For advanced troubleshooting, override PLL circuit with external 14.318 MHz clock source via U.FL connector–this isolates main crystal faults while preserving peripheral initialization.
Practical Breakdown of the D915GAV Motherboard Circuit Layout
Locate the voltage regulator module (VRM) near the CPU socket–components U22 (ISL6566) and adjacent MOSFETs Q1-Q4 govern core power delivery. Probe pins 1-4 on U22 to verify PWM signals; frequencies should range 300-500 kHz under load. Check L2, L3 inductors for warmth–excessive heat suggests flawed ferrite composition or improper soldering.
Memory banks rely on the clock generator Y1 (CX2585) adjacent to DDR slots. Termination resistors R121-R128 must read 22Ω ±5%; deviations cause data corruption. Verify VTT rail (near U5) stays within 1.25V ±5% during POST–fluctuations above 1.3V indicate failing capacitor C44 (1000µF).
- Southbridge (ICH6, marked FW82801FB) requires tight thermal coupling–ensure pad thickness between die and heatsink measures ≤ 0.2mm.
- PCIe lanes downstream of the hub operate at 2.5 GT/s–test RSET resistors (R89, R90) for 1kΩ precision; errors manifest as intermittent device detection.
- Front panel connectors follow reverse-polarity standard–pins marked PWR_SW/+5V require inverted logic; jumper JP4 resets CMOS if bridged incorrectly.
Audio codec ALC861 (U27) shares traces with USB headers–isolate interference by verifying C301-C304 (470pF) values. HD Audio jack detection pin (U27 pin 35) toggles at 3.3V; low voltage suggests short to ground. Inspect L4, L5 chokes for RMS current >800mA–replace if DC resistance exceeds 0.05Ω.
Real-time clock power flows through diode D1 (1N4148) to backup battery–measure >2.4V at anode; leakage currents above 1µA accelerate battery drain. BIOS flash (W39V040P) connects via SPI bus–corrupted firmware typically stems from flaky traces near U16 (14.318MHz oscillator); reflow joints if signal integrity degrades.
- Disable Quick Boot in firmware settings before probing POST codes–active pins on debug header J1 cycle rapidly.
- Use 2-wire I²C scan to confirm EEPROM (U32) accessibility; addresses 0xA0-0xA2 should return ACK.
- Thermal sensor LM86 (U7) communicates via SMBus–readings should stabilize within ±2°C of ambient after 30s idle.
Key Components Identified in the Reference Board Circuit Arrangement

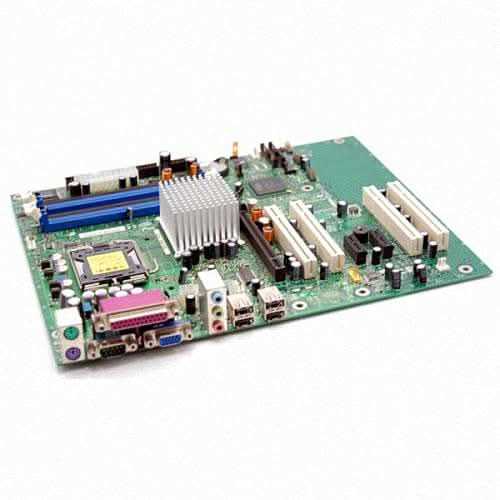

Begin analysis by locating the central processing hub, positioned in the upper-left quadrant of the board. This LGA 775 socket interfaces with a 915G chipset, delivering dual-channel DDR memory support. Trace the intricate power delivery network branching from the VRM section–four MOSFET pairs (Intersil HIP6301 or equivalent) regulate core and auxiliary voltages, critical for stability under variable thermal loads. Verify decoupling capacitors (typically 1000µF low-ESR) adjacent to the CPU socket to suppress transient spikes.
Memory and Expansion Interconnects
The board incorporates four DIMM slots configured for unbuffered non-ECC modules, supporting up to 4GB with 1.8V signaling. Examine the termination resistors (ODT) near each slot, ensuring values match the JEDEC DDR specification (47Ω ±1%). PCI Express x16 lanes (Gen 1) directly connect to the chipset’s graphics controller, while peripheral slots (one PCIe x1 and three conventional PCI) share bandwidth via the ICH6 bridge. Cross-reference the resistor packs (RP1–RP4) near the PCI slots–these dictate bus loading and must align with the specified 10kΩ/5% tolerances.
Power phases for the northbridge integrate a separate PWM controller (often a Richtek RT9236 or similar), distinct from the CPU VRM. Failure to identify this split regulation scheme risks thermal throttling or premature component degradation. Check the thermal interface material beneath the northbridge heatsink–suboptimal application leads to localized overheating, manifesting as system instability during high-memory-bandwidth tasks.
I/O and Peripheral Subsystems
Front panel connectors (J1–J3) route through a Super I/O chip (Winbond W83627THF or comparable), handling legacy ports, PS/2 keyboard/mouse, and serial/parallel interfaces. Verify pull-up resistors (4.7kΩ) on the PS/2 lines to prevent floating inputs during hot-plug events. Rear I/O clusters integrate an 8-channel audio codec (Realtek ALC861), requiring precise impedance matching on the audio jack traces–mismatches introduce crosstalk or signal attenuation.
Storage interfaces include one IDE channel (supporting two drives in UDMA 100) and four SATA ports (1.5 Gb/s). The IDE controller relies on termination resistors (120Ω) at both ends of the cable; omission disrupts data integrity. For SATA, observe the L-shaped signal path–vias near the connector must maintain consistent impedance (100Ω differential) to prevent reflection noise. The embedded Gigabit Ethernet MAC (Broadcom BCM5789) connects via a transformer isolation module (typically Pulse HX1102F), where transformer winding ratios directly affect link stability.

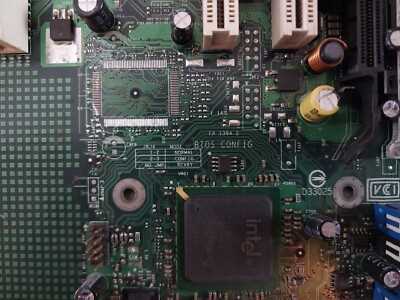

BIOS circuitry centers on a 2MB SPI flash (SST 25VF020 or similar), paired with a 32.768 kHz crystal oscillator for RTC functions. The flash chip’s chip-select line (CS#) must remain noise-free–add a 0.1µF ceramic capacitor adjacent to the pin to filter high-frequency transients. Debug headers (J7 for POST codes) expose critical signals (D0–D7, RESET#), invaluable for low-level fault isolation.
Voltage supervision circuits employ a dual-comparator setup (TPS3307 or equivalent) to monitor 5V, 3.3V, and 12V rails. Marginal resistor values (e.g., 1% tolerance on divider networks) ensure accurate trip points–deviations risk false brown-out resets. The standby power section (5VSB) tolerates minimal load yet powers Wake-on-LAN and USB wake functions–confirm efficiency by measuring quiescent current (typically
Step-by-Step Tracing of Power Delivery Circuits on the Reference Board
Begin by locating the main ATX power connector (24-pin) labeled as “JP1” near the right edge of the circuit blueprint. Pin 1 (VCC5V) and pin 10 (VCC12V) are the primary rails–trace their conductive paths directly to the input capacitors (C45, C46 for 5V; C51, C52 for 12V) to verify proper filtering before distribution. Check for series resistors (typically 0.01Ω) or ferrite beads (L3, L4) that may introduce voltage drops under load; these components are critical for transient response stability.
Isolating Secondary Voltage Rails
Follow the 5V rail to the standby power circuit (VCC5VSB), where it splits into two branches: one feeding the chipset’s low-power domain (U1, U2) and another routed to the 3.3V linear regulator (Q2). Use a multimeter to confirm the regulator’s output (TP5) measures 3.28–3.32V under no-load conditions–deviations suggest a faulty pass transistor or degraded output capacitor (C203, 1000µF). For the 12V rail, probe the MOSFET gate drivers (Q1, Q3) near the VRM section; ensure gate voltages toggle between 3.3V and 0V during switching cycles.
Trace the VCC_CORE rail from the multi-phase buck converter (labeled “VRM1”) to the CPU socket. Each phase’s inductor (L10–L14) should show symmetrical DC resistance (~0.2Ω) and AC ripple below 30mVpp at full load. Excessive ripple indicates failed ceramic capacitors (C20–C25) or a compromised high-side MOSFET (Q5–Q9). Measure the feedback network (R60–R65) connected to the PWM controller’s COMP pin; resistances must match the blueprint’s values (±1%) to maintain output accuracy.
Verify the auxiliary 1.5V and 1.8V rails by following their paths from the LDO modules (U5, U6) to the DDR memory slots. The 1.5V rail typically powers the memory termination circuits–probe the termination resistors (RT1–RT8) for consistent voltages (±5mV) across all channels. If one channel shows a lower voltage, inspect the associated series resistor (e.g., RT3, 22Ω) for cold solder joints or corrosion. For troubleshooting, force the memory into self-refresh mode and monitor the rail’s transient response with an oscilloscope.
Ground Plane and Noise Isolation
Examine the ground plane continuity by checking the via stitching between the top and bottom layers beneath high-current components (e.g., VRM inductors). A broken via or poorly soldered thermal pad can introduce ground bounce–use a four-wire resistance measurement to detect anomalies (>0.1Ω). Separate analog and digital grounds by tracing star-point connections to the main ground pour; crossed grounds may lead to audio codec interference or USB PHY desynchronization. Finally, test the chassis ground path (GND_CH) by measuring its impedance to the power supply’s earth terminal–values above 0.5Ω require reflowing the mounting screws or cleaning corrosion.
For overload protection analysis, locate the current-sense resistors (e.g., R80, 5mΩ) on the 5V and 12V rails. Calculate the expected voltage drop using Ohm’s law (V = I × R) and compare it to measurements–discrepancies suggest a shorted load or failing bulk capacitor (C301, 2200µF). Check the thermal shutdown circuitry by heating the VRM heatsink and monitoring the PWM controller’s THERM pin; it should pull low (~0.4V) at 100°C to trigger a shutdown. If the system remains active, replace the controller IC or verify the thermistor’s resistance curve.
