Start by identifying the power source and load terminals on your switching unit. The coil terminals–typically marked 85 and 86–require a stable 12-volt supply to activate the mechanism. Apply positive voltage to pin 86 and ground pin 85 to trigger the contacts. Reverse polarity may prevent operation or damage internal components.
For the contact side, terminals 30, 87, and 87a control the output. In a normally open setup, power flows from 30 to 87 only when the coil energizes. Use 12-gauge wire for currents above 10 amps; thinner strands risk overheating. Ensure all connections are soldered or crimped tightly–loose joints create resistance and voltage drops.
When integrating with sensitive equipment, add a flyback diode across the coil inputs. A 1N4007 diode, placed cathode-to-positive, protects circuits from inductive spikes. For high-frequency switching, substitute with a snubber circuit–100 ohms in series with a 0.1 microfarad capacitor–across the contacts to suppress arcing.
Test the assembly with a multimeter before live operation. Measure continuity across 30 and 87 in both energized and de-energized states. Confirm voltage at the load matches the source; discrepancies indicate improper grounding or wiring faults. Always fuse the supply line–15 amps for standard automotive relays–to prevent fire hazards.
Connecting a 12V Switching Module: Key Circuit Layouts
Begin by identifying the power source’s positive and negative terminals–connect the positive lead directly to the coil’s input pin (typically labeled 85 or 86). Ground the opposing coil terminal (86 or 85) to the chassis or battery negative. For 30-amp applications, pair the relay with a 20-gauge trigger line and a 12-gauge load path to prevent voltage drop.
Use crimp connectors–never solder–for high-current contacts (pins 30 and 87). A yellow quick-disconnect fits 12-gauge wire, while blue suits 16-gauge. Ensure terminal housings are fully seated; partial insertion causes intermittent failures. For high-vibration environments, secure wires with nylon clamps spaced every 6 inches.
Fuse protection is non-negotiable. Place a 15-amp blade fuse within 7 inches of the battery positive terminal. Remote installations demand an additional 10-amp fuse inline with the trigger circuit to protect low-current control devices.
Common Connection Mistakes
- Reversing coil polarity (85/86) renders the unit inactive–double-check markings.
- Omitting the diode across coil terminals invites voltage spikes; a 1N4004 diode suffices.
- Mixing contact ratings (e.g., 40A relay for a 50A load) leads to welded contacts–match specs precisely.
- Stripping wire beyond 0.5 inches exposes strands to corrosion; use heat-shrink tubing.
For DC motor control, wire pin 30 to the positive motor terminal and pin 87 to the power source. Add a 1N5822 Schottky diode across the motor to suppress back-EMF; standard diodes introduce unacceptable lag.
Test continuity with a multimeter before applying power. Set the meter to ohms (200Ω range) and probe pins 30 and 87–open circuit with no power, closed when energized. If resistance exceeds 0.3Ω, replace the module.
Advanced Configurations
- Time-delay: Insert a 10kΩ resistor and 470µF capacitor in series with the trigger line for a 5-second delay.
- Latching: Pair two units–first for set, second for reset–using momentary switches.
- PWM control: Drive the coil with a 1kHz signal; ensure the module’s contact rating exceeds 2x the inductive load.
Solder joints, though tidy, risk heat damage to insulation–reserve them for signal-level circuits (
Selecting an Optimal 12V Switching Device for Your Application
Start by narrowing down the required contact configuration. Single-pole, double-throw (SPDT) models handle most automotive and low-power scenarios, while four-pole, double-throw (4PDT) units excel for intricate industrial controls needing simultaneous multi-channel switching. Check the datasheet for “make before break” or “break before make” behavior–critical for timing-sensitive applications like motor reversing.
Verify the coil activation range. Standard automotive units typically engage at 8–10V, suitable for a stable 12V supply. High-sensitivity variants trigger at 3–5V, ideal for microcontroller boards with limited current output. Conversely, heavy-duty industrial relays often demand 10–14V to ensure reliable pull-in under varying loads.
Match the contact material to your load type. Silver-nickel contacts (AgNi) handle resistive loads up to 10A but corrode under DC inductive loads. Silver-tin oxide (AgSnO2) withstands inrush currents from motors and solenoids, while gold-plated contacts (Au) are reserved for ultra-low-level signals like sensor inputs.
Consider the housing and terminal design. Plastic-sealed units (IP67) resist moisture for outdoor use, while open-frame relays suit controlled environments. Blade terminals (Faston 250, 187) simplify wiring with crimped connectors, whereas screw terminals provide secure attachment for high-vibration applications like marine or off-road equipment.
Assess the mechanical lifespan. Basic automotive relays endure 10,000–50,000 cycles, adequate for intermittent loads. Industrial-grade models specify 100,000+ cycles, justifying the cost for continuous-duty applications such as HVAC or factory automation. For high-frequency switching (e.g., PWM-controlled pumps), seek units with bifurcated contacts to reduce arcing.
Environmental and Electrical Tolerances
Temperature extremes dictate material selection. Standard relays operate between −40°C and +85°C. For high-altitude or desert use, opt for epoxy-sealed models rated to +125°C. Low-temperature variants (−55°C) rely on specialized lubricants for coil movement and are essential for aerospace or Arctic conditions.
Suppression circuits extend lifespan under inductive loads. Built-in diodes, varistors, or RC snubbers clamp voltage spikes when switching motors or transformers. For unprotected coils, add an external flyback diode (1N4007) or transient voltage suppressor (TVS) rated at 1.5× the supply voltage to prevent coil damage and electromagnetic interference.
Step-by-Step Connections for a Single-Pole Double-Throw Switching Device

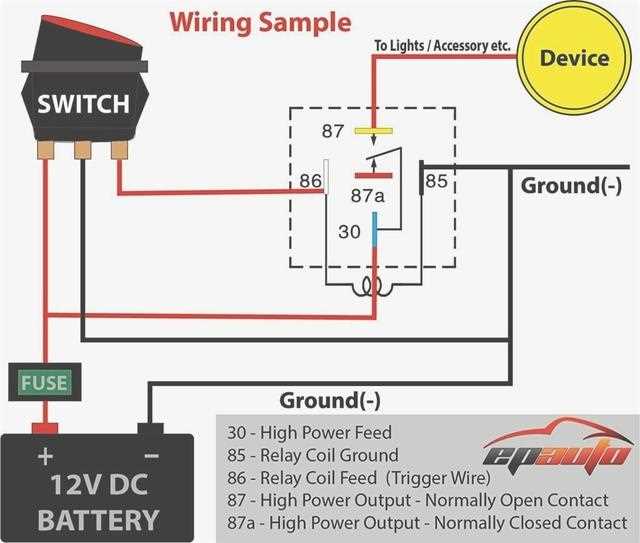

Begin by identifying the terminal labels on the 12-amp switching component: 85 and 86 for the control circuit, 30 (common), 87 (normally open), and 87a (normally closed). Verify component compatibility by ensuring the applied current does not exceed the rated 30A for continuous loads–transient spikes should remain below 40A. Attach the power source’s positive lead to terminal 30 using 14-gauge copper wire with crimped ring terminals; the ground connection must utilize at least 12-gauge wire to handle potential dropout voltages under load.
Critical Connection Sequence
| Terminal | Wire Gauge | Source/Destination | Solder/Crimp |
|---|---|---|---|
| 85 | 18 AWG | Trigger source (e.g., switch, ECU output) | Crimp (non-insulated) |
| 86 | 18 AWG | Ground return | Crimp (heat-shrink) |
| 87 | 12 AWG | Load positive (e.g., headlights, compressor) | Solder + adhesive-lined heat shrink |
| 87a | 14 AWG | Standby circuit (e.g., dashboard LED) | Crimp (insulated) |
Insert a 1N4007 diode across terminals 85 and 86 to suppress voltage spikes–banded end must align with 85 (cathode to positive). Secure connections with dielectric grease to prevent corrosion; torque terminal screws to 3-4 lb-in using a calibrated screwdriver. Test function by toggling the trigger–load should switch between 87 and 87a within 50ms without arcing at the contacts. If chatter occurs, reduce trigger resistance below 50Ω or add a 0.1µF ceramic capacitor in parallel to the coil.
How to Verify Switching Module Performance with a Digital Multimeter
Set the multimeter to continuity mode (often marked with a diode symbol or sound wave). Probe the Normally Open (NO) and Common (COM) contacts while the 12-amp unit is powered off–no beep should occur. Activate the control circuit; the meter should emit a clear tone, confirming the contacts transitioned to a closed state. If silence persists, suspect a failed coil or burned contacts.
Checking Coil Integrity
Switch the multimeter to resistance measurement (200Ω range). Touch the probes to the coil terminals; a healthy 12-amp electromechanical switch typically reads between 50 and 120 ohms. Readings near zero indicate a shorted winding, while infinite resistance suggests an open circuit. Compare against manufacturer specs–deviations exceeding 10% warrant replacement.
To test voltage drop under load, energize the switch and set the multimeter to DC volts (20V range). Measure across the NO and COM terminals while the device is operational; readings should not exceed 0.2V AC for silver contacts or 0.1V for gold-plated ones. Higher values signal pitted contacts or excessive current draw, necessitating further inspection or component swap.
Frequent Errors in Automotive Switch Circuit Assembly and Prevention Techniques
Connecting the coil terminals to power and ground backward immediately disables the device, typically labeled 85 and 86–always verify polarity with a multimeter before energizing.
- Mistakenly powering the 30 terminal (common) instead of the 87 (normally open) contact burns out sensitive loads like LEDs or microcontrollers–use the 87a (normally closed) terminal only if switching between two circuits is required.
- Ignoring fuse placement on the input side of the 30 terminal leaves the entire setup vulnerable to short circuits–install a fuse rated 10-20% above the expected load current, never exceeding the manufacturer’s coil rating.
Omitting a flyback diode across the coil (IN4007 is standard) causes voltage spikes up to 200V, frying adjacent electronics like ECUs or sensors–cathode must face the positive supply.
- Skipping load testing after assembly leads to undetected high-resistance connections, which drop voltage under load–measure voltage at the load with the circuit active; a drop below 11.5V indicates corroded terminals or undersized wire.
- Using solid wire instead of stranded for moving applications (e.g., trailer connections) results in fatigue breaks within weeks–opt for 18-20 AWG multistrand copper rated for 5A continuous.
- Assuming all 12-volt devices share the same pickup current: a Bosch 0332019150 draws 180mA at activation, while an OMRON G2RL requires 360mA–check datasheets to match power supply capability.
Cramming multiple high-current devices (winches, compressors) into a single circuit without accounting for voltage drop causes erratic operation–calculate total current and use this formula: V_drop = (2 × L × I × R) / 1000, where L is wire length in feet, I is current in amps, and R is resistance per 1000 feet.
Neglecting terminal corrosion on automotive grade devices accelerates failure–apply dielectric grease to all connections, especially in saline environments; CRC 02901 outperforms generic grease in salt spray tests.
- Overlooking reverse battery protection on auxiliary circuits lets a single crossed wire destroy the entire harness–insert a 40A MOSFET (IRFZ44N) between the battery and the common terminal.
- Misinterpreting terminal numbering: some manufacturers label 87 as the normally closed contact (often 87a)–always cross-reference with the product’s spec sheet.
- Assigning a single earth point for multiple coils creates ground loops, introducing noise into audio or sensor circuits–dedicate separate grounding paths back to the battery.
