The standard four-contact electrical switch operates with terminals labeled 85, 86, 30, and 87. Terminals 85 and 86 form the control circuit–apply a 12V trigger (typically from a switch or module) across these points to activate the coil. The switching path connects 30 (common input) to 87 (normally open output), carrying currents up to 30A for most automotive-spec units; verify the datasheet for exact ratings before load application.
For basic setups, wire the control circuit directly to a momentary pushbutton or ignition-switched source–ensure the trigger voltage matches the coil’s DC rating (usually 12V but 5V variants exist for microcontroller integration). Ground one control terminal (85 or 86, typically 85) to complete the activation loop. When energized, the internal contacts bridge 30 to 87, enabling load flow; de-energizing reverts 30 to its default state (connected to 87a if present on a five-terminal model).
Load capacity dictates cable gauge: 16AWG suffices for signals under 10A, while 12AWG minimum is required for 20A-30A loads. Install a diode (1N4007) across the coil terminals, cathode to positive, to suppress voltage spikes that degrade sensitive electronics. For inductive loads (motors, solenoids), add a flyback diode to the load side to prevent arcing at the contacts. Verify polarity on all connections–reversing coil polarity risks coil burnout, while reversed load polarity may bypass the switch entirely.
Testing follows a sequential approach: confirm coil continuity with a multimeter in resistance mode (50-120Ω typical), then measure voltage drop across the contacts under load (<0.2V indicates healthy operation). If chatter occurs at turn-on, check for inadequate coil voltage or corroded contacts. For high-frequency switching (e.g., fuel pumps), opt for solid-state versions with PWM compatibility to eliminate mechanical wear.

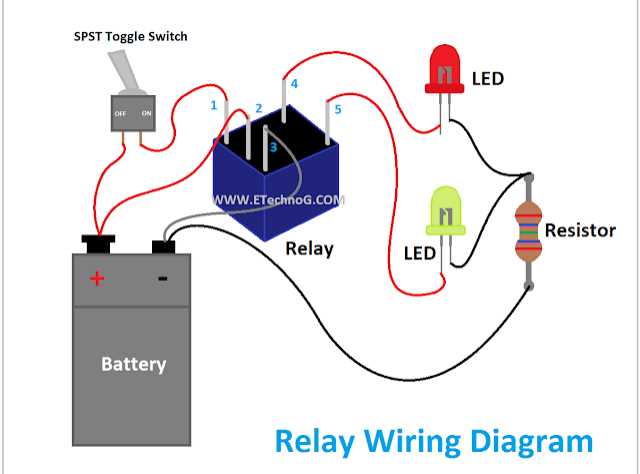

Connecting a 4-Terminal Switching Device: Practical Schematics
Begin by identifying the control and load circuits. Terminals 85 and 86 (standard automotive numbering) handle the activation path–wire 85 to ground and 86 to your trigger source, such as a switch or sensor output. Ensure the trigger delivers at least 80–120 mA to energize the coil reliably. For inductive loads like motors or solenoids, connect terminal 30 to the power source (typically fused at 10–30 A) and terminal 87 to the load. Use 14–16 AWG wire for currents up to 20 A, downgrading to 12 AWG for higher draws. Polarize the circuit with a flyback diode (1N4007) across 85/86 if driving sensitive electronics to suppress voltage spikes.
Common Configurations and Safety Notes
| Use Case | Power Source | Trigger Source | Load Type | Fuse Rating | Additional Components |
|---|---|---|---|---|---|
| Headlight control | 12V battery (+) | Light switch | Halogen bulbs (60W) | 15A | None |
| Fuel pump activation | Ignition-switched (+) | ECU output | Brushless motor (5A) | 7.5A | Flyback diode |

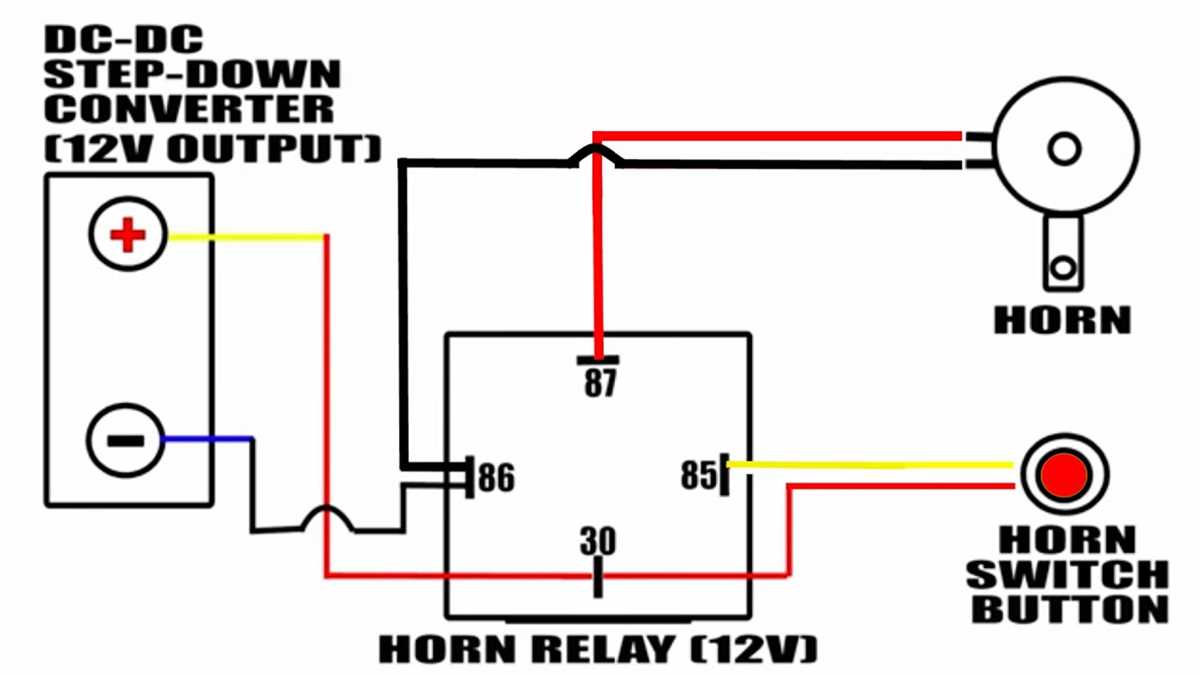

| Horn circuit | Constant 12V (+) | Steering wheel button | Electromagnetic horn (10A) | 20A | None |
Verify coil resistance (typically 60–100 Ω) before energizing–values outside this range indicate damage. For DC motors, add a 0.1 µF capacitor across the load to reduce radio interference. Always crimp spade connectors with heat shrink tubing to prevent corrosion in humid environments. Test continuity between 30 and 87 when de-energized and between 30 and 87a (if present) when energized to confirm proper mechanical movement.

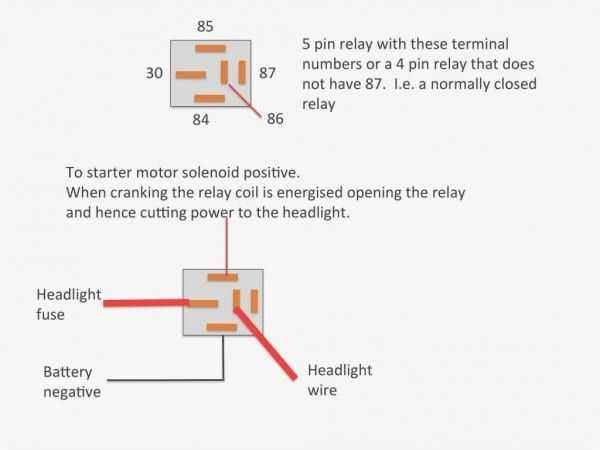

Identifying the Terminals on a 4-Terminal Switching Device
Locate the numbering or markings on the component’s plastic housing–typically embossed near each metal connector. Most units follow a standard layout: two coil contacts and two load contacts. The coil terminals are usually labeled 85 (negative/ground) and 86 (positive/control input), while the load contacts appear as 30 (common) and 87 (normally open). If markings are absent, test continuity with a multimeter in resistance mode: the coil pair will show low resistance (50–150Ω), while the load contacts will read infinite resistance when inactive.

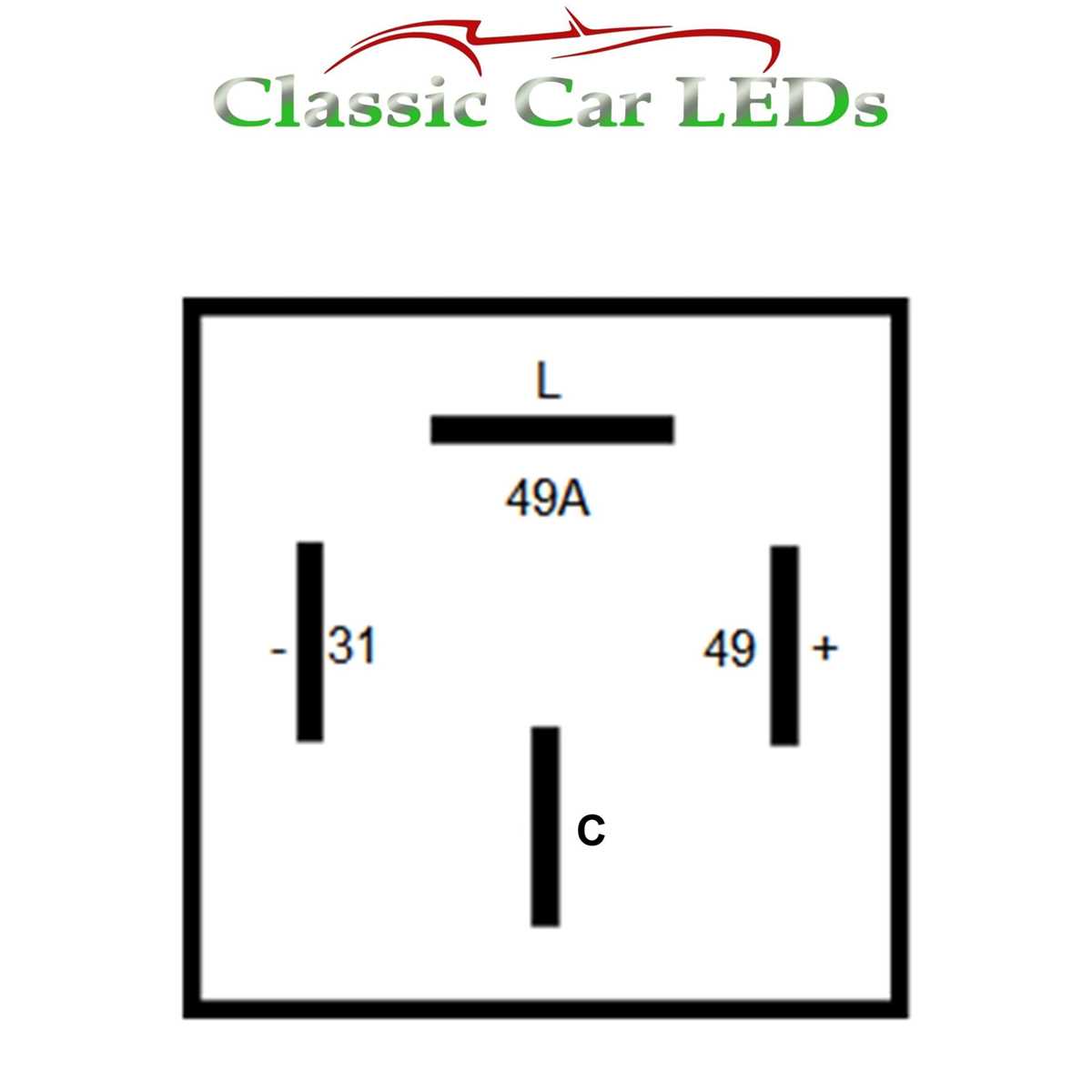

Check for additional symbols next to the numbers:
- + or 15 – Power input for the coil (often 86).
- GND, -, or 31 – Ground reference for the coil (usually 85).
- COM or 30 – Main contact receiving power from the source.
- NO or 87 – Switches to COM when the coil energizes.
- NC or 87a (if present) – Normally closed contact, rare in 4-terminal variants.
Practical Verification Without Documentation
Apply 12V across the coil terminals–listen for an audible click indicating activation. Use a test light or voltmeter to confirm the load path: with the coil powered, COM (30) should bridge to NO (87). If the device includes a diode or resistor for coil suppression, 86 will show polarity sensitivity–reversing connections may prevent activation. For automotive applications, ensure the coil voltage matches the system’s (e.g., 12V for cars, 24V for trucks).
Label each terminal immediately after identification to avoid errors during installation. Misconnecting the coil and load circuits risks shorting the power source or damaging the control switch (e.g., a vehicle’s low-current ignition signal). For industrial units, verify the manufacturer’s datasheet–some models reverse the standard pin assignments or include auxiliary contacts for diagnostics.
Step-by-Step Guide to Connecting a Four-Terminal Switching Device
Identify the terminals using a multimeter in continuity mode. Locate the coil inputs–typically marked 85 and 86–and confirm which pair corresponds to the control circuit by testing for resistance between them. A standard automotive switching unit should show 50 to 150 ohms; deviations indicate a faulty component. Label the remaining high-current contacts as 30 (common) and 87 (normally open) to avoid misconnections when energizing the circuit.
Strip 10 mm of insulation from each conductor, then crimp ring or spade terminals for secure attachment. For coil connections, apply heat shrink tubing to prevent short circuits; position it before crimping and slide it over the joint afterward. Route low-voltage control leads away from high-amperage paths to minimize electromagnetic interference–keep a minimum 5 cm separation or use twisted pair for sensitive signals.
Connect the fused power source to terminal 30, ensuring the fuse rating matches the load requirements (e.g., 20 A for headlights, 30 A for cooling fans). Attach the accessory directly to terminal 87, using appropriately gauged wire–12 AWG for currents up to 20 A, 10 AWG for heavier loads. Verify polarity if the device operates DC motors; reversed polarity can damage components or cause unexpected operation.
Test functionality by energizing the coil with a 12 V pulse. Listen for an audible click confirming activation; if absent, recheck coil resistance and voltage delivery. Measure voltage across terminals 30 and 87–expect near-zero drop if connected correctly. For inductive loads, install a flyback diode (1N4007) across the coil to suppress voltage spikes; cathode to positive, anode to ground. Secure all connections with zip ties spaced every 15 cm along wire runs to prevent chafing against sharp edges.
Common Errors When Connecting a Four-Terminal Switching Device
Misidentifying the coil terminals leads to immediate failure. The 85 and 86 contacts must always connect to the control circuit–swapping them with the load terminals (30 and 87) causes the unit to remain inactive or burn coil insulation. Verify function with a multimeter: coils typically measure 50–120 ohms, while open contacts should read infinite resistance. Reversing these risks damaging the triggering source, especially sensitive electronics like microcontrollers or low-current switches.
Ignoring voltage ratings triggers premature melting. A 12V coil driven by 24V systems overheats within minutes, while underpowering it with 6V results in weak engagement or chatter. Check the device’s label–some variants tolerate 9–16V ranges, but most require exact matching. Solid-state outputs (e.g., ECUs) may not supply enough wattage; always pair with a flyback diode if the control signal originates from inductive sources to prevent voltage spikes exceeding 50V.
Overloading the switched circuit fuses traces unseen. A common automotive example: routing 30 amps through a 20-amp component carbonizes the internal contacts within hours. Calculate not just steady-state current but also inrush surges; motors or halogen bulbs draw 5–10× their rating at startup. Use heat-shrink tubing over terminals to prevent accidental shorting in high-vibration environments like off-road vehicles or industrial conveyors.
Disregarding polarity on the normally open contact risks erratic behavior. Terminal 30 (input) must connect to power, while 87 (output) links to the load–reversing these inverts the switched state. For critical applications (e.g., fuel pumps), add a 1N4007 diode across the coil to clamp reverse-voltage transients below 1.1V. Test continuity before finalizing connections; a simple continuity test reveals misplacements before power-up.
Essential Equipment for Connecting a 4-Terminal Switching Device
Begin with insulated crimp connectors–specifically 16-14 AWG ring or spade types–to ensure secure, corrosion-resistant joints at terminal points. Avoid butt connectors for load-side applications due to vibration risks in automotive or industrial setups.
Use a digital multimeter with continuity and voltage testing modes to verify circuit integrity before powering the system. Set the meter to 20V DC range for standard 12V configurations and check for unexpected shorts during installation.
- Ratchet-driven crimping pliers (not pliers with integrated cutters) for consistent mechanical pressure on connector barrels.
- Heat-shrink tubing (4-6mm diameter, polyolefin material) with dual-wall adhesive lining to seal connections against moisture ingress.
- Stripping tool calibrated for 1.5mm² conductor insulation thickness to prevent nicks on copper strands.
Select a 60W soldering iron with temperature control when working with sensitive control modules or signal-level circuits. Apply minimal solder to avoid cold joints; flux-core solder (60/40 alloy, 0.8mm diameter) is optimal for this task.
Dielectric grease (silicone-based) applied sparingly to terminal interfaces prevents oxidation on contacts exposed to fluctuating environmental conditions. Avoid petroleum-based products, which degrade plastics over time.
- Wire cutters with sharp, unblemished blades to avoid frayed ends on solid-core conductors.
- Non-contact voltage tester to confirm power absence before handling live circuits.
- Torque screwdriver (0.5-1.5 Nm range) for terminal screws to prevent over-tightening, which can strip threads or deform housing.
Choose stranded copper wire (tinned for marine applications) with PVC or cross-linked polyethylene insulation, rated for 90°C minimum. Avoid aluminum conductors due to corrosion risks and increased voltage drop over long runs.
Maintain a dedicated labeling system–heat-resistant polyester labels or color-coded sleeves–to identify input/output connections during troubleshooting. Store excess wiring in anti-static bags if working near sensitive electronics.
