Connect the orange-white wire to pin 1 and solid orange to pin 2 for the transmitting pair (T568B standard). Pin 3 receives the green-white conductor, while pin 6 handles solid green. This arrangement ensures compatibility with gigabit networks when crimped correctly.
Use stranded copper conductors (24-26 AWG) for patch cables to prevent signal degradation over short distances. Solid core variants (22-24 AWG) suit permanent installations where flexibility isn’t critical–adhere to bend radius limits (4x cable diameter) to avoid impedance mismatches.
Terminate at both ends with identical pinouts when creating straight-through links. For crossover connections, swap pins 1↔3 and 2↔6 while mirroring pairs 4-5 and 7-8 between connectors. Verify continuity with a network tester after crimping–the tool must exert 10-12 lbs of force during termination.
Shielded twisted pairs (STP) require grounding the drain wire at one end only to prevent noise loops. Unshielded variants demand separation from power lines (minimum 20 cm) and fluorescent lighting to reduce crosstalk. Test link speed with iperf after installation; latency spikes above 0.5ms indicate poor termination.
For PoE applications, ensure conductors meet 100Ω impedance (±15Ω) and handle 60°C ambient temperatures without derating current. Avoid exceeding 75 meters for 1000BASE-T deployments–insert a copper-gigabit media converter if longer runs are unavoidable.
Ethernet Cable Pinout Standards for Reliable Connections
Use the T568B standard for most installations unless specific network requirements dictate otherwise. Arrange the conductors in this sequence from pin 1 to pin 8: orange-white, orange, green-white, blue, blue-white, green, brown-white, brown. This configuration ensures backward compatibility with existing infrastructure and minimizes crosstalk in 100BASE-TX and gigabit setups. Strip no more than 1.5 inches of the outer jacket to avoid exposing excess wire, which increases interference risks.
Termination Best Practices
Crimp the connector only after verifying each conductor fully seats into its respective groove–partial insertion causes intermittent failures. Maintain consistent pair twisting up to the termination point, splitting pairs no more than 0.5 inches before the connector to preserve signal integrity. Use a high-quality crimping tool rated for 8P8C connectors; improper tools deform pins, leading to poor contact or shorts. Test every connection with a dedicated cable analyzer immediately after termination to catch faults before deployment.
For PoE applications, confirm compliance with IEEE 802.3at/af standards by using 24 AWG solid copper conductors–stranded or thinner gauges overheat under sustained power loads. Avoid daisy-chaining cables longer than 90 meters, as this violates the Ethernet specification and triggers unpredictable performance drops. Document each cable run with labels at both ends, including length, termination standard, and purpose, to streamline troubleshooting.
How to Identify Enhanced Ethernet Cable Connectors and Pin Configurations
Check the cable jacket for markings like “CAT5e” or “Enhanced” to confirm the standard. Unlike older variants, these cables support gigabit speeds and improved crosstalk shielding. The sheath typically bears a numerical or alphanumeric code, often printed every few inches, which directly indicates performance grade.
Inspect the RJ-45 connector ends for gold-plated contacts–usually eight distinct pins arranged in a single row. If the contacts appear dull or tarnished, signal integrity may degrade. Premium connectors use 50-micron gold plating or better, ensuring reliable data transfer and corrosion resistance. Avoid connectors with less than three prongs on the locking tab, as these lack durability under repeated insertions.

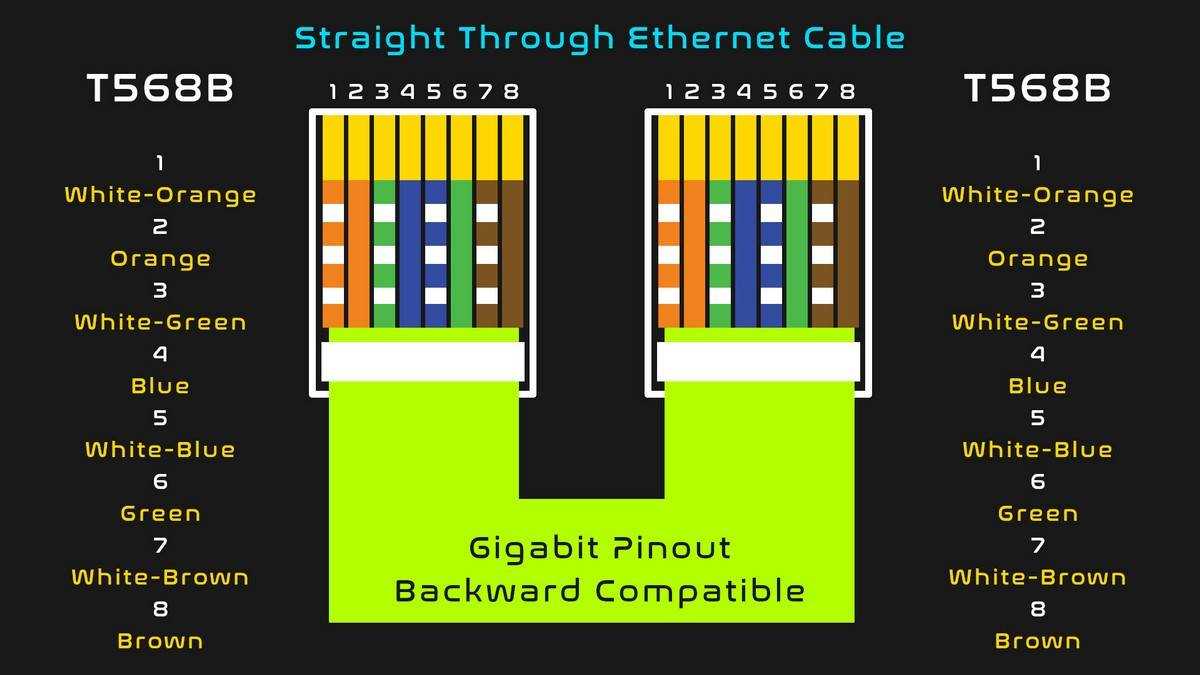

Identify the pinout sequence by holding the connector tab-side down, facing you. The leftmost pin is position 1 (white-orange), followed by orange, white-green, blue, white-blue, green, white-brown, and brown from left to right. Deviations from this T568B scheme suggest non-standard installations, which can cause mismatches in gigabit networks. For power-over-Ethernet (PoE) setups, validate that pairs 1-2 and 3-6 are properly aligned to handle current.
Use a cable tester with LED indicators to verify continuity and correct pairing. Each of the four pairs should light up sequentially, confirming absence of shorts, opens, or crossed wires. If testing reveals swapped pairs (e.g., orange-green reversed), the cable may still function for 10/100 Mbps but will fail at gigabit speeds. Replace any cable showing inconsistent test results.
Label connectors clearly near termination points–preferably on both ends–to avoid confusion during troubleshooting. Color-coded boots matching the standard (blue for T568B) simplify rapid identification. Store spare cables in anti-static bags to prevent dust accumulation on contacts, which can erode performance over time.
Step-by-Step Guide to Arranging Ethernet Cables Using T568A and T568B Schemes
Begin by stripping 2.5 cm (1 inch) of the outer jacket from the cable using a precision cutter–avoid nicking the internal conductors, as this weakens signal integrity. Hold the twisted pairs between thumb and forefinger to prevent untwisting beyond the 1.25 cm mark, which is critical for maintaining Category 5e performance thresholds.

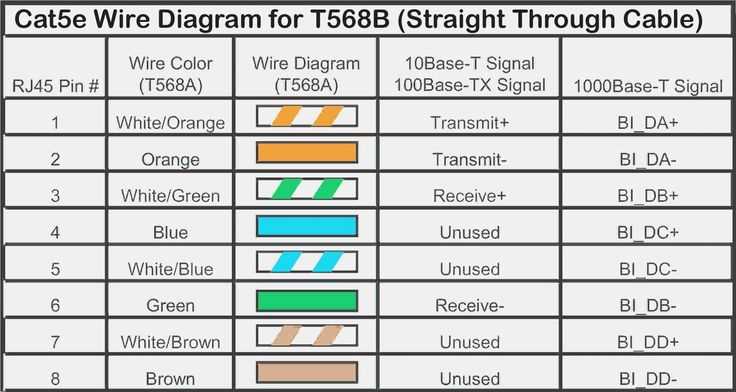

| Pin | T568A Color Scheme | T568B Color Scheme | Function |
|---|---|---|---|
| 1 | White/Green | White/Orange | Transmit+ |
| 2 | Green | Orange | Transmit− |
| 3 | White/Orange | White/Green | Receive+ |
| 6 | Orange | Green | Receive− |
Align the conductors in the exact order specified in the table above–deviations as small as 0.5 mm between pins can introduce crosstalk exceeding ANSI/TIA-568-C.2 limits. Use a punch-down tool with 110-type blades to secure each wire into the keystone jack or patch panel, applying 0.8 kg·m (7.0 lbf·in) of force for consistent termination.
When creating a straight-through connection, use the same standard (T568A or T568B) on both ends–mixing them produces a crossover configuration, required only for direct device-to-device links (e.g., switch-to-switch). For PoE (IEEE 802.3af/at) applications, ensure pins 4/5 and 7/8 remain intact, as these carry DC power; miswiring here risks damaging low-voltage devices.
Test each terminated cable with a certification analyzer set to T568 mode–verify NEXT (near-end crosstalk) values stay below −35.3 dB at 100 MHz for solid-core conductors, or −32.3 dB for stranded variants. For lengths exceeding 90 meters, add a 0.5 dB margin to account for attenuation; cables shorter than 5 meters should meet tighter −32.8 dB thresholds due to minimal signal degradation.
Use shielded twisted pair (STP) cable if ambient noise surpasses 3V/m RFI or 50V/m EMI; terminate the foil shield to the connector’s metal housing with a 360° bond–pigtail connections introduce grounding loops. In environments with bundled cables, maintain separation of at least 10 cm from power lines rated above 20A to prevent induced voltage spikes.
Store leftover cable on a spool with a 30 cm diameter minimum–smaller radii cause permanent pair untwisting, degrading return loss by up to 5 dB. Label each end with the standard used (A/B), length, and installation date; document terminations in a spreadsheet including tester serial numbers and pass/fail metrics for future troubleshooting.
Essential Tools for Proper Network Cable Termination
Begin with a high-quality crimping tool designed for RJ45 connectors–choose models with ratcheting mechanisms to ensure consistent, secure pressure. Avoid generic pliers; they risk damaging connectors or creating unreliable connections. Brands like Klein Tools or IDEAL offer precision-engineered options with replaceable dies to handle stranded or solid conductors without crushing insulation.
Equip yourself with a dedicated cable stripper calibrated for Ethernet specifications. A 24-26 AWG setting prevents nicking conductors, which weakens signal integrity. Avoid utility knives–inexact cuts increase attenuation. For bulk installations, a sheathing slitter with adjustable depth (e.g., Paladin Tools’ 110 Blade) speeds jacket removal while protecting inner pairs.
Verify terminations with a network cable tester featuring wiremap and continuity testing. Advanced models like Fluke’s DSX-8000 provide PoE and crosstalk diagnostics, while budget options (e.g., TRENDnet TC-NT2) suffice for basic pinout validation. For troubleshooting, a tone generator and probe (Klein VDV500-820) pinpoints hidden faults in existing runs–critical for resolving intermittent connections. Always keep a magnifying inspection light (10x magnification) to check for microscopic conductor damage or improper alignment.
Diagnosing Frequent Network Cable Errors and Signal Weaknesses
Check termination consistency first–mismatched pair ordering causes near-end crosstalk. T568A and T568B standards must match on both ends of a straight-through link. Swap suspected cables with known-good ones to isolate whether faults lie in the cable or endpoints.
Measure impedance deviations with a cable analyzer targeting 100 ± 15 ohms per pair. Values outside this range point to untwisted conductors exceeding 13 mm from the termination point or improper shielding termination. Trim excess bare copper to restore electrical balance.
Signs of Miswired Connections
- Intermittent dropouts during high-bandwidth transfers
- Uneven data rates across duplex ports
- Error counters rising on connected devices (CRC, runts, giants)
- Unrecognized link status on remote device
Inspect for physical stress indicators like kinked sheathing, crushed jackets, or bent pins on RJ45 connectors. Replace cables displaying sheath cracks or foil damage–these allow EMI ingress degrading signal integrity.
Test using a loopback plug for each pairing–pins 1-2, 3-6, 4-5, 7-8 must form continuous circuits. Shorts between adjacent pairs (especially pins 3-4 or 5-6) create split pairs disrupting gigabit negotiation. Re-punch terminations if faults persist after replacing the patch cord.
