For precise troubleshooting on a 36V electric utility vehicle, begin by isolating the battery pack terminals. Each 6V unit should register 6.3V–6.4V when fully charged; deviations below 6.2V indicate sulfation or cell imbalance. Connect the positive lead of the first battery to the negative of the second, forming a series link–repeat this for all six units. Verify continuity between the final positive terminal and the controller’s red input wire, ensuring resistance stays under 0.5 ohms.
Trace the solenoid activation circuit next. The ignition switch sends a 12V signal to the solenoid coil, closing the heavy-duty contacts that bridge the battery pack to the motor. A weak click suggests coil failure–test with a multimeter: expect 12–14V across the coil terminals when the key is turned. If voltage is present but contacts remain open, replace the solenoid immediately to prevent overheating.
Check the motor’s field and armature connections. The two thick cables from the controller divide into series-wound paths–the field (thin wires) and the armature (thicker wires). Resistance between field terminals should read 0.1–0.3 ohms; armature resistance typically sits at 0.05–0.15 ohms. Higher readings point to brush wear or commutator pitting–inspect visually for uneven wear patterns.
The forward/reverse switch toggles polarity to the armature without affecting the field. Ensure the microswitch inside clicks audibly when flipped; no response means corrosion or mechanical blockage. Clean contacts with 220-grit sandpaper, then apply dielectric grease to prevent oxidation. Misalignment here can cause erratic acceleration or sudden jerking.
Finally, examine the speed sensor–usually a small magnetic pickup near the motor shaft. If the vehicle hesitates or surges, the sensor may be faulty. Test output voltage while spinning the wheel: expect 3–5V AC fluctuations. No signal requires sensor or wiring replacement. Secure all connections with crimp terminals and heat shrink to avoid vibration failures.
Electrical Layout for 36V Golf Utility Vehicles: Key Configurations

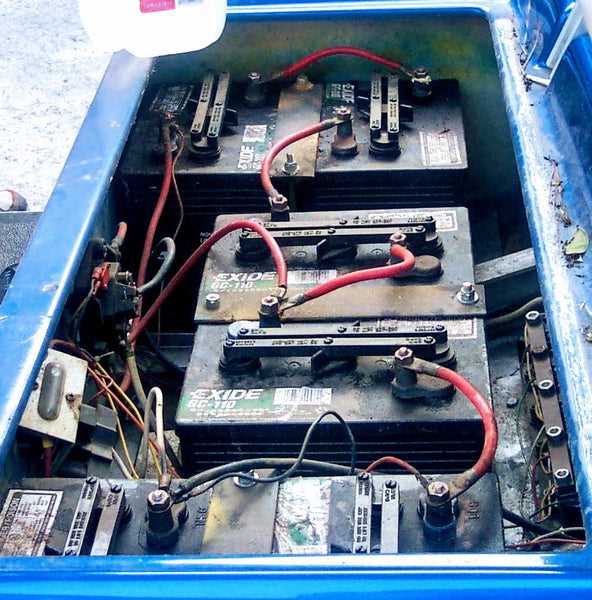

Start by identifying the main battery pack connections. Each 6V deep-cycle unit should link in series to achieve the required 36V output. Label the positive terminal of the first battery “+1” and the negative of the last battery “-6” to prevent misalignment. Use 4 AWG copper cables for inter-battery links to handle the 50-70 amp load during acceleration.
Check the solenoid’s placement–it sits near the controller, typically under the seat or dashboard. The thickest cable (2 AWG) connects the solenoid’s large terminal to the battery bank’s “+1” post. Smaller 6 AWG wires run from the solenoid’s coil to the ignition switch and forward/reverse microswitches. Ensure the coil wire splices use heat-shrink tubing; corrosion here causes intermittent power loss.
Inspect the motor’s armature and field coil leads. These two heavy-gauge wires (4 AWG) exit the motor housing and attach directly to the speed controller’s output terminals. Reversing their connection swaps the vehicle’s direction–confirm polarity with a multimeter before finalizing. A miswired field coil burns out within minutes.
Locate the speed controller, usually mounted near the motor with a heat sink. The input cable (2 AWG) from the solenoid’s large terminal bolts to the controller’s “+” lug. The controller’s output (4 AWG) splits into two wires–one to the motor’s armature, one to its field coil. Verify the fuse rating; most 36V setups use a 200A class T fuse between the solenoid and controller.
Examine the accessory circuit paths. The 12V subsystem–lights, horn, radio–draws from a DC-DC converter tapping the main 36V rail. Trace the converter’s input wires (10 AWG) to the battery bank, then follow its output (12 AWG) to the accessory fuse block. Replace any crimped connectors with soldered joints to prevent voltage drop.
Test the forward/reverse microswitches. These small plungers under the accelerator pedal toggle a 12V signal to the solenoid coil. Jumper the switch terminals temporarily while monitoring the solenoid’s click–if absent, clean the contacts or replace the switch. Faulty microswitches lead to jerky or unresponsive operation.
Trace the ignition circuit. From the key switch, two 12 AWG wires run: one to the solenoid coil (via microswitches), another to the DC converter. Add a 15A blade fuse within 10 cm of the key switch; neglecting this risks melting the harness during short circuits. Use dielectric grease on all connector terminals to block moisture ingress.
Common Fault Points and Fixes
- Corroded battery posts: Scrub with baking soda paste, rinse, then coat with terminal protector.
- Loose controller bolts: Tighten to 15 Nm torque; vibrations loosen them over rough terrain.
- Faulty solenoid: Measure coil resistance (~3-5 ohms); if open, replace the unit.
- Damaged armature brushes: Clean commutator segments and check brush length (minimum 0.5 cm remaining).
- Weak interlock switch: Bypass momentarily to test; if power restores, adjust pedal linkage or replace switch.
Pinpointing Critical Elements in a 36V Electric Vehicle Electrical Setup
Begin by locating the motor controller beneath the seat–it’s the rectangular metal unit with heat sink fins and labeled terminals. This component modulates power delivery to the traction unit, and its failure often mimics battery issues. Check for corrosion on the M- (motor negative) and B+ (battery positive) connections; even minor oxidation can cause intermittent power loss.
Examine the solenoid–a cylindrical device adjacent to the batteries–by tracing the heavy-gauge cables from the power source. A faulty solenoid produces a faint click when engaged but no voltage at the motor terminals. Test for continuity across the small control coil terminals with a multimeter; readings above 2 ohms indicate internal wear.
The reed switch assembly, mounted near the accelerator pedal, determines pedal position via a magnetic trigger. If the vehicle hesitates or surges, remove the pedal cover and verify the magnet’s alignment with the switch. Misalignment as small as 3mm disrupts smooth acceleration, and damaged switches often show physical cracks under magnification.
Trace the direction selector’s connections to the F/R switch–typically a small plastic-encased module on the front cowl. Loose or oxidized contacts here prevent forward/reverse engagement. Clean terminals with dielectric grease, ensuring the ground wire to the chassis remains secure; fractured grounds cause erratic operation.
Inspect battery interconnects, focusing on the heat shrink-wrapped joints between individual 6V units. Swelling or discoloration signals internal resistance, leading to voltage drop. Replace any connectors showing darkening at solder points, as these fail progressively under load, shortening runtime by up to 30%.
Diagnosing Peripheral Modules
The on-board charger’s AC input leads should be checked for fraying where they exit the power block. This unit, often a black metal box near the rear fender, clamps input voltage to 42V during charging cycles. Faulty AC components trip internal fuses without external signs, so probe input pins for expected 110V/220V readings before disassembly.
Verify the horn/light module’s fused circuits if auxiliary functions fail. This small PCB behind the dash routes low-current signals through relays; overheating here melts solder traces invisible without a magnifier. Reflow suspect joints with a temperature-controlled iron set to 350°C, avoiding excessive flux that attracts moisture.
Step-by-Step Guide to Connecting the Directional Change Mechanism on 36V Electric Carts

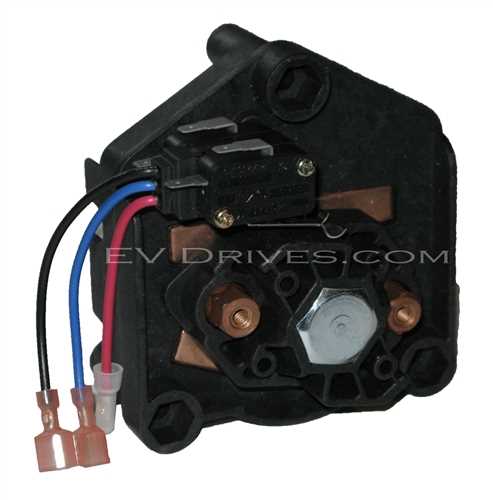

Before handling any electrical components, disconnect the battery pack to eliminate voltage risks. Locate the forward-reverse switch–typically mounted near the motor or beneath the seat–and identify its terminals: two large posts for motor leads and one smaller post for the solenoid connection. Label each terminal with masking tape to avoid miswiring: “F” (forward), “R” (reverse), and “S” (solenoid).
- Attach the motor’s positive lead to the “F” terminal using a 4 AWG cable, securing it with a lock washer and nut. Tighten to 15-18 ft-lbs to prevent loosening from vibration.
- Connect the motor’s negative lead to the “R” terminal in the same manner. Verify polarity with a multimeter–reverse polarity will damage the system.
- Wire the “S” terminal to the solenoid’s smaller post using 10 AWG cable. Ensure the solenoid’s main leads are connected to the controller’s output and battery negative.
- Reconnect the battery pack and test the mechanism in a safe, open area. Switch between forward and reverse while observing smooth engagement–grinding noises indicate misalignment or faulty contacts.
Critical Safety Checks
- Insulate all exposed connections with heat-shrink tubing or electrical tape rated for 600V. Exposed wires risk short circuits.
- Confirm the switch’s internal contacts are clean and free of corrosion. Use emery cloth to polish if necessary–oxidation increases resistance.
- Check torque on all fasteners after 10 hours of operation. Loose connections overheat and fail prematurely.
For dual-motor systems, replicate the process on each actuator but cross-wire the switch’s “F” and “R” terminals to ensure synchronized movement. If the vehicle hesitates or jerks during direction changes, inspect the solenoid plunger for wear–replace if travel distance exceeds 0.3 inches. Always stow tools and spare parts in a sealed container to prevent moisture ingress.
