Start with a dual-H-bridge configuration for bidirectional torque output. Use N-channel MOSFETs (e.g., IRF540N) for the low-side switches and P-channel MOSFETs (IRF9540) for the high-side to optimize switching efficiency. Ensure gate drivers like TC4427 handle 1.5A peak currents–critical for mid-sized actuators rated up to 5A continuous.
Place a 10kΩ pull-down resistor on each MOSFET gate to prevent floating inputs during power-up transients. Add Schottky diodes (1N5822) across each bridge leg with 0.3V forward drop to clamp inductive spikes from 12V-24V DC motors. Position the diodes as close as possible–within 1cm–to the motor terminals to minimize loop inductance.
Integrate a PWM isolation stage using an optocoupler (PC817) ahead of the microcontroller to isolate logic ground from power ground. Feed the optocoupler with a 2.5kHz-5kHz square wave–this range balances torque ripple and thermal losses in 180W brushless DC units. Add a 0.1μF ceramic capacitor between VDD and ground at the optocoupler output to filter glitches.
Use a 220μF electrolytic capacitor (105°C rating) at the primary power input to handle 10A surge currents. Place a 0.1Ω sense resistor in series with the ground return path–measure its voltage drop with a differential amplifier (INA125) to monitor current draw in 50mA increments. Calibrate the amplifier gain to 20 for 0-5V output scaling.
Route high-current traces on a 2-layer PCB with 2oz copper weighting and minimum 2.5mm width. Keep switching nodes isolated from analog feedback lines; separate them by at least 5mm to reduce EMI. Add an RC snubber (22Ω + 0.01μF) across each bridge leg to dampen ringing at turn-off; measure parasitic inductance below 30nH for clean transitions.
Precision Motor Control Unit Schematic Essentials
Start with an H-bridge arrangement for bidirectional pulse modulation, using complementary MOSFET pairs like IRF540N/IRF9540N for high-current applications. Ensure each gate is driven by isolated optocouplers such as PC817 to prevent ground loops in 12–48V systems. Add 100nF decoupling capacitors across each MOSFET’s drain-source junction to suppress transients exceeding 200V/μs. For feedback loops, integrate a potentiometer or AS5600 magnetic encoder with SPI interface–avoid resistive dividers if torque ripple must stay below 0.5%.
Power Regulation and Signal Isolation
Isolate control logic from motor power using a dedicated switching regulator like LT3748 for 5V MCU supply, or LM2596 for 3.3V variants. Keep trace inductance under 10nH/cm by routing high-current paths (minimum 2oz copper) directly to screw terminals; star-point grounding prevents voltage drops exceeding 50mV. For position feedback, limit comparator hysteresis to 20mV using an LM393 to eliminate false triggers from 50Hz noise. Pulse-width resolution should reach 0.1μs–attain this precision with an STM32G0 or dsPIC33CK timer peripheral.
Thermal management dictates PCB layout: allocate 50mm² copper pour per MOSFET, linking it via thermal vias (0.5mm diameter) to a heatsink. If operating above 3A continuous, mount the board vertically and ensure airflow velocity exceeds 2m/s. For fail-safe operation, insert a 10μF tantalum capacitor across the motor terminals to absorb inductive kickback–omit this only if the motor’s internal protection exceeds 150V clamping.
Core Elements for Precise Actuator Management Setup

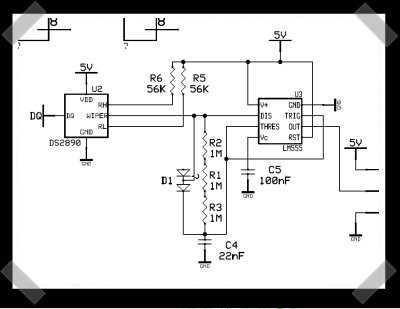

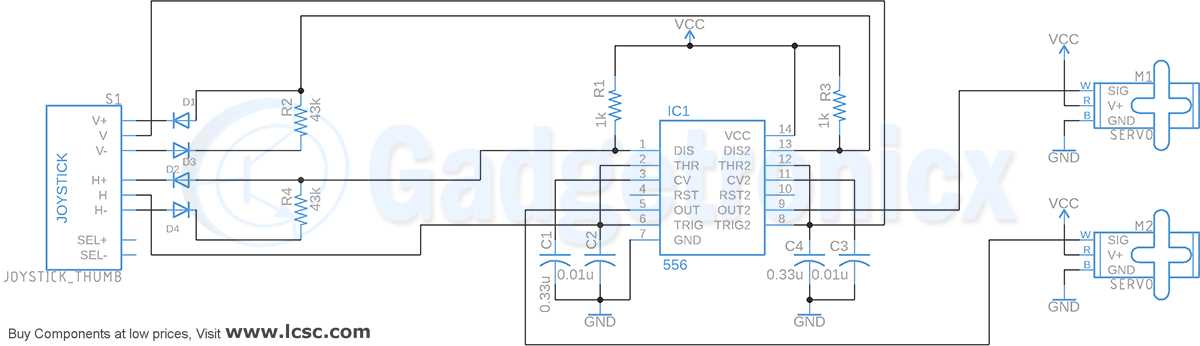

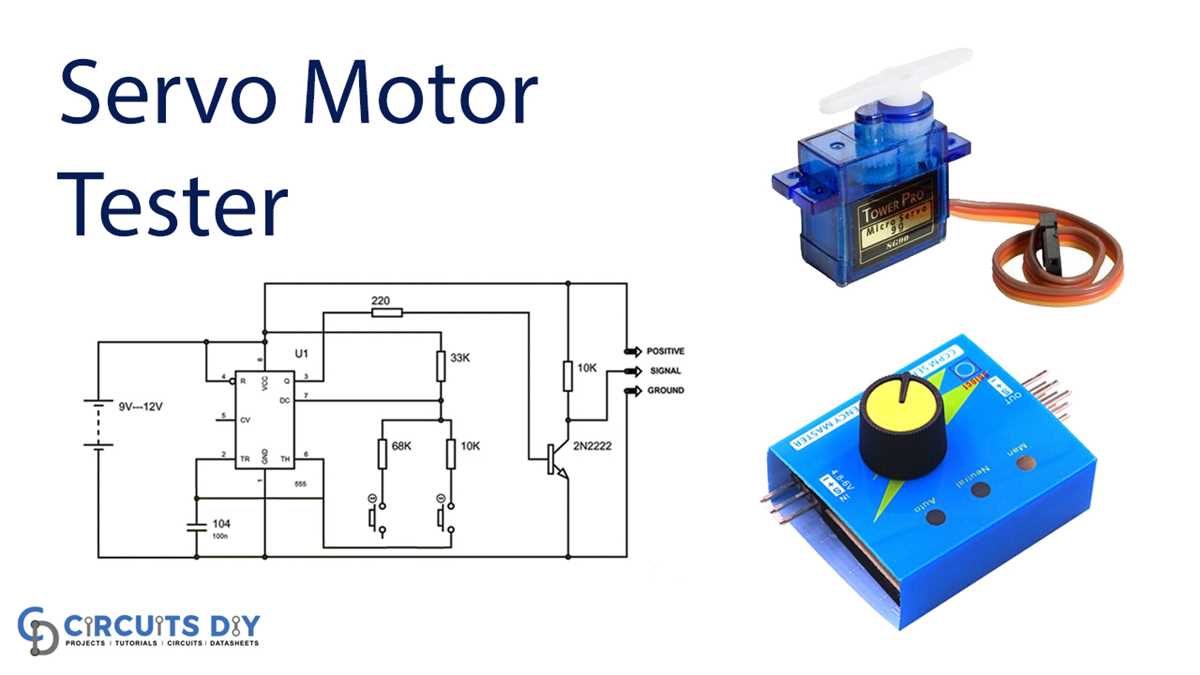

Start with a pulse-width modulation generator capable of producing signals between 1ms and 2ms at 50Hz. A 555 timer IC or microcontroller like ATmega328 provides reliable output for position adjustment. Ensure the signal matches the actuator’s voltage tolerance–typically 4.8V to 6V–to prevent overheating or erratic movements.
Include a power supply delivering stable current–0.5A minimum for standard actuators, higher for heavy-duty units. Linear regulators (LM7805) work for low-power setups, while switching regulators (LM2596) suit applications needing efficiency. Add decoupling capacitors (10μF and 0.1μF) near the power input to filter voltage spikes caused by sudden load changes.
Connect a potentiometer or analog sensor for feedback if closed-loop accuracy is required. Rotary encoders track absolute position, while Hall-effect sensors monitor speed. For open-loop systems, rely on calibrated pulse widths but account for mechanical play–usually ±2°–to avoid drift over time.
Use a dedicated driver IC like the L293D or DRV8871 when interfacing with microcontrollers operating below 3.3V. These ICs handle current surges up to 1A and include protection against back-EMF, eliminating the need for additional diodes. For high-frequency switching, opt for MOSFETs (IRFZ44N) with logic-level gates for direct microcontroller compatibility.
Implement failsafe measures: a pull-down resistor (10kΩ) on the signal line prevents accidental activation during power-up. Thermal overload protection–via a thermistor or resetable fuse–preserves gear integrity under sustained load. Test signal integrity with an oscilloscope, ensuring clean transitions between high and low states to avoid jitter in positioning.
Select wiring gauges matching current demands: 22AWG for signals, 18AWG for power delivery. Twist power and ground pairs to reduce electromagnetic interference. Shielded cables are critical in noisy environments like CNC machines or robotic arms. Ground the shield at a single point near the power source to prevent ground loops.
Step-by-Step Wiring Guide for a PWM-Driven Actuator Driver
Connect the power supply’s positive terminal to the motor driver’s VCC input, ensuring a stable voltage between 4.8V and 6V. Use a 1000μF capacitor across the supply rails to filter noise–place it as close to the driver board as possible.
Solder a 220Ω current-limiting resistor in series with the signal input wire before attaching it to the driver’s pulse modulation pin. Verify the resistor value if using high-speed actuators; 1kΩ may be required for extended lifespan.
Route the ground wire from the power source to both the driver’s GND terminal and the microcontroller’s ground plane. Star-grounding prevents voltage fluctuations; avoid daisy-chaining GND connections.
Attach the motor driver’s output pins to the actuator’s three terminals: pulse (white/yellow), direction (red), and feedback (brown/orange). Double-check polarity–reversing feedback signals distorts position readings.
Program the microcontroller to output a 50Hz pulse train with adjustable duty cycles between 1ms (full left) and 2ms (full right). Use a 1μs resolution timer for precision; longer pulse widths risk overheating the actuator.
Troubleshooting Power Delivery
If twitching occurs, measure voltage at the driver’s VCC pin under load. A drop below 4.7V indicates insufficient power; upgrade to a thicker gauge wire (22AWG minimum) or add a second supply.
For high-torque applications, bypass the onboard voltage regulator. Wire a separate 5V switching regulator (e.g., LM2596) directly to the driver’s logic voltage input–this handles 3A loads without thermal throttling.
Test signal integrity with an oscilloscope. Pulse rise/fall times should be under 200ns; slower edges cause jitter. Add a 100nF decoupling capacitor between the signal pin and ground if noise exceeds ±50mV.
Common Microcontroller Interfaces for Actuator Pulse Generation
Select an MCU with dedicated PWM hardware for precise timing–STMicroelectronics’ STM32F103, Atmel’s ATmega328P, or NXP’s LPC111x offer 16-bit timers with output-compare modes requiring minimal CPU intervention. Configure timer channels in edge-aligned PWM mode, ensuring a 50Hz update rate (20ms period) with pulse widths from 1.0ms to 2.0ms for standard 180° motion ranges. Use the MCU’s DMA controller when generating signals for multiple actuators to offload processing from the CPU core–STM32’s DMA2 can handle up to 7 independent PWM streams without jitter.
| Interface | Typical MCU | Resolution (bits) | Max Channels | Key Advantage |
|---|---|---|---|---|
| PWM (Timer Output Compare) | STM32F407 | 16 | 14 | Independent DMA-driven generation |
| PCA (Programmable Counter Array) | 8051 (e.g., AT89C51) | 16 | 5 | Low-cost 8-bit alternative |
| MSSP (Enhanced Capture/Compare/PWM) | PIC18F46K22 | 10 | 4 | Built-in dead-time control for H-bridge |
| ePWM (Enhanced Pulse Width Modulator) | TMS320F28379D | 16 | 8 | Hardware fault detection |
| FTM (FlexTimer Module) | KV58F22 | 16 | 10 | Dual-edge capture for feedback |
For high-channel-count applications, prioritize MCUs with multiple timer peripherals–NXP’s Kinetis K60 series supports up to 4 FTM modules, enabling simultaneous control of 40+ actuators. When using software-generated pulses (e.g., Arduino’s Servo library), disable interrupts during critical 1-2ms pulse windows to prevent timing jitter–expect positional errors exceeding ±5° otherwise. For advanced synchronization, leverage the MCU’s input capture feature to measure feedback pulses from linear encoders or potentiometers, adjusting output pulses in real-time via interrupt service routines.
Resolving Power Instability in Actuation Systems
Check the input voltage with a multimeter under load. Most precision drives require 4.8–6V; deviations below 4.5V cause erratic movement or failure to initialize. Measure at the motor terminals while the system is active–idle readings mislead.
Inspect cable integrity. Shielded twisted pairs reduce noise; cracked insulation or loose connections introduce voltage drops. Replace suspect wires, especially if frayed near joints or under flex points. Test continuity with a resistor setting to confirm.
Verify the power supply’s current rating. Peak demand during acceleration can exceed double the steady-state load. A 2A supply may support a nominal 1A actuator, but spikes demand 3–5A. Monitor with a current clamp; sudden drops indicate undersized sourcing.
Examine voltage regulators. Linear types dissipate excess as heat; overheating shuts them down. Switching supplies are more efficient but generate high-frequency noise. Add a 100nF ceramic capacitor across the regulator’s output to filter transients.
- Check ground paths–common impedances distort signals. Dedicated ground planes prevent cross-talk.
- Magnetic interference disrupts feedback sensors. Keep motor leads away from signal traces.
- Thermal throttling reduces current delivery. Ensure adequate heatsinks on drive ICs.
Test potentiometers or encoders. Worn contacts skew position feedback, causing overcurrent. Rotate manually while monitoring output; inconsistent voltage reveals faults. Clean or replace if resistance varies erratically.
Look for voltage sag under load. A 12V battery may read 11.8V unloaded but drop to 9V during operation. Swap to a higher capacity source or add parallel capacitors (1000µF minimum) to stabilize peaks. Confirm improvements with a load test–real-time readings catch intermittent faults.
