For maximum efficiency, connect the voltage regulator’s S terminal directly to the battery’s positive terminal using 10-gauge wire or thicker. This ensures stable sensing and prevents voltage drops that can trigger false readings or premature failure. Avoid branching this wire through ignition switches, fuses, or relays–doing so introduces resistance and compromises performance.
Route the B+ output cable (minimum 4-gauge for 120A units, 2-gauge for 200A+) straight to the battery’s positive post. Use a high-amperage ANL fuse (size = unit’s max output × 1.25) placed within 7 inches of the battery to guard against short circuits. Secure connections with tinned copper lugs crimped and soldered for corrosion resistance. Bolt torques should reach 12-15 ft-lbs for copper terminals.
Ground the generator’s case with a dedicated 4-gauge or thicker cable attached to the engine block or chassis ground–never the battery negative terminal. Shared ground paths with other components (like ECUs or audio systems) cause noise interference and intermittent failures. Verify zero resistance between the case and ground with a multimeter before finalizing.
Enable remote activation by wiring the R terminal to a 12V switched source via a 20A relay. Use a diode (1N4007 or equivalent) to block backfeed that can damage sensitive electronics during engine-off conditions. For dual-battery setups, add a heavy-duty isolator between the generator’s output and secondary battery to prevent parasitic drain.
Test under load before finalizing connections: start the engine, monitor voltage at the battery (target = 13.8–14.5V at 2000+ RPM), and confirm no fluctuations under accessories (headlights, A/C). If voltage sags below 13.2V, recheck all connections for high-resistance joints or undersized cables. Document each wire’s path and gauge for future troubleshooting.
Store all unused cables in split loom tubing secured with zip ties at 6-inch intervals, especially near moving parts or hot surfaces. Seal open terminals with heat-shrink tubing containing adhesive lining to prevent moisture ingress. Regularly inspect for signs of overheating (discoloration, melted insulation) every 5,000 miles or after heavy load conditions.
Electrical Hookup for High-Output Charging Systems
Start with a 4-gauge or thicker cable between the output terminal and the battery positive, ensuring minimal voltage drop under load. Route the wire away from moving parts and hot surfaces, securing it with clamps every 12–18 inches.
Connect the built-in voltage regulator’s sense lead directly to the battery positive terminal, not the output post, to prevent false voltage readings under heavy loads. Use a dedicated 16-gauge wire, twisted pair if possible, to reduce interference.
Ground the housing through a 4-gauge cable to the engine block or chassis at a clean, unpainted metal surface. Avoid bolting to exhaust manifolds or suspension mounting points; thermal expansion can loosen connections over time.
Key Terminals & Connections
- Output terminal (stud): 4-gauge minimum, fused within 7 inches of the battery.
- Regulator sense: 16-gauge, insulated with heat-shrink tubing at both ends.
- Exciter wire: 14-gauge, triggered by ignition switch or dedicated relay.
- Ground lug: 4-gauge, star washer to bite through surface oxidation.
Install an inline fuse rated 5–10 amps above the maximum charging current. Place it no farther than 7 inches from the battery to protect the entire circuit in case of a short. Test continuity with a multimeter before finalizing connections.
For systems with multiple batteries, use a diode isolator or solid-state relay to prevent back-feeding. Wire the isolator’s input directly to the charging source’s output lug, then branch to each battery with matching cable gauges to maintain equal charge distribution.
Avoid looping wires near magnetic fields–power steering pumps, ignition coils, or starter motors–to minimize induced noise. Use shielded cable for the exciter wire if the vehicle has high-voltage ignition systems or aftermarket audio amplifiers.
Troubleshooting Quick Checks
- No charging: Verify exciter wire voltage (12V) with key on, engine off.
- Low output: Measure voltage drop (
- Overheating: Check for loose terminal bolts; torque to manufacturer specs (typically 10–15 ft-lbs).
- Whine/hum: Add a 0.1µF ceramic capacitor across the output terminal and ground.

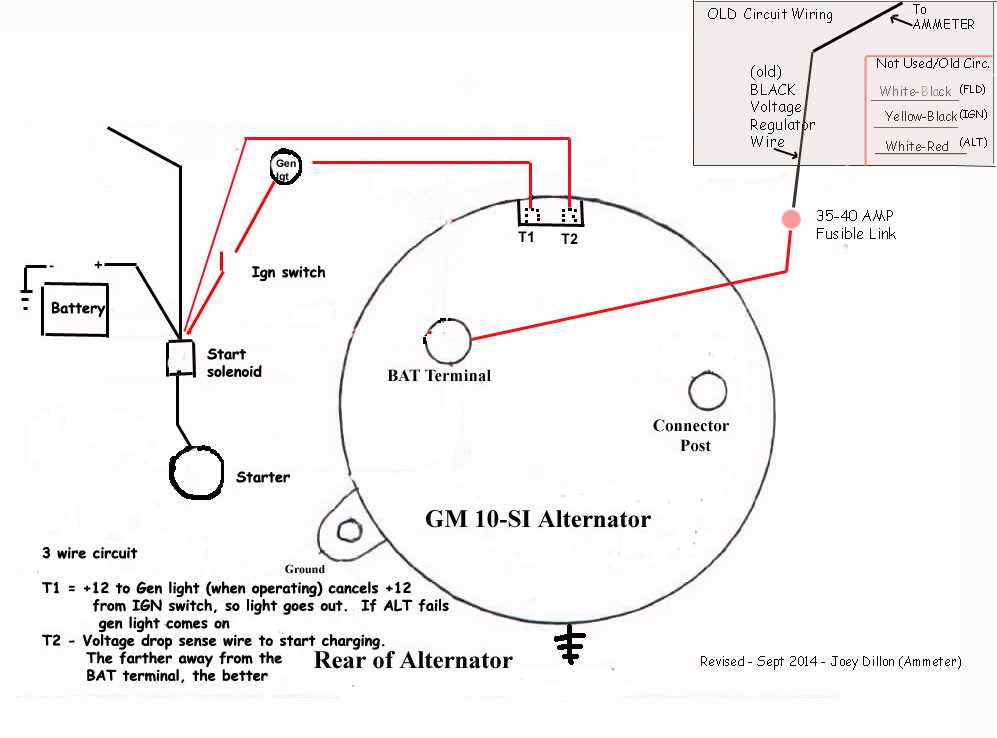

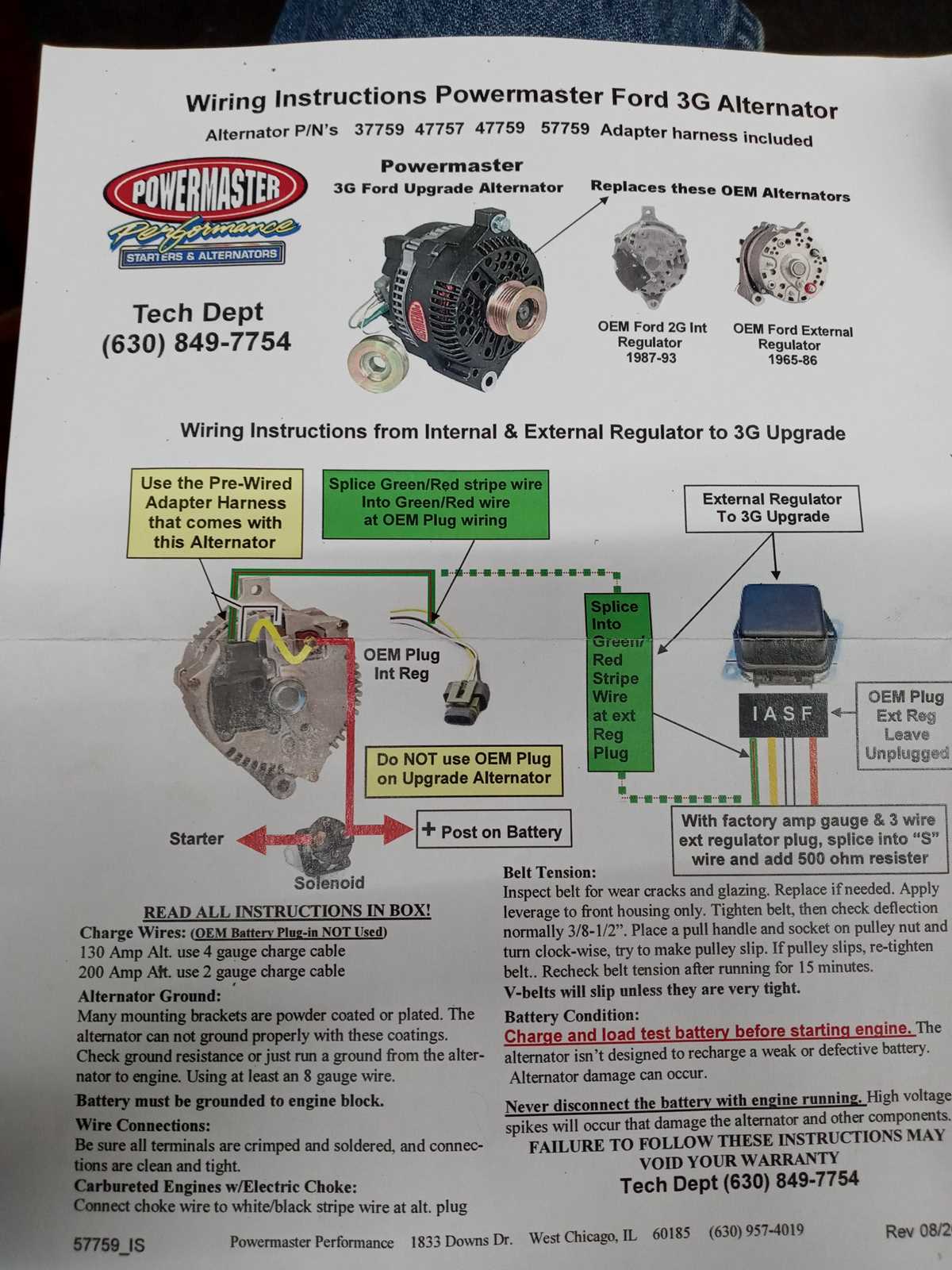

Identifying the Correct Generator Connection Points
Start by locating the main output post–typically a large threaded stud marked “B+” or “BAT.” This terminal delivers the full electrical charge to the vehicle’s battery and primary circuit. Verify its position using the manufacturer’s spec sheet, as misidentification risks damaging the system. On most models, this post is isolated from the housing by an insulating washer and secured with a flanged nut. Use a multimeter set to DC voltage: a reading of 13.5–14.5V at idle confirms proper function.
Auxiliary and Excitation Terminals
- “S” (Sense): Connects directly to battery positive to monitor voltage levels. Omitting this link causes erratic charging; attach with 14-gauge wire minimum.
- “F” (Field): Supplies excitation current. Some variants combine this with “R” (Relay) into a single spade terminal–consult the unit’s part number to differentiate.
- “I” (Ignition): Requires a 5–7A switched input from the vehicle’s ignition circuit to activate the regulator. Wire gauge: 16–18 AWG.
- “L” (Lamp): Controls the dashboard charge indicator. Polarity-sensitive–reverse connection extinguishes the light regardless of actual state.
Small-diameter posts labeled “GRD” or bare metal pads serve as grounding points. These must bond directly to the engine block or a dedicated chassis ground strap with zero resistance. Torque fastening hardware to 12–15 Nm; insufficient contact creates voltage drop, leading to undercharging. For units with dual grounds, parallel both points to a single clean surface using 12-gauge cable to prevent current imbalance.
Identify threaded accessory ports–one or two smaller studs near the main output–by comparing thread pitch: metric M5 (0.8mm) or standard 10-32. These accept auxiliary feeds like heated windshields or high-demand audio systems, rated up to 30A per connection. Never exceed 80% of the rated capacity to avoid overheating. Label each terminal immediately after confirmation to prevent cross-wiring during installation.

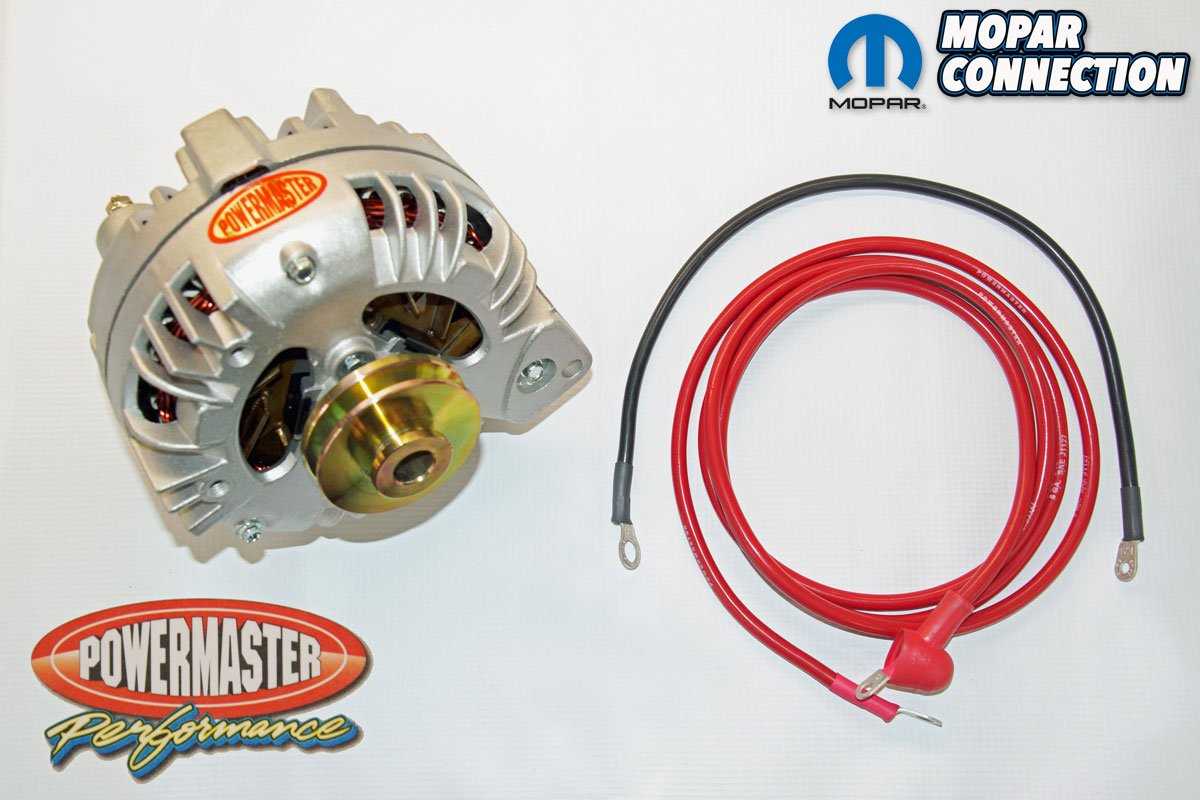

Step-by-Step Hookup for Standalone Charging Units
Begin by identifying the output terminal on the charging unit–typically marked with a “+” symbol or “BAT.” This post delivers full system voltage directly to the battery. Use 4-gauge or thicker cable for connections over 5 feet to prevent voltage drop; for runs under 5 feet, 6-gauge suffices. Strip ½ inch of insulation from both ends of the cable, crimp on a ring terminal, and secure it to the unit’s output post with a stainless steel nut tightened to 12–15 Nm.
Attach the other end of the cable to the battery’s positive terminal. Ensure the battery is disconnected during installation–remove the negative clamp first to prevent short circuits. If the vehicle’s original voltage regulator remains in place, disconnect its field lead to eliminate interference. On the battery, use a marine-grade ring terminal coated in tin; position it so the cable exits downward to avoid strain on the post.
Critical Safety Checks Before Activation
Inspect the path of the new cable for clearance over sharp edges, moving components, or hot surfaces. If routing near the exhaust manifold, sheath the cable in high-temperature fiberglass sleeve rated to 600°C. Secure the cable every 8–10 inches with nylon zip ties or Adel clamps to prevent chafing. At the battery end, install a 150-amp ANL fuse within 7 inches of the positive terminal to protect against short circuits.
| Component | Recommended Spec | Torque/Install Note |
|---|---|---|
| Output cable | 4-gauge tinned copper | 12 Nm, use dielectric grease |
| Ring terminal | Marine-grade, ¼” stud | Lug crimped with hydraulic tool |
| Fuse holder | ANL, closed-end | Mount below battery tray |
Reconnect the battery’s negative clamp last. Start the engine and observe the charging unit’s behavior: a healthy system should reach 13.8–14.4 volts within 30 seconds at 2,000 RPM. Use a multimeter to confirm voltage at the battery terminals–not just the post–to rule out connection resistance. If voltage exceeds 15.1 volts, shut down immediately; this indicates a failed internal regulator.
Final Integration with Existing Electrical System
If retaining the vehicle’s dashboard voltmeter, tap the new cable at the alternator’s output post with a 18-gauge sense wire routed directly to the gauge. Avoid splicing into factory harnesses; instead, use a dedicated 3-amp fuse near the gauge cluster. For aftermarket tachometers that rely on ignition pulses, locate the “R” or “TACH” terminal on the charging unit and connect it with 16-gauge wire–this terminal provides a clean low-voltage signal without introducing electrical noise.
Grounding deserves special attention: attach a 6-gauge cable from the charging unit’s mounting boss to the engine block using a star washer to penetrate paint and corrosion. Ensure the block itself has a robust path to the chassis via at least two 4-gauge straps. On vehicles with isolated battery grounds (e.g., GM LS swaps), connect the charging unit’s ground cable to the same isolated bus bar used for the battery negative, never to the chassis, to prevent ground loops.
