Start with a Hall-effect sensor–model AH331 or similar–positioned near a ferrous trigger wheel. Ensure the sensor’s output connects to a signal conditioning stage using an LM2903 comparator. A 10kΩ pull-up resistor on the sensor’s output prevents floating signals, while a 0.1µF bypass capacitor stabilizes voltage fluctuations during rapid RPM changes.
For signal processing, route the conditioned pulse to an ATmega328P microcontroller’s input capture pin (ICP1). Configure Timer1 in input capture mode with a prescaler of 8 to measure interval durations accurately. Use hardware interrupts to avoid software delays, particularly at speeds exceeding 150 km/h where signal frequency surpasses 1kHz.
Power supply stability is critical–regulate voltage with an AMS1117-5.0 LDO, pairing it with a 22µF tantalum capacitor on both input and output. Ground the sensor and microcontroller through a star topology to minimize noise coupling. If interference persists, add a ferrite bead in series with the sensor’s VCC line.
Optical isolation using a PC817 optocoupler improves signal integrity in automotive environments. Insert it between the microcontroller’s output and the display driver if EMI from the ignition system disrupts readings. Calibrate the system by counting pulses over a known distance–typically 4,000 pulses per kilometer for a 60-tooth trigger wheel.
Store calibration constants in non-volatile memory (EEPROM) to account for tire wear or gear ratio changes. Test across temperature variations (-40°C to 125°C) using a climate chamber, verifying consistent pulse width between 10% and 90% duty cycles at all speeds.
Building a Reliable Vehicle Velocity Measurement System
Begin by sourcing a Hall-effect sensor rated for 5V–24V operation, with a switching frequency above 20 kHz to handle modern drivetrains. Pair it with a toothed reluctor wheel machined from 4140 steel, featuring 48 teeth spaced at 7.5° intervals for precise signal generation. Mount the sensor 0.5–1.2 mm from the reluctor’s outer edge–gap tolerance directly impacts accuracy, so verify with a micrometer.
Wire the sensor output to a microcontroller via a 1kΩ pull-up resistor to condition the open-collector signal. Use a low-pass RC filter (10kΩ + 100nF) at the input to suppress EMI from ignition systems, especially critical for vehicles with coil-on-plug setups. Feed the conditioned pulse train into an interrupt-enabled GPIO pin (e.g., STM32’s PA0 or Arduino’s D2) configured for rising-edge detection.
Signal Processing Essentials
Convert pulses to velocity using the formula:
velocity (km/h) = (pulse_count × wheel_circumference × 3.6) / (tooth_count × sampling_interval)- Wheel circumference must account for loaded tire radius (measure at 80% of max payload)
- Avoid integer division errors–cast inputs to
floatbefore calculations
Implement a moving average filter over 5–7 samples to smooth fluctuations caused by uneven road surfaces or sensor noise. Store the last 3 calculated values in a circular buffer, discarding outliers exceeding ±12% of the mean to reject false spikes.
Display and Calibration Techniques
Drive the gauge with a 12-bit DAC (MCP4725) for analog meters, outputting 0.5V–4.5V for a 0–220 km/h sweep. For digital displays, use an I2C OLED (SSD1306) with custom glyphs to improve readability at high velocities–limit refresh rate to 10 Hz to prevent flicker. Calibrate by logging pulse counts against GPS-derived ground truth at 50 km/h, 100 km/h, and 150 km/h; adjust software scaling factors until error is
Power the assembly from a dedicated 7805 regulator, decoupled with 100µF electrolytic and 0.1µF ceramic capacitors. Isolate the ground plane from chassis return paths to prevent current loops–connect the sensor ground only at the ECU point. Route signal wires in a twisted pair shielded with aluminum foil or braided mesh, grounded at a single point to suppress inductive interference from alternators.
Test under real-world conditions with a scope probe on the sensor output. Verify clean, uniform pulses (±5% duty cycle) at 120 km/h–irregular waveforms indicate misalignment, inconsistent tooth geometry, or excessive gap. Replace the reluctor wheel if tooth edges show wear >0.05 mm, as this degrades resolution over time. For vehicles with non-linear tire growth (e.g., high-performance slicks), derive a lookup table mapping pulse frequency to corrected velocity values.
Document wiring harness pinouts with heat-shrink labels and include a diagnostic mode showing raw pulse counts, filtered velocity, and error flags. Future-proof the design by exposing calibration parameters via serial interface (UART at 115200 baud) for post-installation tuning without recompiling firmware. For race applications, add a secondary input from a wheel-speed sensor to correlate readings and detect slippage events.
Core Elements of a Vehicle Pace Measurement System
Select a magnetic sensor with dual-wire output (typically Hall-effect) for pulse generation. Opt for models with ±0.5% accuracy at operational speeds (0–120 km/h) and ensure compatibility with 5V or 12V vehicle power rails. Avoid cheaper inductive sensors–hall-effect types provide cleaner signals under 10,000 RPM input ranges, critical for capturing transient acceleration profiles.
Integrate a microcontroller unit (MCU) with dedicated timer/counter peripherals (e.g., STM32F103, PIC16F18426). Configure counter interrupts to capture sensor pulses at ≥1 kHz sampling rate to avoid aliasing during rapid deceleration events. Prefer MCUs with low-latency capture-compare modules for real-time frequency-to-speed conversion.
Signal Conditioning Essentials
Filter raw pulses using a Schmitt trigger (e.g., 74HC14) to eliminate voltage spikes from electromagnetic interference. Add a RC network (10 kΩ + 100 nF) before the trigger input for noise suppression, but ensure rise times remain to preserve accuracy during sudden speed drops. Verify hysteresis thresholds match sensor output levels (usually 0.8V–2.4V for automotive-grade components).
Calibrate display output using phase-locked loop (PLL) techniques or lookup tables. For analog dials, employ a stepper driver (e.g., PCA9625) with 200-step resolution; digital screens require SPI/I2C interfaces with refresh rates >30 Hz to prevent flicker. Store calibration offsets in non-volatile memory (EEPROM or Flash) to correct for tire circumference variations (±1.5% tolerance) during wheel rotations.

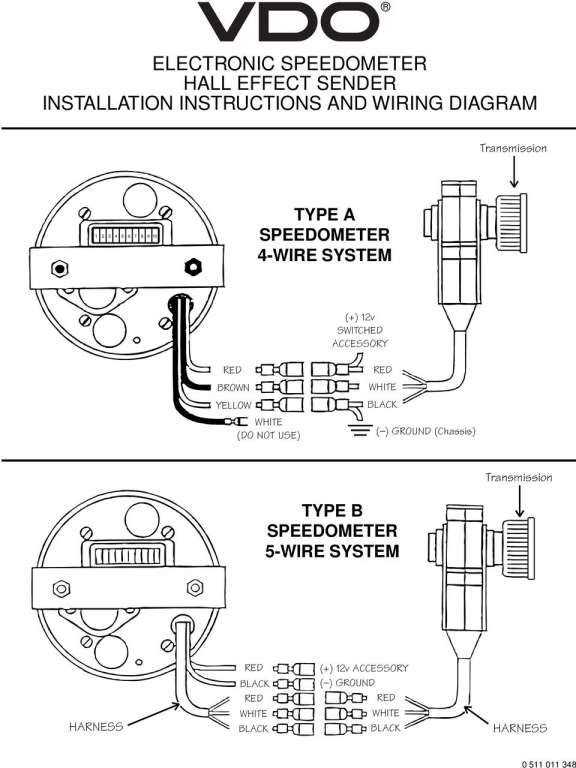

Step-by-Step Wiring Guide for Classic Vehicle Gauges
Disconnect the battery’s negative terminal before touching any wires to prevent short circuits or accidental instrument damage. Identify the three core wires on the back of the gauge: signal input (typically a thin wire with insulation in blue, red, or green), power (usually 12V, often fused at 5A), and ground (bare or black). Label them with masking tape to avoid mix-ups during reassembly.
Route the signal wire from the transmission’s sending unit to the gauge, avoiding sharp edges or moving parts that could chafe the insulation. For most mechanical transmissions, the sender is threaded into the housing near the output shaft. For automatics, it mounts on the valve body side. Use a 3/8″ wrench to remove the old unit and apply thread sealant to the new sender to prevent fluid leaks. Connect the gauge’s signal wire directly to the sender’s terminal–no splices are needed for analog systems.
Attach the power wire to a switched 12V source, such as the ignition-colored wire near the fuse block. Use a multimeter to verify voltage drops below 0.5V when the engine runs; higher readings indicate corroded connections. Solder all joints and cover them with heat-shrink tubing to resist vibration. For ground, bolt the wire to a clean metal surface within 18 inches of the gauge cluster–paint or undercoating must be scraped off to ensure conductivity. Avoid daisy-chaining grounds to other components.
Test the setup before finalizing. With the vehicle on jack stands, spin a rear wheel while an assistant observes the needle. It should move smoothly from 0 to maximum without erratic jumps. If the needle sticks or reads backward, reverse the signal and power wires. For vehicles with variable-speed signal outputs (e.g., Japanese models), add a 100Ω resistor in parallel to the signal wire to stabilize readings.
Secure all wiring with plastic clips spaced every 12 inches. Avoid zip ties near hot exhaust manifolds or rotating components like driveshafts. Route wires at least 2 inches away from the exhaust system; excessive heat degrades insulation over time. Use dielectric grease on connectors to prevent corrosion, especially in saline environments. After reassembly, drive the vehicle and check for consistent readings at various speeds (20, 40, 60 mph). Sudden zero readings typically indicate a loose ground.
Reconnect the battery and confirm all other instruments (fuel, temperature) remain functional. If the gauge flickers with the headlights on, upgrade the ground wire to 10-gauge copper. For persistent issues, substitute a known-good sending unit–failed units often cause needle flutter or pegging beyond the scale. Store the old sender for bench testing with a 9V battery and a potentiometer to diagnose faults.
Diagnosing Frequent Gauge Cluster Malfunctions
Check for corroded wiring terminals beneath the instrument panel first. Disconnect the vehicle’s battery, then remove the cluster trim to access connector pins labeled VSS (vehicle signal source), +12V ignition, and ground. Probe each terminal with a multimeter in resistance mode–values above 0.5 ohms on the ground line or fluctuations on VSS during wheel rotation indicate oxidation. Clean contacts with a fiberglass brush or replace male/female connectors if pitting exceeds 20% of pin surface area. Measure signal voltage on the VSS line at 2-3V AC while rotating a wheel by hand; readings below 1V suggest sensor or reluctor ring damage.
Voltage Drop Testing Matrix
| Component Path | Expected Voltage Drop | Fault Tolerance | Corrective Action |
|---|---|---|---|
| Ignition switch → Cluster fuse | <0.2V | 0.3V | Replace fuse holder or switch contact plate |
| Cluster fuse → Stepper motor | <0.1V | 0.2V | Resolder cold joints on PCB trace |
| VSS sensor → Cluster ECM pin | 0.0V AC | 0.3V AC | Repair open shielded cable or replace sensor |
| Ground stud → Chassis | 0.0V | 0.05V | Remove paint under ring terminal, star-washer mandatory |
Test stepper coils individually by applying 5V DC from a current-limited supply. A functional coil draws 20-30mA; deviations above 40mA signal shorted turns, below 15mA open windings. Use a magnifier to inspect PCB etching for hairline cracks–most failures occur near solder joints for cluster illumination LEDs, which generate localized heat cycles. Replace the entire unit if traces are lifted or delaminated.
