Locate the main power distribution block under the hood–typically a black or gray rectangular box near the battery–then verify the fuse labeled “ECM” or “Injector” before proceeding. Check for corrosion or melted terminals using a multimeter set to continuity mode; readings above 0.5 ohms indicate resistance losses requiring replacement of the affected segment. For 1992–1995 GM trucks with throttle-body fuel systems, refer to pin assignments A (tan/black), B (purple), C (dark blue/white) on the 12-pin round connector adjacent to the intake manifold.
Disconnect the negative battery terminal prior to handling any wire splices, using dielectric grease on freshly crimped connectors to prevent oxidation. Color-coded schematics show white wires deliver ignition voltage at 12V, red wires carry 5V sensor references, and black wires serve as ground returns. If the engine stalls intermittently, probe the orange/black (pin D) line with a noid light while cranking; a dull flash confirms injector signal dropout.
Damage often hides under the plastic loom near the valve cover, where heat degrades insulation–strip back the sheath to expose brittle copper strands. Use heat-shrink tubing matched to wire gauge (minimum 1/4″ diameter for 14 AWG wires) and solder connections for long-term reliability over crimp-only repairs. For vehicles exhibiting rough idle, trace the map sensor vacuum line upstream to its electrical connector–inspect for chafed wires against the intake tube.

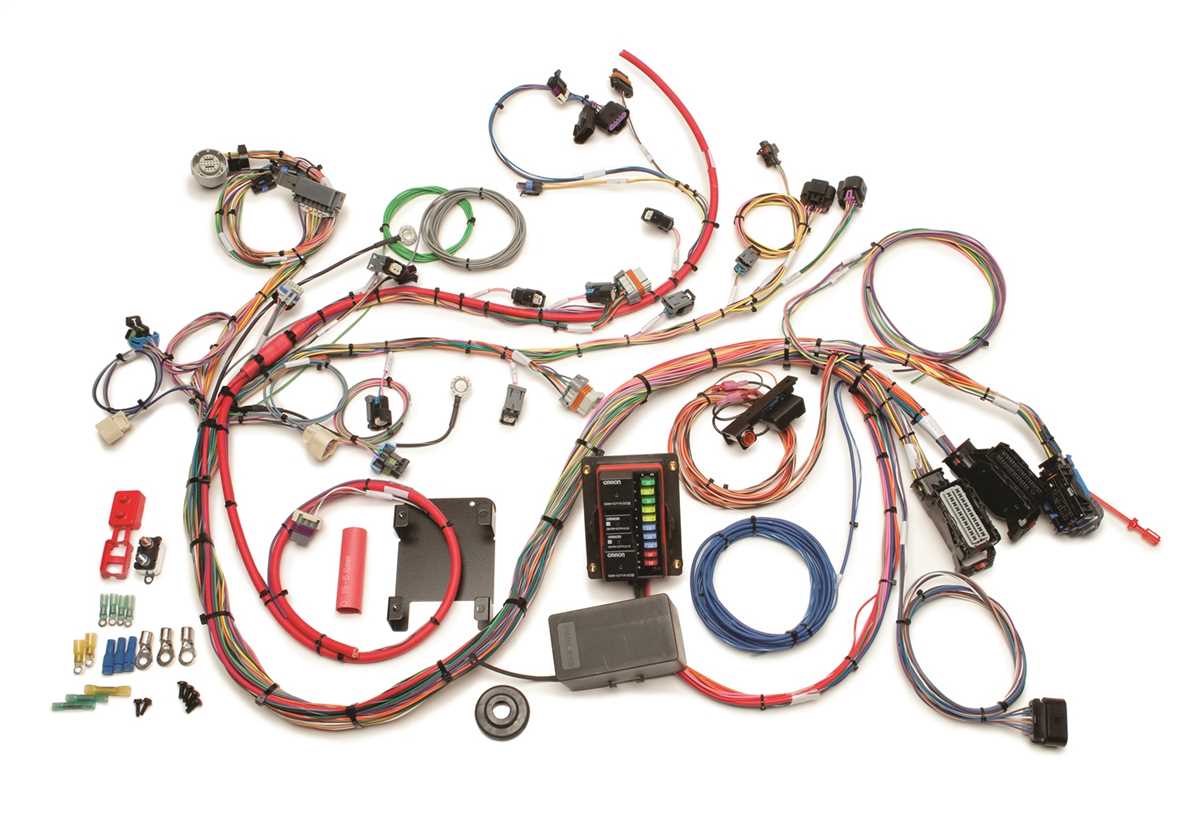

Replace the entire length if more than 15% of conductors exhibit abrasions; pre-assembled replacement bundles cost $120–$180 versus $35 in bulk wire and terminals. Label every segment with masking tape annotated with pin number and destination before disassembly to avoid confusion during reassembly. Always route new wires along factory clips to prevent interference with moving components like the throttle linkage.
Electronic Fuel Injection Circuit Layout: Full Reference
Start by pinpointing the ECM connector–a 24-pin plug typically marked “A” and “B” in OEM schematics. Wire colors follow a strict GM standard: *orange* for constant battery feed, *purple/white* for ignition-switched power, and *dark green/white* for the fuel pump relay trigger. Mismatching these will cause immediate failure; verify with a multimeter before reattaching.
Grounding paths require bare-metal contact–sand the mounting surface to expose clean steel and use star washers under screws. The ECM grounds (gray/black wires) must terminate within 12 inches of each other to prevent voltage drop. A single corroded connection introduces 200-300mV noise, enough to disrupt injector timing.
| Sensor | Pin # | Wire Color | Voltage @ Key-On | Notes |
|---|---|---|---|---|
| MAP | A3 | tan/black | 4.8–5.2V | Plug vacuum line before testing |
| TPS | A6 | light blue/black | 0.5V (closed) / 4.5V (WOT) | Verify sweep continuity |
| IAT | A2 | dark blue/white | Scaled 5V (resistance drops with heat) | Avoid touching IAT during test |
Injector leads alternate between cylinders–bank 1 (#1,3,5,7) uses gray wires, bank 2 (#2,4,6,8) uses white. Swap these and the engine will misfire violently. Each injector pair shares a common 12V feed (pink wire), protected by a 20A fuse; measure 11.8V+ at the relay output pin.
Oxygen sensor circuits demand shielded cable–route the two black wires (signal and ground) inside the same convolute tube, keeping them ≥4 inches from spark plug wires. A broken shield causes intermittent lean codes (trouble code 13) under part-throttle. Back-probe the sensor connector to confirm 0.1–0.9V swing while at 2000 RPM.
Throttle body heater (if equipped) pulls 10–12A through the dark gray/black wire; confirm continuity to a dedicated relay. The heater’s thermal switch opens above 220°F–failure drains the battery in 4 hours. Install a relay override switch for cold climates.
Idle Air Control (IAC) steps 0–125; command full sweep with a scan tool and watch the yellow/black wire toggle 0–12V. Resistance across the IAC motor pins should be 40–80 ohms; anything above 100Ω indicates contamination. Clean the pintle bore with carb cleaner and a cotton swab–never use wire brushes.
Pinpointing Critical Electrical Connector Parts on Vortec 350 Powerplants

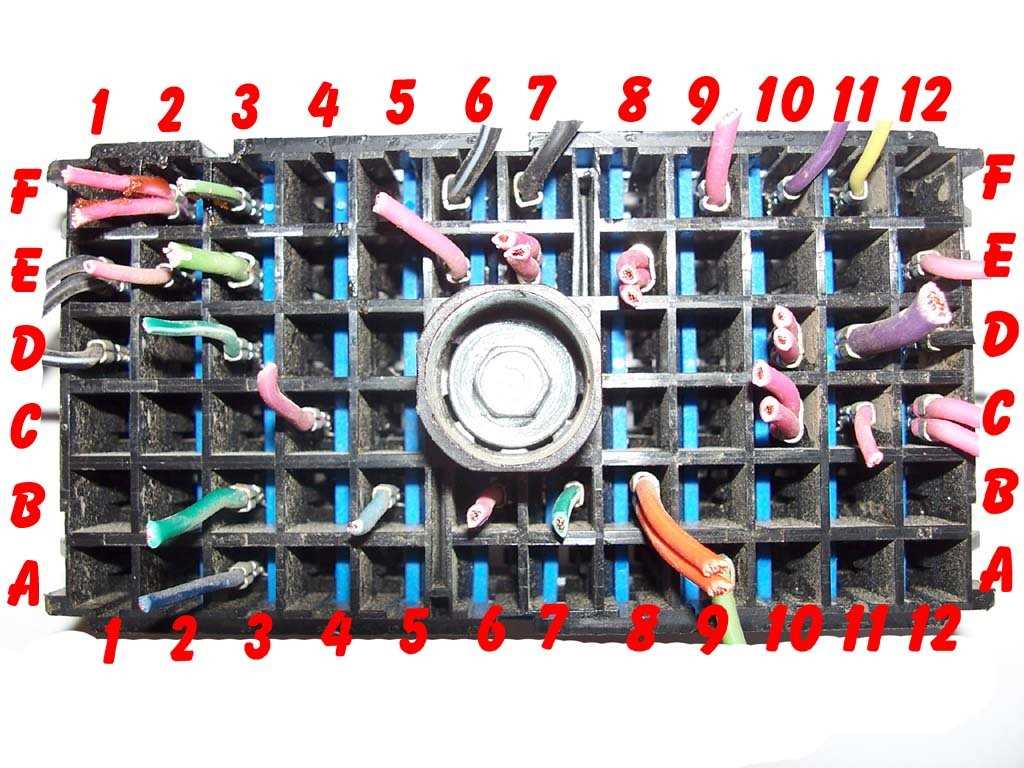

Start by tracing the main engine loom from the firewall grommet toward the intake manifold. The 12-terminal bulkhead connector sits near the driver’s side strut tower–this splits into two primary branches: the ignition control bundle (orange/black, pink/black) and the fuel management cluster (dark blue, light blue/white). Label each terminal position using tape marked with resistance values (ignor coil pack leads carry 12V; MAP sensor wires hover 4.2–4.8V at idle) to avoid swapping inputs during bench testing.
Locate the throttle position sensor piggybacked on the throttle body housing, marked by a three-pin mini connector (gray wire: 5V reference; tan/black: signal ground; dark blue/white: variable output). Probe these with a multimeter powered at 500mV DC range to confirm sweep readings (0.5V closed throttle, 4.5V wide open)–failed sweeps often mimic injector misfire codes.
Step-by-Step Wire Color Coding for Fuel Injection Control System
Begin by identifying the primary injector circuit connections: the dark green (DG) wire delivers switched 12V power from the ignition source, while the tan/black (T/B) lead serves as the ground path. Trace each injector’s pink/black (P/B) signal wire back to the ECM–these carry the pulsed trigger voltage that regulates pulse width. For GM’s V8 throttle body setup, confirm continuity between the ECM and injectors by probing the P/B wires at the 12-pin connector (terminals C1-8 and C1-9 for cylinders 1-4, C2-8 and C2-9 for 5-8). Use a multimeter set to 200Ω; resistance should read 14-16Ω across injector coils. Cross-reference against factory specs if readings deviate–shorted or open circuits mandate immediate replacement.
Critical Color-Matched Verifications
Label each wire before disassembly: light blue (L/B) and dark blue (D/B) split into injector pairs (1-2 and 3-4), while yellow (Y) and purple (P) handle 5-6 and 7-8. Probe the L/B and D/B at the ECM (terminals C1-5 and C1-6) for 5V reference voltage–missing signal indicates a faulty ECM driver. For ground-side troubleshooting, attach a test light to T/B and cycle the ignition; a dim or flickering light confirms weak grounding–relocate to the engine block if necessary. Shielded gray (GY) harness sections reduce EMI; avoid splicing them unless replacing with 20AWG twisted pair rated for 105°C.
Diagnosing Electrical Faults in Throttle Body Injection Systems
Begin by isolating the ignition control module connector. Use a multimeter to check for continuity between the ground terminal and the engine block–readings above 0.5 ohms indicate corrosion or loose connections. Replace the terminal if resistance exceeds this threshold, as poor grounding causes erratic injector timing.
Inspect the injector leads for chafing near the valve cover gasket or exhaust manifold. Exposed copper strands from damaged insulation often bridge onto nearby components, creating unintended paths. Wrap compromised sections with silicone tape rated for 200°C and secure them away from heat sources using nylon clips.
Voltage Drop Testing Under Load
Activate the fuel pump with a diagnostic scanner and probe the power feed at the main relay. A drop below 11.8V during cranking signals excessive resistance in the positive circuit. Trace the path back to the battery, checking fusible links and crimp connections–tighten loose terminals with a 9Nm torque wrench.
Pay special attention to the oxygen sensor heater circuit. Snip the connector wires 10cm from the sensor and splice in new 18-gauge wire if the original copper strands feel brittle. Apply dielectric grease to the new terminals to prevent moisture ingress, which accelerates oxidation.
For intermittent stalls, clip a lab scope probe onto the throttle position sensor signal wire while manipulating the harness. Voltage spikes or noise above 0.3V suggest internal shorting–a disassembled sensor often reveal cracked substrate traces beneath the resistive track.
Verify the ECM grounds by back-probing the dedicated stud while monitoring voltage. Ripples above 50mV AC indicate a compromised connection, typically resolved by cleaning the stud threads with a wire brush and applying anti-seize compound before reattaching the cable eyelet with a 6Nm torque.
Adapting Circuit Paths for Custom Engine Control Unit Enhancements
Begin by identifying the OE sensor and actuator outputs on the factory bundle–pinout maps for GM’s early Vortec control modules (e.g., 16197427, 16158972) list critical signals like coolant temperature (ECT), throttle position (TPS), and manifold absolute pressure (MAP) at terminals 41, 43, and 45 respectively. Trace these lines from the original loom to a new weatherproof connector, ensuring continuity with
Critical Signal Isolation and Re-Routing
Separate high-impedance sensor lines from power feeds using shielded twisted pairs: group MAP/ECT/IAT along one twisted set (120Ω characteristic impedance), TPS/VSS/O2 on another, and fuel pump/injector drives on a third. Avoid running any sensor wire within 100mm of ignition coils or alternator leads–induced noise spikes >120mV can trigger false knock detection or fuel trim errors. If the OE loom lacks shielding, wrap each twisted pair in heat-shrink tubing with an internal ground drain, terminating drains at the ECU’s isolated sensor ground (not chassis).
- ECT/THW: Resistor-divider input; retain OE 2.49kΩ pull-up if switching to a standalone that lacks internal bias, but replace with a 2.2kΩ precision resistor if noise persists.
- TPS: 5V pull-down reference; verify new ECU’s pin expects 0-5V (linear) rather than 0.5-4.5V (buffered)–some aftermarket units (e.g., Megasquirt) require re-scaling via a 1kΩ trimpot in-line.
- MAP: Balanced bridge output; recalibrate barometric correction tables if converting from 1-bar to 2-bar models–most GM applications use a 400Hz update rate, while performance ECUs sample at 1kHz.
For ignition outputs, disconnect the OE EST (electronic spark timing) module and splice in a Hall-effect or VR conditioner if the upgrade ECU lacks internal signal conditioning. LS-style units typically require a 12V pull-up on the cam/crank inputs, whereas earlier TBI-era looms provide a 5V reference–install a voltage regulator (LM7805) with 5,500, risking misfire or coil failure.
- Fabricate a breakout loom with Deutsch DTM connectors–use male pins on sensor-side harness and female on ECU-side to prevent accidental shorts during setup.
- Test each circuit with a 12V test lamp before connecting the ECU: injectors should pulse at 50Hz at KOEO, IAC motors click, and fuel pump relay engage for ~2 seconds.
- Log voltage and frequency on all inputs during a test drive–ECT should stabilize at 0.5-4.5V (linear), TPS traverse from 0.5V (closed) to 4.5V (WOT) without hysteresis, and O2 sweep from 0.1V to 0.9V.
