Start by identifying the common terminal on your multi-path control device–usually marked in black or labeled “COM.” This terminal carries the incoming or outgoing current between the power source and the fixture. Connect the live conductor (typically a copper cable with black or red insulation) from the main supply to this point. Failure to correctly match this junction will result in a nonfunctional or hazardous setup.
For the remaining pair of terminals, attach the traveler conductors–copper strands with contrasting colors, often red and black. These conductors transfer current between the control points, enabling toggling from multiple locations. Ensure tight, corrosion-resistant connections; loose or oxidized joints create voltage drops or intermittent failures. Use insulated screw terminals rated for the circuit’s amperage–typically 15A for residential lighting circuits.
The neutral conductor bypasses the control mechanism entirely. Route it directly from the power source to the light fixture using a continuous, unbroken copper path (usually white insulation). Avoid splicing the neutral within the control box unless absolutely necessary–this violates NEC guidelines and risks ground faults.
Verify polarity before energizing the circuit. Use a multimeter to confirm 120V (or 240V for specific applications) between the live conductor and neutral at each terminal point. Reverse polarity will damage LED fixtures or create shock hazards. For dimming applications, verify compatibility between the control device and bulb technology–standard incandescent setups differ from low-voltage or smart bulb configurations.
Label all conductors at both control locations. Indicate traveler paths, common terminals, and ground connections with heat-shrink tubing or permanent marker. This prevents confusion during future maintenance or modifications. Ground all metal enclosures using a dedicated bare copper conductor (minimum 14 AWG) connected to the grounding bus bar in the breaker panel.
Connecting Dual-Control Light Circuits: A Practical Guide
Start by identifying the common terminal on each device–marked with a darker screw or labeled “COM.” This terminal carries the line or load connection and is critical for proper function. Attach the incoming power conductor to the common on the first control and the outgoing feed to the light fixture to the common on the second. Misplacing these wires will prevent the circuit from working.
Use traveler connections (usually brass-colored screws) to link the two devices. The traveler conductors–typically red and black–must run between matching terminals on both units. If the circuit includes a ground, connect it to each device’s grounding screw to ensure safety. For 12-gauge cables, ensure all terminals are tightened securely to avoid loose connections that can cause flickering or failure.
Label each conductor before disconnecting old mechanisms. Confusion between traveler and common terminals is the most frequent error. Test continuity with a multimeter to confirm correct placement before restoring power. If both controls can turn the light on but not off, one traveler conductor is likely reversed–swap them at one terminal pair.
For circuits with an intermediate box, run three-conductor cable between all stations. The extra conductor acts as a second traveler. Secure all connections with wire nuts rated for the circuit amperage–typically 15A for residential installations. Avoid using backstab terminals; they are less reliable than screw-down types.
Before finalizing, toggle each control through every position to verify consistent operation. Flickering indicates a loose traveler–retighten terminals. If the light remains on regardless of toggle position, the common terminal on one unit is misconnected; recheck both locations.
Install wall plates only after confirming full functionality. For dimming applications, ensure both devices are dimmer-compatible; mixing standard and dimmer mechanisms will damage components. Always shut off the circuit at the breaker before adjustments and use a non-contact voltage tester to confirm de-energization.
Mastering the Three-Contact Electrical Pathway
Begin by identifying the traveler conductors–these are the two intermediate lines that connect the pair of controls in the setup. Label them distinctly during installation, as swapping them will disrupt functionality. The common terminal on each device is typically marked with a darker screw or the word “common”; this connects to either the power source or the fixture, depending on its position in the circuit.
Test continuity with a multimeter before energizing the circuit. Ensure the mechanism toggles only the live line–never attach both travelers to the same phase, as this creates a dead short. For redundancy, use 12-gauge copper conductors in 20-amp circuits; 14-gauge is permissible only in 15-amp configurations. Secure all connections with properly sized wire nuts and wrap them clockwise to prevent loosening under load.
In dual-control installations, position the first unit upstream if it also powers adjacent loads–this simplifies troubleshooting by isolating downstream components. Always confirm the circuit breaker is rated for the correct amperage before commissioning; mismatched ratings risk overheating insulation or tripping protection prematurely.
Locating Primary and Auxiliary Conductors in a Triple-Control Configuration
Begin by powering off the circuit at the breaker and confirming the absence of voltage with a non-contact tester. In a multi-point control setup, the primary conductor (typically black or red insulation) connects to the brass terminal marked “COM” or “Common” on one of the mechanisms–this is the sole terminal not paired with another on that device. The remaining two terminals on both units carry the auxiliary conductors (often brass screws or labeled “T1/T2”), which alternate current between the controls. If color codes are absent or inconsistent, use a multimeter in continuity mode: the primary conductor will show a direct path to ground or the fixture when toggled between positions, while the auxiliaries will only complete the circuit between the paired terminals on opposite units.
Follow these steps to isolate the roles:
- Label each conductor with masking tape before disconnecting to prevent misplacement.
- Attach one multimeter probe to the suspected primary at the first control, the second to the fixture or neutral.
- Toggle the second control–if the meter registers a change (e.g., from open to closed), the tested conductor is primary.
- Repeat for the remaining conductors at the opposite unit; the two that maintain continuity only between the paired terminals on both units are auxiliaries.
- Verify by reconnecting and testing operation–primary should always carry power in one position, while auxiliaries swap paths between controls.
Exceptions and Troubleshooting
In older installs, a white conductor may serve as primary if re-marked with black tape–never assume neutrals without testing. If both controls function only in one position, the auxiliaries are likely reversed; if one pair operates erratically, check for damaged insulation or loose terminal screws. Aluminum conductors require anti-oxidant paste at connections to prevent voltage drops.

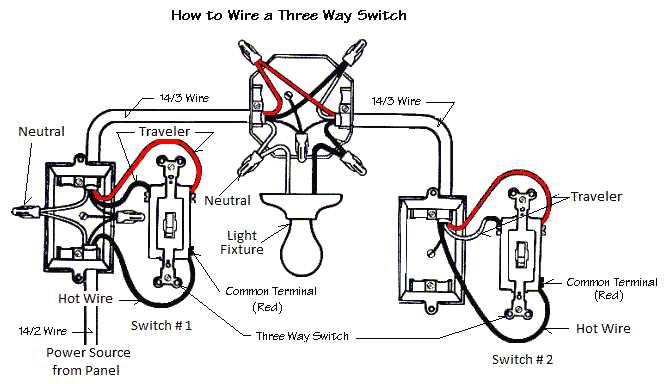

Step-by-Step Guide to Configuring a Triple-Point Circuit with Supply at the Fixture
Ensure the circuit breaker is off before handling any conductors. Verify absence of voltage using a non-contact tester on all terminals.
Locate the incoming power feed at the light fixture box. Identify the hot (black or red), neutral (white), and ground (bare or green) conductors. Strip 3/8″ of insulation from each end of the conductors using wire strippers. Secure the fixture’s neutral conductor to the neutral bundle with a twist-on connector.
| Terminal | Conductor Color | Action |
|---|---|---|
| Common (dark screw) | Black or red | Attach incoming hot conductor here |
| Traveler (brass screws) | Red and white (re-marked) | Connect to corresponding terminals on both control points |
| Ground | Bare or green | Secure to metal box and device ground screw |
Route two 14-gauge conductors (one black, one red) from the fixture box to the first control point. Label these as travelers. Re-mark one white conductor at each control point with black or red tape to serve as the second traveler. Connect the incoming hot conductor to the common terminal at the fixture’s control device. Attach the travelers to the brass terminals, matching colors at each end. Secure all connections with twist-on connectors, ensuring no exposed copper remains.
Run a 14-3 NM cable from the first control point to the second. Match the traveler conductors–red to red, re-marked white to black–on the brass terminals. Connect the ground conductor to the grounding screw at each device. Fold conductors neatly into the boxes, mount the devices, and attach cover plates. Restore power at the breaker and test functionality: both control points should independently toggle the fixture on/off.
How to Connect a Triple-Control Circuit When Power Enters at the Initial Toggle

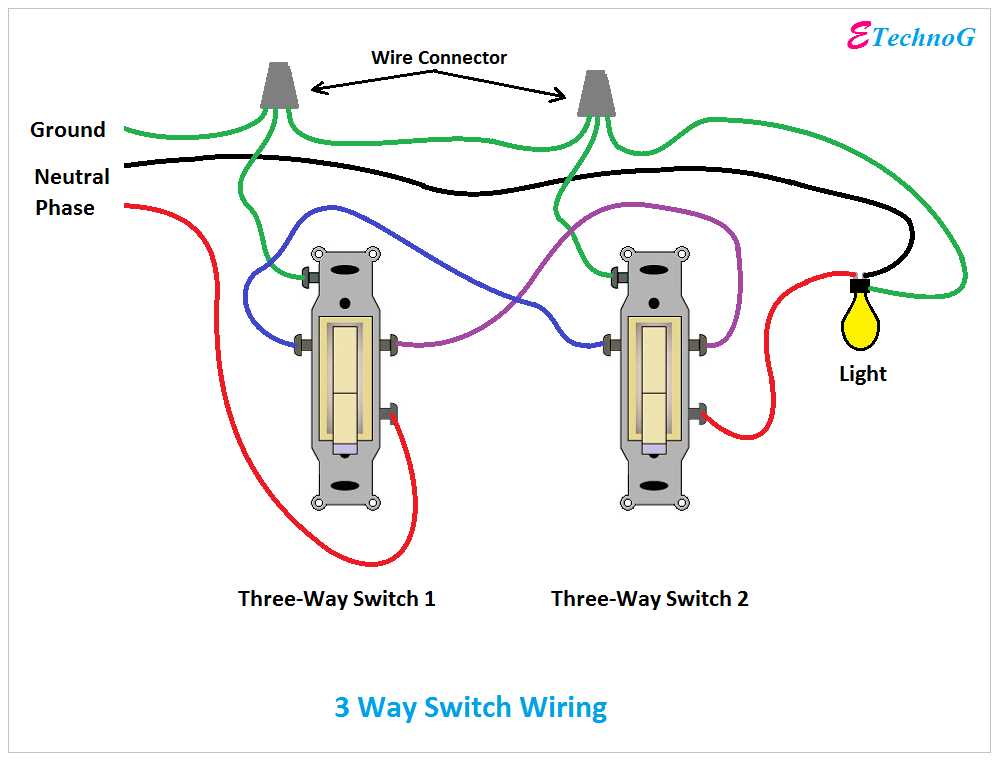

Begin by identifying the hot conductor (typically black) from the incoming power source and secure it to the common terminal (usually marked “COM” or darker) on the first control device. The neutral wire (white) must be joined with a wire connector and left uninterrupted–it should not pass through any toggles. Next, run two traveler cables (one red, one black) between the two control devices, connecting them to the brass-colored terminals. Ensure the same terminals on both units correspond (e.g., red to red, black to black).
Finalizing the Setup
At the second control, attach the remaining hot conductor (from the load, such as a light fixture) to its common terminal. Verify all connections are tight, wrap electrical tape around terminal screws for added safety, and restore power to test functionality–both toggles should independently operate the load. If flickering or inconsistent operation occurs, recheck traveler terminal matches.
