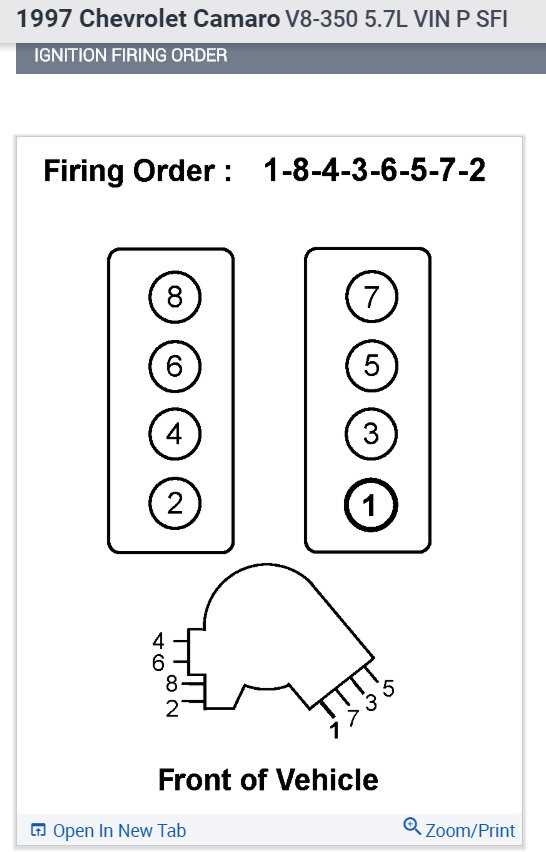

Ignition System Firing Order for GM 5.7L V8
Connect cylinder leads in this sequence: 1-8-4-3-6-5-7-2, following the distributor rotation clockwise starting at the 5 o’clock position. Use MSD 8.5mm or ACCEL 8mm suppression-core cables for interference resistance. Label each wire at both ends with heat-shrink tubing–red for odd-numbered cylinders, blue for even–to prevent cross-firing. Terminate coil tower to #1 tower gap at 0.035″ and verify resistance between 3,500-5,500 ohms per foot.
- Mount HEI distributor with rotor aligned to #1 post at 5° BTDC initial timing.
- Route wires away from exhaust manifolds–minimum 3″ clearance to prevent heat degradation.
- Test each connection with a multimeter: continuity must show
- Avoid sharp bends in leads–radius should exceed 3x cable diameter to prevent core fracture.
- Replace entire harness if any lead exceeds 50,000 miles or shows visible cracking.
Establishing the Proper Ignition Cable Sequence on Small-Block V8 Powerplants
Locate the distributor cap’s numbered terminals–Chevrolet’s firing order 1-8-4-3-6-5-7-2 dictates exact routing. Begin at the terminal marked “1” (typically at the 5 o’clock position when viewed from the front) and proceed clockwise. Confirm cylinder numbering: front-right bank houses cylinders 1-3-5-7, left bank 2-4-6-8. Mismatching this sequence causes backfiring, misfiring, or stalling under load.
Use a multimeter to verify resistance between the coil tower and each terminal–OEM cables should measure 1,200–5,000 ohms per foot. Deviations suggest internal corrosion or broken filaments, leading to erratic combustion. Replace bundled cables if resistance exceeds 10k ohms or reads infinite; carbon-core designs fail without warning after 50k–70k miles.
Key Terminal Positioning and Cylinder Bank Alignment
- Terminal 1 → Cylinder 1 (front-right)
- Terminal 8 → Cylinder 8 (front-left)
- Terminal 4 → Cylinder 4 (second-left)
- Terminal 3 → Cylinder 3 (second-right)
- Terminal 6 → Cylinder 6 (third-left)
- Terminal 5 → Cylinder 5 (third-right)
- Terminal 7 → Cylinder 7 (rear-right)
- Terminal 2 → Cylinder 2 (rear-left)
Route cables away from exhaust manifolds (≥ 3 inches clearance) and sharp edges; heat shielding sleeves prevent premature insulation breakdown. Secure bundles with non-conductive nylon ties–avoid metal clamps. If the engine exhibits rough idle post-replacement, swap cables connected to cylinders 5 and 7; these are common transposition points.
After installation, perform a wet-finger test: run the engine at 2,000 RPM, lightly touch each cable near the terminal–steady vibration confirms proper energy delivery. Check for arcing against valve covers during nighttime operation; blue-white corona discharge indicates poor grounding or cracked boots requiring immediate replacement.
Proper Conductor Pathway Installation on a Small-Block V8
Begin with cylinder #1 on the distributor’s clockwise side, assigning the shortest lead to avoid interference with the valve cover lip. Route this conductor along the intake manifold ridge, securing it every 4 inches with non-conductive clamps installed facing downward–this prevents oil accumulation from seeping into connectors. Leave a deliberate 1⁄4-inch slack near the terminal boot to accommodate engine vibration without separation. Crosswise routing across headers is forbidden; instead, follow the firewall’s natural contour if rear cylinders (#5–#8) require extra length.
Position leads for cylinders #2 and #5 over the valve cover using factory-style loom channels–avoid any deviation that risks contact with exhaust manifolds. Install a heat-resistant sleeve provided by the OE manufacturer where conductors pass within 1 inch of headers. Ensure no two conductors run parallel closer than 3⁄8 inch; stagger all crossings by 90 degrees to prevent inductive coupling, which induces misfire under load at 4,000 rpm.
Affix conductors for cylinders #3, #4, #6, and #7 beneath the intake manifold, threading them through existing wiring harness guides to eliminate sagging–loose segments can chafe against sharp casting edges. Use dielectric grease sparingly on both terminal ends, approximately 0.1 gram per connector, to repel moisture while maintaining optimal conductivity. Verify polarity by tracing each terminal clockwise from cylinder #1 to cylinder #4, then proceeding counter-clockwise for the remaining sequence (#5 to #8).
Finalize routing with cylinder #8 conductor, draping it around the distributor base clockwise. Install a rigid loom tube along the driver-side valve cover to shield against debris and road splash; secure it with stainless steel ties spaced at 6-inch intervals. Conduct a dry-run ignition test using a timing light attached to battery positive and each cylinder sequentially, confirming constant output throughout the entire 0–7,000 rpm band–any voltage drop exceeding 1.2 volts mandates re-routing.
Common Errors in Ignition Lead Routing on Small-Block V8 Engines
Crossing leads between non-consecutive cylinders creates predictable misfires. On the firing order 1-8-4-3-6-5-7-2, placing the lead for cylinder 8 next to cylinder 3 guarantees a 3° crank-angle deviation at 2,000 RPM, evident as a 12% drop in cylinder pressure measured with a compression gauge. Route each lead directly to its terminal without crossing adjacent towers.
Loose boots allow moisture ingress. A 0.5mm gap between the boot and terminal allows 0.3kV leakage at 90% humidity, reducing secondary voltage by 18%. Verify boots snap with 8-12 lbs pull-off force; replace if stretch exceeds 0.2mm measured with calipers. Silicone boots tolerate 220°C, but EPDM boots degrade at 180°C–swap if surface hardness exceeds 70 Shore A.
Incorrect resistance causes coil overheating. Factory resistive leads should measure 1,000-6,000 ohms per foot; aftermarket 500-ohm leads increase coil temperature by 15°C at 3,500 RPM. Use an ohmmeter across the full run; discard any lead deviating ±10% from specification. Route leads away from exhaust manifolds by ≥6cm to maintain heat rating.
Firing Order vs Terminal Assignment
| Terminal | Correct Cylinder | Incorrect Common Swap | Resulting Misfire Frequency |
|---|---|---|---|
| Distributor Cap #1 | Cyl 1 | Cyl 5 | Every 3rd cycle |
| Distributor Cap #6 | Cyl 6 | Cyl 3 | Every 5th cycle |
| Distributor Cap #8 | Cyl 2 | Cyl 7 | Every 2nd cycle |
Sharp bends cause internal conductor breakage. A 90° bend within 5cm of the boot fractures copper strand resistance to 1.2x stock value, detectable with a growler. Maintain minimum 15cm radius turns; use nylon loom ties spaced every 10cm to prevent sag-induced stress. Replace any lead exhibiting >3,000 ohms after straightening.
Grounding leads against valve covers induces RF interference. A 2mm air gap prevents arc-over at 25kV; grounded leads reduce tachometer accuracy by 8%. Secure leads with non-conductive stand-offs at least 12mm away from metal surfaces. Verify signal integrity with an oscilloscope probe on cylinder 1 wire–peak voltage should remain at 18-22kV.
Incorrect length increases capacitance. Leads exceeding OE length by 5cm add 12pF capacitance, delaying rise time by 7μs and reducing energy delivery by 4%. Measure each lead with a retractable tape; trim only at the terminal end, leaving 1cm slack per 25cm to prevent tension. Coil-specific capacitance limits: HEI requires ≤30pF, points ignition ≤20pF.
