Start by locating the 16-pin OEM interface behind the factory radio slot. The primary power feed is on pin 3 (constant 12V) and pin 4 (switched 12V), both marked in yellow/red and red/black tracer wires respectively. Ground is on pin 1 with an all-black conductor–ensure it connects to a clean chassis point to prevent noise interference.
Use a multimeter set to 20V DC to verify voltage between pin 3 and ground before attaching any aftermarket unit; readings should stabilize at 12.6V (±0.3V) when the ignition is off. The antenna trigger is on pin 5 (violet wire), which requires a direct 12V pulse to activate the amplifier in systems with external power antennas.
Left and right front speaker outputs are on pins 6 (light green/gray) and 8 (dark blue/white), while rear channels use pins 9 (pink/blue) and 11 (brown/yellow). Impedance must match 4-ohm; check continuity with a tone generator at 1 kHz to confirm signal paths before finalizing connections.
If integrating a navigation module or auxiliary input, tap the pink/white wire on pin 12 for the vehicle speed sensor signal–critical for GPS calibration. For models with factory theft-deterrent, retain the anti-theft data link (pin 14, gray wire) by splicing a 120-ohm resistor inline; failure to do so may trigger immobilizer errors.
Secure all splices with heat-shrink tubing and rosin-core solder–avoid crimp connectors on high-current paths (pins 3, 4) to prevent voltage drop under load. Final resistance between any signal wire and ground should exceed 1 MΩ when tested with an insulation resistance meter.
Electrical Connection Guide for a 2001 Compact Sedan Audio System
Begin by locating the factory connector at the back of the head unit slot–typically a 14-pin plug with white, yellow, red, blue, orange, green, and black wires. The white lead (front left speaker positive) and its companion white-black (negative) must match the aftermarket receiver’s corresponding outputs precisely to avoid phase cancellation. Misalignment here causes muffled sound or none at all.
Identify the constant 12V supply–usually a solid yellow cable–before connecting anything else. This wire feeds the radio’s memory function; cutting it first prevents accidental battery drain during installation. Confirm voltage with a multimeter while the ignition is off; readings should stay between 12.2–12.6V. Pair it with the red ignition-switched lead for proper on/off behavior without resetting presets.
Color-Coded Pinout Verification
Blue-white, often labeled “power antenna” or “remote turn-on,” triggers external amplifiers or motorized antennas. Splice it directly to the new unit’s blue lead if using an amp; otherwise, cap it securely with electrical tape to prevent shorts. Ignoring this step risks damaging aftermarket electronics or draining the battery overnight.
The orange illumination wire (sometimes orange-white) controls dimming when headlights activate. Connect it to the new deck’s dimmer circuit only if dash brightness adjustment is desired. Skipping this retains full display brightness regardless of lighting conditions, which may annoy night drivers but avoids potential flickering issues from factory resistor networks.
Ground connections demand clean, bare metal surfaces–scratch off paint or corrosion from the chassis mount point near the unit. Use a dedicated black wire from the new head unit, not the factory harness’s ground, to prevent ground loops. Insufficient grounding manifests as engine noise through speakers or erratic operation.
Speaker wires follow a strict positive-negative pattern: solid colors carry the signal, striped ones return it. Cross-connecting green (rear right) with green-black (rear right return) results in silent or out-of-phase rear channels. Verify each pair with a 9V battery–temporary connection produces a brief pop from the correct speaker, confirming polarity before finalizing.
Matching the Right Audio Integration Plug for Your 2000-Era Compact Sedan

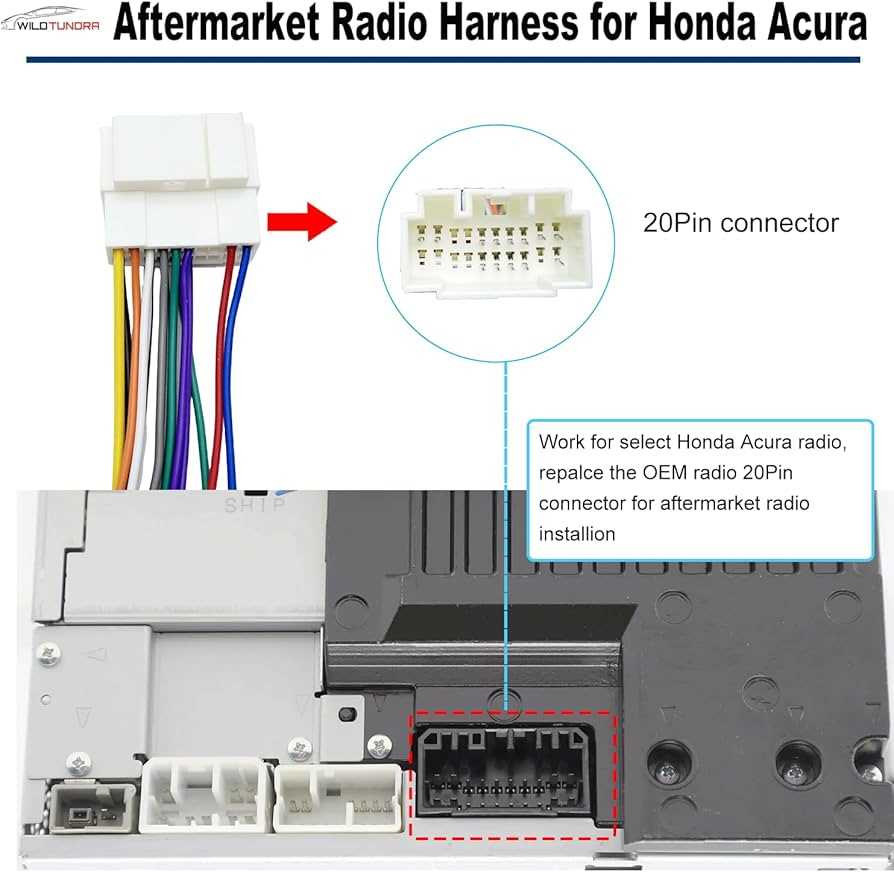

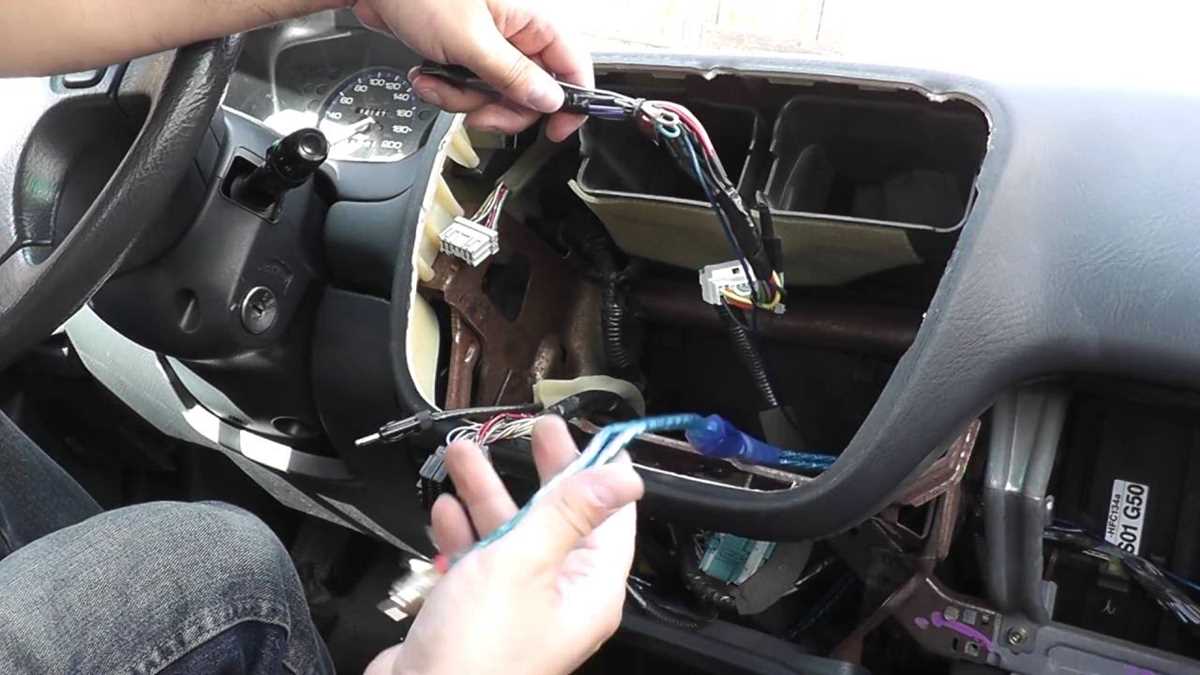

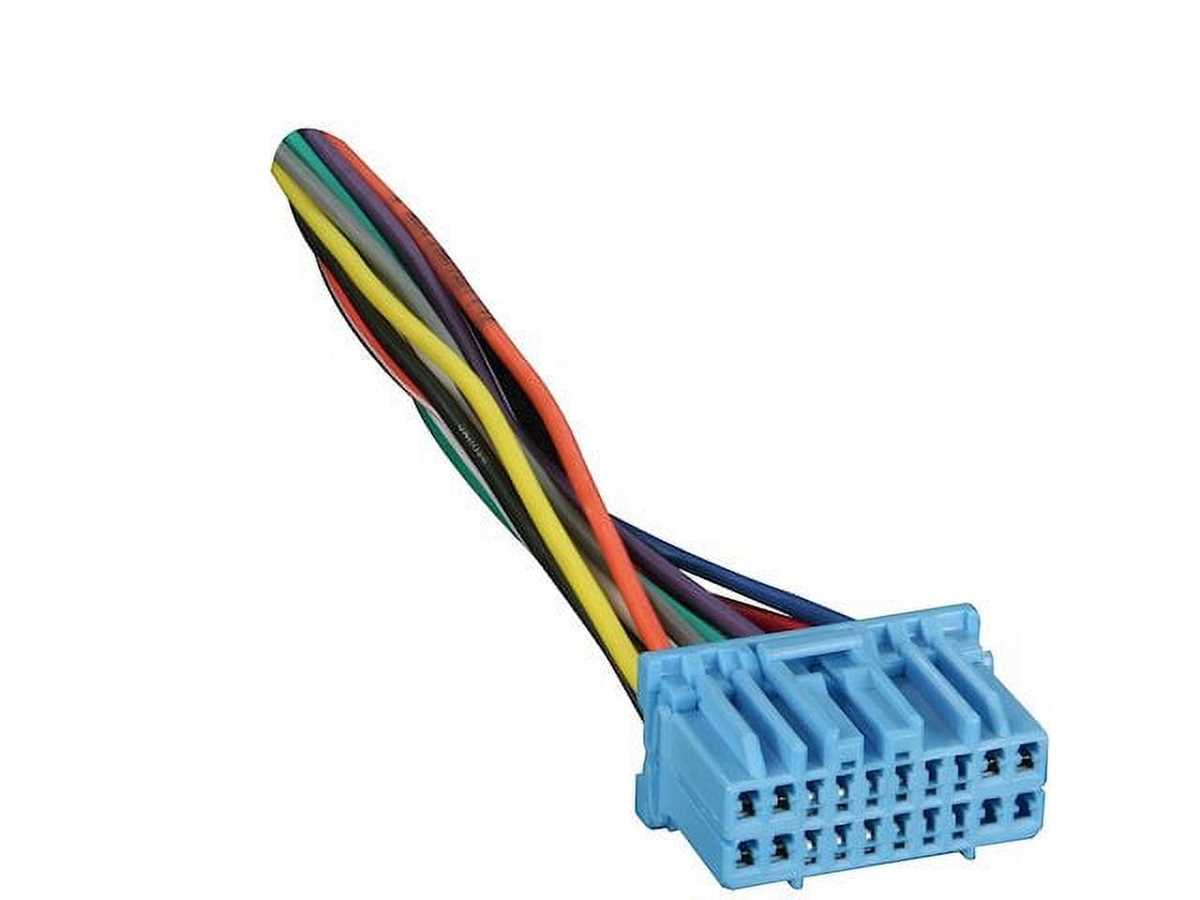

Locate the factory integration plug behind the original sound system’s mounting bracket–typically secured with two Phillips screws near the climate controls. The connector will have either 12 or 20 pins arranged in two rows with a distinctive keyed notch preventing incorrect insertion. Clip-on adapters labeled “Metra 70-1721” or “Scosche HON02” match this OEM layout precisely; third-party replacements lacking the notch risk partial connectivity or reversed polarity.
Verify connector compatibility by cross-checking pin assignments against the table below–incorrect color-coding between OEM and aftermarket harnesses often causes silent channels or blown fuses.
| Pin Number | OEM Wire Color | Function | Aftermarket Equivalent |
|---|---|---|---|
| 1 | White/Black stripe | Front left speaker (+) | Gray |
| 2 | White | Front left speaker (-) | Gray/Black stripe |
| 6 | Green/Black stripe | Rear right speaker (+) | Purple |
| 7 | Green | Rear right speaker (-) | Purple/Black stripe |
| 8 | Yellow | Constant 12V power | Yellow |
| 9 | Red | Switched 12V power | Red |
| 10 | Black | Ground | Black |
For sedans with automatic transmissions, an additional 4-pin mini ISO connector supplies reverse signal lighting–neglecting this link disables backup camera input despite proper RCA wiring. Always solder high-current connections (yellow, red) rather than relying on crimp terminals; factory-grade adhesive-lined heat shrink prevents corrosion.
Measure voltage at pin 8 with a multimeter while ignition is off–readings below 12.3V indicate a depleted battery or faulty alternator, not a wiring fault. Confirm ground integrity at pin 10 by checking continuity to chassis metal using the diode test setting; resistance above 0.5 ohms suggests corroded contacts requiring sanding or relocation.
Aftermarket decks drawing above 10A continuous current require direct battery tapping using 10-gauge wire–retrofit kits omitting this upgrade risk blown fuses or melted insulation under sustained playback. Route power cables through the firewall grommet adjacent to the brake booster, avoiding sharp edges where factory wiring clusters may chafe.
Detection of parasitic current draw (typically 50-80mA overnight) signals improperly terminated switched leads–isolate circuits by removing fuses one at a time until draw returns to baseline (~30mA). Premium integration modules like PAC RP4-CH11 automatically manage turn-on delays and antenna triggers, eliminating manual relay installation.
Final validation involves testing all speaker outputs with a 55Hz test tone at 75% volume–distortion-free reproduction confirms correct phase and impedance matching. Static interference on AM bands indicates unshielded power cables running parallel to RCA interconnects; repositioning cables orthogonally resolves 90% of noise complaints.
How to Precisely Connect Aftermarket Audio Cables to Original Connector Colors
Locate the constant power line on the factory plug–typically a yellow or orange with stripe wire–and match it to the corresponding 12V+ (battery) lead on the new head unit. This ensures memory retention for settings and clock function.
Identify the switched power wire, often red in OEM bundles, and link it to the aftermarket accessory terminal. A multimeter set to DC voltage can verify this by showing 12V only when ignition is turned to ACC or ON, preventing battery drain.
Ground connections require the thickest gauge available–usually black–and must attach to a bare metal chassis point. Scrape off paint or corrosion at the mounting spot to guarantee a 0-ohm resistance reading. A loose ground causes static, popping, or intermittent power loss.
Speaker outputs follow a predictable pattern: left front (+) is light green, left front (-) is gray with stripe, right front (+) is light blue, right front (-) is blue with stripe. Cross-referencing these with the aftermarket colors prevents phase cancellation that muddies audio.
For RCA integration, use the factory purple (rear right) and green (rear left) wires–if present–to feed the amplifier’s line-level inputs. If these are absent, splice directly from the head unit’s RCA outputs to the amp, ensuring the ground remains isolated to avoid ground loops.
Illumination control, often overlooked, is handled by a white or orange wire on the vehicle side. Connect this to the dimmer/illumination input on the new system to maintain dashboard brightness synchronization. Failure here leaves the display either too bright at night or dim during daylight.
Anticipate variations in harness layouts between trim levels. Luxury packages may include data bus lines (gray or brown) for steering wheel controls. If the aftermarket unit lacks this feature, cap these wires individually with shrink tubing to prevent shorts.
Final verification involves toggling each function–volume, balance, fade, source selection–while checking for consistent behavior. A bench test with a 9V battery and speaker simulates vehicle conditions, confirming correct wiring before permanent installation.
Identifying and Interpreting the OEM 16-Pin Plug Layout for In-Car Entertainment Units
Begin by locating the pre-installed connector behind the dashboard’s upper trim panel, typically positioned near the climate control module–check for a black rectangular plug with dual rows of eight sockets each. The upper row (left to right, pins 1–8) carries power, illumination, and audio signals: pin 1 (12V constant), pin 2 (ground), pin 3 (dimmer control), pin 4 (antenna trigger), pin 5 (left front speaker positive), pin 6 (left front speaker negative), pin 7 (right front speaker positive), pin 8 (right front speaker negative). Lower-row assignments (pins 9–16) handle rear audio outputs and additional vehicle data–pin 9 (left rear speaker positive), pin 10 (left rear speaker negative), pin 11 (right rear speaker positive), pin 12 (right rear speaker negative), pins 13–14 (unoccupied), pin 15 (data bus), and pin 16 (accessory power). Use a multimeter set to 20V DC to verify each terminal; expect 0V on grounds and 12V on power feeds with the ignition off for constant lines.
Swap wire probes to avoid false readings–test continuity across speaker pairs to confirm polarity before connecting aftermarket amps. Mismatched colors (e.g., solid green vs. green/black stripe) indicate inverted phases; reversing these will cancel mid and bass frequencies. If the factory interface lacks rear outputs, splice into the front speaker wires or tap the RCA leads from a line-level converter for cleaner signal transfer.
