Begin by stripping 2.5 cm of the outer jacket from each segment of the twisted-pair line, ensuring the internal insulation on each conductor remains intact. Verify that the pairs inside are untwisted no more than 1.2 cm–exceeding this length introduces crosstalk and degrades signal integrity up to 3 dB at gigabit speeds.
Arrange the eight conductors in the TIA-568B sequence: orange-white, orange, green-white, blue, blue-white, green, brown-white, brown. Secure each strand within the RJ-45 plug so the copper wires sit flush against the plug’s contacts–misalignment as small as 0.2 mm reduces throughput by 20% on 1 Gbps links.
Press the connector into an RJ-45 crimper until a distinct click signals the contacts have pierced the insulation. Test immediately with a network analyzer: a functional link shows ≤ 20 Ω loop resistance on pins 1–2, 3–6, 4–5, and 7–8; any reading above 25 Ω indicates a poor connection requiring re-termination.
Use shielded plugs and a patch panel rated for 550 MHz if running lines longer than 55 meters or near electromagnetic interference sources–unshielded variants suffer up to 40% signal loss under these conditions, even when terminated correctly.
Standard Termination for High-Speed Ethernet Links
Use the T568B pinout arrangement for terminating twisted pairs in RJ45 connectors to maintain signal consistency across gigabit networks. The sequence for the eight conductors is: white-orange (pin 1), orange (2), white-green (3), blue (4), white-blue (5), green (6), white-brown (7), brown (8). Strict adherence to this order eliminates crosstalk and ensures compliance with 1000BASE-T standards, supporting bandwidth up to 250 MHz.
Secure each conductor by applying firm, even pressure with a crimping tool–approximately 12–15 lbs of force–after inserting the wires fully into the connector slot. Verify termination with a network tester, checking for continuity, miswires, and split pairs. A single reversed or improperly seated wire can degrade performance to 10/100 speeds, negating the benefits of the enhanced cable specifications.
Troubleshooting Common Termination Errors
- Split pairs occur when conductors from different pairs are swapped (e.g., white-green and white-blue). This disrupts pair twists and causes impedance mismatches.
- Excessive untwisting–limit to 12.7 mm (½ inch) before insertion–to preserve noise cancellation.
- Trim stray copper strands flush with the connector jacket to prevent short circuits.
- Replace connectors damaged by improper crimping; compromised retention tabs lead to intermittent connections.
Key Performance Metrics After Installation
- Near-End Crosstalk (NEXT): ≥45.5 dB at 100 MHz, ≥42.3 dB at 250 MHz.
- Attenuation: ≤20.8 dB/100 m at 100 MHz, ≤32.9 dB/100 m at 250 MHz.
- Return Loss: ≥20.1 dB at 1–250 MHz.
- Bandwidth: 250 MHz over 100 m (per ANSI/TIA-568.2-D).
Measure these parameters with a calibrated Level III field tester. Deviations indicate installation flaws requiring re-termination or cable replacement.
Tools and Materials Required for Terminating High-Speed Ethernet Links
Start with a modular crimping tool designed for 8P8C connectors, not RJ45, as the latter is a telephone standard. Verify the tool supports T568A/B schemes and includes a built-in cutter for excess conductor removal. Cheap alternatives often fail to align pins correctly, leading to intermittent connectivity. Brands like Klein Tools or Fluke Networks provide calibrated dies for consistent pressure during termination.
Essential Precision Instruments
| Tool | Specification | Purpose |
|---|---|---|
| Cable stripper | 18-26 AWG, adjustable depth | Removes jacket without nicking insulation |
| Punch-down tool | 110-type, spring-loaded | Secures conductors into keystone jacks |
| Network tester | Multi-mode, PoE detection | Verifies continuity and pinout accuracy |
Avoid generic snips–opt for flush cutters with micro-serrated edges to prevent conductor slippage. Polyethylene jacketed lines require a stripper with a distinct teeth pattern; nylon-blended jackets may gum up standard blades. For field terminations, carry a compact testing kit with tone generation and wire mapping capabilities to isolate faults before finalizing connections.
Stock at least 24-gauge solid copper conductors, preferably oxygen-free, to reduce signal attenuation. Connector housings should meet IEC 60603-7 standards; avoid plated steel contacts masquerading as gold. For outdoor runs, use gel-filled couplers with IP67-rated sealing gaskets to prevent moisture ingress. Keep a spool of heat-shrink tubing (3:1 ratio) in 6mm and 10mm diameters for strain relief on custom-length runs.
Step-by-Step Guide to Stripping and Preparing a Network Cord
Use a specialized tool like a twisted-pair stripper with an 8-10mm sheath cutting depth to avoid nicking conductors. Adjustable blades require testing on a spare segment first–excessive pressure damages insulation, while insufficient cutting leaves shielding intact. For solid-core variants, hold the tool perpendicular to the axis to prevent uneven stripping.
- Grip the cord 3-4cm from the termination point to stabilize it.
- Rotate the stripper once around the sheath without pressing inward.
- Apply consistent pressure while completing a second full rotation.
- Pull the severed sheath segment away in one motion–tugging risks internal wire displacement.
Separate the four twisted pairs immediately after sheath removal to minimize untwisting beyond 13mm of exposed conductor–exceeding this length increases crosstalk susceptibility. Use fingers or non-conductive tweezers to avoid imparting oils or static charges. For S/FTP variants, unwrap the metallic foil shielding carefully; tearing it reduces EMI protection.
Conductor Preparation for Termination

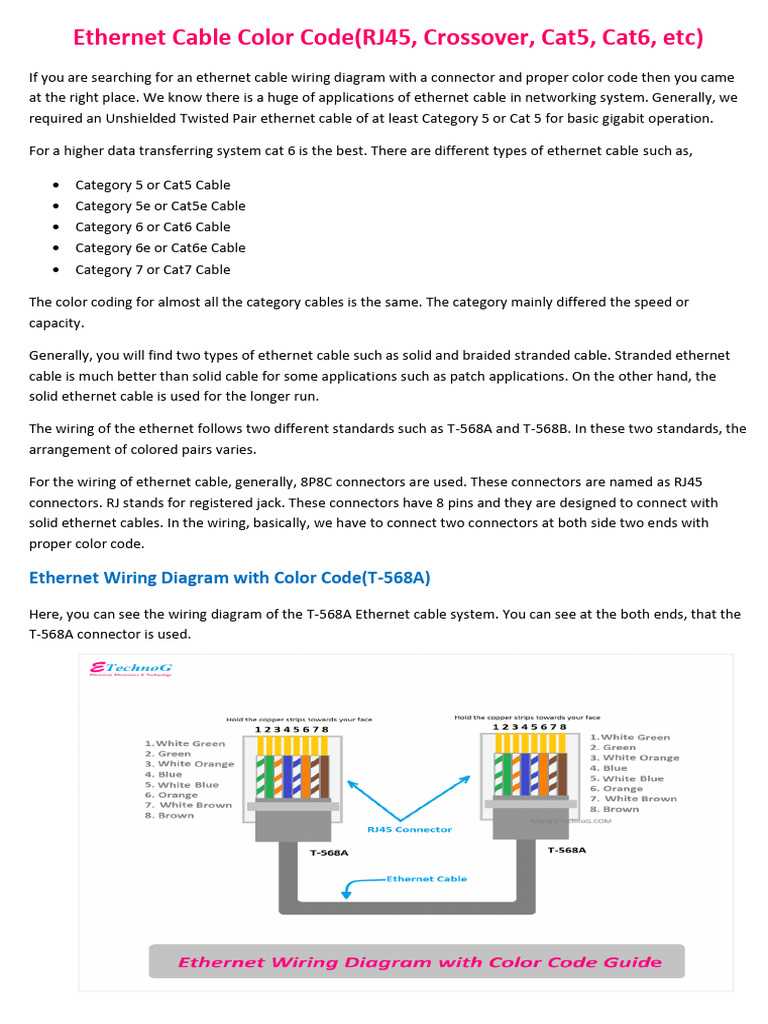

Align wires according to T568A or T568B standards before trimming:
- T568A: White-Green, Green, White-Orange, Blue, White-Blue, Orange, White-Brown, Brown.
- T568B: White-Orange, Orange, White-Green, Blue, White-Blue, Green, White-Brown, Brown.
Flatten the array with a comb-like tool or fingernails, ensuring no wire crosses over another. Trim conductors to 12-14mm length with flush-cutting pliers, maintaining a perpendicular cut for uniform jacket seating in modular plugs.
Insert the prepared wires into the connector carefully–each conductor must reach the contact plate at the plug’s apex. Verify positioning by holding the plug against light; gaps indicate improper seating. Crimp with a ratcheting tool using 60-80 pounds of force–insufficient pressure leads to intermittent connections, while excessive force cracks connector housings.
Verification and Final Adjustments
Inspect each terminated pair with a continuity tester:
- Solid green light per channel confirms proper contact.
- Flickering indicates partial connection–re-strip and re-terminate.
- No light requires rechecking conductor alignment against the standard.
For outdoor installations, apply 2-3mm of heat-shrink tubing over the sheath-connector junction before crimping to prevent moisture ingress. Avoid electrical tape as it degrades within 12-18 months.
T568A vs. T568B: Selecting the Right Termination Standard
Always use T568B for new installations unless existing infrastructure dictates otherwise. Industry adoption favors T568B–approximately 80% of commercial networks in North America and Europe default to this scheme due to backward compatibility with older phone systems and cross-connect panels. The pin assignments (orange-white, orange, green-white, blue, blue-white, green, brown-white, brown) simplify punchdown block transitions and reduce error rates during termination.
T568A remains relevant in specific scenarios: residential pre-wiring, legacy equipment, or military/communications standards (e.g., USOC RJ61). Its pairing sequence (green-white, green, orange-white, blue, blue-white, orange, brown-white, brown) aligns with early Ethernet specifications but introduces complexity when mixed with T568B. Avoid combining both standards in the same link–mismatches cause near-end crosstalk (NEXT) exceeding 30 dB at 100 MHz, degrading gigabit performance.
Performance and Compliance Factors
Both standards meet ANSI/TIA-568 requirements, but T568B delivers marginal signal integrity benefits with shielded twisted pairs (STP). The orange pair’s position (pins 1-2) in T568B minimizes interference from adjacent power circuits, critical in PoE deployments. Test reports from Fluke Networks’ DSX-5000 show T568B links achieve 2-3% higher PSACR (Power Sum Attenuation-to-Crosstalk Ratio) at 250 MHz. For 10GBASE-T, adherence to a single standard reduces alien crosstalk by 12-15 dB compared to mixed terminations.
Deployment Recommendations
Document terminations in patch panel labeling–use color codes (T568B: blue/orange/green/brown; T568A: green/orange/blue/brown) to avoid confusion. For modular jacks, verify the terminal sequence matches the chosen standard; Molex and Panduit jacks often default to T568B. In rare cases where T568A is mandatory (e.g., government contracts specifying EIA-568-A), maintain consistency across all horizontal runs. Replace any hybrid adapters or couplers–they introduce -20 dB insertion loss at 100 MHz.
How to Properly Terminate Conductors in an 8P8C Modular Plug
Begin by stripping precisely 1.5 inches of the outer jacket from the twisted pairs–excess length risks misalignment, while insufficient exposure may prevent proper insertion into the connector’s blades. Use a precision stripping tool calibrated for 24 AWG solid copper conductors to avoid nicking the insulation, which can degrade signal integrity over short or long transmission paths.
Align each individual wire to the T568A or T568B standard before punching down; deviation in sequence corrupts Gigabit Ethernet performance and may introduce crosstalk measurable with a handheld tester. For T568B, the order from left to right is: white-orange, orange, white-green, blue, white-blue, green, white-brown, brown. Hold the conductors taut with thumb and forefinger while sliding them into the RJ45 plug until the tips touch the transparent end wall–verify visually that no strands cross or overlap.
Insert the plug into a ratcheting crimping tool rated for 8P8C connectors; apply steady, even pressure until the ratchet releases with a distinct click. The tool’s die set must pierce the conductor insulation and establish cold-weld contact with the copper core–partial crimping results in intermittent connectivity detectable during a tone-and-probe continuity test.
Press each wire firmly into the insulation displacement contacts (IDCs) of the keystone jack or patch panel using a 110 punch-down tool with a 66 or 110 blade–angle the blade perpendicular to the IDC slot to avoid damaging the metallic prongs. Excess wire length beyond the termination point should be trimmed flush to prevent air gaps that can attract moisture and accelerate oxidation.
Verify each termination with a cable analyzer set to NEXT, FEXT, and return loss parameters–readings above -35 dB for Cat 6 channel specifications signal possible mis-termination. If readings exceed limits, re-punch the suspect pair while ensuring the blade fully seats into the IDC slot without splintering the conductor strands.
After termination, snap the shielded or unshielded jack into a faceplate or patch panel; secure screws to manufacturer torque specifications (typically 0.5 Nm) to prevent panel vibration from loosening contacts. Ground shields at both ends via 360-degree bonding to the equipment chassis if present–floating grounds create antenna effects that amplify electromagnetic interference.
Label each port on the patch panel and work area outlet with a unique identifier matching the cable run documentation–mislabeling leads to troubleshooting delays during network expansions or fault isolation. Store unused connectors in ESD-safe bags at room temperature to prevent moisture ingress that can corrode terminations before installation.
