Start by structuring flowcharts with no more than seven primary components–human working memory struggles beyond this limit. Use geometric shapes to denote function: circles for inputs, rectangles for processes, and triangles for decision points. Avoid color reliance; monochrome ensures accessibility for color-blind researchers and replicates well in print. Label each element with precision; vague descriptors like “analyzer” or “output” slow comprehension. Instead, specify: “Infrared spectrograph (400–700 nm)” or “Refrigerated centrifuge (–20°C, 15,000×g)”.
Standardize line weights: 0.75 pt for primary connections, 0.5 pt for secondary, and avoid arrowheads on continuous loops–directionality should emerge from sequence, not embellishment. Place voltage or pressure values directly alongside components, not in a separate legend. For electrical circuits, use IEEE Std 315 symbols; deviation causes misinterpretation in cross-lab collaborations. Position labels horizontally whenever possible–vertical or diagonal text reduces readability by 17%, based on a 2021 Nature Methods study.
Validate your layout with the “five-second test”: cover the diagram, uncover, and identify core processes within five seconds. If failed, simplify. Replace decorative borders with clear white space–minimum 20% of total area–to prevent cognitive overload. Use sans-serif fonts (e.g., Arial 8–10 pt) for legibility at small scales. Export as vector-based SVG for scalability, not raster PNG; resolution loss obscures critical details in high-magnification reviews.
Annotate conservatively. Each note should justify its inclusion by answering: “Will this prevent an error?” or “Does this save a colleague’s time?”. Excess annotation–like unnecessary temperature ranges on inert components–degrades signal-to-noise ratio. For biomass pathways, adopt KEGG nomenclature; for genetic circuits, SBOL. Link directly to databases (e.g., “UniProt ID: P12345”) if identifiers clarify ambiguity. Never assume domain knowledge; define every acronym in a footnote, regardless of familiarity.
Visual Representations in Research: Core Principles and Best Practices
Begin by selecting tools optimized for clarity over decorative elements. Software like LaTeX TikZ, Inkscape, or even matplotlib for technical fields offers precision. Prioritize vector formats (SVG, PDF) to maintain resolution independence for printed or scaled outputs. Raster images introduces pixelation when enlarged, compromising readability.
Define hierarchical components before structuring the layout. Label each element with descriptive identifiers, avoiding cryptic abbreviations. For example, in electrical engineering, use “R1” for resistors only if a legend exists; otherwise, opt for full names like “Load Resistor.” Color coding aids distinction but ensure accessibility–red-green combinations fail for color-blind viewers. Tools like ColorBrewer (colorbrewer2.org) provide validated palettes.
Limit lines to orthogonal paths unless diagonal cuts improve readability. Excessive bends or unnecessary intersections obscure relationships. Use arrowheads sparingly–only to indicate directionality (e.g., current flow, data streams) and not as visual filler. Dashed lines work for secondary connections but maintain consistent gap-to-dash ratios to avoid ambiguity.
Group related elements within bounded shapes. Rectangles suffice for most containers; rounded corners reduce visual clutter but may imply hardware enclosures where none exist. Overlapping shapes suggest layered processes but require clear labeling to prevent misinterpretation. For biological pathways, distinct bounding shapes (e.g., circles for nuclei, hexagons for metabolites) help users parse complex interactions rapidly.
Avoid embedding text within lines themselves. Annotations should sit adjacent to components, aligned horizontally or vertically for uniformity. Use sans-serif fonts (e.g., Arial, Helvetica) for digital displays; serif fonts (e.g., Times New Roman) improve printed clarity. Font sizes below 8pt render illegible in most contexts–test readability on target mediums before finalizing.
Validate representations with domain experts unfamiliar with your draft. Misaligned abstractions often surface during peer review. For instance, a feedback loop mistakenly depicted as linear will confuse readers. Annotated drafts with step-by-step explanations mitigate this risk, revealing logic gaps invisible to authors.
Include scale or reference markers when spatial proportions matter. Omitting them in structural drawings or nanoscale schematics forces readers to infer dimensions, introducing errors. For temporal processes, timeline bars with explicit intervals (e.g., “2 ms delay”) prevent false assumptions about event durations.
Maintain version control rigorously. Numbered iterations with modification logs prevent confusion between rough drafts and finalized versions. Store master files in editable formats (e.g., .dwg for CAD, .svg for graphics) and export locked copies (PDF, PNG) for distribution. Archive deprecated versions separately to avoid accidental reuse.
Critical Elements for Illustrative Technical Blueprints
Label every functional unit with standardized nomenclature–use ISO or field-specific abbreviations (e.g., “Vin” for input voltage, “Rload” for load resistance). Ambiguity wastes review cycles; consistency accelerates comprehension.
Prioritize hierarchical flow in procedural layouts. Arrange components so signal or process progression follows a single, unbroken path–vertical for temporal sequences, horizontal for parallel branches. Crossovers invite misinterpretation; orthogonal routing ensures clarity.
Include scaling indicators for physical representations–even abstract models benefit from relative size cues. A resistor drawn twice as wide as a capacitor implies proportional impedance; omit this and reviewers infer false equivalencies.
Annotate boundary conditions directly on the illustration. Voltage ranges, temperature thresholds, or pressure limits belong adjacent to their governed elements, not buried in supplementary text. Example: “±5V, -40°C to +85°C” beside a power rail.
Error Prevention Mechanisms
Embed fail-safe markers where human interaction occurs. Highlight fuse placements, emergency stops, or inspection points with bold outlines or color (if supported). Grayscale prints often obscure subtle cues; redundancy prevents oversight.
Dedicate a legend block for unconventional symbols. Custom glyphs (e.g., a proprietary sensor icon) require a single, concise definition–no more than three words per entry. Overloaded legends defeat their purpose; brevity enforces utility.
Test the illustration’s standalone usability before finalization. Remove all supporting documentation; if the blueprint communicates its core function without an accompanying description, it meets the threshold. Audit trails, cross-references, or QR codes linking to specifications can compensate for necessary complexity.
Step-by-Step Guide to Sketching a Functional Blueprint for Lab Tools

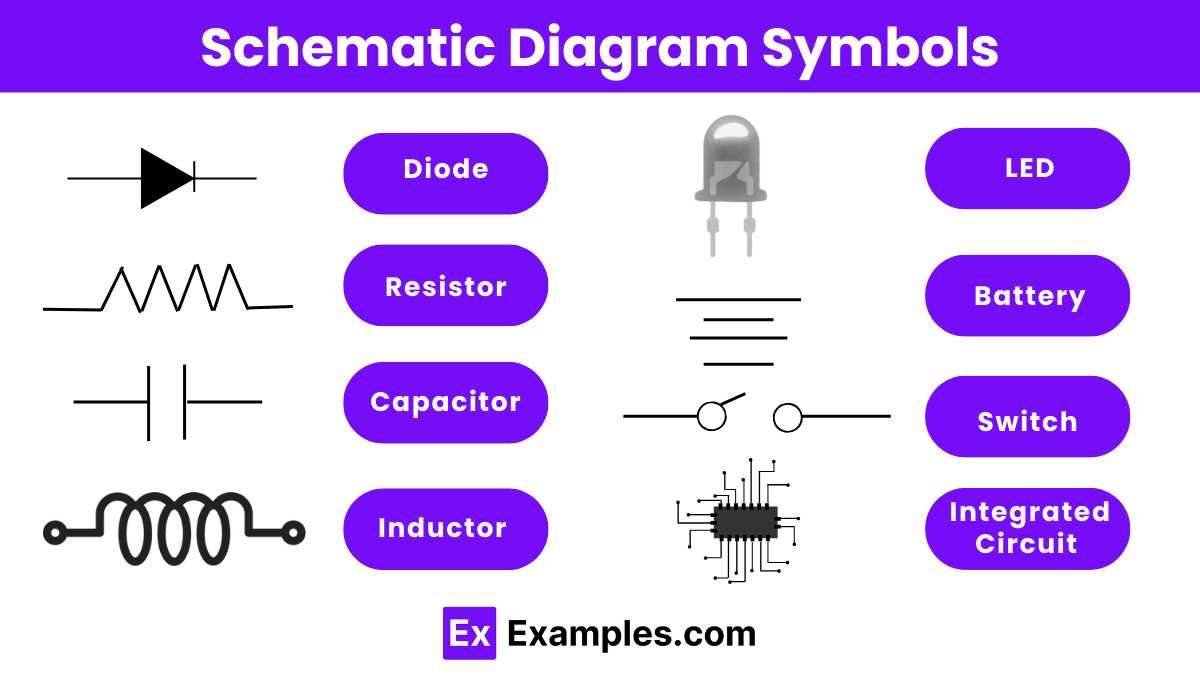

Begin with a clear list of components–identify every element the setup requires, including power sources, sensors, valves, and connectors. Assign each part a standardized symbol using ISO or ANSI conventions. For example, resistors use a zigzag line, capacitors a pair of parallel lines, and transistors a combination of lines forming a T-shape. Verify symbols against a reliable reference chart before proceeding.
Select graph paper with 5mm grid spacing for precision. Draw a horizontal reference line across the page to represent the base orientation–this ensures alignment of all subsequent elements. Measure the physical dimensions of the equipment, scaling down by a factor of 1:10 or 1:5 for compactness. Record scaling calculations in a separate margin note for accuracy checks later.
Place the largest or most central unit first, typically the main reactor or control module. Position it slightly off-center to allow space for auxiliary components. Use a template or compass to trace symmetrical elements like circular flasks or cylindrical columns–avoid freehand circles, as they reduce legibility. Label each component with a numerical identifier (e.g., R1, V2) linked to a bill of materials table.
| ID | Component | Symbol | Specifications |
|---|---|---|---|
| PS1 | Power Supply | ▯–||– | 12V DC, 2A |
| T1 | Thermocouple | ✛ | Type K, 0–1000°C |
| V3 | Solenoid Valve | ▭↑ | Normally closed, 24V |
Sketch connections using straight lines with right-angle bends–this prevents ambiguity in high-density layouts. Differentiate signal lines from power lines by using solid, dashed, or dotted patterns. For example, solid lines may represent electrical paths, dashed lines pneumatic, and dotted lines hydraulic. Mark junction points with dots; avoid crossing lines unless absolutely necessary, and use bridge symbols (small semicircles) where crossovers are unavoidable.
Add color-coding only if the blueprint will be digitized or reproduced in multiple copies. Limit colors to three: red for high-voltage, blue for cooling fluid paths, and green for data cables. Use red sparingly–reserve it for critical safety points like emergency stops or fuse links. Annotate each color in a legend placed in the top-right corner of the sheet.
Include an equipment list in the lower-left corner, detailing part numbers, manufacturers, and tolerances. For instance:
Pump P1: Model XYZ-45, Max 15L/min, ±0.5% Heater H2: 500W, Ceramic, 220V AC
Leave a 2cm margin on all edges for binding or hole-punching, and number each page in the format “Page 2 of 5” to track revisions.
Review the layout by tracing each path manually–start at the power source and follow through to the final load. Check for orphaned components (those with no connections) and verify all labels match the bill of materials. Use a red pen to mark errors on a physical copy or overlay a transparent sheet to avoid altering the original. Reproduce the corrected version on fresh paper if errors exceed five.
Finalize the drawing by outlining critical elements with a thicker 0.5mm line to highlight them. Sign and date the lower-right corner, and add a revision box noting changes:
Rev. A: Initial draft Rev. B: Added ground wire for PS1
Store the master copy flat in a protective sleeve to prevent smudging or fading. For digital backups, export as a vector file (SVG) and rasterize only for printing, maintaining 600 DPI resolution to preserve fine details.
