PoE Circuit Switch Wiring Guide with Diagrams and Power Delivery Explained

Begin with a 802.3af/at-compliant power injector if integrating legacy devices–ensure the output delivers 48V DC with a minimum 15.4W per port (350mA). For standard Cat5e cabling, wire pairs 1-2 (TX+) and 3-6 (RX-) carry data; reserve 4-5 (V+) and 7-8 (V-) for power transmission. Use a Schottky diode (e.g., 1N5822) on each power line to prevent reverse polarity damage, tolerating 1A forward current with

Isolate the power delivery subsystem with a flyback transformer (e.g., Würth Elektronik 750311771) when designing custom endpoints. Set the turns ratio to 1:10 for 48V-to-5V conversion, ensuring primary inductance ≥100μH to handle 30W peak loads without saturation. Incorporate a TVS diode (e.g., SM712) across the secondary to clamp surges exceeding 80V, paired with a 25V ceramic capacitor (10μF) for ripple suppression.

For Gigabit deployments, split the data and power paths using a common-mode choke (e.g., Murata DLW43SH101XK2L) on pairs 1-2 and 3-6. This rejects 40dB of noise at 10MHz while allowing differential signals to pass. Ground the chassis via a 1kΩ resistor to avoid floating potentials–test continuity with a 500V megohmmeter before energizing.

Finalize with a current-sense amplifier (e.g., INA199) on the return path (7-8) to monitor load conditions. Configure the amplifier for a gain of 50V/V, targeting 20mV output per watt consumed. Add a 10Ω series resistor on the sense input to limit fault currents to 5A; use a MOSFET (IRFML8244) as a hardware shutoff if thresholds exceed 0.6A for >200ms.

Network Power Integration: Electrical Layout Guide

Begin with a dedicated transformer rated for 48V DC output, ensuring isolation from line voltages (220V AC). Use a flyback topology for efficiency in low-power applications, pairing the primary winding with a UC3843 PWM controller for precise voltage regulation. Implement a snubber circuit (R=47Ω, C=1nF) across the MOSFET drain-source to suppress voltage spikes.

For power distribution, split the output into two channels: one feeding the data infrastructure via a forward converter, the other reserved for endpoint devices. Add a current-limiting resistor (0.5Ω) in series with each channel to protect against short-circuits. Use Schottky diodes (SB560) for OR-ing power sources, preventing backfeed into inactive lines.

On the endpoint side, include a PD detection circuit using a 24.9kΩ resistor between pairs 1/2 and 3/6 (for Type 2 devices). Pair this with a signature resistance measurement (25kΩ ±1%) to confirm compatibility before enabling full power. Deploy an LM5071 PSE controller to manage handshake protocols and power classification (up to 30W for Class 4).

Isolation is critical: employ a 1:1 pulse transformer (e.g., WE749116111) between the PSE controller and the network interface to meet IEEE 802.3bt isolation requirements (1500V). Ground the secondary winding through a 100nF Y2 capacitor to limit common-mode noise while maintaining safety compliance.

For thermal management, attach the power MOSFET (IRF540) to a heatsink with thermal paste (σ=1.5W/mK). Calculate dissipation using P = I²R, where I=0.6A (max load) and R=0.1Ω (MOSFET RDS(on)). Ensure airflow across the heatsink, targeting a ΔT

Use Ethernet magnetics (e.g., Bel Fuse 0810-1X1T) with integrated common-mode chokes to filter differential noise (>30dB attenuation at 100MHz). Terminate unused pairs with 75Ω resistors to minimize signal reflections. Add transient voltage suppression diodes (SM6T36A) across each pair to clamp voltage surges per IEC 61000-4-5 (8/20μs, 4kV).

Label all components with reference designators (e.g., R1, Q2) and specify tolerances: capacitors at ±5%, resistors at ±1%. Use a solder mask for PCB traces carrying >2A, with a minimum width of 2mm (1oz copper). Route high-current paths away from signal lines to prevent inductive coupling.

Test the layout using a load bank (12W–90W) and oscilloscope. Verify the 48V output ripple

Critical Hardware Elements for Power Over Ethernet Networking

Select an IEEE 802.3af/at/bt compliant power sourcing equipment controller with integrated thermal shutdown, such as the TPS23861 or LT4276. These chips handle detection, classification, and power delivery while protecting against overcurrent and short circuits. Pair it with low-ON-resistance N-channel MOSFETs like the SI7456DN–its 5mΩ R_DS(on) minimizes power dissipation, crucial for 90W+ applications.

Opt for a DC-DC converter module with high efficiency (90%+) and wide input range, such as the LM5118 or LTC3891. These support 36–72V input voltages, aligning with power delivery specs. The converter’s switching frequency (200–500kHz) determines component sizing: higher frequencies shrink inductor size but demand low-ESR capacitors (X7R dielectric, 10µF–100µF) to suppress ripple below 50mV_pp.

Isolated flyback transformers, like the Coilcraft AGP4234-AL or Würth 750314371, separate power and data paths while meeting safety standards (UL 62368-1). Their turns ratio (typically 1:1 to 1:1.5 for 5V/12V outputs) must match the DC-DC converter’s requirements. Secondary-side Schottky diodes (e.g., STMicroelectronics STPS30L60C) ensure fast recovery and low forward voltage drop, critical for maintaining efficiency.

Implement transient voltage suppression diodes (TVS) on both power and data lines. The SMAJ58A-TR clamps spikes at 90V, protecting against surges. For data isolation, use capacitive or transformer-based couplers like the Silicon Labs Si8620–its 5kV isolation rating meets IEC 60950 while preserving signal integrity up to 150Mbps.

Precision in Power Allocation

Resistor dividers for detection/classification circuits require 0.1% tolerance components (e.g., Vishay TNPW e3 series) to maintain ±5% voltage accuracy. A 25kΩ signature resistor enables powered device detection, while 10.1kΩ/23.75kΩ pairs define power classes (Class 0–8). Mismatched values trigger false negatives in handshake protocols.

Thermal management hinges on copper pours under power components–allocate 2oz copper for the PCB layer, with vias stitching to a thermal pad on the underside. A 5mm×5mm heatsink attached to the MOSFET tab (e.g., Wakefield-Vette 500 series) keeps junction temperatures below 125°C. Without this, derating curves reduce maximum deliverable current by 30% at 60°C ambient.

Connecting a Power Sourcing Adapter to Network Equipment: A Precise Guide

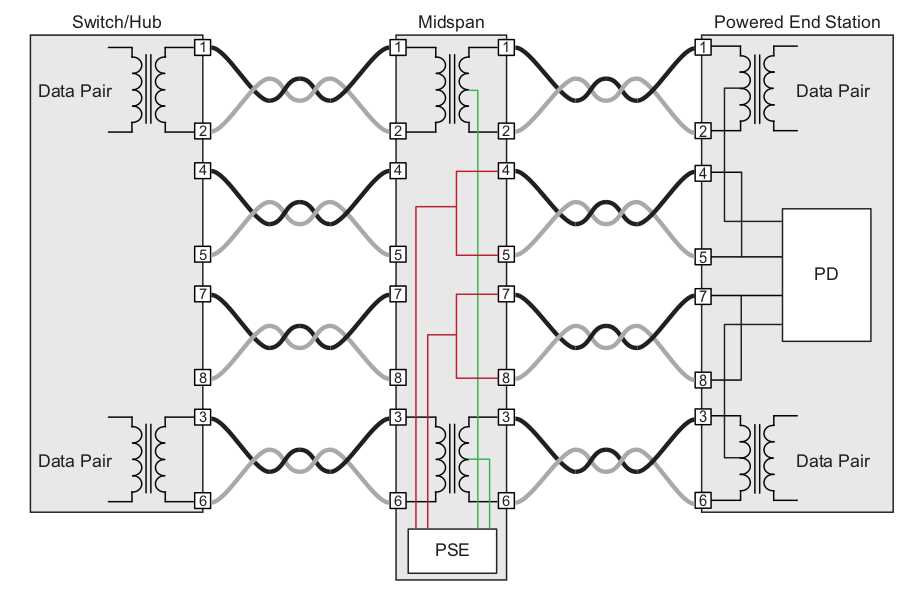

Locate the midspan device’s input port–marked Data IN or LAN IN–and attach an Ethernet cable from the upstream port of your managed hub. Connect the Data & Power OUT (or PoE OUT) port to the powered device’s Ethernet jack. Verify polarity matches: IEEE 802.3af/at specifies pin pairs 1/2 and 3/6 for data, 4/5 and 7/8 for power; cross-compatibility with passive adapters requires manual confirmation of the same.

Validation Before Energizing

1. Measure DC resistance between power pairs using a multimeter–expect 25 kΩ for compliant devices; infinite or near-zero suggests miswiring.
2. Check voltage on the downstream cable: active equipment delivers 44–57 VDC; passive adapters vary (12/24/48 V).
3. Monitor link lights: solid green confirms data link; amber blink or off indicates power negotiation failure.
4. Disconnect immediately if device draws >350 mA; exceeding current trips overcurrent protection.

Common Mistakes to Avoid When Designing a Powered Ethernet Hub Layout

Neglecting cable gauge selection leads to voltage drop over distances. Use 24 AWG or thicker wires for runs exceeding 100 meters to maintain 48V at endpoints. Thinner cables increase resistance, causing power loss up to 15% per 100m in 26 AWG setups. Verify manufacturer specs–some powered devices require 51V minimum to function.

Overlooking thermal dissipation in enclosed spaces shortens component lifespan. Place heat-generating modules like rectifiers and converters near ventilation or use heat sinks sized for 10W per square inch. Passive cooling fails at 60°C ambient; forced airflow becomes mandatory above 400W total load. Check datasheets for derating curves at elevated temperatures.

Signal Integrity Errors

Ignoring ground loops creates noise in data transmission. Separate power and data grounds with a star topology at a single reference point. Use shielded twisted pair (STP) for lengths beyond 50 meters to prevent crosstalk. Poor grounding elevates bit error rates (BER) above 10^-9, corrupting high-speed streams like 2.5GBASE-T.

Mismatched port configurations cause device failure. Ensure polarization matches between hub and connected units–wiring schemes differ between Mode A (phantom power) and Mode B (spare pairs). Reverse polarity blows input capacitors instantly. Test with a dedicated checker before deployment; visual inspection misses 30% of miswires.

Disregarding power budget limits overloads the system. Calculate total draw–standard 802.3at ports deliver 30W max, but injectors vary: cheap models often output only 22W. Exceeding capacity triggers automatic shutdown or brownouts. Log power consumption per port using built-in monitoring; omit this step, and cascading failures remain undetected until critical load trips.

How to Calculate Power Requirements for Networked Devices in Your Setup

Start by identifying the IEEE standard your equipment complies with–802.3af (Type 1), 802.3at (Type 2), or 802.3bt (Types 3/4). Each defines maximum power levels at the port and over the cabling. Type 1 delivers 15.4W with 12.95W usable, Type 2 provides 30W with 25.5W available, while Type 3/4 push 60W/90W with 51W/71W at the device. Check device labels or datasheets for exact figures; assumptions lead to undersized power budgets.

Measure voltage drop across your cabling. Copper wire resistance increases with length and gauge–24 AWG loses ~0.2V per 100m, while 26 AWG loses ~0.3V per 100m. Use a multimeter to measure voltage at the far end under full load. If voltage falls below 44V (for 48V systems), power loss exceeds 10%, risking device instability. Replace longer runs (>75m) with thicker wire or midspan injectors.

Factor in power conversion losses. Power sourcing equipment (PSE) loses 5-8% during DC-DC conversion, while powered devices (PDs) lose another 3-6% if using buck converters. For example, a 25W PD may draw 30W from the PSE. Always account for 10-15% overhead in calculations; undersizing causes thermal throttling or shutdowns.

Key Data for Power Budgeting

Standard	Max Port Power	Usable Power (PD)	Data Rate	Cable Length Limit
802.3af (Type 1)	15.4W	12.95W	10/100/1000BASE-T	100m
802.3at (Type 2)	30W	25.5W	10/100/1000BASE-T	100m
802.3bt (Type 3)	60W	51W	10GBASE-T	100m
802.3bt (Type 4)	90W	71W	10GBASE-T	70m max

Sum the worst-case power draw of all connected devices. A camera consuming 20W, a Wi-Fi access point at 15W, and a VoIP phone at 7W total 42W. Apply a 20% margin (e.g., 50W) to account for peak loads or future expansion. Compare this to the PSE’s total power budget–midspan injectors often provide 600W, while endpoint equipment ranges from 400W to 1,200W. Exceeding the budget forces load shedding, disconnecting lower-priority devices.

Verify power class signatures if using auto-negotiation. Devices signal their power class (0-8) during handshake; misclassification wastes power. For instance, a Class 4 PD labels itself as Class 3 (max 15.4W) but draws 25W–this overloads individual ports. Use LLDP/CDP to confirm negotiated power levels or manually set power limits per port.

Test efficiency under load. A 24-port PSE rated at 720W may deliver only 650W at elevated temperatures (e.g., >50°C). Cable bundles exacerbate this; bundle no more than 12 cables in a conduit to avoid 10-15% derating. Log power draw over 24 hours–spikes above 80% of PSE capacity indicate thermal stress, requiring cooling or redistributed loads.

Alternative: Per-Device Sizing

For critical deployments, calculate per-cable power individually. Measure wire gauge, length, and ambient temperature (e.g., 0.2Ω/m for 24 AWG at 20°C, rising to 0.26Ω/m at 60°C). Use the formula:

P_loss = (I² × R × L) + (V_drop × I)

Where I = current (A), R = wire resistance (Ω/m), L = length (m), and V_drop = 0.5V (typical diode drop). For a 50W PD (1.04A at 48V) over 80m of 24 AWG, losses reach 7.5W–requiring 57.5W from the PSE. Repeat for each device; aggregate totals must not exceed PSE capacity.

Upgrade UPS capacity to match power demands. A 500W UPS lasts ~20 minutes for a 400W load; add battery modules if runtime requirements exceed this. Isolate high-power devices on dedicated injectors–mixing a 90W PTZ camera with low-power sensors risks voltage sag. Document all calculations; audits reveal undersized deployments before failures occur.
