Begin by isolating the ignition circuit. Trace the primary feed from the battery through the solenoid to the starter–most pre-1970 models route this via a single 10-gauge wire, often red or yellow, secured with cloth-wrapped insulation. Verify continuity with a multimeter set to 200 ohms; readings above 5 ohms indicate corrosion or frayed conductors, requiring immediate replacement. For switchgear, locate the fusebox–commonly mounted behind the dashboard or under the seat–and document each fuse’s amperage (typical values: 8A for lighting, 15A for ignition). Replace glass fuses with ceramic-bodied equivalents if originals are unavailable; never exceed the rated amperage by more than 10%.
Map the lighting subsystem next. Headlamps on older models frequently use a separate ground via the fender or body panel–attach a dedicated 12-gauge ground wire to the chassis with a star washer to prevent voltage drop. For tail and brake lights, inspect the bulb sockets for oxidation; clean contacts with 600-grit sandpaper and apply dielectric grease. Wiring harnesses degrade at stress points–focus on areas near the firewall, steering column, and rear axle. Replace cracked or brittle insulation with modern cross-linked polyethylene (XLPE) wire of the same gauge; shrink tubing alone will not suffice for long-term protection.
Test the charging circuit systematically. Start the engine and measure voltage at the battery terminals–acceptable range is 13.8 to 14.5 volts. If readings fall below 13 volts, inspect the generator’s brushes and commutator; polish the commutator with a lathe if grooves exceed 0.02 inches. Rectifiers in alternator-equipped models often fail silently–use an oscilloscope to check for inconsistent AC ripple (over 0.5V peak-to-peak signals impending failure). For points-based ignition, set dwell at 34-38 degrees using a dwell meter; incorrect dwell causes premature point wear and misfires. Replace condenser leads with braided copper if resistance exceeds 0.5 ohms.
Document every modification. Photograph the original wiring paths before disassembly, noting wire colors and termination points. Use heat-resistant loom for wires near the exhaust manifold (minimum 125°C rating). Avoid soldering splices under the hood–crimp connectors with a ratcheting crimper and seal with adhesive-lined heat shrink. For gauges, verify sender resistance ranges (oil pressure: 240-33 ohms for 0-80 psi; temperature: 2.7-0.8k ohms for 100-250°F). If retrofitting electronic components, fuse the power feed at the battery and use a relay for loads over 10 amps–direct switching through toggle switches causes arcing and melted contacts.

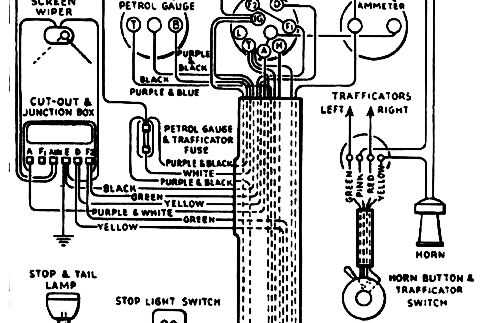

Vintage Automobile Electrical Blueprint Essentials
Begin restoration by isolating the main fusebox–early models like the 1965 Mustang use a radial layout with six primary circuits, each terminating at a blade-style fuse. Label every wire before disconnecting, noting colour codes: red for ignition, yellow for headlamps, and black for earth. Mistakes here create phantom shorts that burn out modern LED upgrades faster than stock bulbs.
For 1950s roadsters, trace the generator’s field coil circuit (often a brown/white stripe) back to the voltage regulator–resistance should read 3.5 ohms; anything above 5 indicates corroded internal contacts. Replace the mechanical regulator with a solid-state rectifier if ammeter swings erratically after engine warm-up, as original selenium plates degrade with heat cycles.
Use a 40-watt soldering iron for terminal repairs–crimping damages brittle 60-year-old copper strands. Secure joints with heat-shrink tubing, not electrical tape; tape dries out and loosens under vibration, allowing moisture ingress that corrodes connections within months.
Magneto ignition systems on pre-1950 vehicles demand precise timing: set points to 0.020″ gap and advance curve at 8 degrees per 1,000 rpm. Test with a dwell meter–anything under 30 degrees on a six-cylinder engine causes misfires under load. Swap the distributor capacitor if points pit prematurely; original paper capacitors absorb moisture, causing arcing.

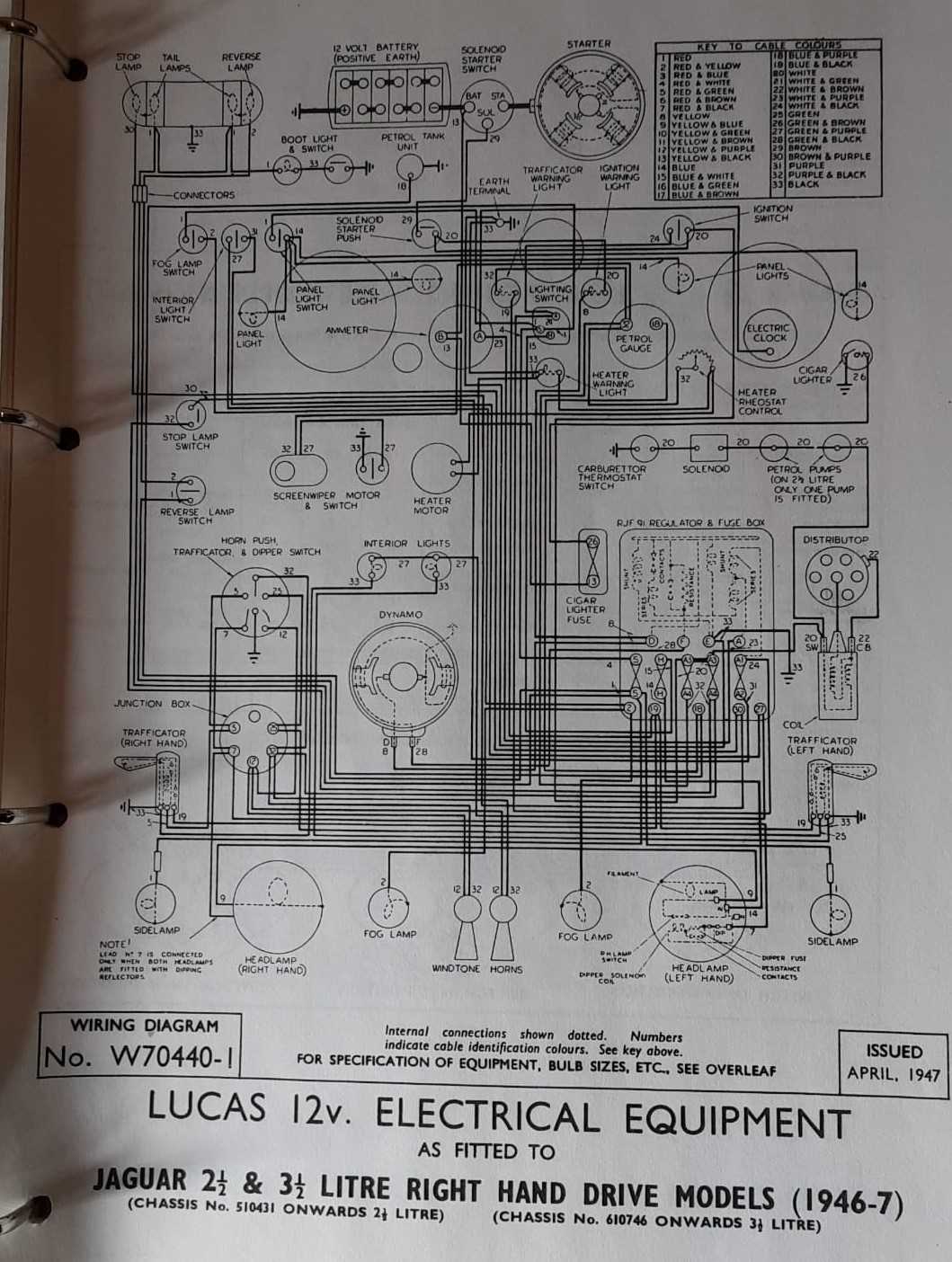

Decoding Original Electrical Blueprints for Heritage Automobiles
Begin by isolating the schematic’s power distribution grid–identify the battery symbol (a rectangle with ± or “B+”) and trace its primary feed lines. Most mid-20th-century schematics use thick solid lines for high-current circuits (ignition, starter) and dashed or thin lines for low-current paths (lights, gauges). Note color-coding conventions: Ford’s pre-1965 systems rely on letter-prefixed striped wires (e.g., “R/W” for red with white stripe), while GM’s 1950s–70s diagrams use numeric codes (e.g., “18” for brown). Cross-reference these with a vehicle-specific code chart–don’t assume consistency across brands.
Locate the fuse panel representation (often a row of rectangular boxes labeled “F1,” “F2”) and verify each fuse’s amperage against the schematic’s legend. Check for relay symbols (a rectangle with diagonal line or coil depiction) and confirm their coil activation paths; these frequently control high-draw components like horns or fuel pumps. For multi-page schematics, use the connector index (typically at the bottom corner) to track wire continuity–look for alphanumeric labels (e.g., “C901”) that correspond between pages. Test circuits methodically with a multimeter, probing at connector backs to avoid damaging aged insulation.
Critical Symbols and Troubleshooting Shortcuts
- Ground symbols: A flat bar or “⫽” indicates chassis ground; a triangle with a line denotes a dedicated ground wire. Corrosion here causes erratic operation–clean to bare metal.
- Switch logic: Arrows within switch symbols show pole direction. A “single-throw” switch (one arrow) toggles a single circuit; “double-throw” (two arrows) routes current between two paths.
- Solenoid/coil icons: A zigzag line (or spiral) marks ignition coils or relays. Measure resistance–typical 1960s points-type coils read 1.5–3.0 Ω primary, 5,000–12,000 Ω secondary.
- Disconnect the battery before probing! Shorts to ground in aged harnesses can vaporize fragile copper strands.
- Use a non-powered test light for low-current circuits–modern LEDs may not illuminate through vintage resistor-equipped bulbs.
- Label every removed connector with masking tape; many heritage systems lack keyed plugs, risking incorrect reassembly.

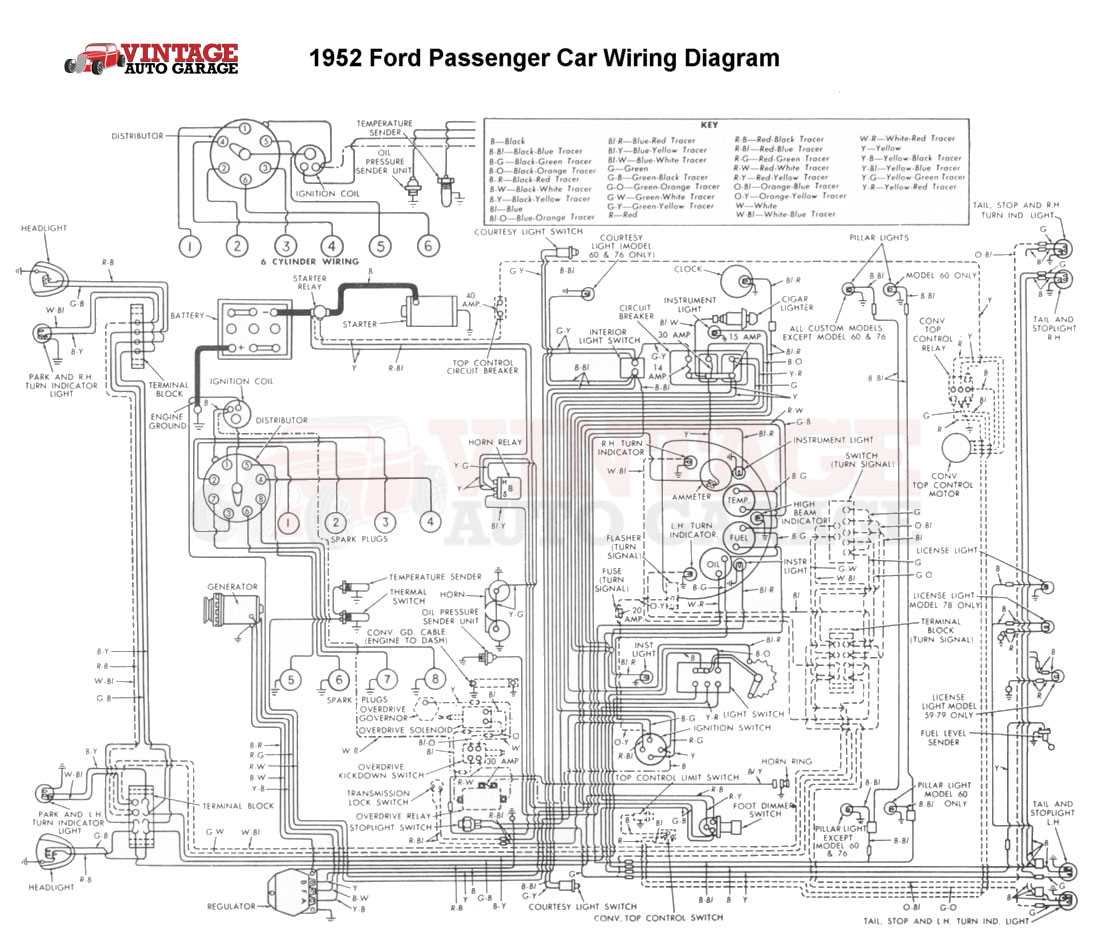

Step-by-Step Guide to Tracing Circuit Paths in Pre-1970 Models
Locate the fuse block–usually mounted near the steering column, firewall, or under the dashboard. Pre-1965 American automobiles often cluster fuses in a Bakelite panel with exposed screw terminals, while European variants may hide them behind a snap-off cover or inside a metal junction box beneath the instrument panel. Label each fuse holder with numbered masking tape before removing any fuses to prevent confusion during reassembly.
Use a digital multimeter set to continuity mode, not resistance. Touch one probe to the fuse terminal; the other must contact the corresponding terminal on the harness side. A steady tone confirms an uninterrupted path; silence or erratic beeping indicates oxidation, a broken strand, or a misrouted conductor. Record readings for every circuit–early vehicles rarely exceed 16 fuses, simplifying documentation.
Trace harness runs by following cloth-wrapped bundles secured with friction tape or metal clamps. Pre-1960 vehicles often route power feeds along the driver-side frame rail, while grounded returns may daisy-chain through body panels or bolt directly to the chassis. Cut through surface corrosion on grounding points with a stainless-steel brush; reconnect using star washers and grade-8 bolts to ensure low-resistance contact.
Remove the dashboard fascia or instrument panel bezel to access lighting and gauge circuits. Behind the speedometer housing, bundled cloth sleeves split into individual conductors–each fed through a grommeted hole into the firewall. Use a needle-nose probe to pierce insulation only at branch points; avoid stripping wire unless a section exceeds 20% surface oxidation, as original cotton lacquer coating degrades rapidly when disturbed.
Test voltage at switch terminals with the ignition on. Pre-1970 switches–toggle, push-button, or rotary–often employ phenolic bases with brass contacts. A reading below 11 volts suggests corroded switch contacts or a faulty load-side conductor; clean contacts with a brass bristle brush lubricated with dielectric grease. Replace switches exhibiting more than 0.5 ohms internal resistance measured across terminals in both open and closed positions.
Handling Fused and Unfused Circuits
Unfused circuits–common in early ammeters and voltage regulators–require careful tracing. Wrap suspect runs in electrical tape then probe at 100mm intervals along the conductor. A sudden voltage drop exceeding 0.2 volts indicates either undersized wire gauge or resistive corrosion; replace affected sections with modern cross-linked polyethylene-insulated cable sized per original specifications listed in factory service manuals.
Color-coded schematics simplify identification: black denotes ground, red primary power, blue instrument lighting, and yellow ignition-switched circuits. However, manufacturers frequently deviated–Ford’s 1964 Thunderbird uses orange for fuel gauge feed, while Chevrolet’s 1957 Bel Air assigns brown to tail lights. Cross-reference factory charts; discrepancies greater than 30% necessitate full circuit isolation before energizing.
Final Integrity Checks
Before re-seating fuses, jumper each circuit momentarily with a 10-amp inline fuse. Operate all loads–headlamps, heater motor, horn–to verify zero arcing at connections. Reinspect twisted-pair clusters behind radios; pre-1970 AM receivers often embed positive and negative lines within a single harness sleeve, risking cross-talk if jacketing deteriorates. Secure all rerouted conductors with nylon zip ties spaced 150mm apart; avoid vinyl tape, which degrades within 36 months under automotive temperatures.
