Begin by mapping every circuit with a 12-gauge copper conductor for general outlets and lighting, reserving 10-gauge for high-demand appliances like electric stoves or water heaters. Label each breaker with its corresponding room and load type–e.g., “Kitchen – 20A, GFCI”–to eliminate guesswork during maintenance or emergencies.
Isolate all ground fault circuit interrupter (GFCI) outlets within 6 feet of wet areas (bathrooms, kitchens, garages) and daisy-chain them using the “load” terminals–never exceed two outlets per GFCI to avoid nuisance tripping. For arc fault protection, replace standard breakers with combination AFCI breakers in bedroom and living room circuits, as these detect both series and parallel arc faults.
For subpanels, calculate total load using the 80% continuous load rule: a 100-amp subpanel can safely handle 80 amps sustained. Run 4-wire feeder cables (hot, hot, neutral, ground) from the main panel, bonding the subpanel’s neutral and ground only at the service entrance. Use type NM-B cable for indoor runs, transitioning to UF-B for outdoor or buried installations.
Ground all metal boxes with 10-gauge bare copper wire, connecting it directly to the grounding electrode system. For older structures with knob-and-tube or aluminum wiring, retrofit with COPALUM splices or AlumiConn connectors to prevent oxidation and fires. Label the service panel with forbidden zones (e.g., “Do not bond neutral/ground here”) to comply with NEC 2023 Article 250.142.
Plan for expansion: leave 20% spare capacity in the panel and run 1/2-inch conduit to unfinished areas for future circuits. For smart systems, dedicate a separate 20A circuit to modems, routers, and hubs, isolating it from motor loads like refrigerators to avoid interference. Use color-coded wires (black/red for hot, white for neutral, green/bare for ground) and secure all cables with staples every 4.5 feet and within 12 inches of boxes.
Electrical Circuit Layouts for Houses: Key Guidelines
Begin every project by marking a dedicated 20-amp circuit for kitchen small appliances, using 12-gauge copper conductors. This prevents overloading common circuits that may also serve lighting or outlets in adjacent areas. Verify local codes–some regions mandate a minimum of two such circuits, while others permit one if it exclusively serves countertop receptacles.
Install arc-fault circuit interrupters (AFCI) on all bedroom branch circuits without exception. Standard breakers provide no protection against series arcs, which account for 40% of electrical fires in living spaces. Use combination-type AFCI devices that detect both parallel and series arcs; test each device monthly with the integrated test button.
For washers and dryers, run individual 10-gauge conductors rated for 30 amps. Dedicate a separate grounded neutral for the dryer circuit–never bond the neutral and ground at the appliance. Confine the branch circuit to a single outlet; multi-outlet circuits violate NEC 220.18 and create unsafe voltage gradients under heavy loads.
Label every panel entry with a permanent marker, specifying the room and device served. Include conductor gauge, breaker amperage, and voltage (e.g., “Den: 12 AWG, 20 A, 120 V”). Update this log whenever changes occur–skipping this step increases troubleshooting time by 60% during future maintenance.
Use the following conductor sizing for general lighting circuits:
| Load (VA) | Copper Wire Gauge | Breaker Rating (amps) |
|---|---|---|
| ≤ 1440 | 14 AWG | 15 |
| 1441–1920 | 12 AWG | 20 |
| 1921–2400 | 10 AWG | 30 |
Derate conductors by 15% when more than three current-carrying conductors share a raceway. Use the 90°C column of NEC Table 310.15(B)(16) for ambient temperatures above 30°C; standard 75°C ratings underestimate resistance in attics and crawl spaces during summer.
Keep outlet spacing under 12 feet along walls and within 6 feet of doorways. Locate receptacles so no point on a wall is more than 2 feet from an outlet horizontally, preventing reliance on extension cords that can overheat. Install tamper-resistant outlets in rooms occupied by children–these include internal shutters that block foreign objects unless both prongs enter simultaneously.
Separate lighting and receptacle circuits on different phases inside the panel. This reduces voltage imbalance and ensures that a fault on one branch does not extinguish all illumination. Group circuits serving the same area but feed them from opposite poles–e.g., pair a north wall receptacle circuit with a south wall lighting circuit on opposite phases for balanced load distribution.
Decoding Fundamental Electrical Symbols in Schematic Charts
Start by identifying straight lines–these represent conductors, the pathways for current. Solid lines denote visible cables, while dashed variants indicate concealed or underground routes. Thicker strokes signify higher amperage circuits, typically for major appliances like electric ranges or HVAC units. Always verify line weight against the legend, as standards vary across jurisdictions.
Locate circular symbols first: a plain circle marks a junction box or ceiling luminaire, while a circle with a cross inside signals an outlet. Wall switches appear as breaks in conductor lines–single-pole toggles feature one perpendicular line, three-way variants show an additional angled line, and dimmers include a curved arrow. Memorize these distinctions to avoid misinterpreting control points during installation.
Rectangular enclosures with internal notation indicate protective devices. A fuse symbol looks like a rectangle with a diagonal slash, whereas circuit breakers add a horizontal line atop the slash. GFCI outlets integrate a wavy line inside, differentiating them from standard receptacles. Trace these components to their dedicated conductor paths to confirm correct overcurrent protection placement.
Interpreting Load and Power Source Icons
Power supplies appear as parallel lines–a short thick line paired with a longer thin one designates DC, while wavy lines inside a circle represent AC sources. Batteries show stacked horizontal lines decreasing in length. Motors combine a circle with an “M” inside, often accompanied by terminal markings (U, V, W) for three-phase connections. Match these symbols to voltage ratings specified in the margin to prevent equipment damage.
Transformers display two concentric half-circles connected by lines, with dots marking polarity. Heating elements appear as zigzag lines, distinct from resistors which use straight rectangular bars. Larger zigzag patterns with adjacent arrows denote thermostats, while coils integrate loops or spirals. Cross-reference these with equipment manuals to resolve discrepancies between schematic and physical specifications.
Group related symbols by function: lighting circuits cluster luminaire symbols near switches, while appliance circuits connect outlets to dedicated breakers. Use color-coding if available–red for live, blue for neutral, green for grounding–but rely on labels when colors are absent. Trace each conductor from source to load without skipping jumps to auxiliary symbols like capacitors or sensors.
Verify symbols against ANSI Y32.2 or IEC 60617 standards if inconsistencies arise. Some schematics include proprietary markings; consult project-specific notes rather than making assumptions. Always confirm symbol meanings before cutting materials or energizing circuits, as misinterpretations risk short circuits or code violations.

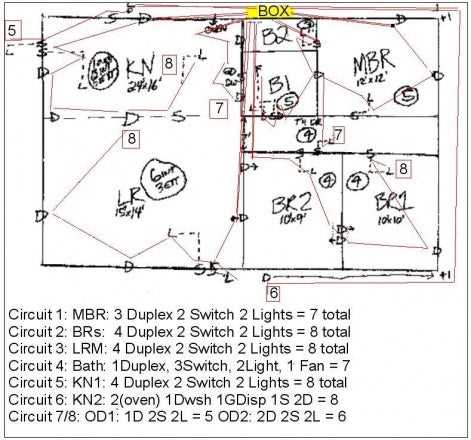

Step-by-Step Guide to Mapping a Single-Room Electrical Setup
Sketch a bare room outline on graph paper using a 1:20 scale–each 5mm grid square equals 100mm of real space. Mark all fixed elements first: doors, windows, built-in cabinets, and structural columns. Label each with its exact dimensions, noting swing directions for doors and obstruction zones for furniture placement later. Include a north arrow for orientation; this avoids misalignment when verifying against breaker panel labels.
Identify outlet and switch locations based on local codes and usage patterns. For general lighting, place switches 1.2m above finished floor near door handles, ensuring a max 3m reach from any wall. Dedicated circuits for appliances (refrigerator, microwave) require 20-amp breakers with #12 AWG copper conductors; mark these in red on your sketch. Group outlets for convenience–kitchen countertops need one every 600mm, while living areas follow a 3.6m rule along accessible walls. Note: GFCI protection is mandatory within 1.5m of sinks or wet areas.
Tracing Conductor Paths Without Opening Walls
Use a non-contact voltage tester to verify live circuits before tracing. Start at the breaker panel: flip each circuit breaker off one by one, then walk the room with the tester to detect which outlets, switches, or fixtures lose power. Label each component on your sketch with the corresponding breaker number. For hidden runs, follow baseboard or ceiling joist patterns–conductors typically route perpendicular to structural members. Probe behind outlet covers with a insulated screwdriver to check for recessed boxes or junction points; these often indicate a 90-degree turn in the run. Record all findings with arrowed lines, noting conductor gauge where visible (e.g., “#14 Romex”).
Finalizing the Schematic with Safety Checks
Cross-reference your layout with a multimeter set to continuity mode. Test between each switch and its controlled fixture to confirm no unintended shorts. For overhead lighting, verify the circuit can handle the load–sum wattages of all bulbs or LED drivers and ensure total amperage doesn’t exceed 80% of breaker rating. Label all junctions, including wire nuts or splicing points, with permanent ink on the sketch. Include a legend: solid lines for 120V circuits, dashed for 240V, and dotted for low-voltage (doorbells, thermostats). Add a margin note listing breaker types (single-pole, double-pole, AFCI), wire insulation colors (black/red hot, white neutral, green/bare ground), and box fill calculations (max 7 #14 wires per 1900mm³ box).
