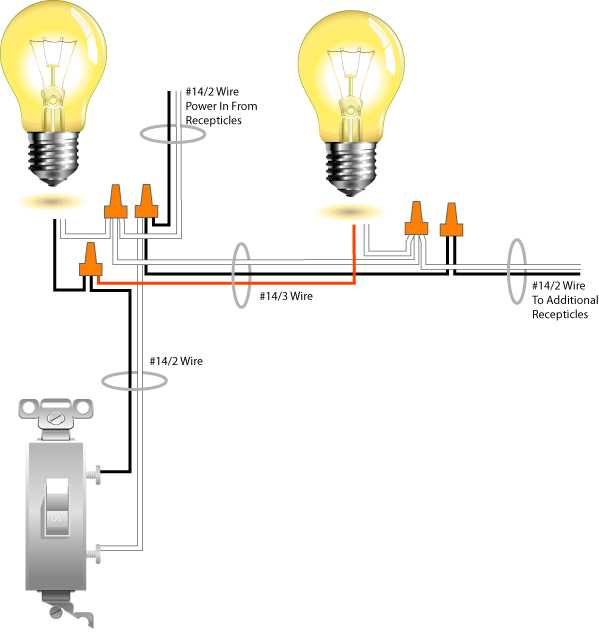

To wire three or more bulbs to one switch, start by running a 14-gauge (for 15-amp breakers) or 12-gauge (for 20-amp) live conductor from the breaker panel directly to the switch terminal. Use a 20-amp breaker only if the total load exceeds 12 amps or the run length exceeds 50 feet; otherwise, stick with 15 amps to avoid unnecessary wire thickness. Connect the outgoing conductor from the switch to the first fixture using a spliced pigtail inside a junction box sized for at least 25% more wires than present–code requires a minimum 18 cu. in. for four 14-gauge wires. From the first fixture’s output terminal, feed the next unit in the chain with the same gauge, keeping all wire nuts inside accessible boxes.
For fluorescent tubes or high-wattage LEDs exceeding 60W per unit, branch each fixture directly off the switch with separate 14-gauge conductors rather than daisy-chaining to prevent voltage drop–expect a 0.4V drop per 10 feet of 14-gauge wire at 12A. Label every conductor at both ends: “L1” for the breaker feed, “SW” for the switched leg, and “N” for neutral, matching the NEC color codes–black for hot, white for neutral, green or bare for ground. Use a non-contact voltage tester before touching any wire, even if the breaker is off; phantom voltage can linger in shared neutral layouts.
In rooms with ceiling fans or smoke alarms tied into the same branch, split the circuit at the switch box using a two-gang enclosure. Run the fan’s hot feed alongside the bulb conductor but keep them separated by a side-by-side switch–never combine them on the same terminal. For outdoor installations, substitute 14-gauge with 12-gauge wire and seal all junction boxes with silicone-filled gaskets rated for wet locations; burial depth for direct burial cable is 24 inches, or 18 inches if encased in conduit.
After completing the hookup, measure current draw at the breaker with a clamp meter. If the reading exceeds 80% of the breaker’s rating during startup (e.g., 12A on a 15A breaker), split the configuration into two parallel branches, each feeding half the fixtures. Keep all splices above ceilings or behind drywall only if they’re inside UL-listed remodel boxes; otherwise, surface-mount them in accessible locations. For dimmable setups, ensure the switch, bulbs, and dimmer carry matching current ratings–an overload will melt the switch contacts within hours.
Connecting Several Fixtures in a Single Electrical Loop
Start by installing a 1.5 mm² cable from the fuse box to the first switch location. Use a 10A breaker for standard LED or incandescent setups; halogen setups require a 16A breaker due to inrush current. Label each conductor at both ends: brown for live, blue for neutral, and green-yellow for earth. For installations exceeding 30 meters, upsize to 2.5 mm² cable to prevent voltage drop.
Connect the live wire to the common terminal of the first switch. Run a loop from the switch’s L1 output to the first fixture’s input, then continue to the next fixture, forming a daisy chain. Use 0.75 mm² flex for connections between fixtures. Terminate the last fixture’s output with a 3A quick-blow fuse in series to protect the loop. For UK installations, adhere to BS EN 60669-1:2018 for switch ratings; in the US, follow NEC Article 404.
Optimizing Parallel Configurations for Higher Loads
- Use a junction box every 5 meters to avoid cable strain and simplify troubleshooting.
- For dimmable setups, pair a 600W ELV dimmer with 24V LED strips or a 1000W resistive dimmer for incandescent bulbs.
- Install surge protectors at the breaker panel if fixtures are sensitive to transients (e.g., smart drivers).

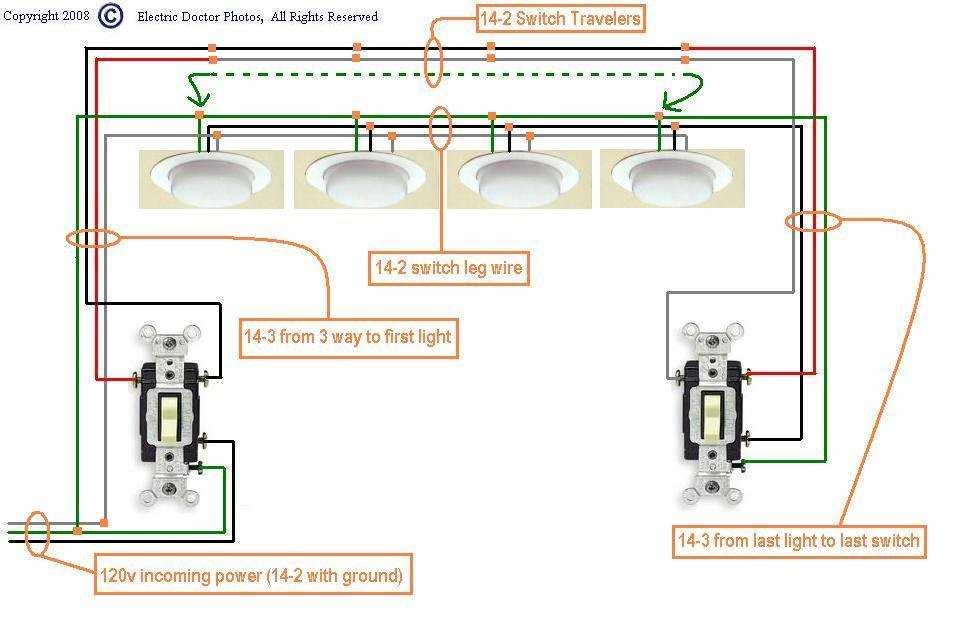

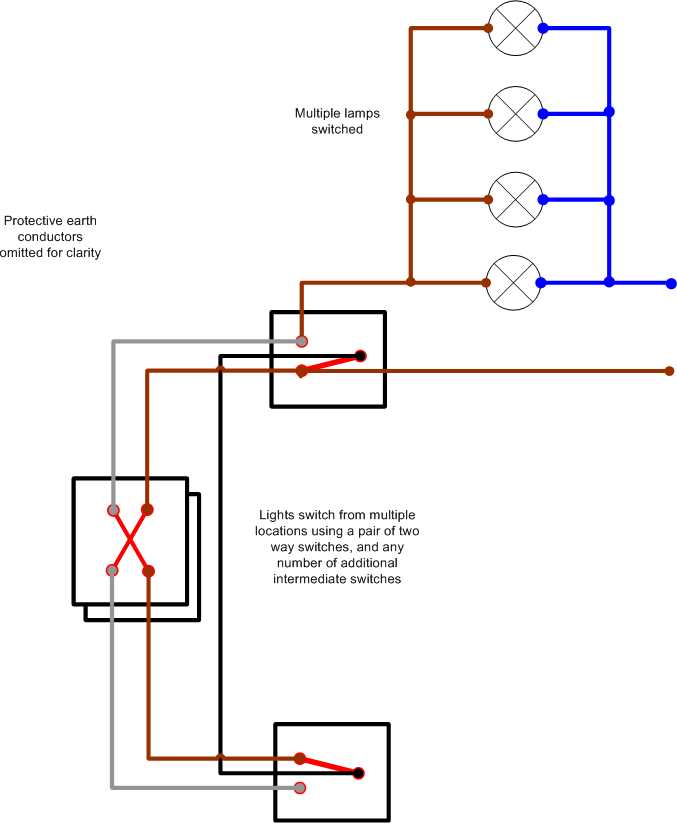

Neutral and earth must remain continuous; never splice neutrals within switch boxes. For three-way control, add a two-core cable (red and black) between switches, connecting the red to the common and black to the L1. Test continuity with a multimeter before energizing: resistance between live and neutral should read ≤1 Ω; live to earth should read infinite. If resistance exceeds 2 Ω, inspect joints for oxidation or loose crimps.
Choosing Optimal Wire Thickness for Parallel Fixture Networks
For installations with up to 5 fixtures drawing 60W each (120V), use 14 AWG copper conductors. This gauge handles 15A continuously, providing a 20% safety margin for voltage drop over 50 feet. Beyond this length or load, recalculate using NEC Table 9: a 3% drop at 120V equals 3.6V, limiting current to 12A for 14 AWG.
Key Variables Affecting Conductor Selection
- Amperage: Sum total wattage of all connected devices divided by system voltage (e.g., 300W ÷ 120V = 2.5A)
- Distance: Every 100 feet of 14 AWG at 12A incurs 4.1% voltage loss; 12 AWG reduces this to 2.6%
- Ambient Heat: For environments >86°F (30°C), derate capacity by 15% or step up one size
- Conduit Fill: More than 3 conductors require derating per NEC 310.15(B)(7)
For branch arrangements exceeding 8 outlets on a single run, 12 AWG is mandatory regardless of load, per NEC 210.11(A). This prevents localized heating at terminal connections. Aluminum conductors require one size larger (e.g., 12 AWG copper ≡ 10 AWG aluminum) due to higher resistivity (2.65 × 10-8 Ω·m vs 1.68 × 10-8 Ω·m).
- Measure exact path length from panel to farthest fixture, rounding up to nearest 10 feet
- Convert total wattage to amperage: I = P ÷ V
- Consult NEC Chapter 9 Table 8 for conductor resistance (Ω/1000 ft)
- Calculate voltage drop: VD = 2 × I × R × L (L in thousands of feet)
- Verify VD ≤ 3% of system voltage
- Cross-reference with ampacity tables, adjusting for temperature/derating
Common residential fixtures (LED: 8-12W; halogen: 50-75W) rarely push beyond 1A per run. Commercial setups with 400W metal halide clusters demand 10 AWG for runs under 75 feet, switching to 8 AWG beyond 100 feet to maintain 2% voltage regulation. Always match ground conductor size to ungrounded conductors per NEC 250.122.
THHN insulation rated 90°C allows higher ampacity than NM-B cables, but Table 310.16’s 60°C column applies unless terminations are rated for 75°C. Use temperature strips to verify terminal blocks on fixtures; overheating (>140°F) mandates immediate gauge upsizing. For buried underground feeds, add a corrosion-resistant jacket and increase size by 2 AWG for mechanical protection.
Special Cases Requiring Larger Conductors
- Motor-driven devices: Add 25% to calculated amperage per NEC 430.22
- Dimmable arrays: Incorporate 1.5× safety factor for harmonic currents
- Outdoor installations: Apply 2 AWG increase for temperature swings >±50°F
- Emergency backup systems: Size for 125% of continuous load
Industrial high-bay setups using 1000W sodium vapor units necessitate 6 AWG for 120V services or 8 AWG for 277V configurations. Parallel feeds require identical conductor lengths; even 6-inch differences create imbalanced current sharing. Always test continuity and insulation resistance before energizing–minimum 500V megohmmeter reading of 1MΩ for new installations.
Step-by-Step Guide to Connecting a Loop-In Ceiling Outlet for Several Fixtures
Turn off the power at the main switchboard to prevent electric shock. Verify absence of voltage using a non-contact tester near the connection point before proceeding. Failure to confirm this step risks severe injury.
Identify the live, neutral, and earth conductors in the incoming cable–typically colored brown, blue, and green/yellow respectively. Strip 12mm of insulation from each wire using wire cutters, ensuring no exposed copper touches adjacent terminals.
Preparing the Ceiling Outlet
Locate the loop-in terminals inside the ceiling rose–usually marked L for live, N for neutral, and ⏚ for earth. Insert the brown live wire into the L terminal and tighten the screw firmly. Loose connections generate heat and may cause arcing.
Connect the blue neutral wire to the N terminal following the same method. Then, attach the earth wire to the ⏚ terminal, folding the bare end back if necessary to fit. Use a torque screwdriver set to 0.5Nm for consistent tightening, reducing future maintenance issues.
Branching to Additional Fixtures
Run a secondary cable from the ceiling rose to the next fixture. At the rose, join the new brown wire to the existing L terminal using a small terminal block or by twisting the two cores together and securing with a crimp connector. Repeat for neutral and earth, maintaining color coding throughout.
For each subsequent fixture, repeat the branching process: daisy-chain the cables by connecting corresponding conductors at each rose. Keep cable runs tidy using cable clips spaced every 300mm to prevent sagging or accidental damage during ceiling work.
Test the installation with a multimeter before restoring power. Set the meter to continuity mode and probe between live and neutral at each rose–confirming near-zero resistance. Then, switch the power back on and check function with a plug-in tester. Flickering or dim outputs indicate poor connections requiring rework.
Common Errors in Multi-Switch Installation for Fixture Networks
Avoid connecting switches in a daisy-chain without verifying load limits–most residential supply lines handle 15 to 20 amps, but exceeding even 80% capacity risks tripping breakers or overheating cables. Use wire nuts rated for the gauge (typically 14 AWG for 15A lines, 12 AWG for 20A) and twist strands tightly before capping to prevent loose connections, which cause flickering or arcing. Incorrect polarity, such as swapping neutral and ground, triggers RCDs or damages LED drivers; always match white to neutral, black to live, and bare/green to earth. Test each join with a multimeter (set to continuity) before energizing–skipping this step leaves undetected shorts that escalate into faults over months.
Parallel connections should branch from a single junction box, not split across multiple enclosures; this prevents voltage drop and ensures uniform brightness across fixtures. Overloading a single switch by exceeding its amp rating (usually 10A for basic toggles, 15A for dimmers) melts contacts or voids warranties–calculate total wattage and divide by voltage to confirm compatibility. Install switches in accessible locations, not behind heavy furniture or inside damp areas without moisture-rated covers, as improper placement violates NEC 404.8 and risks corrosion. Label all conductors at both ends to simplify troubleshooting; untagged wires mislead future modifications. Always cap unused wires with wire nuts, never tape–the latter degrades and exposes live metal within years.
