Begin by verifying the primary and secondary coil ratings on the nameplate–confirm the input accepts a three-phase industrial supply while the output delivers split-phase configurations. Connect the high-side terminals to a properly rated circuit breaker or disconnect switch with conductors sized for 125% of the expected current draw, calculated using the formula:
I = (VA rating) / (√3 × input voltage).
This ensures compliance with NEC Article 450 and avoids overheating under continuous load.
For dual-phase output, link the center tap to the neutral bus in the distribution panel. Ground the transformer core and enclosure separately to a dedicated grounding electrode system, per NEC 250.104, reducing stray voltage risks. Use copper conductors for all low-voltage connections, as aluminum introduces unnecessary corrosion and thermal expansion complications in confined spaces.
Polarity testing is non-negotiable–use a multimeter to confirm phase relationships before energizing. Mistakes here cause equipment damage or hazardous feedback loops. Label all conductors at both ends with heat-shrink tubing or permanent markers, including voltage levels and destination, to prevent miswiring during future maintenance.
Final checks: tighten all terminals to torque specifications (refer to manufacturer data), seal unused knockouts with approved plugs, and enclose the setup in a NEMA 3R cabinet if mounted outdoors. Energize gradually while monitoring for abnormal noise, smoke, or voltage fluctuations–any irregularities demand immediate power disconnect and re-inspection.
Step-by-Step Guide to Configuring a High-Voltage Conversion Unit
Begin by identifying the primary and secondary coil terminals on the unit–label them clearly with heat-resistant markers to avoid confusion. The input side typically requires dual-phase connections spaced 180 degrees apart, while the output side should support split-phase distribution. Verify the nameplate specifications for precise tap settings; misalignment here can cause inefficient operation or damage.
- For dual-leg output, wire one neutral terminal to the center of the secondary coils, ensuring it remains grounded at the panel.
- Attach each hot lead to the outer taps, observing polarity–reversing these leads will invert phase orientation.
- Double-check impedance ratings: mismatched loads between legs can create voltage imbalance.
Use stranded copper conductors rated for at least 125% of the maximum anticipated load. Undersized wiring introduces resistance, leading to excessive heat buildup. For long runs exceeding 50 feet, increase conductor gauge by one size to compensate for voltage drop.
- Mount the unit on a non-combustible surface with a minimum clearance of 12 inches on all sides for airflow.
- Secure all connections with torque wrenches set to manufacturer-specified values to prevent loosening.
- Install overcurrent protection on both primary and secondary circuits using fuses or breakers sized per NEC Table 450.3(B).
Before energizing, disconnect all loads and perform insulation resistance testing between windings and ground using a 500V megohmmeter. Readings below 1MΩ indicate compromised insulation requiring replacement. For secondary verification, measure phase-to-neutral voltages: they should differ by less than 2V under no-load conditions.
In three-phase systems undergoing this conversion, balance single-phase loads across all legs to prevent neutral current overload. Use a true RMS clamp meter to confirm neutral currents remain below 20% of the phase current. Excessive imbalance warrants redistributing loads or installing a separately derived system with a dedicated grounding electrode.
For outdoor installations, enclose the unit in a NEMA 3R-rated weatherproof box with a bottom drain hole. Apply dielectric grease to all terminal connections to prevent corrosion. Verify local codes for mandatory bonding jumpers between metallic enclosures and grounding buses–skipping this step creates shock hazards.
Document all wiring changes with annotated photographs and detailed schematics, including:
- Conductor types and gauges used
- Breaker/fuse ampere ratings
- Measured voltages at key points
- Grounding electrode resistance (target <25Ω)
Store records near the equipment for future troubleshooting.
Identifying Primary and Secondary Coils for High-to-Low Voltage Reduction
Begin by measuring the resistance across each pair of leads using a multimeter. The higher-resistance pair typically belongs to the input side, while the lower-resistance pair is the output side. For instance, a 0.5–2 ohm difference often distinguishes the two, though actual values depend on the unit’s power rating and construction.
Check for manufacturer markings if present–many industrial voltage converters label input terminals with “H” (high side) and output terminals with “X” (low side). If no labels exist, trace the lead thickness: thicker wires usually indicate the input coil, designed to handle higher current loads without excessive heat loss.
Apply a low AC test voltage (e.g., 10–20 volts) to suspected input terminals and measure the output. A properly identified step-down configuration will yield a proportionally lower voltage on the secondary side, confirming the winding ratio. Avoid exceeding the converter’s rated input voltage during testing to prevent core saturation or insulation damage.
Inspect the core configuration if the unit lacks clear markings. Toroidal or shell-type reducers often place input coils on the outer windings, while output coils occupy the inner layers. For laminated-core designs, input windings are typically wrapped around the longer legs of the “E” and “I” laminations, with output windings on the shorter central leg.
Use an inductance meter if resistance readings are ambiguous. The input winding generally exhibits higher inductance due to more turns of finer wire, while the output winding has lower inductance with fewer, thicker turns. Document all measurements–erroneous identification risks equipment damage or inefficient power transfer.
Proper Phase-to-Phase Connection for Triangular High-Voltage Inputs
Attach the primary coil terminals marked H1, H2, and H3 directly to the corresponding live conductors of the 3Φ supply–never to neutral. Verify phase rotation matches the equipment’s requirement before energizing; reverse any two leads if rotation is incorrect. Measure line-to-line potential at the input terminals to confirm full nominal voltage (±5% tolerance) prior to closing the circuit breaker.
Use copper conductors sized for 125% of the winding’s continuous current rating. For a 15 kVA unit at 0.416 kV line, minimum 8 AWG stranded copper is required; upsize to 6 AWG if ambient exceeds 40°C or conduit length surpasses 30 meters. Secure connections with torque-rated lugs: 15 Nm for 8 AWG, 25 Nm for 6 AWG per UL 486B.
Critical Grounding Practices
- Bond the equipment grounding conductor (minimum 10 AWG copper) to the transformer’s dedicated ground lug and the panelboard grounding bus.
- Avoid floating neutrals–ground the neutral point only if the secondary requires single-phase loads and is explicitly rated for neutral derivation.
- Install a 5 mA ground-fault relay on circuits exceeding 100A to trip within 1 second.
Label all conductors at both ends with heat-shrink sleeves: L1/H1 (orange), L2/H2 (brown), L3/H3 (yellow) per IEC 60445. Apply phase tape in a 1-inch band adjacent to each termination. Include a permanent warning decal: “DANGER – LIVE PARTS – 416V 3Φ – AUTHORIZED PERSONNEL ONLY.”
- De-energize the upstream breaker and verify zero potential across all terminals with a calibrated multi-meter.
- Tighten each lug to specified torque while holding the conductor stationary to prevent twisting.
- Recheck rotation with a phase rotation meter after reconnection–swap any two primary leads if misalignment occurs.
- Energize incrementally: close breaker, observe inrush current (typically 8–12× FLA) via clamp meter, then monitor for 10 minutes for abnormal heating.
For enclosed units, maintain minimum 25 mm clearance between live parts and enclosure walls; ventilate with forced-air cooling if ambient exceeds 35°C or altitude surpasses 1000 meters. Seal conduit entries with UL-listed compression fittings to prevent moisture ingress–condensation dramatically reduces dielectric strength.
Post-Connection Verification
After energizing, measure secondary line-to-line voltages: expect 100 V (±3%) across any two phases for dual-voltage outputs. If readings deviate beyond tolerance, immediately disconnect and inspect windings for shorts using a megohmmeter (minimum 500 VDC, ≥2 MΩ threshold). Record all test results in the equipment log for future reference.

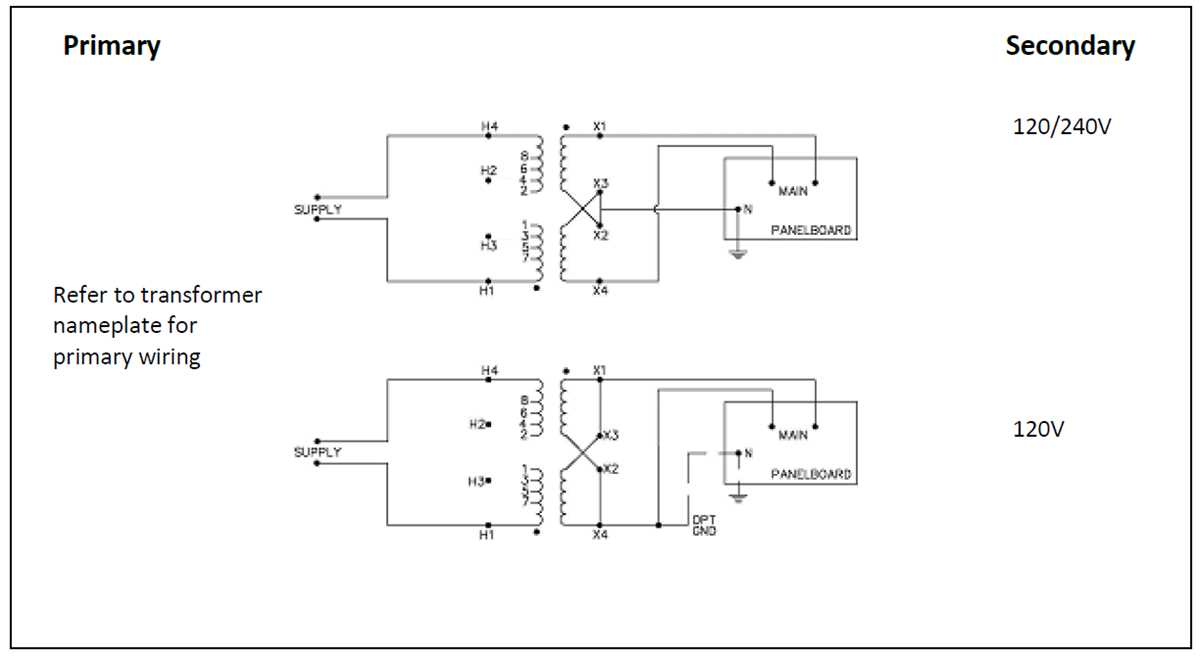

Configuring Secondary Windings for Dual-Voltage 120/240V Supply
Start by identifying the center tap on the secondary coil–this serves as the neutral reference point for both voltage legs. Connect this tap to the neutral busbar in the distribution panel, ensuring a low-impedance bond to ground if local codes mandate it. Each remaining terminal on the outer edges of the secondary must feed separate hot conductors, producing a balanced 180-degree phase shift between them for proper split-phase operation.
Use conductors sized to handle 125% of the continuous load current for each leg. For a 30-amp service, 10 AWG copper (or 8 AWG aluminum) meets NEC requirements, while a 50-amp demand necessitates 6 AWG copper or 4 AWG aluminum. Avoid undersized wiring, as resistance losses will degrade voltage regulation under full load, especially in circuits exceeding 50 feet from the coil to the load center.
| Load (A) | Copper Conductor (AWG) | Aluminum Conductor (AWG) | Max Circuit Length (ft) |
|---|---|---|---|
| 20 | 12 | 10 | 80 |
| 30 | 10 | 8 | 60 |
| 40 | 8 | 6 | 50 |
| 50 | 6 | 4 | 40 |
Imbalance between phases should not exceed 10% under normal operating conditions. Measure voltages at the coil terminals with a true RMS multimeter: a variance above 2% indicates improper tap alignment or internal winding damage. For inductive loads like motors, consider adding reactive power correction capacitors rated for 50% of the motor’s kVAR to maintain voltage stability.
Terminal Connections and Safety Inspections
Torque all secondary connections to manufacturer-specified values, typically 20–25 lb-in for lugs carrying 20–50 amps. Loose connections introduce hotspots, leading to oxidation and eventual failure. Use calibrated torque screwdrivers for consistency, as overtightening risks stripping threads while undertightening increases contact resistance.
After energizing, verify phase synchronization with a clamp-on phase meter: the angle between hot legs should read 180° ±5°. If readings deviate, swap the hot conductors at the coil terminals–never at the panel–to correct polarity. For loads sensitive to harmonic distortion, install a line reactor rated for 3–5% impedance upstream of the coil to filter high-frequency noise from switched-mode power supplies.
