For a stable 5V output at 1A, use a LM7805 linear regulator paired with a 1N4007 diode for reverse polarity protection. Input voltage should range between 7V–15V DC to prevent overheating. Add a 470µF capacitor at the input and a 100µF capacitor at the output to smooth voltage fluctuations. This setup costs under $3 and fits on a 2x3cm PCB.

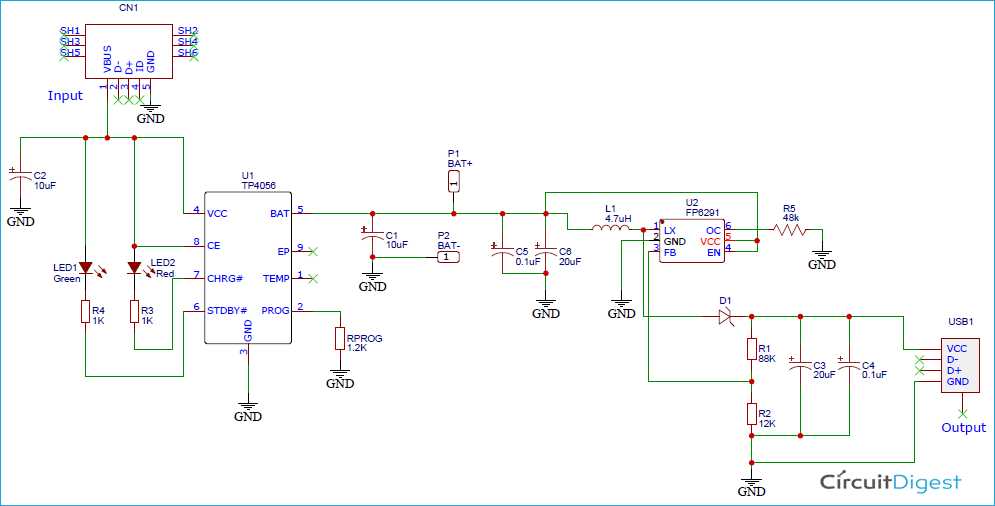

For lithium-ion cells, integrate a TP4056 module with overcharge protection. Set the charging current via a 1.2kΩ resistor for 1A output. Include a red/green LED pair to indicate charging and full states. Avoid exceeding 4.2V per cell–use a 10kΩ NTC thermistor if ambient temperatures exceed 45°C.
Pulse-width modulation (PWM) controllers like the UC3843 suit nickel-metal hydride packs. Configure the feedback loop with a 0.1Ω current-sense resistor and a 10µH inductor. Maintain a switching frequency of 50–150kHz to balance efficiency and component size. Test under load–voltage drops greater than 0.2V at 0.5A signal poor solder joints or undersized traces.
Multichemistry setups require isolation. Use optocouplers (PC817) to separate logic from high-current paths. For lead-acid units, set the float voltage to 13.8V ±0.1V. Verify with a multimeter–deviations above 0.5V risk sulfation or thermal runaway. Always fuse the input at 120% of max expected current.
Designing an Energy Storage Cell Refiller Schematic
Begin with a low-dropout regulator (LDO) for lithium-ion cells at 4.2V per cell. Choose an MCP73831 for single-cell or BQ2400x for multi-cell configurations–the former handles 500mA, the latter scales to 2A. Termination current should be 10% of the charging rate (e.g., 50mA for a 500mA system). Avoid generic LM317 adjustables; their 1.5V dropout wastes 30% efficiency at high currents.
For nickel-based storage, implement a constant-current topology with a termination cutoff at –ΔV=5–10mV per cell. A UC3906 with external MOSFETs delivers 200mA–1A current; adjust sense resistors to match cell capacity. Reference designs often omit thermal throttling–add a 10kΩ NTC in series with the source resistor to prevent overheating under prolonged loads.
Below is a comparison of integrated solutions for diverse energy types:
| Controller | Chemistry Support | Max Input (V) | Peak Charge Rate (A) | Termination Method |
|---|---|---|---|---|
| MCP73832 | Li-ion | 6 | 0.5 | C/10 |
| BQ24165 | Li-ion/Lead | 18 | 3 | C/20 or Timer |
| UC3906 | NiMH/NiCd | 20 | 1 | –ΔV + Timer |
Isolate high-current paths from logic traces using at least 2mm spacing; EMI spikes on ground loops can corrupt cutoff detection. Route charging traces on the top layer, return paths immediately beneath to minimize loop area–critical for switching topologies like the LTC4015 (1MHz PWM). Copper thickness ≥2oz reduces resistive losses, especially under pulsed loads.
Add reverse-polarity protection using a P-channel MOSFET (AO3401) or a schottky diode (1N5819); the diode incurs 0.3V forward drop, increasing dissipation by 15% at 1A–avoid for low-voltage systems. Missing this risks 30A+ surges through small SMD fuses rated for 1A, destroying traces before tripping.
Calibrate charge termination with an oscilloscope: observe the voltage waveform during cutoff. A Li-ion system should plateau at 4.2V ±50mV; drift beyond this threshold indicates ESR growth–replace the storage unit. For NiMH, the –ΔV slope should occur within 1–2% of capacity–ambient temperature shifts skew results by 0.2mV/°C.
Test thermal runaway scenarios with a 2C charge rate. Monitor case temperature via infrared gun; if exceeding 60°C, add a fan or reduce current to 0.5C. Above 70°C, the electrolyte decomposes–immediate shutdown required. Embed a MAX6509 for static 65°C thermal cutoff without software overhead.
Key Components for Building Your Own Power Supply Kit
Start with a voltage regulator IC (e.g., LM317, TP4056, or MCP73831) depending on cell chemistry–lithium-ion requires constant-current/constant-voltage control, while NiMH needs pulsed charging. Pair it with a low-dropout (LDO) transistor like 2N3904 or IRFZ44N for higher currents (>1A), ensuring heat dissipation via a TO-220 heatsink clamped with thermal paste. For input, use a 24V 2A DC adapter or solar panel (6V-12V, 5W-10W); verify polarity with a multimeter before connecting.
- Current-limiting resistors: Calculate values based on Ohm’s Law (I = V/R). Example: For 500mA charge, use a 1.8Ω 1W resistor for a 5V source.
- Protection diodes: 1N4007 (1A) or Schottky 1N5822 (3A) to prevent reverse polarity damage. Place before the main switch.
- Indicator LEDs: Green (power on), Red (charging), Yellow (fault/error). Limit current to 5-10mA with 1kΩ resistors.
- Fuse: 1.5A-2A slow-blow to protect against shorts. Mount inline with the positive lead.
- Capacitors: 100μF electrolytic (input smoothing) + 0.1μF ceramic (IC stability). Observe polarity for polarized types.
- Terminal screws: Brass or nickel-plated, size #8-32 for clamping wire (18-14 AWG). Avoid aluminum–corrodes under current.
For lithium variants, integrate a balancing module (e.g., TP4056+DW01) or standalone BMS (Battery Management System) if handling multi-cell packs (e.g., 3S-4S). NiMH setups benefit from a timer IC (NE555) or microcontroller (Arduino ATtiny85) for timed cutoff, preventing overcharge. Test prototype on a breadboard with a dummy load (e.g., 10Ω 5W resistor) before final assembly. Log voltage/current curves with a USB oscilloscope (DSO138) or cheap DAQ (Analog Discovery 2) to validate charge cycles.
Step-by-Step Assembly of a NiMH Power Cell Refresher
Begin by soldering a 1N4007 diode to the positive input terminal of your DC source, ensuring the striped end faces the power inlet to prevent reverse polarity damage. Connect the diode’s anode to a 1A fuse, then route the output to a 7805 voltage regulator, mounting it on a heatsink rated for at least 5W dissipation. On the regulator’s output, place a 100μF electrolytic capacitor between the +5V rail and ground to stabilize voltage ripple. For each cell slot, wire a 10Ω, 1W current-limiting resistor in series with the positive cell contact, followed by a 1N4148 Schottky diode (anode to resistor) to isolate cells during discharging. Ground the negative terminal of each slot directly to the regulator’s common rail.
Verify connections with a multimeter: input voltage should read ~5.2V at the regulator’s output, and each cell slot should deliver 4.9V–5.1V with no load. Insert a single NiMH element and measure current draw–expected range: 120–150mA for a 2000mAh unit. If outside this range, adjust the resistor value (e.g., 8Ω for higher current) or replace the diode if voltage drop exceeds 0.3V. For final testing, attach a thermistor (10kΩ NTC) between the positive cell terminal and ground to monitor heat; connect its output to an LM358 comparator circuit configured to cut power via a BC547 transistor if temperature surpasses 45°C.
Voltage Regulation Techniques for Safe Power Delivery
Implement a linear regulator like the LM317 for precise output control when dealing with low-power cells under 2A. Configure the ADJ pin with a resistive divider–use 240Ω for R1 and calculate R2 via V_out = 1.25 * (1 + R2/R1)–to maintain ±50mV ripple at 5V. Overcurrent protection activates at 3A, making it suitable for Li-ion packs with nominal 3.7V.
Switching Regulator Efficiency for Higher Loads
For currents above 2A, replace linear regulators with a buck converter such as the LM2596. Set the feedback resistors (R1=1kΩ, R2=3kΩ) to target 4.2V for lithium cells, achieving 88% efficiency at 3A while minimizing thermal losses. Ensure the input capacitor (470µF) and diode (Schottky 1N5822) are rated for 10% above peak input to prevent voltage spikes.
Pulse-width modulation (PWM) controllers, such as the UC3843, regulate voltage by adjusting duty cycles. For a 12V input, set the oscillator frequency to 50kHz and use D = (V_out / V_in) to determine duty cycle (e.g., 35% for 4.2V output). Include a 10µF output capacitor to smooth transitions and reduce electromagnetic interference (EMI).
For multi-stage power delivery, use a dedicated integrated controller like the BQ24610. Program charge termination at 4.2V ±0.5% via I²C, with a pre-charge phase at 10% of fast-charge current (e.g., 500mA for a 5A system). Thermal shutdown triggers at 125°C, protecting against overheating during prolonged operation.
Zener diodes (e.g., 1N4733A at 5.1V) serve as fail-safes for overvoltage. Place them across the energy store’s terminals to clamp excess spikes, but pair with a 1Ω series resistor to limit current to 1A. Combine with a fuse (2A) to isolate faults without damaging downstream components. Test under load using an oscilloscope to verify
Common Mistakes to Avoid in Energy Storage Power Supply Wiring
Mixing wire gauges in a single path causes uneven current distribution. A 12 AWG cable feeding into 18 AWG strands creates hot spots at splice joints. Use consistent gauge throughout the entire loop–calculate thickness based on maximum draw plus 20% overhead. For a 5 A load, 16 AWG is minimum; 14 AWG is safer if runs exceed 3 meters.
Reverse polarity connections destroy components instantly. Double-check terminals before power-up: negative (often marked black or blue) must link to the return path; positive (red, yellow) feeds the device. Add a diode or PTC fuse for failsafe–these clamp voltage spikes from accidental swaps and prevent board burnout. Include a label on both the connector and PCB trace entry.
- Skip heat sinks on linear regulators handling over 1 A–thermal shutdown kicks in at 125 °C, cutting supply unexpectedly.
- Use a TO-220 package with a 2 °C/W heatsink; thermal paste lowers Rθ junction-ambient by 35%.
- For SMPS, attach a copper pour larger than the IC footprint; 5 cm² dissipates 2 W without temperature rise.
Ground loops induce 50 Hz noise into sensitive analog traces. Isolate digital and analog returns with separate copper fills, meeting only at a single star point near the power input. Separate high-current paths (motors, relays) from low-level sensor traces by at least 3 mm. Use a ferrite bead on the digital return to suppress conducted emissions.
Incorrect connector pinouts misalign mating interfaces. Verify mating sequences with a multimeter continuity test. DuPont connectors rated for 2 A fail at 3.5 A pulses; swap to Molex or JST-XH crimp housings when currents exceed 1.5 A. Apply dielectric grease to outdoor connections to prevent corrosion that increases resistance over time.
Oversized capacitors on low-voltage rails create inrush surges that trip protection circuits. A 1000 µF capacitor on a 5 V rail charges in under 1 ms, spiking current to 50 A. Limit capacitance to 220 µF per volt-output ratio; stagger bulk capacitors with bypass types closer to ICs. Add a soft-start resistor or NTC thermistor to reduce initial current–this extends component lifespan by avoiding repetitive thermal cycling.
