Begin with a precise current-limiting component sized at 220Ω for a standard 5mm indicator operating at 3.3V forward voltage. This value ensures stable operation while preventing thermal runaway in most common configurations. For higher input voltages–such as 12V or 24V–calculate the drop ratio using Ohm’s Law: subtract the emitter’s forward drop from the supply voltage, then divide the remainder by the target current (typically 20mA for basic indicators). Round up to the nearest standard value to avoid marginal performance.

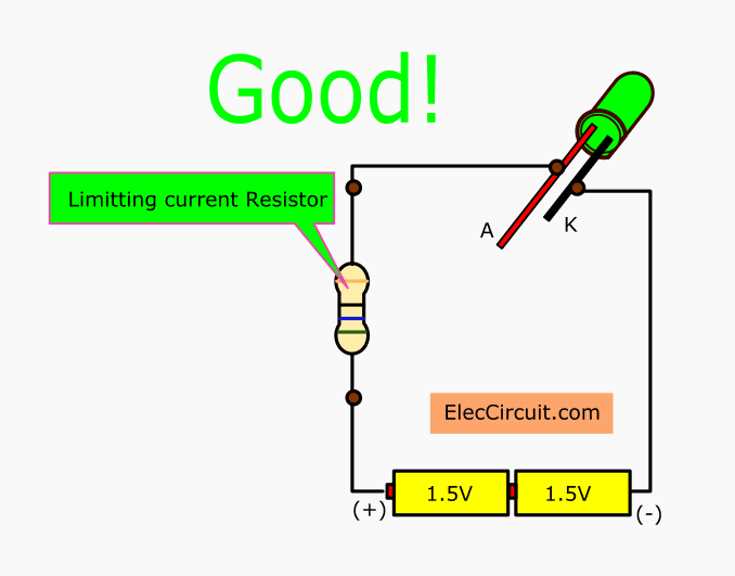

Mount the limiting element in series with the light-emitting component, placing it before the anode when power flows from a higher potential source. Use a carbon-film or metal-film type rated for at least ¼W dissipation; wire-wound types introduce unwanted inductance in pulsed applications. Always verify polarity–reverse connection risks irreversible damage. For multi-emitter clusters, split the current evenly by pairing each emitter with its own dropping element, rather than relying on a single high-value part.
In low-voltage setups (e.g., 1.8V controllers), reduce the dropping part below 100Ω to maintain luminosity, but monitor power dissipation–switch to a ½W part if dissipation exceeds 100mW. For high-brightness types with forward drops up to 3.6V, recalculate the drop value; failure to do so results in dim output or premature failure. Always test prototypes under expected thermal conditions–ambient heat alters resistance characteristics.

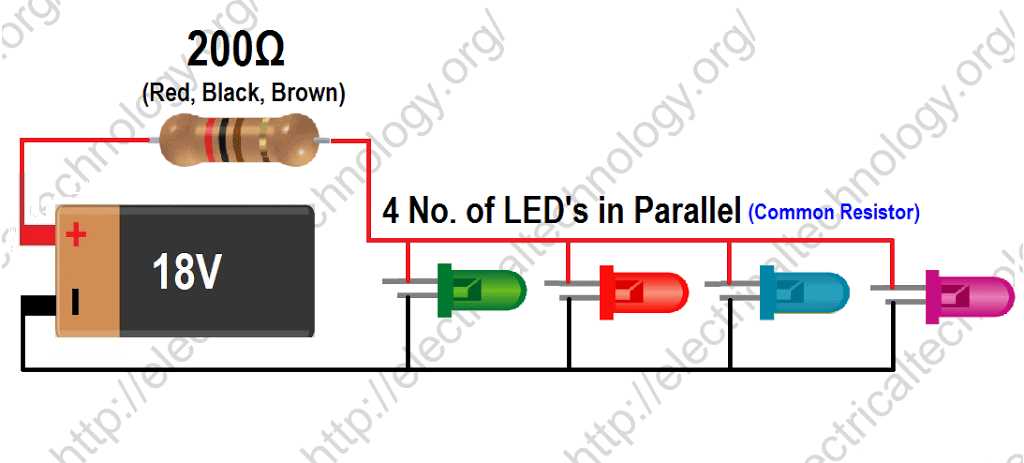

Avoid paralleling emitters on a single dropping part unless the parts are binned for identical forward drops. Even minor variances cause uneven current distribution, leading to inconsistent brightness or thermal stress on weaker emitters. In battery-powered designs, include a bleeder to discharge capacitors promptly when power is removed, preventing unexpected flashes during shutdown.
Designing an Optimal Current-Limiting Component Setup
Begin by selecting a dropping element with a tolerance of ±5% for stable light-emitting semiconductor operation–1% tolerance offers negligible benefit in most low-power applications. For a 5 mm indicator emitting at 2.1 V forward drop and 20 mA nominal current, the ohmic value is calculated as (Vsupply - Vf) / If, where Vsupply ranges from 3.3 V to 12 V. Below are nominal values for common supply voltages:
| Supply (V) | Calculated Ω | Nearest Standard Value (±5%) | Power Rating (mW) |
|---|---|---|---|
| 3.3 | 60 | 62 | 20 |
| 5.0 | 145 | 150 | 50 |
| 9.0 | 345 | 360 | 100 |
| 12.0 | 495 | 510 | 150 |
Wire the ballast in series upstream from the anode, ensuring the component’s power rating exceeds twice the expected dissipation–1/4 W suffices for currents under 50 mA. For arrays, calculate the total forward drop across all emitters; mismatch can cause uneven brightness, especially in multi-color layouts. Always verify polarity–reverse connection risks thermal runaway at voltages above 5 V.
Selecting the Proper Current-Limiting Component for Light Emitting Diodes

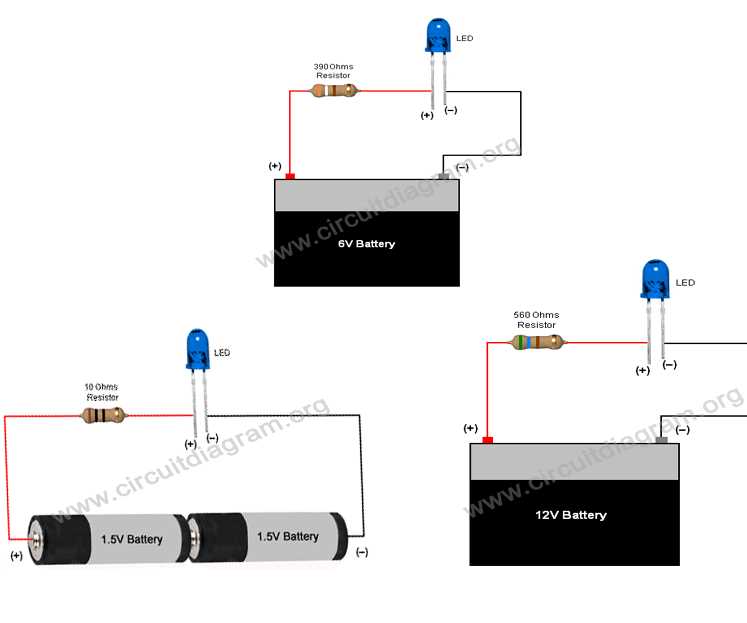

Pick a series element with a value calculated from R = (Vin – Vf) / If. A typical 5 mm indicator draws 20 mA at 2 V forward drop. With a 5 V supply, the formula yields 150 Ω. Standard 5 % series components (E24) offer 150 Ω, matching the need. Lower currents extend lifetime: 5 mA reduces brightness but stretches operational hours tenfold.
Verify tolerances.
- 5 % carbon-film parts swing ±7 Ω around 150 Ω.
- 1 % metal-film parts hold ±1.5 Ω.
- Voltage fluctuations (±0.5 V) alter current by ≈3 mA.
Measure actual forward drop with a multimeter; manufacturers quote 1.8–2.2 V, causing up to 13 % current deviation.
Thermal Considerations
Dissipation scales with P = I² × R. At 20 mA and 150 Ω, power reaches 60 mW–well below ¼ W carbon-film ratings. Metal-film parts handle ⅛ W safely. Ambient temperatures above 50 °C reduce maximum power; derate linearly by 1.5 mW/°C above 70 °C. Polymer types suffer thermal runaway at currents exceeding 1.5× nominal.
Use the following base values for common supply voltages and forward drops. Adjust for specific brightness needs or efficiency goals.
- 3.3 V source, 1.8 V drop → 75 Ω (20 mA) or 360 Ω (5 mA).
- 12 V source, 3.3 V drop → 430 Ω (20 mA) or 1.8 kΩ (5 mA).
- 24 V source, 12 V string of three 3 mm diodes → 600 Ω (20 mA).
Assembling a Basic Light-Emitting Component Setup
Gather the exact components before starting: one semiconductor emitter (forward voltage 2V–3.5V), one current-limiting element (calculated value), a power supply (3V–12V), and a breadboard. Verify the emitter’s specifications–most common varieties require 20 mA for optimal brightness; exceeding this risks permanent damage. Use Ohm’s law to determine the precise resistance needed: subtract the emitter’s forward voltage from the supply voltage, then divide by the desired current (e.g., [(5V – 2V) / 0.02A] = 150 Ω minimum). Select the closest standard value above this value to ensure stability.
Connect the power source’s negative terminal to the breadboard’s ground rail. Insert the emitter’s cathode (shorter leg, flat edge on the housing) into the same rail or an adjacent row. The anode (longer leg) must connect to the current limiter’s first lead–position it in the same vertical row as the anode, leaving no gaps. Attach the limiter’s second lead to the positive rail of the power source. Double-check polarity before applying power: reversed connections will prevent illumination and may damage components.
Critical Checks During Assembly
- Measure voltage across the emitter after powering on. It should match the datasheet’s specified forward voltage (±0.1V). Lower readings indicate insufficient current; higher readings suggest incorrect limiter sizing.
- Touch the limiter during operation–excessive heat (above 60°C) signals inadequate power handling. Replace it with a higher-wattage variant (¼W minimum for most setups).
- Avoid overhead or variable power sources; fluctuations degrade emitter lifespan. Use batteries or regulated DC adapters with stable output.
- For multi-emitter configurations, calculate each chain’s total forward voltage drop and recalibrate limiter values accordingly. Series connections require summing forward voltages; parallel setups need individual current control.
Secure connections with solder if testing proves successful. Use heat-shrink tubing to insulate exposed joints, and mount the assembly onto a non-conductive surface (e.g., plastic or fiberglass). For high-reliability applications, add a Zener diode (reverse breakdown voltage slightly above the emitter’s forward voltage) across the emitter to protect against transient voltage spikes. This step is mandatory for automotive or industrial environments where power inconsistencies occur.
Testing and Troubleshooting
- No illumination: Verify emitter’s polarity, limiter continuity (multimeter in continuity mode), and power source engagement. Test with a known functional emitter to isolate faults.
- Dim output: Check for voltage drops across breadboard contacts. Move to soldered connections if resistance exceeds 0.5 Ω.
- Flickering: Stabilize the power source–avoid USB ports or unregulated wall adapters. Use a dedicated 9V battery or linear regulator for consistent performance.
- Excessive current draw: Confirm limiter value; replace with a higher-rated component if overheating persists. Typical ⅛W limiters handle up to 50 mA; switch to ¼W for currents above 30 mA.
Calculating Power Dissipation in the Current-Limiting Component
To determine the heat output of the series element, use P = I² × R, where P is power in watts, I is current in amperes, and R is impedance in ohms. For a 20 mA forward current through a 470 Ω series limiter, power dissipation equals 0.188 W. Always select a part rated for at least twice the calculated value–pick a 0.5 W variant to ensure thermal margin under normal operating conditions.
Verification via Supply Voltage
Cross-check using the formula P = (Vsupply − Vforward)² / R. With a 5 V source and a 2 V drop on the emitter, the series limiter sees 3 V across 470 Ω, yielding 0.191 W. Discrepancies between methods remain below 2 %, confirming the selection is safe for continuous operation.
Connecting Multiple Light Sources in Series vs. Parallel Setups
Calculate total forward voltage for series chains before wiring: sum individual voltages, then ensure the power supply exceeds this by at least 1.5V to prevent dimming under load fluctuations. For three 3mm indicators rated at 2.1V each, use a 9V source–never rely on exact matches as variances exist between batches.
Limit current through series strings rigorously: divide supply voltage minus total forward voltage by target current (typically 20mA for standard components). A 12V source powering four 3V emitters (12V total) at 15mA yields (12-12)/0.015 = 0Ω, but add 10-22Ω to buffer manufacturing tolerances and thermal drift.

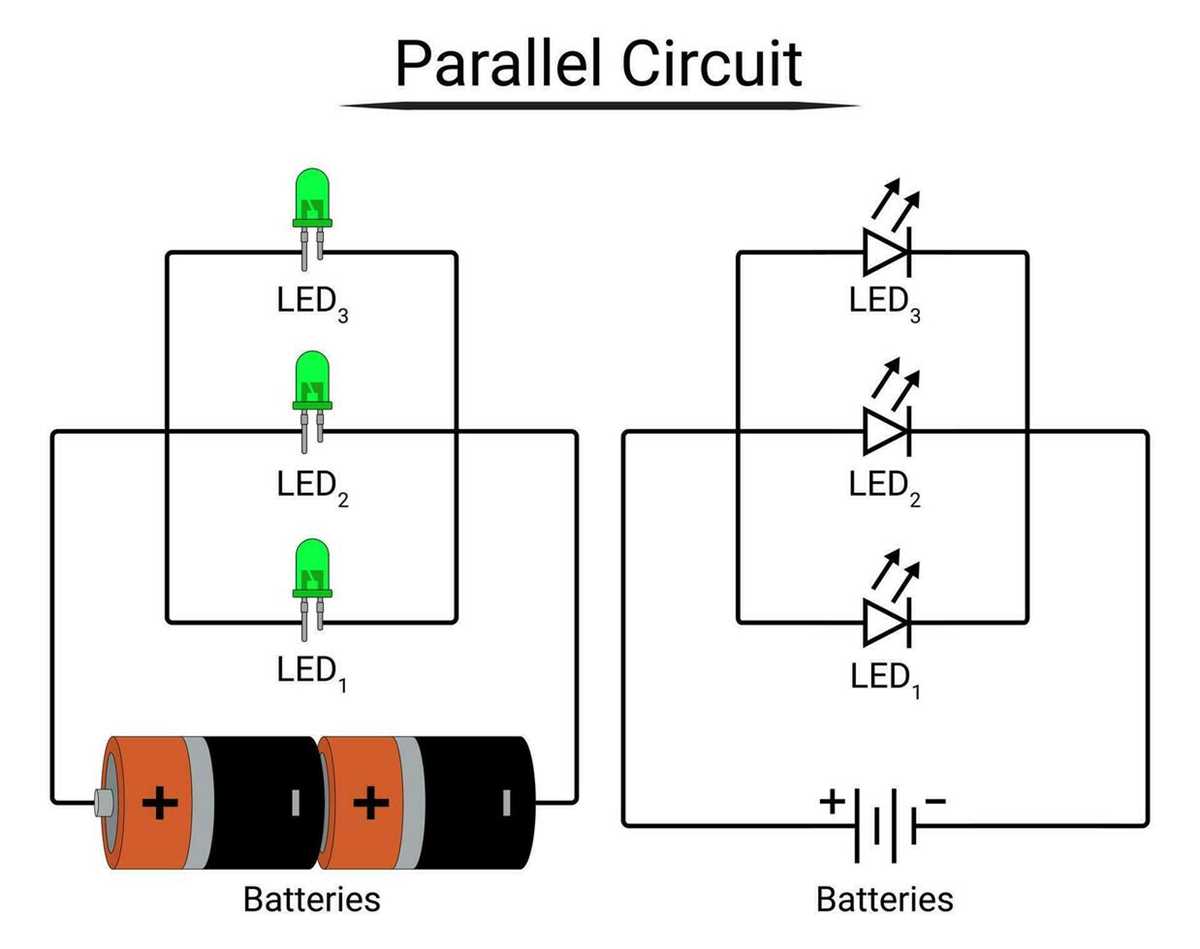

Distribute parallel branches evenly across the voltage source; uneven current sharing causes premature failure in lower-impedance paths. Balance by matching forward voltages (±0.1V) or insert small balancing resistors (1Ω for low-power, 5Ω for high-brightness). Measure branch currents with a multimeter–differences above 5% indicate misconfiguration.
Handling Voltage Drop in Extended Series Strings
Use Ohm’s law to verify wire resistivity: 22AWG copper loses ~20mV/m at 20mA. A 5m run with two series strings requires recalculating the inline resistance–if drops exceed 0.5V, switch to thicker gauge or segment with local regulation. For 24V systems, splitting into 6-emitter blocks minimizes cumulative drop at distal points.
Select constant-current drivers for strings exceeding 10 elements; buck converters (e.g., LM3409) maintain stable output despite input fluctuations. Configure the feedback network to track 90% of string voltage–this ensures headroom for thermal compensation. Avoid linear regulators in series over 15V as power dissipation becomes impractical (>2W).
Parallel paths demand identical path lengths; a 10cm disparity introduces measurable skew. For RGB clusters, route each color via dedicated traces or wire pairs to prevent cross-current interference. Solder joints should form direct, low-resistance bonds–avoid twist-and-tape methods for current above 30mA.
Thermal Management in Dense Arrays
Mount high-power segments onto aluminum substrates (minimum 5mm thickness) with thermal adhesive; junction-to-board resistance must stay below 10°C/W. Space emitters at 1.5x their diameter to distribute heat evenly–crowding concentrates failures in central elements. For 1W sources, incorporate finned heatsinks or forced airflow if ambient exceeds 40°C.
