Use a full-wave diode configuration for optimal efficiency in converting alternating current to direct current at 12 volts. Select four high-speed recovery diodes (e.g., 1N4007 or 1N5822) to handle peak inverse voltages up to 100V and forward currents of 1A or more. Arrange them in a closed-loop arrangement with two pairs facing opposite directions to ensure both halves of the AC waveform are utilized.
Add a 470µF to 1000µF electrolytic capacitor on the output to smooth voltage ripples. For applications requiring cleaner DC, a 10µF ceramic capacitor in parallel helps filter high-frequency noise. Ensure the circuit’s load matches the diodes’ current rating–overloading may cause thermal failure. If driving inductive loads (e.g., motors), include a flyback diode to protect components from voltage spikes.
For input, connect an AC transformer with a secondary winding rated at 9–12V RMS. The resulting unregulated DC will measure ~15–17V under no-load conditions, dropping to ~12–14V under load due to diode forward voltage drops (~0.7V per diode). To regulate the output, integrate a 7812 linear voltage regulator or a buck converter module for improved efficiency in high-current applications.
Test the setup with a multimeter before connecting sensitive devices. Verify diode polarity–reversed connections will short-circuit the AC input, damaging components. For reliability, use a PCB with thick copper traces or heavy-gauge wire (18 AWG or thicker) to minimize resistive losses. In high-ambient-temperature environments, mount diodes on a heatsink or use Schottky diodes for lower heat dissipation.
Designing a Four-Diode AC to DC Conversion Setup
For a reliable low-voltage power supply, select diodes with a peak inverse voltage (PIV) rating of at least 50V and a forward current capacity exceeding 1A. The 1N4007 is a proven choice, offering 1000V PIV and 1A current handling, which provides ample margin for most applications. Avoid cheaper alternatives like 1N4001–its 50V PIV may fail under transient spikes common in unregulated designs.

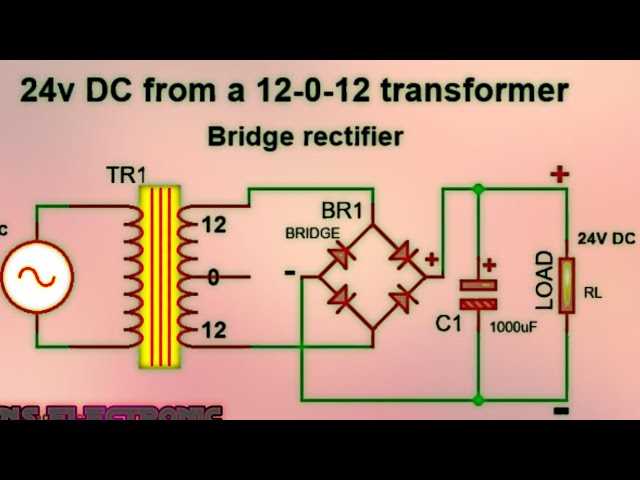

Arrange the diodes in a diamond pattern with two pairs conducting during alternating halves of the input waveform. Connect the AC source leads to the outer corners of the diamond, where the diodes meet. The DC output emerges from the opposing corners, ensuring both halves of the sine wave contribute to the smoothed DC output. Verify connections with a multimeter set to continuity mode to prevent short circuits between AC and DC sides.
Critical component specifications:
- Input capacitor: 100nF ceramic disc to suppress high-frequency noise.
- Output capacitor: 1000µF electrolytic, rated for 35V minimum–higher voltage headroom prevents premature failure.
- Load resistor: 1kΩ for testing, or select based on your specific application’s current draw.
- Heat dissipation: Diodes generating more than 0.5W should be mounted on a small heatsink–calculate using P = Vf × I, where Vf is forward voltage drop (~0.7V for silicon).
Troubleshooting Common Errors
If the DC output measures half the expected value (e.g., 6V instead of 12V), check for an open diode–one faulty component disrupts the full-wave conversion. Voltage drops below 0.5V typically indicate reversed diode polarity or shorted output capacitor. Replace the entire diode array if unsoldering single components proves difficult during diagnostics.
For improved efficiency, add a voltage regulator IC like the LM7812 after the smoothing capacitor. This reduces ripple to less than 5mV peak-to-peak under load. Without regulation, expect 100-200mV ripple at 100mA load current. Calculate required capacitance using:
- Iload × T / Vripple = C, where T is 10ms for a 50Hz input.
- Example: 0.1A × 0.01s / 0.1V = 10,000µF minimum.
Thermal management often overlooked–prolonged operation at maximum current causes diode degradation. Monitor case temperature: if exceeding 85°C, reduce load or upgrade to Schottky diodes (e.g., 1N5822) with lower forward voltage drop (0.35V vs 0.7V) and faster recovery times. These tolerate 3A continuous current but require additional PIV margin due to their lower reverse voltage rating.
Key Parts for Your Dual-Diode Voltage Conversion Build
Select four fast-recovery diodes rated at least 50 V reverse breakdown and 2 A forward current. 1N4007 devices work, but choose Schottky types like 1N5822 for lower forward drop under dynamic loads.
Capacitors require careful sizing–start with a 470 µF electrolytic rated 35 V or higher. Add a 0.1 µF ceramic directly across the smoothing cap to suppress high-frequency transients that degrade regulator stability.
Include a TO-220 heatsink if the diodes exceed 80 °C under continuous 1.5 A load. Thermal adhesive or mica insulator prevents shorts between the tab and chassis.
Fuse selection: a 2 A slow-blow inline fuse protects the input leads. For modularity, mount it in a panelholder rather than soldering directly into wiring.
Additional Support Elements
For input-source isolation, a single-pole switch rated 5 A/250 VAC suffices. Toggle or rocker types reduce footprint versus slide switches.
Output regulation demands a low-dropout linear regulator such as LM2940T-5.0; ensure its input voltage never exceeds 26 VDC to prevent thermal shutdown.
Wire gauge must match load: use 18 AWG silicone-insulated strands for currents above 1 A, switching to 22 AWG for secondary connections under 300 mA.
Verification Tools
Keep a digital multimeter with true RMS capability to confirm ripple voltage below 50 mV_pp–exceeding this threshold shortens capacitor lifespan and introduces switching noise.
Step-by-Step Wiring Guide for a Full-Wave 4-Component Converter
Begin by securing the four semiconductor elements–silicon or Schottky–on a heat-resistant base. Arrange them in a diamond pattern with cathodes facing inward on the top and bottom components, and anodes inward on the left and right. Ensure proper spacing to avoid accidental shorts during soldering. Use a multimeter in diode-test mode to verify each component’s forward voltage drop before installation, discarding any with values below 0.4V or above 0.9V.
Connect the first AC input terminal to the junction where the left and top component leads meet. Attach the second AC input to the right-bottom component intersection. Use 18 AWG solid-core wire for these connections, stripping only 5mm of insulation to prevent stray capacitance. Twist the exposed ends tightly around the leads before soldering, applying flux to minimize oxidation. Keep soldering iron contact under two seconds per joint to avoid thermal damage.
Join the positive output terminal to the cathode-side intersection of the top and right components. For the negative terminal, link it to the anode-side junction of the bottom and left components. Use heavier 14 AWG wire for these output lines to handle current loads up to 8A. Implement a 1000μF electrolytic capacitor across the output terminals, observing polarity–positive to the power rail, negative to ground. Add a 0.1μF ceramic capacitor in parallel to filter high-frequency noise.
Insulate all exposed joints with polyimide tape or heat-shrink tubing before final assembly. Test the completed assembly with an oscilloscope, probing the output terminals while applying a 14-16VAC RMS input. A properly configured converter will display a consistent pulsating DC waveform between 18-22VDC peak, with less than 100mV ripple at full load. If ripple exceeds tolerances, double-check component orientation and solder joints.
Mount the finished converter in a ventilated enclosure, ensuring airflow around the semiconductor elements. Use a small 120mm PWM fan if operating at or above 75% of rated capacity for more than 30 seconds. For transient protection, add a 15V bidirectional TVS diode across the input terminals. This safeguards against voltage spikes up to 600W without compromising performance.
Validate long-term stability by loading the output with a resistive element matching your application’s current draw. Monitor temperature rise at the hottest component lead junction, which should not exceed 105°C during continuous operation. If exceeding this limit, upgrade to TO-220 packaged components with appropriate heatsinks or reduce load current by 20%.
Calculating Output Voltage and Current for Low-Voltage Alternating Input
For a dual-wave conversion setup with silicon diodes, subtract 1.4V from the peak AC input to determine the DC output. A 10V RMS source yields approximately 12.7V peak; deducting diode drops gives 11.3V across the load. Use this formula: VDC = (1.414 × VRMS) – 1.4.
Current handling requires analyzing the smoothing capacitor’s ripple voltage. A 1000µF capacitor with a 0.5V ripple at 1A load follows: I = C × ΔV / Δt. For 50Hz mains, Δt = 10ms, so I = 1000µ × 0.5 / 0.01 = 50mA. Scale capacitance proportionally for higher currents.
| Load Current (A) | Minimum Capacitance (µF) | Peak Inverse Voltage (V) |
|---|---|---|
| 0.1 | 220 | 30 |
| 0.5 | 1000 | 35 |
| 1.0 | 2200 | 40 |
| 2.0 | 4700 | 50 |
Transient currents during startup exceed steady-state values. A 4700µF capacitor charged to 12V via 0.5Ω transformer resistance creates an initial surge of 24A. Limit inrush with a 0.1Ω NTC thermistor or 5A fuse upstream.
Diode selection hinges on reverse recovery time and forward current. For 50Hz applications, 1N4007 suffices; 1N5822 Schottky reduces losses to 0.5V per diode at 3A. Verify heat dissipation–TO-220 packages require heatsinks if power exceeds 1W per device.
