For precise fault detection and response, integrate a dual-channel monitoring system with forced-guided contacts. This setup ensures redundancy by comparing both channels–anomalies trigger immediate shutdown. Use a series connection of NC (normally closed) contacts for input validation, pairing it with a parallel NO (normally open) reset path. This prevents unsafe restarts until conditions stabilize.
Apply a two-stage filtering approach: first, suppress transient noise via RC components (e.g., 100nF capacitor with 1kΩ resistor), then verify signal integrity with hysteresis. Set hysteresis thresholds at ±15% of nominal voltage to avoid false trips from minor fluctuations. Ground all shields directly at the relay housing to eliminate electromagnetic interference.
For fail-safe output control, use a cross-monitored pair of solid-state switches (e.g., MOSFETs or IGBTs) in series with mechanical contacts. This dual-layer failsafe prevents single-point failures from compromising shutdown. Ensure output circuits include current-limiting resistors (470Ω) to protect against short circuits during switching transitions.
Label all critical nodes with functional codes (e.g., “CH1_IN,” “OUT_FB”) and color-code wires as per IEC 60204-1 (red for power, blue for neutral, yellow/green for ground). Test continuity under asymmetric load conditions (20% above/below nominal) to confirm robustness. Document every modification with timestamped revisions for traceability.

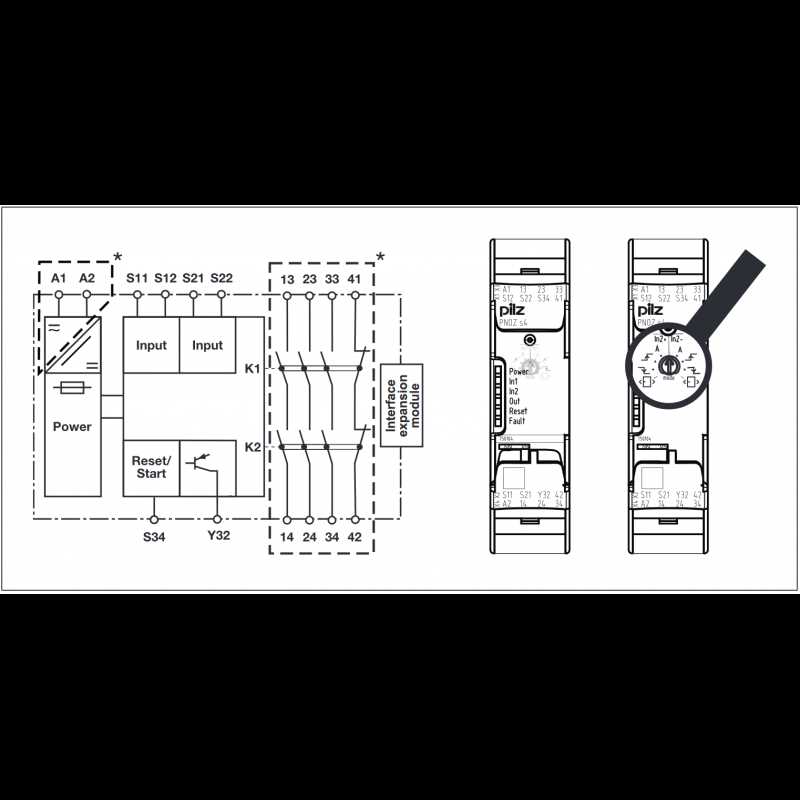

Understanding the Safety Relay Wiring Schematic for S4 Models
Start by identifying the input channels on the schematic–typically labeled as S11, S12, S21, and S22–where dual-channel connections ensure redundancy. Connect emergency stop buttons or safety gate switches to these inputs using normally closed (NC) contacts for fail-safe operation. Ensure wiring gauge matches the relay’s specifications (minimum 0.75 mm² for 24V DC), as undersized cables cause voltage drops and nuisance tripping.
Key Configuration Steps
Bridge the feedback loop (Y1, Y2) between the relay’s built-in test outputs and the machine’s control system to enable automatic monitoring. Misalignment here will trigger a lockout, requiring manual reset (via the K1/K2 terminals) even after resolving the fault. For two-hand control, wire push buttons to S11/S12 with less than 0.5-second delay between activations to comply with EN 574 Type IIIC standards.
Power the unit with a stable 24V DC supply, avoiding shared circuits with inductive loads like motors or solenoids–electrical noise can corrupt internal diagnostics. Verify polarity on P1/P2 (+/-) with a multimeter before energizing; reverse polarity damages the microcontroller permanently. Use shielded cables for signal lines longer than 3 meters to prevent EMI-induced false triggers.
Test the setup in three phases: first, confirm static continuity with all safety devices open; second, simulate device closure to check relay activation; third, introduce a fault (e.g., wire break) to validate lockout. Document the exact wiring path (e.g., “Brown wire: S11 → E-stop NC → S12”) for troubleshooting–schematics alone won’t reveal field modifications.

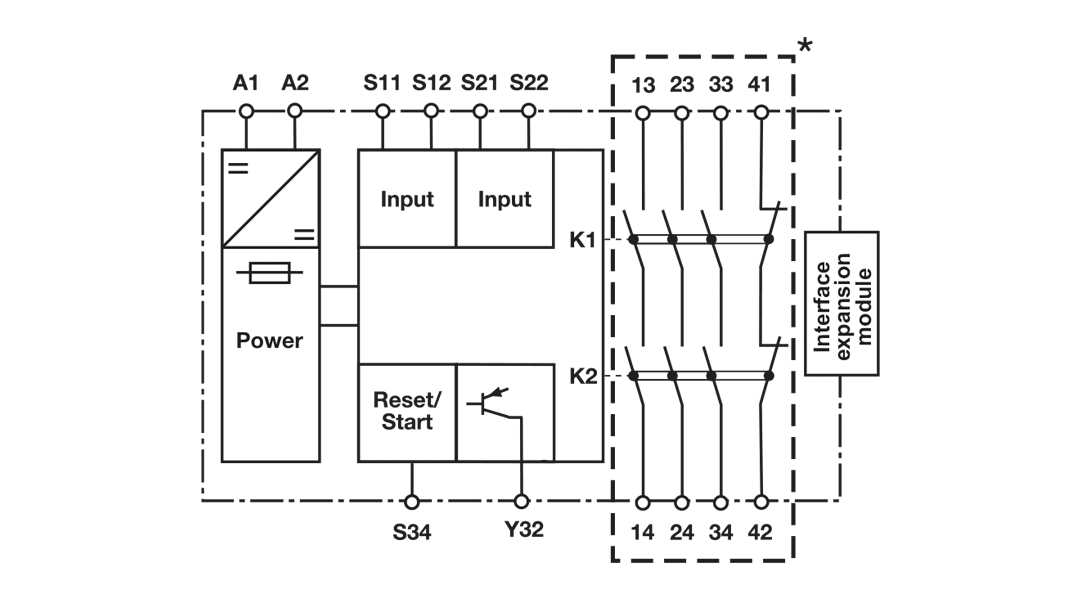

Key Components and Symbols in the Safety Relay Wiring Layout
Begin by identifying the core modules on the schematic: the input terminals labeled A1 and A2 serve as the primary power supply connections for the control voltage. Typical configurations use 24V DC or 110-240V AC, depending on system requirements. Verify the voltage rating before proceeding to avoid damaging the device.
Monitor the feedback loop via the auxiliary contacts, often marked as S11-S12 or S14-S15. These normally closed (NC) or normally open (NO) contacts act as status indicators for fault detection or manual reset confirmation. Cross-reference their positions with the manufacturer’s datasheet to ensure accurate interpretation–incorrect wiring here can lead to false safety triggers or failed startups.
The safety channels, usually denoted as S33-S34 and S41-S42, require strict adherence to dual-channel redundancy. Both channels must be simultaneously interrupted to activate the protective functions. Check for symmetry in resistance or voltage drop across these terminals; discrepancies exceeding 10% may indicate wiring errors or component degradation.
| Symbol | Function | Critical Notes |
|---|---|---|
| Y1-Y2 | Output relay coils | Ensure correct polarity if DC; AC versions are non-polarized. Overloading risks coil burnout. |
| K1-K2 | Internal relay contacts | Test for continuity under load; pitted contacts may cause intermittent failures. |
| X1-X2 | External device connections | Use shielded cables for lengths >5m to prevent electromagnetic interference. |
Grounding symbols, typically shown as a downward-pointing triangle or labeled PE, demand immediate attention. Connect these to a verified earth terminal; floating grounds can compromise response times and violate EN 62061 standards. Use a multimeter to confirm resistance values below 0.1Ω between the grounding point and the chassis.
For emergency stop inputs (often labeled E-STOP or S2-S3), wire in series with the safety channels to ensure fail-safe operation. Avoid daisy-chaining multiple E-STOP buttons–parallel connections can mask a single point of failure. Instead, terminate each button directly to the relay’s input terminals with 1.5mm² minimum wire gauge.
Observe timing parameters during testing: the relay’s delay-on-release (DOR) and delay-on-energize (DOE) settings directly impact machine cycle times. Adjust these via onboard potentiometers or software, but never exceed the documented limits–typically 0.1s to 30s–to prevent unintended activation or deactivation.
Finally, document every connection in the schematic with annotations for future troubleshooting. Label wires with heat-resistant sleeves and include reference numbers matching the layout. Mislabeling remains a leading cause of prolonged downtime during maintenance or repairs.
Step-by-Step Guide to Connecting Safety Inputs and Outputs
Begin by identifying all safety-rated signal sources–emergency stops, light curtains, interlock switches–and verify their compliance with EN ISO 13849-1 or IEC 62061 for Performance Level (PL) or Safety Integrity Level (SIL). Use only shielded cables with twisted pairs for inputs to minimize electromagnetic interference; ground the shield at a single point near the controller’s terminal block to prevent ground loops.
Wire each input to the designated terminal following the manufacturer’s pinout. For dual-channel inputs (e.g., two-hand control or redundant switches), ensure both channels are connected to separate terminals labeled Channel 1 and Channel 2–never bridge them internally. Check the device’s documentation for maximum cable length; typical limits range from 50 to 300 meters depending on signal type and voltage drop.
Cross-Wiring Verification
After physical connections, validate cross-wiring protection by simulating an open circuit on one channel while monitoring the system response. The safety function must remain active when the second channel stays closed, and trip immediately upon complete disconnection. Use a multimeter in continuity mode to confirm no unintended connections exist between inputs and outputs or between dual channels.
- Measure voltage at input terminals under normal conditions: expect 24 VDC for PNP sources, 0 V for NPN.
- For devices requiring external power, supply 24 VDC from a safety-rated power source, isolating it from standard machine control voltage to avoid feedback loops.
- If using analog inputs (e.g., pressure sensors), confirm range and scaling match the controller’s specifications–common ranges include 4-20 mA, 0-10 VDC.
Output connections require similar rigor. Connect safety-rated relays or solid-state outputs to actuators–contactors, valves, or motor starters–only after verifying isolation from hazardous potentials. Use normally open (NO) contacts for safety functions to ensure fail-safe behavior: the actuator must de-energize upon safety activation. Avoid parallel connections to standard control relays unless opto-isolated or using dedicated safety-rated coupling modules.
Diagnostic Feedback Loop
Implement feedback monitoring by routing auxiliary contacts from output devices back to dedicated diagnostic inputs. This creates a closed loop: if output activation fails (e.g., contactor welds), the system immediately detects the mismatch between commanded and actual states. Configure the controller’s software to log such discrepancies and trigger a safe state–typically stopping all motion within 200 ms.
- Set plausibility checks in the configuration tool: ensure digital inputs cannot simultaneosly show “high” and “low” states.
- Test short-circuit and overload protection on outputs by inducing a 1 kΩ resistive load or short; the output must disconnect without damaging upstream components.
- Document each connection with labels including signal type, source device, and terminal number–use heat-shrink tubing or printed sleeves resistant to lubricants and heat.
Final validation involves executing a functional safety assessment via the controller’s integrated test modes. Trigger each safety function separately while observing output behavior and external indicators–LEDs, alarms, or HMI feedback. Record response times for comparison against safety requirements; deviations above ±10% require re-examination of wiring impedance or controller settings. Retain test records as part of machine documentation for compliance audits.
