Understanding the Poe Schematic Diagram Components and Design Principles

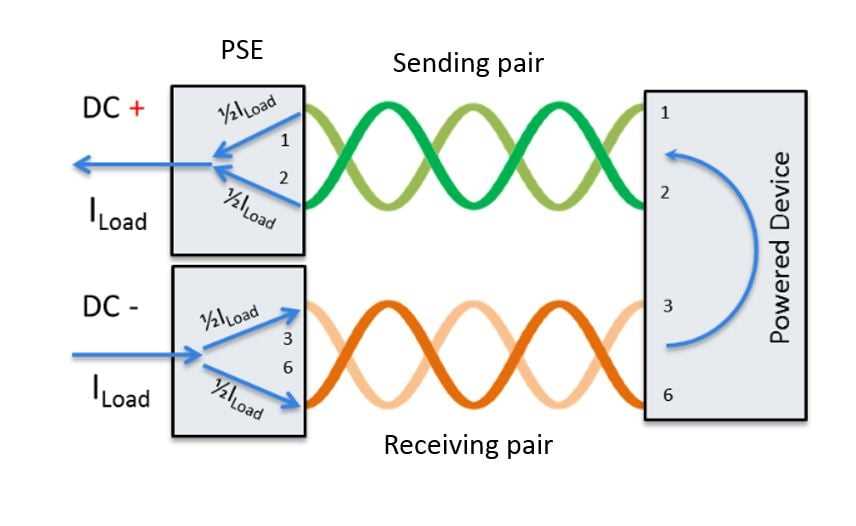

poe schematic diagram

Start with a clear demarcation of voltage injection points in your design. Use IEEE 802.3bt as the baseline: specify 4-pair power delivery for Type 4 configurations (90W at the source). Mark each pair with DC bias values–typically 48V–and ensure polarity matches the end device’s requirements. Label resistance tolerances: ±2% for Cat5e cables over 100 meters, ±1% for Cat6a. Include a fuse symbol at the power sourcing equipment (PSE) output, rated 1.5× the maximum current draw of the powered device (PD).

Isolate signal and power paths with ground separation techniques. Place a 0.1µF ceramic capacitor between each data pair and ground at both PSE and PD ends to suppress high-frequency noise. Add common-mode chokes rated 300mA per winding for cables exceeding 50 meters. Indicate PoE classification signatures–Class 1 through Class 8–using resistor values 25kΩ (Class 1), 12.5kΩ (Class 4), or 6.25kΩ (Class 8), measured at 25°C with ±1% tolerance. Avoid generic annotations; replace “resistor” with “precision resistor (0.1%)” where applicable.

Detail the PD’s input stage with exact component values. Show a bridge rectifier using Schottky diodes (e.g., 1N5822) for low forward voltage drop (0.3V at 1A). Specify an input capacitor of 10µF/100V with X7R dielectric for stable voltage under load transients. Include a flyback diode across the PD’s inductor, reverse-biased with 1A continuous current rating. For multichannel designs, use current-sharing ICs (e.g., LT4320) with ±5mV load regulation.

Standardize thermal dissipation symbols. Highlight thermal pads for MOSFETs (e.g., SI3402) with 1°C/W junction-to-case resistance. Label ambient temperature limits (-40°C to +85°C) and derate power by 2.5W/°C above 70°C. Use Peltier elements for PDs requiring active cooling, sized to 30W/m². Separate low-voltage (5V) and high-voltage (48V) zones with optical isolators (6N137) or digital isolators (ADuM1401) with 15kV/µs common-mode transient immunity.

Validate the layout with spice simulation before finalizing. Simulate inrush current (2× steady-state) and verify fuse selection. Test for cable capacitance (47pF/m for Cat6a) and adjust PSE pulse width (≤2ms) to prevent false disconnects. Include I2C EEPROM (e.g., 24LC16) for PD identification, storing Manufacturer ID, Model Number, and Power Class in 2-byte blocks. Color-code wires: blue pair (data), brown pair (power), green/white stripe (ground reference).

Powered Ethernet Wiring Blueprint: Key Design Principles

Start by separating power and data lines at the source. Use twisted pairs for signal integrity–green/white-green for data, blue/white-blue for +48V, and brown/white-brown for return. Avoid mixing pairs to prevent crosstalk. For Type 2 (802.3at) implementations, allocate all four pairs: two for power (pins 1/2/3/6) and two for data (pins 4/5/7/8). Always terminate unused pairs with a 75Ω resistor to prevent reflection noise.

Component Placement Rules

  • Position the PSE (power sourcing equipment) no farther than 100 meters from the PD (powered device). Exceeding this range degrades voltage below 37V, causing unstable operation.
  • Use a midspan injector for legacy switches. Connect the injector’s input to the switch’s MDI-X port and its output to the device. Verify polarity with a multimeter–reverse polarity damages PDs.
  • Ground the shield of Cat5e/Cat6 cables at the PSE end only. Grounding both ends creates a ground loop, introducing 50/60Hz hum.

For high-power applications (60W+), replace standard PoE injectors with 2-event classification (LLDP) hardware. Configure the PSE to negotiate power levels via LLDP-MED TLV fields. Without LLDP, the PD defaults to 15.4W, risking brownouts. Test power draw with a load resistor before deploying:

  1. Set resistor to match PD’s wattage (e.g., 25Ω for 50W).
  2. Connect across +48V and return; measure current.
  3. If current

Fault Protection Mandates

Mandatory safeguards include:

  • Overcurrent: Fuse at 1.2A (250V) on +48V line. Polyfuses self-reset but degrade after 10 trips.
  • Surge: Transient voltage suppressor (TVS) diode across +48V/return. Clamping voltage: 60V.
  • Inrush: NTC thermistor in series with +48V. Cold resistance: 10Ω; hot resistance:
  • Under-voltage: PD-side brownout detector (e.g., TPS23861). Shut down if V

Document the circuit layout in Gerber files with layer-specific notes. Label power rails with current ratings (e.g., “48V @ 1.25A max”). For remote monitoring, add an INA219 sensor on the return line–measures real-time wattage with ±1% accuracy. Validate thermal performance: PSE MOSFETs must stay below 60°C at full load; use thermal vias under the DPAK package.

Core Elements of an Ethernet Power Delivery Layout

Select DC-DC converters rated for 48V nominal input with a minimum efficiency of 92% at full load. Vicor’s PI3740 or Analog Devices LTC3899 series are proven in real-world deployments, offering integrated overvoltage and undervoltage lockout at ±2% accuracy. Ensure the switching frequency exceeds 500kHz to minimize output ripple below 50mVp-p; failing this, secondary LC filters with 10µH inductors and 22µF capacitors become mandatory. Thermal derating must account for ambient temperatures up to 85°C–every additional 5°C beyond 60°C reduces lifespan by 30%.

Gigabit magnetics require a transformer winding ratio of 1:1.3 or higher to maintain compliance with IEEE 802.3bt Type 4 current limits. Pulse Electronics HX1050NL or Würth Elektronik 750312013 provide sub-30mΩ DC resistance and magnetizing inductance above 350µH, critical for inrush surge suppression. Include a bidirectional TVS diode (Littelfuse SMBJ58A) across each pair to clamp transients exceeding 60V within 5ns, preventing latch-up in connected devices. Shielded Cat6 cable with a foil drain minimizes common-mode noise; unshielded variants increase error rates by 18% under 30W loads.

Use an MCU with a dedicated hardware PSE controller like TI’s TPS23880 or Microchip’s PD69210 to enforce signature detection within 500ms and maintain power classification accuracy of ±10mA. Replace generic polyfuses with resettable PPTCs (Bourns MF-R110) rated for 1.1A hold and 2.2A trip at 60°C; these recover within 3s after overload, unlike fuse replacements requiring manual intervention. Decouple the controller with a 0.1µF MLCC in parallel with a 1µF tantalum capacitor placed within 2mm of the VDD pin to prevent voltage sag during classification handshakes.

Step-by-Step Power-over-Data Wiring for Network Devices

Start by verifying the voltage and current ratings on both the injector and splitter labels. Most mid-span injectors supply 48V DC at 0.35A (17W) or 0.6A (30W), while splitters often require 12V or 5V outputs. Mismatched power specs will damage connected hardware–double-check before proceeding.

Connect the injector’s data-in port to the network switch using a CAT5e or CAT6 patch cable. Ensure the cable length complies with IEEE 802.3af/at standards: maximum 100 meters (328 feet) for reliable signal integrity. Avoid coiled cables or sharp bends exceeding a 4x cable diameter radius to prevent signal degradation.

Wiring sequence for the power injector side:

  1. Plug the mains adapter into the injector’s DC input (typically 24V–56V).
  2. Attach the network segment from the switch to the injector’s data-in jack.
  3. Connect the powered segment (data + DC) from the injector’s output to the splitter’s input.

Splitter setup:

  • Mate the powered input cable to the splitter’s RJ45 port.
  • Attach the splitter’s DC output (barrel jack or USB) to the device–confirm polarity marking (+/-) to avoid reverse voltage damage.
  • Connect the splitter’s data-out port to the target device’s Ethernet jack with a standard patch cable.

Test the setup with a multimeter: measure 44V–57V between pins 1/2 and 3/6 at the injector output, and the expected reduced voltage at the splitter output (5V or 12V).

Ground the injector’s metal chassis to a building earth point if operating in high-interference environments. Secure all connections with Panduit ties or velcro straps–loose connectors introduce packet loss. Label both injector and splitter with IP addresses and voltage specs for future troubleshooting.

For outdoor installations, use IP67-rated injectors and waterproof heat-shrink tubing over exposed connector joints. Apply dielectric grease to RJ45 plugs in humid environments. Recheck resistance between powered pairs (4/5 and 7/8) with a wiremap tester–values below 10Ω indicate proper continuity.

Common Pitfalls in Power Delivery Circuit Layouts

Avoid placing decoupling capacitors more than 5cm from the load IC’s power pins. Every additional centimeter increases inductance, turning what should be a stable 4.7µF ceramic into a resonant tank at 5MHz. Measure the actual ESR with an impedance analyzer; values below 15mΩ ensure the capacitor still acts as a true decoupler instead of a noise amplifier.

Mistaking a single-ended design for differential signaling wastes 30% of channel capacity. Check trace impedance with a TDR: 85Ω single-ended vs. 100Ω differential is a 7% mismatch, enough to cause 200mV reflections on a 1Gbps link. Match lengths within 0.2mm using serpentine bends, not arbitrary pathfinding.

Component Max Trace Length (mm) Min Trace Width (µm) Recommended Via Count
1µF MLCC 10 120 2
330µF Polymer 25 250 4
Current Sense Shunt 5 400 1

Leaving unused controller pins floating invites latch-up. Tie EN pins to GND through a 1kΩ resistor if disabling, or pull directly to VDD for full 1.2A output. Active-high pins source 10nA leakage; a floating node can drift to 0.4V, triggering false soft-start sequences. Use a DMM in DCV mode to verify pin states before power-up.

Underestimating board stack-up tolerances leads to impedance swings. A 0.1mm prepreg variation changes 50Ω microstrip width from 152µm to 138µm. Specify ±5µm copper thickness and ±8µm dielectric thickness with the fabricator. Run a 2D field solver on each layer, not just the outer traces.

Ignoring thermal vias under 3W regulators guarantees 25°C junction rise above ambient. Place 0.3mm vias on a 1mm pitch directly beneath the exposed pad. Fill with solder, not air; an unfilled via creates a 1°C/W bottleneck. Test with a thermal camera: temperatures should equalize within 5 seconds after enabling output.
