Start with the driver-side fuse block located under the dashboard. Pin 12 on connector C3 supplies power to the trailer tow module–verify continuity with a multimeter set to 20 VDC before replacing any fuse. A corroded ground at G102, just below the left rear taillight, causes intermittent horn failures; clean the bolt with a wire brush and apply dielectric grease.
For the 7-way trailer socket, trace wire OR/YL (orange/yellow) from terminal 7 back to splice S104 behind the rear bumper. If the brake controller loses signal, check the CAN bus connections at the OBD-II port–specifically pins 6 and 14–for frayed insulation. Re-solder joints if resistance exceeds 0.5 ohms.
Replace the integrated power module only after confirming the battery voltage drops below 11.8 V during cranking. Scan for trouble codes P1682 and P0562; both indicate a faulty alternator field circuit. Disconnect the negative terminal before probing the alternator’s output pin (B+) with a clamp meter–expected reading is 13.8–14.5 V at 2,000 RPM.

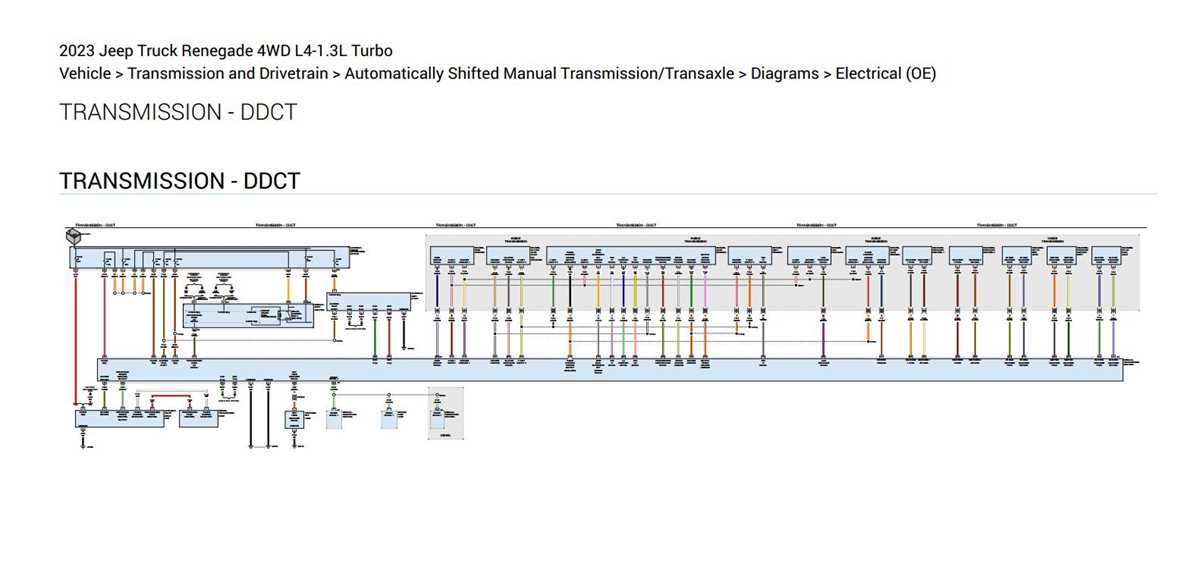

Download the official schematic from the manufacturer’s service portal using VIN-based access. Cross-reference each wire color code with the harness routing diagram in section 8W-60-12; discrepancies often reveal aftermarket modifications. Print the relevant pages on 11×17 paper for easier tracing.
Electrical Blueprint for Your Off-Road Pickup: Key Insights
Locate the main fuse box under the dashboard on the driver’s side–it houses critical relays for the ignition, lighting clusters, and power distribution modules. Each fuse is labeled with amperage ratings; replace blown units only with identically rated components to prevent circuit overloads. The 30-amp fuse for the TIPM (Totally Integrated Power Module) is particularly prone to failure during moisture exposure.
Trace the bundled cables from the battery terminal to the starter solenoid using the color-coded guide: red denotes positive, black or dark green indicates ground paths. A single corroded connection at the battery tray can disrupt multiple systems, including the winch and auxiliary power outlets. Use dielectric grease on terminals after cleaning them with a wire brush to resist future oxidation.
The rear lighting harness connects through a 12-pin connector near the tailgate. If LED brake lights flicker, inspect the ground wire (typically black/yellow) at the frame rail–loose mounting bolts are a common culprit. For aftermarket additions like trailer plugs, splice into the brown (tail lights) and yellow (left turn/brake) wires using crimp connectors; avoid solder alone, as vibrations can fracture joints.
Access the cabin’s wiring loom behind the glove compartment panel to diagnose infotainment or HVAC issues. The CAN bus network runs along the passenger-side kick panel; damaged twisted-pair wires here can cause erratic gauge readings. Use a multimeter to verify 2.5V ±0.5V signal stability at the OBD-II port (pin 6 for CAN High, pin 14 for CAN Low).
For winch or accessory circuits, route new cables through the engine bay’s existing grommets near the firewall. The factory-installed 8-gauge wire to the front bumper supports up to 120A continuous load; exceeding this risks melting insulation. Secure all additional wiring with loom tape and zip ties spaced no more than 6 inches apart to prevent chafing on sharp edges.
Diagnose parasitic battery drain by disconnecting the negative terminal and inserting a multimeter in series. A reading above 50mA indicates a faulty module–common offenders include the radio memory or BCM (Body Control Module). Isolate each circuit by pulling fuses one-by-one until the drain stops. Replace any defective components rather than bypassing them, as temporary fixes often lead to voltage irregularities.
When repairing damaged wires, match the gauge exactly: 14-gauge for 10A circuits, 12-gauge for 20A, and 10-gauge for high-draw accessories. Strip insulation back 3/8 inch, twist strands tightly, and apply heat-shrink tubing over soldered connections. Avoid electrical tape, which degrades under UV exposure and engine heat, leading to short circuits over time.
Refer to the official service manual’s appendix for pin-out diagrams of the ECM (Engine Control Module) and TCM (Transmission Control Module). Mismatched connectors can trigger transmission limp mode or false engine codes. For advanced diagnostics, use an oscilloscope to check pulse-width modulation signals on the fuel pump and ignition coils–irregular waveforms often point to failing sensors or relay corrosion.
Finding Ground Points in Your Pickup’s Electrical Schematic
Start beneath the dashboard on the driver’s side; a primary earth terminal clusters behind the lower kick panel, secured by a 10 mm bolt near the clutch pedal assembly. Peel back the carpet section to expose the steel chassis stub labeled “G401” in factory manuals.
- Disconnect the negative battery cable before handling any ground.
- Use a 16-gauge wire brush to scrape corrosion from chassis contact points.
- Apply dielectric grease after tightening bolts to 18 ft-lbs.
Under the hood, follow the main fuse box bracket; a thick braided cable terminates at a ring lug bolted directly onto the firewall. This point, “G103”, supports multiple high-current modules–inspect for melted insulation around the lug before reassembly.
Trace the rear taillight harness along the left frame rail; a hidden eyelet grounds the entire lamp cluster. Factory diagrams mark it “G302″–replace the single-use star washer if stripped.
For trailer wiring, locate the frame-mounted ground stud beside the hitch receiver. Use a dedicated 8 AWG jumper wire to bridge this point to the auxiliary power module if corrosion films the OEM stud.
Inverter installations require a fresh chassis ground; drill a 3/8″ hole forward of the rear wheel well, tap with a ¼-20 thread, and torque a stainless-steel bolt to 22 ft-lbs. Verify continuity with a multimeter set to ohms before energizing circuits.
The transfer case control module shares a chassis stud with the fuel tank sender; scrape paint from the mounting boss to ensure bare metal contact, then coat with CRC 5-56 spray.
Side airbag sensors rely on a dedicated ground loop embedded in the B-pillar trim; pry the door sill plate to access the tiny ring terminal. Crimp a new tinned-copper lug if the original exhibits green oxidation.
Locating Critical Fuse and Relay Hubs for Vehicle Electronics
Begin by examining the under-hood junction box, typically positioned near the battery on the driver’s side. This central node houses primary protection devices for high-current circuits like the cooling fan, starter solenoid, and alternator charging lines. Label each fuse according to its amperage rating–30A for the main power feed and 10A for secondary control modules–to avoid misidentification during diagnostics. Check for corrosion at the terminals; even minor oxidation can disrupt current flow to safety-critical systems.
Inside the cabin, focus on the integrated power module (IPM) mounted behind the dashboard’s lower panel. This compact assembly consolidates feeds for the infotainment unit, climate controls, and exterior lighting. Use a multimeter set to DC voltage to verify inputs; expected readings should mirror the battery’s voltage within a 0.5V tolerance. If discrepancies appear, trace the source wiring by following color-coded conductors–red for constant power, yellow for switched ignition, and black for chassis ground–back to their origin points.
- Instrument cluster: Purple/white striped wire (14-gauge) delivers power; inspect for intermittent connectivity.
- Rearview camera: Orange/black wire (18-gauge) requires stable 12V; test at the harness connector under the liftgate.
- Heated seats: Heavy-gauge brown wire supplies 20A; locate inline fuse near the seat frame.
For trailer tow modules, isolate the dedicated distribution block beneath the rear bumper. This standalone unit manages brake controllers, auxiliary lights, and reverse signal circuits. Confirm all connectors use WeatherPack seals; moisture intrusion here mimics electrical faults. Probe the 7-way socket with a test lamp–functionality should mirror the fuse ratings in the owner’s manual without voltage drop under load.
The transfer case control module relies on dual feeds: a direct battery line and an ignition-switched source. These converge at a splice pack near the transmission tunnel. Separate the wiring loom to inspect for chafing, particularly where it passes through the firewall grommet. Re-secure any loose strands with adhesive-lined heat shrink before re-routing to prevent short circuits during off-road vibrations.
Auxiliary circuits, such as winches or auxiliary batteries, tap into the main bus bar at the front of the engine bay. Identify the thickest red cable–this is the feed–then route new connections through a 40A circuit breaker. Never splice into the alternator output cable; instead, add a secondary relay triggered by the ignition system to prevent parasitic drain. Document each modification with photographs to streamline future servicing.
