Begin with a multimeter set to continuity mode to trace signal paths on the PCB. Focus on power rails–common input voltages for smartphones include 3.8V (battery), 1.8V (logic), and 5V (USB). Locate the PMIC (power management IC) first; its pins often connect directly to the battery terminal. Use a thermal camera or freezing spray to identify overheating components–shorts frequently occur near charging ICs or GPIO clusters.
Document each layer separately if working with a multilayer substrate. Top layers typically host decoupling capacitors near ICs, while inner layers handle ground planes and signal routing. For repair, prioritize components with visible corrosion or charred solder masks–these indicate failed power delivery or abrupt current spikes. Replace ESD-sensitive parts like touch controllers with anti-static tweezers and grounded soldering irons.

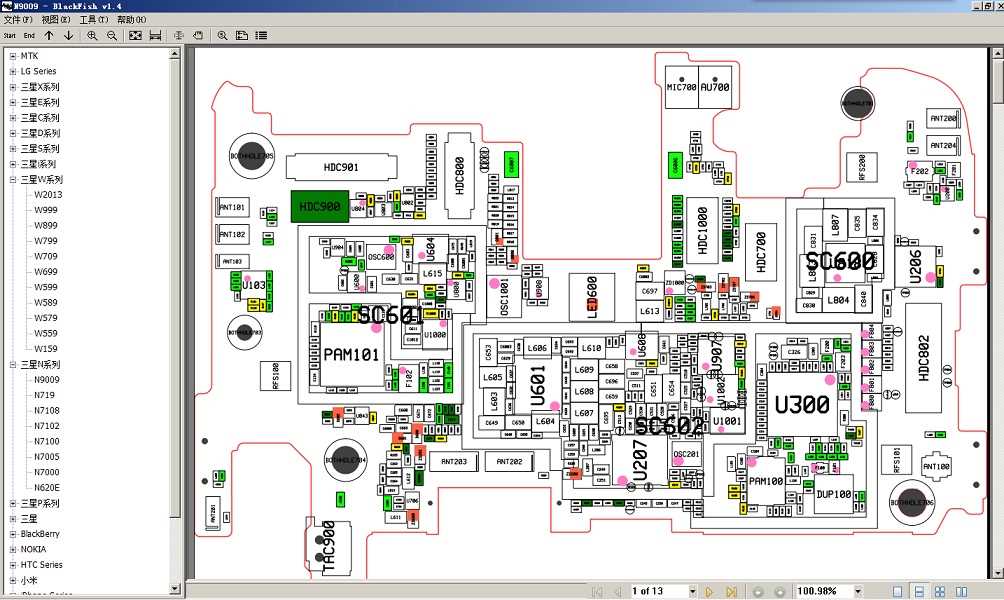

Reference manufacturer datasheets for pinouts, but cross-check with reverse-engineered layouts if unavailable. Key areas include processor ball grid arrays (BGAs), RAM stacking modules, and antenna matching networks. For debugging, inject a 1kHz square wave at test points to isolate open circuits or impedance mismatches. Glossy surface PCBs require flux before rework to prevent solder bridges–use no-clean flux for minimal residue.
Store extracted schematics as Gerber files or KiCad projects to preserve trace widths and via placements. For signal integrity, maintain 10mil clearance between high-speed lanes (e.g., DDR, MIPI) and slower buses. Test all connectors under load–flexible cables often degrade first, causing intermittent faults. When reverse-engineering, mark identical nets with colored pens to avoid confusion between parallel lines.

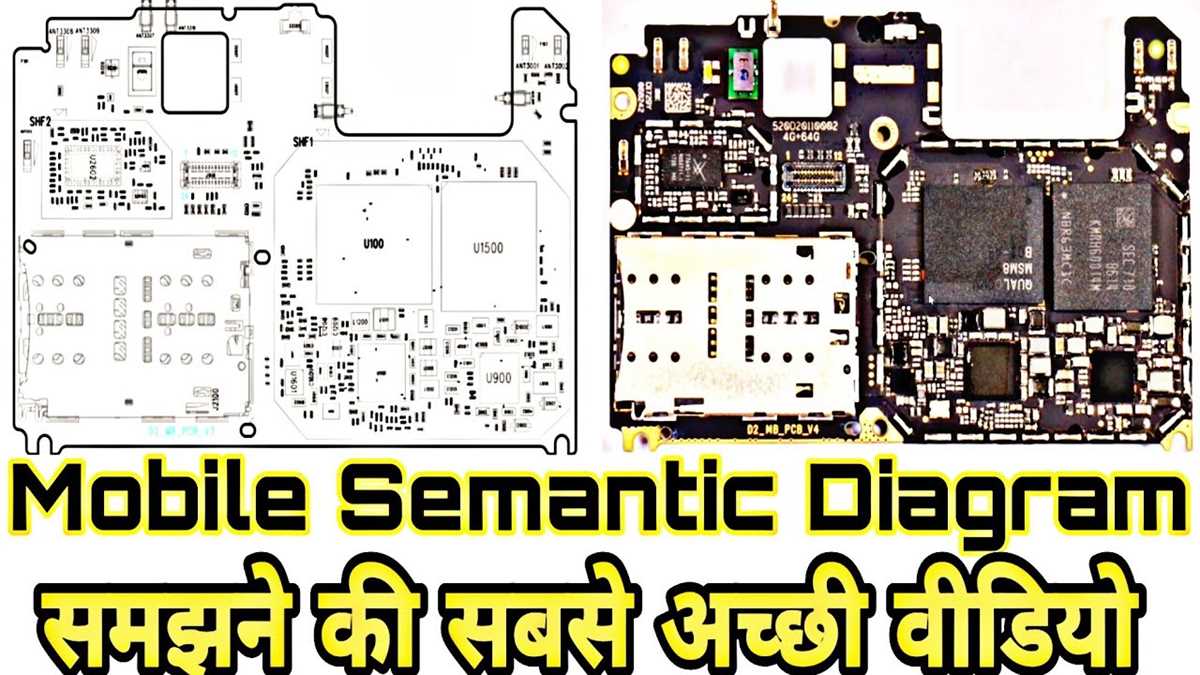

Understanding Smartphone Hardware Schematics
Examine the power distribution network first–modern handheld devices rely on multiple voltage rails (e.g., 1.8V, 2.5V, 3.3V, 4.2V) originating from the battery management IC. Trace each rail to its destination: CPU cores, RAM, flash storage, and display connectors. Verify connections with a multimeter set to continuity mode, ensuring no corrosion or cold solder joints disrupt signal integrity.
Locate the baseband processor–typically a large BGA package near the SIM card slot. Note the surrounding RF components: oscillators (26 MHz crystal), power amplifiers (SKY7735x series), and antenna matching networks. Check impedance values (usually 50Ω) on the network analyzer to prevent signal reflections that degrade call quality or data speeds.
Inspect the touchscreen controller (Synaptics or FocalTech ICs) and its flex cable connections. Measure resistance between the controller and the screen connector (target 0Ω if working, >10kΩ indicates a fault). Replace the flex cable if visible cracks appear, as intermittent touch issues often stem from micro-fractures in the conductive traces.
Test the charging circuit by probing the USB-C or Lightning port’s power lines. Expected voltages: 5V (standard), 9V (fast charge), or 12V/20V (proprietary protocols). If voltage drops under load (e.g., 4.2V instead of 5V), suspect a faulty buck converter (TPS65130 or RT5730) or degraded capacitors (22µF/6.3V tantalum/titanium).
Identify the bootloader contacts–usually golden pads near the edge of the PCB marked Test Points. Shorting these during power-on initiates download mode, critical for firmware recovery. Use Tweezers or a 0Ω resistor for precision; accidental bridging can corrupt flash partitions.
Evaluate the Wi-Fi/Bluetooth module (Broadcom, Qualcomm WCN series) and its associated antennas. Poor signal strength often traces to mismatched feedlines; recalibrate using a vector network analyzer (target -20dB return loss at 2.4GHz). Check shielding cans for dents–deformed metal disrupts RF performance, requiring module replacement.
Review GPU memory traces (e.g., LPDDR4) for clock signal degradation. Scope the CK (clock) and DQ (data) lines; jitter exceeding 50ps or voltage swing below 0.8V indicates failed termination resistors (50Ω) or a damaged GPU die.
Diagnose overheating by monitoring thermistors near the AP (application processor). Normal operating range: 45°C–75°C under load. If temperatures spike (>90°C), clean thermal paste residue and check the heatsink frame alignment. Inspect the PMIC (power management IC) for failed thermal throttling–replace if the die measures >120°C with an infrared thermometer.
Optimal Placement of Core Elements on Smartphone Internal Assemblies
Prioritize positioning the application processor directly beneath the device’s main thermal pad, ensuring a minimum 2mm clearance from adjacent RF modules to prevent frequency interference. Use staggered vias with a 0.3mm pitch for heat dissipation – clusters of four 0.2mm diameter vias per 1cm² yield optimal thermal conductivity without compromising structural integrity. The modem should occupy the top-right quadrant, maintaining at least 15mm separation from the primary camera ISP for reduced signal crosstalk.
Place power management ICs near battery connector traces, no farther than 30mm from the lithium-polymer interface to minimize voltage drops – trace width should follow 0.5oz copper for 3A current paths, widening to 1.2mm per amp for higher loads. Memory chips require positioning on the opposite side of the assembly from wireless charging coils (if present), with routed impedance-controlled traces at 50Ω ±10% for DDR signals, achieved through 0.1mm trace spacing on inner layers. Antenna feed lines must terminate at least 5mm from metal shields to preserve radiation efficiency, with ground plane cutouts matching the radiating element’s geometry.
For sensor arrays, reserve the lower-left corner opposite the speaker module, where ambient light and proximity detectors benefit from reduced EMI with 2.5mm keep-out zones around their flex connectors. Implement star topology power distribution for main rails, centralizing decoupling capacitors (0603 size, 1µF X5R dielectric) within 2mm of each IC’s power pins. Shielding cans should use spring-loaded contacts instead of soldered tabs to simplify rework, with height constraints of 0.8mm above components under FCC compliance limits.
Step-by-Step Tracing of Power Delivery Networks
Start with the power input connector–identify its type (USB-C, barrel jack, or coin cell holder) and trace the first node after the fuse. Measure resistance between the input pin and the next component to confirm continuity. A value above 1Ω suggests a faulty trace or cold solder joint.
Locate the power management IC (PMIC) and highlight its power pins using a multimeter in diode mode. Forward voltage should read between 0.4V and 0.7V; deviations indicate a short or open circuit. Cross-reference the datasheet to pinpoint exact pin assignments–guesswork wastes hours.
Follow the downstream path from the PMIC to the first LDO or buck converter. Use a thermal camera or touch-test after powering on–excessive heat signals overload. Check input/output capacitors (typically 10µF or 22µF) for bulging or ESR values above 1Ω.
- Power rails often split into multiple branches; tag each with labels (e.g., VCC_MAIN, VCORE, VIO) using a marker on the silkscreen.
- For each branch, verify load regulation with a dummy resistor matching the expected current (e.g., 47Ω for 100mA).
- Voltage droop under load should not exceed 5% of nominal value.
Trace the secondary rails–focus on high-current paths like GPU or CPU cores first. These lines frequently hide via-induced failures. Probe vias with a fine-tip probe; resistance should be negligible. If resistance spikes, drill a micro-via adjacent to bypass the faulty connection.
Debugging Unexpected Power Drops
Power rails may plummet due to:
- Parasitic loads: Disable peripherals (Wi-Fi, cameras) via jumpers. If voltage recovers, isolate the faulty module.
- Inductive spikes: Add a 0.1µF ceramic capacitor across noisy components. Scope the rail–spikes above 100mV warrant shielding.
- Internal PMIC faults: Swap the IC if input/output voltages tolerate reprogramming but fail under load.
For battery-powered designs, trace the charging circuit. Confirm the charger IC’s enable pin is pulled high (often via a resistor divider). Measure battery voltage at the connector–if below 3.0V, replace the cell or bypass the protection IC temporarily to test.
Final Validation
Power on the assembly and scope each rail. Look for:
- Ripple: Excessive ripple (>50mVpp) suggests inadequate decoupling. Add 1µF caps near high-speed ICs.
- Oscillations: Ringing above 1MHz indicates poor trace geometry. Add series resistors (10Ω–50Ω) to dampen.
- Cross-coupling: Separate analog (ADC, RF) and digital rails. Use ferrite beads (600Ω@100MHz) to block noise.
Document every measurement–create a spreadsheet with rail names, expected/actual voltages, and ESR values. Compare against the schematic; discrepancies often reveal design flaws masked during prototype testing.

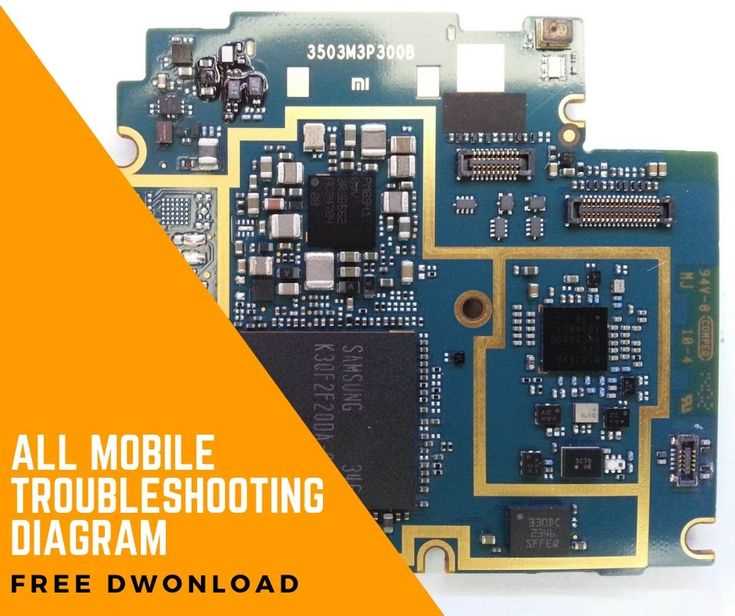

Common Fault Points and Diagnostic Methods
Start diagnostics by inspecting power delivery components–burn marks or swollen capacitors near the charging IC indicate failure. Use a multimeter in continuity mode to test shorted MOSFETs; readings below 0.2Ω suggest internal damage. For intermittent reboots, measure voltage drop across decoupling capacitors (C40x series) during boot–fluctuations above 50mV point to poor solder joints or degraded dielectrics. Thermal imaging reveals hotspots above 85°C, often tracking to inefficient linear regulators or corroded vias.
| Component | Fault Indicator | Test Method | Expected Result |
|---|---|---|---|
| Battery charging IC | No charging/overheating | Measure VBUS to GND with load | 4.5–5.2V, <100mA ripple |
| RF front-end module | No signal/weak reception | Inject -30dBm at antenna port | RSSI >-70dBm in spectrum analyzer |
| Baseband processor | Random crashes/hang-ups | Check PLL voltages at test points | 1.0–1.2V stable, <10mV noise |
For underperforming wireless modules, validate antenna matching networks–measure impedance at 50Ω ±10% using a network analyzer. Suspect cold solder joints on EMI shields if tapping the shield resolves audio distortion; reflow at 260°C with flux. When debugging GPS drift, verify LNA bias voltages–deviations beyond ±0.1V from datasheet specs require component replacement. Always cross-reference measured values with manufacturer schematics; common deviations include mismatched pull-up resistors on I2C lines causing communication failures.
