Begin by isolating the fuse block under the dashboard. Locate the ignition switch feed wire–usually a pink or red 12-gauge conductor–and follow it to the bulkhead connector near the firewall. This leads to the engine bay harness, where critical junctions occur at the starter solenoid, alternator exciter terminal, and ignition coil positive post. Identify the purple stripe wire (auxiliary ignition feed) branching toward the distributor; corrosion here disrupts timing signals.
Grounding points demand scrutiny. The chassis-to-engine strap, often overlooked, mounts near the transmission bellhousing. A compromised ground manifests as erratic idle or starter engagement delays. Scrape paint from the mounting surface and verify a minimum 10-gauge return path to the battery negative terminal. For vehicles with carbureted setups, trace the tan wire from the ignition module to the carburetor solenoid–intermittent fuel cutoff stems from frayed insulation at this junction.
Sensor circuits require shielded wiring. The crankshaft position sensor (CPS) uses a 2-wire shielded pair terminating at the computer module. Splice damage here triggers false misfire codes (e.g., P0336). Inspect connectors for bent pins; pins 40 and 58 on the ECM correlate to CPS inputs. Oxygen sensor leads–gray for signal, white for heater–often degrade near the exhaust manifold. Replace with silicon-coated wire rated for 300°C to prevent meltdown.
For fuel-injected variants, isolate the dark blue wire feeding the mass airflow (MAF) sensor. Voltage fluctuations (below 0.5V or above 4.5V at idle) indicate harness breakdown between the sensor and PCM. Probe the PCM’s pin 12 with a multimeter; 5V reference should stabilize within 0.2V tolerance. If absent, backtrack to the PCM power relay–typically relay #4 in the under-hood fuse panel–ensuring the pink/black wire delivers uninterrupted 12V.
Finally, test continuity under load. With the ignition off, measure resistance across the ignition switch terminals; values exceeding 0.2 ohms suggest internal wear. For idle air control (IAC) circuits, cycle the key while monitoring the light blue/white wire–stuttering voltage reveals a failing IAC motor or corroded splice at the PCM’s pin 30.

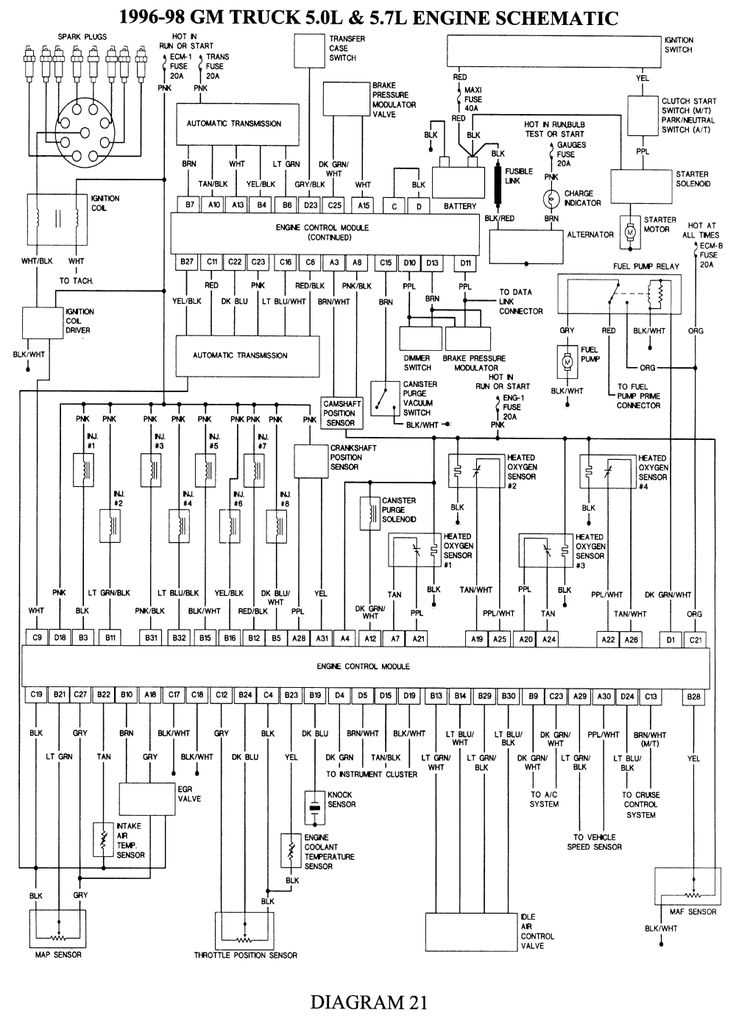

Electrical Schematic for a C/K Series Pickup Powertrain
Start by locating the ECM (Engine Control Module) harness connector under the dashboard on the driver’s side–pinouts follow a standard GM color-code: orange (12V power), black (ground), and purple/white (data link). Verify continuity between the ECM and ignition coil using a multimeter; resistance should read 1-3 ohms for primary windings. If readings exceed 5 ohms, inspect the coil pack pigtail for frayed wires or corrosion at the connector terminals–common failure points on L10 and L20 variants.
Key Circuit Paths and Troubleshooting
- Fuel Pump Relay: Trigger the relay manually by jumping terminals 85 and 86 with the ignition on (key position II). A functioning pump will hum audibly near the fuel tank. No sound? Check the inertia switch (if equipped) or bypass the relay temporarily to isolate the issue.
- TPS (Throttle Position Sensor): Probe the blue wire (signal) at the sensor while slowly depressing the accelerator. Voltage should rise smoothly from 0.5V (closed) to 4.5V (wide open). Erratic readings indicate a faulty potentiometer–replace the entire unit; cleaning rarely resolves intermittent signals.
- MAP Sensor: Unplug the sensor and measure voltage on the green/white wire with the ignition on–should be 5V ±0.2V. Low voltage suggests a short in the harness or a failing ECM.
For direct ignition models (e.g., TBI), trace the crankshaft position sensor (CPS) wires–typically tan/black (signal) and gray (reference). Use an oscilloscope to confirm a sine wave pattern at cranking speeds; flatline output means a bad sensor or broken reluctor ring. Replace the ring if teeth are chipped or missing–common on high-mileage units.
- Disconnect the battery negative terminal before probing any circuit.
- Label all removed connectors with masking tape to avoid miswiring during reassembly.
- Use dielectric grease on all electrical contacts to prevent future corrosion, especially in coastal or humid climates.
- Avoid splicing wires unless absolutely necessary–GM wiring harnesses are precision-engineered for amperage and signal integrity. If repairs are needed, use solder and heat-shrink tubing, not crimp connectors.
Critical yet often overlooked: the oil pressure sender wire (light blue) carries a variable resistance signal. At idle, it should show ~100 ohms; dropping below 50 ohms triggers a false low-pressure warning. Test with a 12V test light–if the gauge behaves erratically, the sender is faulty. Always cross-reference readings with a mechanical gauge before replacing parts.

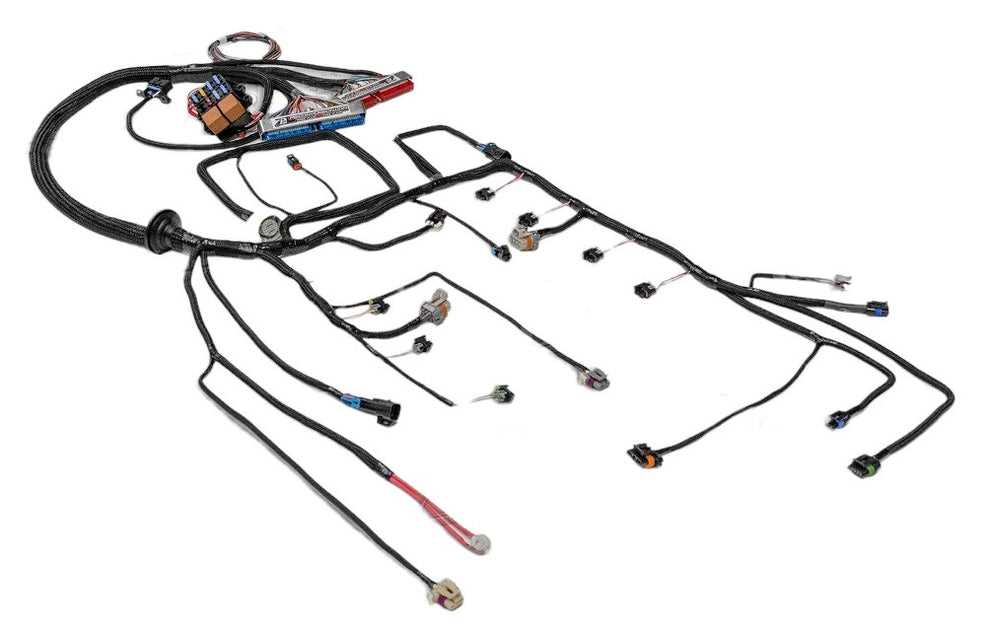

Finding the Main Electrical Connector Points on a Vintage GMC Sierra Powerplant
Begin by raising the hood and securing it with the prop rod–inspect the area directly behind the alternator for a black plastic junction box, roughly 4 inches by 6 inches, mounted to the firewall. This box houses the primary harness connector; squeeze the release tabs on either side and pull straight outward to disconnect. Inside, two rows of male terminals correspond to ignition, fuel pump relay, and sensor circuits–label each with painter’s tape if removing the harness.
The largest single connector sits at the base of the intake manifold, often obscured by a thick rubber gasket. Look for a gray rectangular plug with twelve cavities; it interfaces with the MAP sensor, coolant temperature sender, and throttle position sender. To unplug, press the smaller tab on the right edge while gently wiggling the connector upward–force parallel to the manifold surface to avoid bending pins.
| Connector Color | Location Relative to Block | Pin Count | Primary Function |
|---|---|---|---|
| Gray | Lower intake manifold, driver side | 12 | MAP, CTS, TPS |
| Black | Firewall junction box | 8+6 | Starter relay, fuel pump relay |
| Dark blue | Rear of cylinder head, passenger side | 3 | Knock sensor |
| Tan | Top of valve cover, driver side | 2 | Oil pressure sender |
| Brown | Near thermostat housing | 4 | Crankshaft position sensor |
On the passenger side, trace the thinner dark blue harness from the firewall toward the back of the cylinder head. The knock sensor connector is a small three-pin plug clamped to the intake runner with a single T20 Torx screw; remove the screw before attempting to disconnect. A cracked or brittle boot here often causes false detonation codes–inspect for crumbling rubber before reattaching.
Work downward from the valve cover: the tan dual-pin sender for oil pressure sits atop the driver-side cover, typically hidden under a coil bracket or vacuum line. Disconnect by rotating the connector 90 degrees counter-clockwise–no release tab exists. Below, adjacent to the starter motor, a heavy gauge red-and-black set feeds the solenoid; verify tightness of the ring terminal screws (10 mm socket) to prevent voltage drop.
At the radiator support, two small rectangular connectors–usually white and black–plug into the cooling fan relays. Depress the center spring clip on each while lifting upward; corrosion here mimics overheating conditions. Reconnect with dielectric grease if terminals appear dull or tarnished.
Locating Critical Sensors and Wire Hues in the C/K Series Powertrain Schematic
Trace the oxygen sensor leads first–bright pink for the upstream (pre-catalytic) and pale blue for the downstream (post-catalytic). These hues appear on both inline and V-block configurations, though the V-block adds a distinct yellow stripe on the pink lead for cylinder bank 2. Verify continuity between the sensor and ECM pin 43 (pink) and pin 29 (blue); corrosion at the connector often disrupts signal integrity.
- Coolant temperature sensor (CTS): Single black wire with red tracer, terminating at ECM pin 16.
- Manifold absolute pressure (MAP) sensor: Purple lead to ECM pin 37; expect voltage swings between 0.5V (idle) and 4.5V (wide-open throttle).
- Throttle position sensor (TPS): Orange (5V reference), dark blue (signal), black (ground); adjust base voltage to 0.5V ±0.05V with ignition ON, engine OFF.
For the ignition system, distinguish coil wires by color pairs: white and black (battery feed), brown and black (ECM trigger), tan and black striped (tachometer output). On Vortec models, the knock sensor uses a tan lead with red stripe; route this away from exhaust manifolds to prevent false detonation readings.
Ground paths differ by chassis variant: light-duty models rely on a single braided strap from engine block to firewall (black/white), while heavy-duty versions split into dual straps (black/white and black/orange). Replace any oxidized terminal at the firewall bulkhead immediately–voltage drop here causes intermittent MIL codes even with functional components.
How to Test Spark Circuit Conductors on a Classic GMC Pickup
Disconnect the battery’s negative terminal to prevent accidental shorts or grounding. Locate the ignition coil and trace each conductor leading from it to the distributor cap and spark plugs. Use a multimeter set to continuity mode–probe the metal clip inside each connector and the corresponding terminal on the coil, distributor, and plugs to verify an uninterrupted path.
For resistance checks, switch the meter to the 20 kΩ range. Measure each high-tension lead from the coil tower to its plug boot; values should stay between 5 kΩ and 15 kΩ. Readings above this threshold indicate internal corrosion or carbon tracking, requiring immediate replacement. Pay extra attention to any conductor showing visible cracks or brittleness–these won’t survive prolonged heat cycles.
Ground issues often mimic faulty ignition parts. Probe the distributor’s metal body to the battery’s negative post; readings above 0.5 Ω suggest a bad engine block ground strap. Repeat the test at the coil mounting flange–corrosion here disrupts voltage delivery and can lead to erratic spark behavior even when individual conductors test fine.
Inspect every boot and cap terminal with a flashlight. Look for tiny carbon tracks–thin black lines that form conductive bridges, causing misfires. Rubbing alcohol on a lint-free rag removes surface dirt, but persistent tracks mean the distributor cap or rotor must be swapped. Test rotor resistance across its center electrode and outer tabs; normal range sits between 1 kΩ and 5 kΩ.
Apply dielectric grease to all terminals after testing to prevent future corrosion. Reconnect the battery and crank the motor while monitoring each spark plug conductor with an inductive spark tester. Consistently weak or intermittent sparks pinpoint a failing coil or ignition control module–both units often degrade simultaneously under 100,000 miles of service.
Recheck conductor routing against the factory service manual, ensuring no chafing against manifolds or exhaust components. Replace any conductor routed too close–even slight insulation abrasion can create a 20,000-volt short to ground, instantly killing spark output. Secure all looms with nylon zip ties at 6-inch intervals to prevent vibration-induced wear.
Finally, run the motor at 2,500 rpm for five minutes while monitoring plug voltage waveform on an oscilloscope. Healthy conductors display uniform voltage spikes; irregular patterns reveal partial shorts or insufficient resistance in the secondary circuit–replace suspect wires immediately to avoid catalytic converter meltdown.
