Understanding Capacitor Symbol and Function in Circuit Schematics

Represent energy-storage elements with a two-parallel-line symbol–horizontal for polarized types, vertical for non-polarized. Standard values use letter notation: p (picofarads), n (nanofarads), µ (microfarads). Supply at least 100nF decoupling near every IC power pin, spaced no further than 2cm from the pin; ceramic types tolerate higher ripple currents.

Label each instance with a unique identifier–C1, C2–followed by the value and tolerance. Strip unnecessary prefixes; write 47µ/25V instead of C47µF_25V. For high-frequency filtering, pair low-ESR ceramics (X7R, X5R) with trace widths matching 0.25mm/A current rating.

Separate signal-path components from power rails visibly–cluster bypass elements adjacent to the load, orient input/output traces perpendicular to minimize coupling. Thermal relief pads reduce soldering stress; use them for values above 10µF. Verify footprint compatibility with manufacturer datasheets before routing; sizes 0402, 0603, 0805 are common but exhibit different parasitic inductance.

Include test points on both terminals for values above 1µF; probe rings simplify impedance measurements. For high-voltage applications (>50V), maintain 1.5mm creepage clearance per 100V rating. Alternate-side placements reduce board area without compromising performance.

Understanding Passive Storage Elements in Circuit Blueprints

Always place energy storage components adjacent to power rails to minimize noise coupling. A 100nF ceramic disc between VCC and ground, situated as close as possible to the IC’s power pins, suppresses high-frequency transients effectively. For analog sections, use tantalum or electrolytic types with higher capacitance values (10µF–100µF) to stabilize low-frequency ripple, ensuring the ESR remains below 0.5Ω.

Label each storage element with its exact value and tolerance in the graphical representation–precision prevents miswiring. A “C5: 47µF 20%” marking clarifies expectations during assembly. Use standardized symbols: a pair of parallel lines for polarized types, curved lines for non-polarized. Avoid mixed notation unless legacy compatibility demands it.

Group related storage elements near their functional blocks. Decoupling pairs (e.g., 100nF + 10µF) should flank sensitive ICs, while bulk smoothing requires positioning directly after rectifiers. PCB trace length between the storage element and load should not exceed 20mm; longer runs introduce parasitic inductance, negating filter benefits.

Select dielectric based on application. X7R ceramics offer stable performance across temperature swings, while Y5V suffers drastic capacitance loss at extremes. For timing circuits, film types (polypropylene or polyester) provide tighter tolerance (±1%) and lower leakage than ceramics, though at higher cost and size.

Include footprint pads for multiple component options if design flexibility is needed. A single schematic position can accommodate 0603, 0805, or 1206 packages–annotate alternate values (e.g., “C1: 0.1µF, 0603/0805/1206”) to guide layout engineers. Never omit voltage ratings; a 16V part on a 24V rail will fail catastrophically.

Use split-plane techniques for mixed-signal designs. Analog storage elements connect to an isolated analog ground, digital ones to digital ground, with a single-star point tie near the power supply. This prevents return currents from contaminating sensitive nodes. For RF circuits, ground vias near ceramic discs must align within 0.5mm of terminations to preserve impedance control.

Validate storage element selection via SPICE simulations before finalizing the graphical layout. Model ESR, ESL, and temperature coefficients–neglecting these factors leads to real-world performance deviating by 30% or more from simulations. Implement thermal relief pads if hand-soldering is anticipated, but eliminate them for high-current designs to reduce series resistance.

Selecting the Optimal Two-Terminal Component Glyph for Your Layout

Begin with the standardized IEC 60617 symbol for polarized elements if your design includes electrolytic or tantalum units. These glyphs feature a distinct curved plate for the negative terminal and a straight line for the positive, with an optional plus sign for clarity. This notation prevents reverse voltage damage during assembly by immediately signaling polarity requirements to technicians.

Non-polarized film or ceramic units typically use parallel straight lines of equal length. For high-frequency applications, reduce stray inductance by positioning these lines perpendicular to the current path on the board, ensuring minimal loop area between the plates and the adjacent traces. A spacing of 0.5mm between lines maintains readability while encoding functional intent.

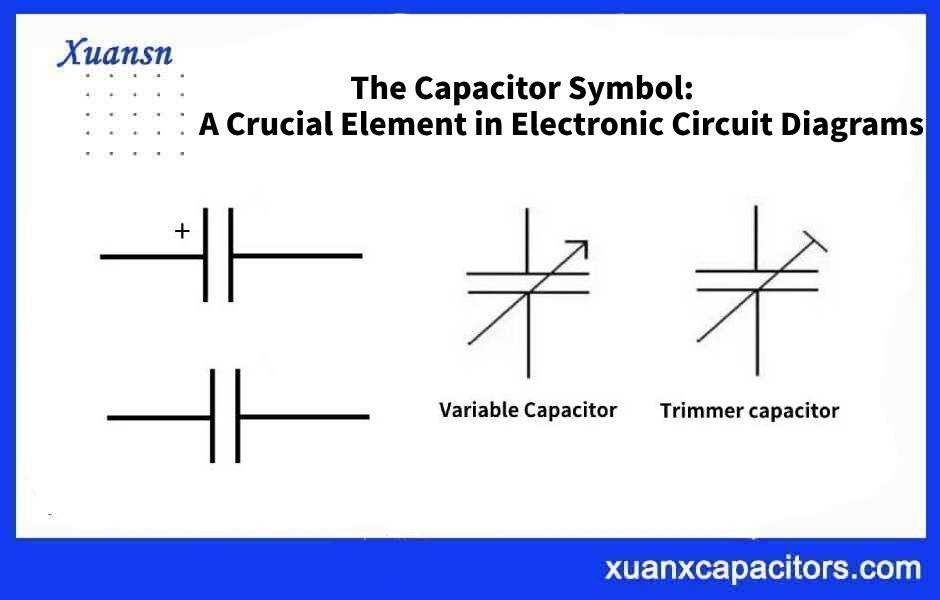

Variable trimming elements should employ the adjustable symbol–a diagonal arrow crossing one of the plates. Position this glyph adjacent to calibration points in the design, such as oscillator tuning pads or filter cut-off trims. ANSI/IEEE standards recommend a 45-degree arrow angle for consistency, avoiding confusion with other adjustable notations like resistors or inductors.

High-voltage components require a specialized glyph: dashed lines for the plates, immediately signaling the need for clearance spacing on the PCB. Include a voltage rating annotation next to the symbol–for example, “500V”–to ensure fabricators account for creepage distances. For surface-mount devices, the “C” footprint indication should align with the dashed symbol to link schematic intent with layout constraints.

Context-Specific Symbol Variations

Decoupling elements in power rails demand the simplest glyph–two parallel lines–to minimize visual clutter on dense layouts. Group these near IC power pins, using net labels rather than physical connections to reduce wire congestion. For multilayer boards, repeat the symbol on each relevant layer to maintain design clarity across the stack-up.

Feedthrough or bypass units designed for EMI suppression use a unique symbol: a small circle interrupting one plate line. Place this symbol at the boundary of noisy and sensitive circuits, such as between a switching regulator and an analog amplifier. The circle diameter should match the trace width (typically 0.2mm) to maintain proportionality with other symbols.

Supercapacitors or electric double-layer components merit a modified symbol: a filled rectangle between the plates, distinguishing them from standard charge-storage elements. Annotate the capacitance value in farads (e.g., “10F”) and specify the ESR if the application involves high pulse currents. This avoids misinterpretation during BOM generation and thermal analysis.

For legacy designs or company-specific conventions, verify the symbol library against ISO 81346 or your organization’s internal drafting manual. Some firms mandate unique symbols for polymer, mica, or paper-dielectric elements, often appending proprietary prefixes to the part number. Aligning these with the schematic ensures consistency during design reviews and manufacturing export.

Polarized vs Non-Polarized Components: Symbol Interpretation and Placement

Always verify polarity symbols in circuit layouts before soldering. Electrolytic and tantalum elements display a marked positive terminal–either a “+” sign, a longer lead, or a colored stripe (typically near the negative side). Ceramic, film, and paper types lack such markings and function identically in either orientation. Misaligned polarized parts risk catastrophic failure; a reversed 100µF electrolytic at 16V can explode within seconds of applied voltage. For through-hole designs, align the negative stripe or shorter lead with the corresponding cathode notation on the board. Surface-mount devices (SMD) use a chamfered corner or dot to indicate the cathode–cross-reference with the footprint’s silkscreen before reflow.

┬┐
│║└─ +

 ┌┐
└┤│ +

┬┐
││

Apply a multimeter in continuity mode to confirm polarity on unmarked leads–reverse-connected SMD parts often read as a short before self-destructing.

Deriving Component Values from Circuit Symbol Annotations

Begin by decoding the numeric notation combined with suffixes on electrical blueprints. A label like “47µ” directly translates to 47 microfarads (µF), while “2n2” corresponds to 2.2 nanofarads (nF). For picofarad-scale markings, omit the unit symbol entirely–e.g., “100” equals 100 picofarads (pF). Use the Greek letter mu (µ) or its ASCII substitute “u” (as in “10uF”) when schematic fonts lack proper symbols. Multiply fractional values by powers of ten: “3p3” converts to 3.3 pF, and “1m” expands to 1 millifarad (mF).

Factor in prefix tolerances when calculating real-world values. A “220K” marking implies 220 picofarads with ±10% tolerance; the suffix letter (K, M, J) defines deviation bands–K (±10%), M (±20%), J (±5%)–though newer diagrams often drop these in favor of numeric-only labels. Cross-reference EIA standard codes (E3, E6, E12, E24) to identify standard values: “68” on a mid-range series suggests 68 pF, 680 pF, or 6.8 nF, requiring context from admittance ratings elsewhere in the layout. Tools like KiCad or Altium resolve ambiguities by storing metadata alongside visual representations.

Convert stray markings using exponent rules: “4R7” equals 4.7 (unitless, typically pF), while “1k” translates to 1 kilofarad (kF) only in power applications–rarely valid for signal-path components. Verify ambiguous labels against adjacent frequency-response annotations; a “10” next to a coupling element in a 1 MHz filter likely means 10 pF, not 10 µF, given impedance constraints. For obsolete or non-standard units, consult datasheet archives–some legacy designs use “mfd” (microfarads) or “mmf” (micro-microfarads = pF) clearly marked but easily misread.
