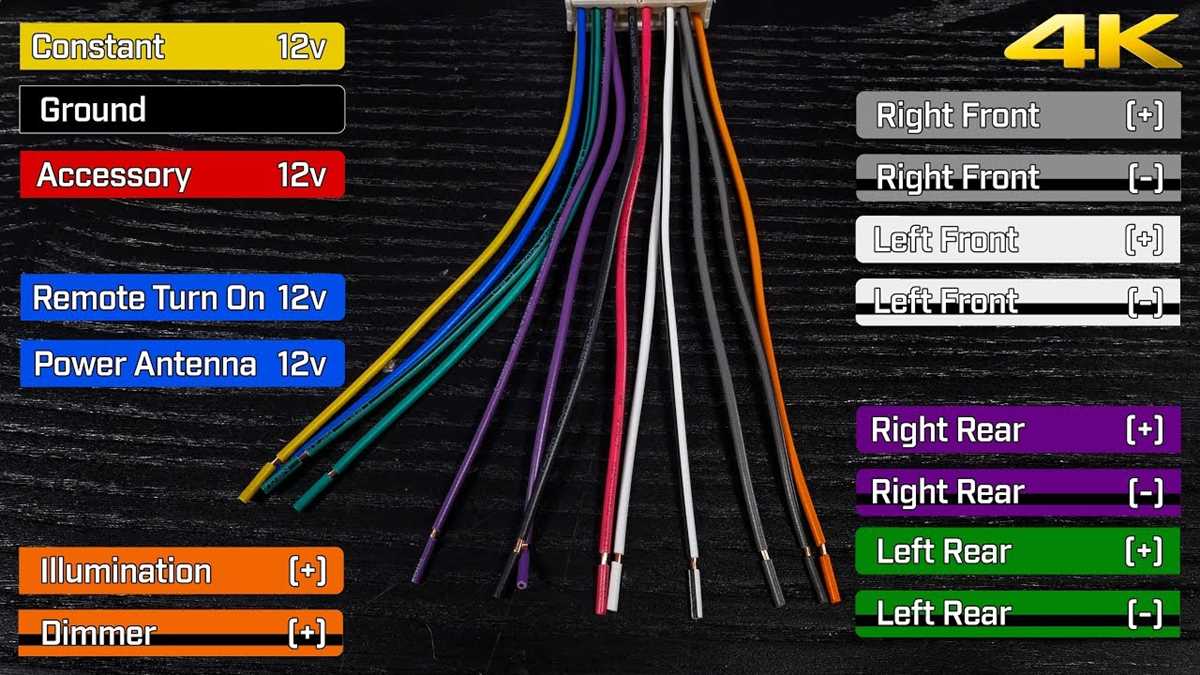

Locate the 12-pin harness behind the factory head unit–color-coded wires match OEM spec sheets: yellow (constant 12V), red (switched 12V), black (ground), orange (illumination), and gray/white (left front speaker +). Verify connections with a multimeter before powering on; mismatches risk fusing the amplifier.
Adapter kits labeled Metra 70-1817 or Axxess ASWC-1 simplify integration–cutting factory plugs voids warranty but guarantees cleaner power delivery. For aftermarket units requiring RCA, splice dark blue/white (factory amplified turn-on) into the new deck’s remote wire; ensure gauge matches (minimum 18 AWG).
Grounding failures create persistent noise–attach the black wire directly to chassis metal using a star washer; sand paint for bare contact. Speaker outputs follow ISO convention: solid color = positive, striped = negative. Reverse polarity distorts bass frequencies, damaging subwoofers over time.
Circuit protection is non-negotiable: install a 20A in-line fuse within 7 inches of the battery for all 12V feeds. For vehicles with OnStar, isolate the light blue data wire–improper tap can trigger false theft alerts. Test each connection with a 9V battery probe before final assembly.
Electrical Connector Guide for 2006 Model Sedan Audio System
Start by locating the 12-pin main interface at the rear of the factory head unit. Pin assignments follow this standard layout: A4 (yellow) delivers constant 12V power, B5 (red) supplies switched ignition voltage, C6 (black) grounds the chassis, and D7-D12 handle front and rear speaker outputs in pairs–left-positive, right-negative. Verify connections with a multimeter before securing any aftermarket adapter; wrong polarity risks damaging the amplifier circuit.

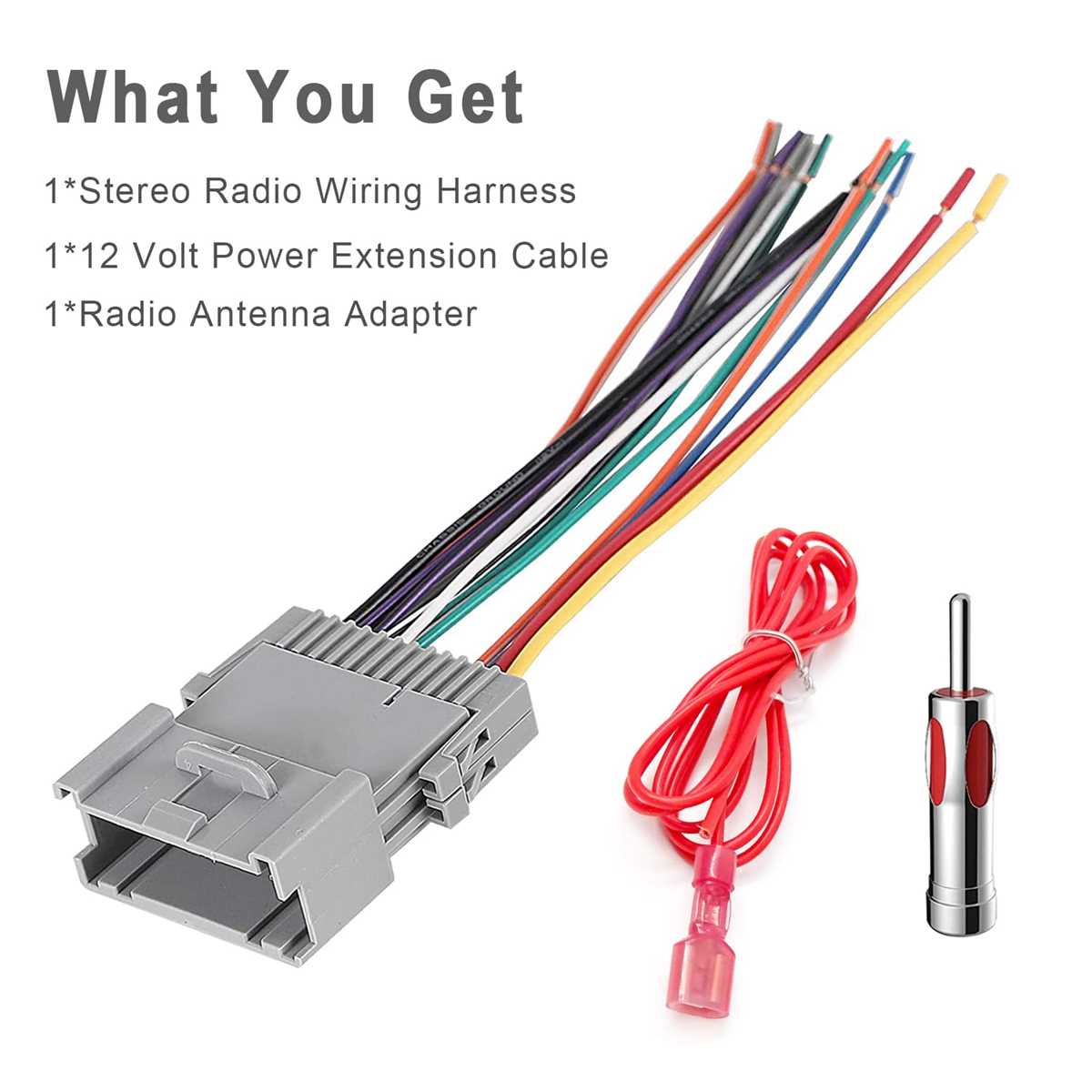

Adapter kits like Metra 70-1761 or Scosche GM05B often include color-coded leads that map directly to the sedan’s harness, but discrepancies exist. Cross-reference the kit’s instructions with the vehicle’s service manual–some harnesses invert rear speaker polarity or omit antenna triggers (pin C5, typically pink). If splicing, use solder and heat-shrink tubing; twist-and-tape methods fail under heat or vibration. Check for dimmer compatibility if retaining factory illumination–pin A3 (gray) adjusts brightness with dashboard controls.
For OEM module retention, preserve the data bus connection (pin B1, purple) if your setup includes steering wheel controls or OnStar. Aftermarket head units lacking a compatible interface module will lose these functions. Similarly, some models route the amplifier trigger through pin A5 (orange/white)–disabling this cuts subwoofer output in premium systems. Test all functions before reassembly; intermittent faults often trace to corroded ground points near the fuse box.
Installation errors frequently stem from misaligned power leads. Switched voltage (red) must engage only when the ignition is on; constant power (yellow) feeds memory but can drain the battery if fused incorrectly. Use a 10A fuse for both circuits, placed within 18 inches of the battery post. Label all wires before disconnecting the factory connector–documentation varies between coupes and sedans, and late-production units add security modules on pin B3.
Matching the Right Electrical Adapter for Your Mid-2000s Sedan Audio System
Start by checking the OEM connector pinout–specifically, whether your vehicle’s factory stereo uses a 12-pin square plug (Metra 70-2003) or an 8-pin rectangular adapter (Metra 70-1817). Verify the color codes: the sedan’s ignition-switched lead should be orange with a white stripe, while the constant 12V feed is typically yellow. If installing an aftermarket receiver, prioritize adapters with built-in noise suppression to prevent alternator whine, a common issue in GM platforms of this era due to the Class 2 data bus interference. Consult the vehicle’s service manual for exact wire gauge requirements–most factory speakers use 18 AWG, while amplifier triggers may require 16 AWG for reliable signal transfer.
Compatibility Checks Before Purchase
Compare the adapter’s included connectors against your stereo’s harness: ISO-standard plugs won’t fit without modification, so opt for GM-specific kits like Scosche GM03B or Axxess ASWC-1 for seamless integration with steering wheel controls. Test for voltage drops across connections–any deviation above 0.5V may indicate poor ground contact, a frequent culprit in dimmed displays or intermittent power loss. If retrofitting a navigation unit, ensure the adapter supports the enhanced security protocols used in Bose premium sound systems, which often require bypass modules like the PAC RP4-GM11.
Step-by-Step Guide to Locating the Audio Connector Behind the Instrument Panel
Disconnect the negative terminal of the vehicle’s battery prior to accessing the dashboard assembly. Remove the trim panel surrounding the climate controls by prying outward at designated clips–these are positioned near the upper and lower edges, spaced approximately 4 inches apart. Use a trim removal tool to avoid damaging retaining tabs. Once the panel is loose, tilt it downward to expose the rear of the central unit; the main electrical interface will be secured with a 10mm bolt.
Tracing the Connection Points
Locate the rectangular plug attached to the back of the head unit, typically featuring 12–16 pins arranged in two rows. Follow the bundled wires from this connector to the vehicle’s firewall; they will merge into a multi-colored loom. Identify the horizontal support bracket beneath the glove compartment–this serves as the anchor point for the wiring interface. Cut any zip ties holding the loom in place, then gently pull the wires toward the driver’s side to reveal the splice joints marked with tape labels corresponding to speaker outputs (e.g., “FR+,” “RL-“).
Vehicle Entertainment System Connector Color Codes and Terminal Layout
Locate the main plug interface behind the dashboard unit–commonly a 12-pin rectangular port labeled C1 or A1. Pin 1 delivers switched power at 12V DC via a purple wire; confirm voltage with a multimeter before connecting aftermarket amplifiers.
Ground connections cluster in pins 4, 5, and 6, using black, brown, and dark green wires respectively. Verify clean chassis grounding by checking resistance below 0.5 ohms; corroded mounts near the driver-side kick panel often disrupt signal integrity.
Factory Speaker Wire Assignments
| Position | Positive Lead | Negative Lead | Wire Gauge |
|---|---|---|---|
| Front Left | Dark Blue | Light Blue | 18 AWG |
| Front Right | Gray | White | 18 AWG |
| Rear Left | Yellow | Dark Green | 16 AWG |
| Rear Right | Orange | Tan | 16 AWG |
Anticipate illumination control at pin 10 through a light green wire; voltage drops from 12V to approximately 5V when headlights activate. Aftermarket units requiring dimmer compatibility should include a voltage divider or dedicated LED driver to prevent flickering.
DATA BUS signals traverse pin 9–a pink wire carrying serial communication for steering wheel controls and amplifier commands. Use a bypass module or factory protocol adapter like PAC RP4-GM11 if retaining OEM volume knobs; direct splicing risks triggering fault codes in the BCM.
For parasitic current tests, disconnect the negative battery terminal, then probe between the battery post and cable clamp with an ammeter. Readings above 50 mA indicate a draining circuit; isolate individual fuses sequentially to identify the fault.
Auxiliary Connector Pinouts
The secondary 8-pin plug (typically C2) provides auxiliary inputs and satellite receiver links. Pins 1 and 2 handle left/right pre-out signals at 4V peak-to-peak via red and white wires–ensure shielded RCA cables when extending to external processors. Satellite antenna power flows through pin 5 (purple/white stripe), protected by a 5A fuse inline near the glove compartment.
Essential Equipment for Safe Audio System Removal and Installation
Begin with a non-contact voltage detector–scan all connectors before touching them. Verify the absence of residual current to prevent short circuits or damage to the head unit’s circuitry. A model with a sensitivity range of 50-1000V AC ensures detection even through insulation. Keep the detector within 10mm of the connection points for accurate readings.
- Insulated screwdrivers (4mm flat and 6mm Phillips): Use to pry apart dashboard panels without scratching surfaces or risking electrical shock. Ensure the shafts are fully coated to meet IEC 60900 standards.
- Needle-nose pliers: Grip and straighten bent connector pins or remove stubborn clips. Opt for ESD-safe versions to avoid static discharge.
- Wire strippers (18-22 AWG): For splicing or repairing damaged leads. Select strippers with a built-in cutter to trim excess wire cleanly.
- Heat shrink tubing (3:1 ratio, 3mm diameter): Apply over soldered joints to insulate and protect against moisture or vibration. Use a heat gun at 150°C for a tight seal.
- Multimeter: Test continuity, voltage, and resistance before and after reconnection. Set to 20V DC for battery voltage checks and Ω mode for wire integrity.
Store tools in a static-dissipative mat when not in use. Work on a grounded surface, especially when handling circuit boards or antenna cables. For persistent connections, apply electrical contact cleaner to remove oxidation before reattaching terminals. Label each wire with color-coded tape or a marker to avoid misalignment during reassembly.
