If you need the complete electrical blueprint for this budget-friendly AMD-based notebook, the fastest route is through authorized service manuals. Start by locating the official repair documentation–typically distributed via partner repair portals or enterprise support channels. Look for files labeled MB FAxxx or LA-xxxxP, where FA or LA codes correspond to the motherboard revision. Most releases include voltage regulators, signal paths, and power delivery circuits in a single PDF.
For unofficial sources, specialized forums and schematic-sharing platforms host partial or annotated versions. Search for “AMD A4/A6 budget board” combined with “power sequence” or “EC control signals”. Expect incomplete traces–especially around the embedded controller (EC) and BIOS-controlled GPIO–but core power rails and major IC connections should be intact. Verify the schematic version by cross-referencing resistor labels on the actual PCB with those in the diagram.
When working with the board layout, prioritize the 19V input path and 3.3V/5V standby circuits. Trace short circuits here first–common failure points in liquid spill scenarios. Pay attention to component references like PU301 (likely a DC-DC converter) and PC601 capacitors, as these often fail silently and disrupt entire voltage lines.
Third-party reverse-engineering tools like KiCad can help reconstruct missing signal blocks if the original schematic is fragmented. Export known segments (e.g., SATA, USB, or DDR4 lanes) into individual sheets, then merge them incrementally. Label any ambiguous nets with vcc_* or gpio_* prefixes to avoid confusion during repairs. For persistent issues, compare netlists against known-good Intel-based sister models–shared platform designs (e.g., same ODM) usually reuse power delivery topologies.
Practical Guide to Reverse-Engineering the E41-25 Board Layout
Begin by identifying the power delivery circuits on the PCB–specifically, the APW8889 PWM controller near the 19V input jack. Trace its pins to the adjacent 4.7µH inductor and pair of 22µF capacitors (25V), which form the primary buck converter. Use a multimeter in continuity mode to verify low-resistance paths between these components; any deviation above 0.2Ω signals a cold solder joint or damaged trace. Document every measured voltage at key test points–expect 5V at the output of this stage before proceeding.
- Locate the EC (Embedded Controller) chip–marked IT8587E–on the underside of the board. Its 32.768kHz crystal (labeled Y1) must register a clean sine wave (500mVpp) on an oscilloscope; distorted waveforms indicate a failing crystal or degraded solder.
- Check the LVDS connector (CN2) for physical damage. Pin 1 (3.3V) should remain stable under load; voltage drops below 3.0V suggest a shorted backlight driver or faulty LCD cable. Disconnect the display assembly before further diagnostics.
- Verify DDR4 memory termination resistors (pull-ups near the SO-DIMM slots). Each should measure 47Ω ±5%; higher values point to corroded vias, a common failure in models exposed to humidity.
For GPU-related issues, focus on the MXM connector (if present) or the integrated AMD chip. Probe the GPU core voltage rail–typically 0.9V–via the decoupling capacitors near the chip’s ball grid array. Absence of this voltage confirms a dead GPU or a severed power plane; isolate the fault by removing all peripheral loads before rechecking. If the rail is present but the system fails to POST, replace the BIOS chip (Winbond 25Q64JV) with a pre-flashed dump matching the board revision.
- Disassemble the cooling module to access the VRM heatsink. Scrape off thermal paste and inspect the MOSFETs (AO4496) for bulging or discoloration–signs of thermal stress. Replace all four if one shows failure.
- Test the RAM slots with known-good modules, one at a time. Code 55 during POST indicates a faulty slot; reball the memory controller or replace the EC firmware if the error persists.
- Examine the USB-C port (CN11) for bent pins. Pin 4 (CC line) must carry 5.1kΩ to ground; open circuits here prevent charging. Reflow the nearby RTL8153 controller if the port functions intermittently.

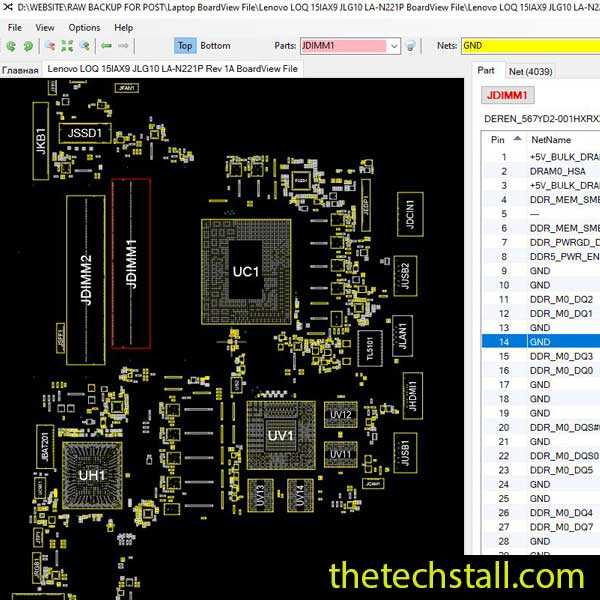

Always cross-reference measured values with the official boardview file–look for annotations like “C716_2” (capacitor near the CPU) or “R17_1” (resistor in the charger detection circuit). Label every probed component with masking tape and a fine-tip marker to avoid retracing steps. For stubborn faults, inject a 1kHz square wave (1Vpp) into suspect signal lines while monitoring responses on adjacent layers; abrupt amplitude drops reveal hidden shorts. Keep a logbook of resistances, voltages, and waveforms–patterns often emerge only after comparing multiple sessions.
Official Circuit Blueprints for the ThinkPad E-Series Model: Direct Sources
The primary and most reliable repository for hardware design documents is the manufacturer’s enterprise portal. Access the official support site via pcsupport.lenovo.com using an authorized business account tied to an active warranty or partner agreement. Filter downloads by entering the exact model identifier–search for “E41-25 (Type 20XX)” in the product lookup tool. Look beneath the “Drivers & Software” section; authorized technicians often find a discreet “Hardware Maintenance Manual” or “BoardView” PDF section once logged in with elevated privileges.
For users lacking direct portal access, contacting Lenovo Premium Support or an authorized service provider (ASP) yields faster results. Locate ASPs through the official partner locator at lenovo.com/services/partner-locator. Specify the exact repair document request–PHY (physical layer) layout files, ISL (integrated schematic library), or BOM details–when submitting a support ticket. Some ASPs cache proprietary blueprints for recurring repairs, but legal agreements prohibit redistribution.
A secondary route involves OEM collaboration via contracted repair networks like FCC Lenovo, which archives compliance-grade circuit layouts for regulatory submissions. Navigate to “Type Certification” > “Internal Photos” > “Mainboard Layout.” These images, while low-resolution, often highlight critical trace routing and chipset pinouts essential for fault isolation without violating NDAs.
Technical colleges and authorized repair academies maintain controlled access drives containing restricted documentation. Institutions partnered with Lenovo Academy (lenovo.com/academy) host secure download portals for enrolled students. Instructors grant temporary links after verifying enrollment in “Laptop Diagnostics & Repair” modules–seek out batch-exported ZIPs labeled “E41-25_HW_Rev1.x_Confidential.”
Legitimate PDFs from the original design files occasionally surface on specialized forums like badcaps.net or EEVblog under strict thread moderation. Confine searches to locked threads with titles like “[REQ] Board File – TP E41-25 (Verified).” Forum veterans vet attachments against watermark patterns; unofficial leaks typically lack component datasheets and testpoint tables.
Direct CAD file retrieval remains rare but feasible through reverse-engineering collaborations on platforms like GitHub. Repositories under “open-hardware” tags (e.g., Kicad EDA projects labeled “LNVX_E41_MB_Rev”) sometimes reconstruct partial netlists from high-res board photos. Clone repositories tagged “lenovo-boardview” for raw BRD files compatible with OrCAD or Altium Viewer–exercise caution verifying checksums to avoid tampered PCB layouts.
Critical Circuitry Elements in the Portable Workstation Mainboard Layout
Begin diagnostics by locating the EC (embedded controller) labeled “ITE IT8587” near the bottom-right corner–this 128-pin chip handles system power sequencing, keyboard inputs, and thermal management. Probe pins 67 (LID_SW#) and 68 (SUSP#) to verify lid-switch and suspend-reset states; a voltage below 0.8V on either pin indicates a faulty pull-up resistor (R421, 22kΩ) or a corroded connector (CN12) on the hinge flex cable.
| Component | Reference Designator | Key Test Points | Expected Voltage (V) |
|---|---|---|---|
| CPU VRM | PU7 (ISL6237) | EN (pin 3), VCC_CORE (pin 15) | 5.0 / 0.8-1.2 |
| DDR4 Termination | PD25 (LP55503) | VTT_EN (pin 5), VTT_OUT (pin 7) | 1.2 / 0.6 |
| Graphics Frame Buffer | PU2 (Hynix H5TC4G63CFR) | VDD_GFX (pin 240), DATA_3 (pin 116) | 1.5 / 1.2-1.35 |
Trace the PCH (HM175) southbridge routes–check LPC_CLK (R82, 33Ω) and SPI_CS# (R154, 0Ω) for signal integrity with an oscilloscope; waveforms should peak at 3.3V with RSMRST# (pin D21) on the EC–absence of a 3.3V pulse suggests a dead CMOS battery (CR2032) or a shorted Q21 (SI2305) MOSFET in the RTC circuit.
How to Interpret Power Delivery Sections in Board Blueprints
Locate the PMIC (Power Management Integrated Circuit) first–on most portable device layouts, it anchors near the CPU socket and typically occupies a 6×6 mm or 8×8 mm footprint. Trace its input pins: look for annotations like VIN_MAIN, VPH_PWR, or SYS, which mark the entry point for raw battery or charger voltage. These lines usually carry 3.7–4.4 V before conversion starts.
Identify switching regulators within 10 mm of the PMIC–their inductors appear as coiled symbols, labeled L1, L2, etc., often paired with capacitors marked C followed by a number. Each inductor-corresponding rail delivers a distinct voltage: 1.8V_SUS for standby logic, 1.1V_CORE for processor cores, and 5V_BOOST for USB or peripherals. Cross-reference these rails against the datasheet of the specific controller: tolerance margins rarely exceed ±5%, and overcurrent limits hover around 2–3 A per rail.
Follow the feedback loops–each regulator has a dedicated line, labeled FB or VOUT_SENSE, connecting back to the PMIC. Resistor dividers sit between VOUT and ground, split into pairs annotated R1/R2 or RFB1/RFB2. Calculate expected output: VOUT = VREF × (1 + RFB1/RFB2). VREF typically equals 0.6 V; common RFB1 values run 100–200 kΩ, RFB2 40–60 kΩ, yielding rails between 1.0 V and 1.5 V.
Key Fault Indicators
- Absent or shorted
EN(enable) pins–test continuity with a multimeter set to diode mode; expected drop ≤ 0.3 V. - Swollen inductors–visually check for bulging or discoloration; ESR rises above 0.1 Ω.
- Missing or compromised
PG(power good) signals–probed with oscilloscope, should toggle within 10–20 ms of input voltage stabilization. - Over-temperature flags from embedded thermistors–resistance decreases exponentially with heat; suspect thresholds ≈ 10 kΩ at 25°C.
Inspect PCB layers for thermal vias beneath power MOSFETs: clusters of micro-vias link the top-side pad directly to inner ground planes. Verify via fill: voids cause hot spots detectable with thermal camera at >10°C above ambient. Replace defective MOSFETs–common part numbers include AO4824 (dual N-channel, 30 V, 7 A) or SI4838 (single P-channel, 20 V, 6 A). Match gate thresholds: typical VGS(th) lies between 1.2 V and 2.0 V.
Measure gate-to-source voltages on switching MOSFETs during operation–scope probe on gate, ground on source. Expect square waveforms between 0 V and 5 V, frequency ≈ 1–2 MHz, duty cycle varying with load. Anomalies like jagged edges or DC bias indicate driver failure; rework involves replacing the PMIC or its surrounding discretes.
- Isolate the rail–disconnect downstream load.
- Inject a known current (100–200 mA) via lab power supply.
- Monitor output with oscilloscope: ripple ≤ 30 mVpp; droop ≤ 5% under transient load.
- Reconnect load gradually; verify stability at full power (≈ 1–2 A).
