Start with the factory service manual for your vehicle model–this document contains verified schematics for every electrical component, including the infotainment interface. If the manual is unavailable, check specialized automotive databases like Mitchell1 or ALLDATA, which offer subscription-based access to detailed wiring layouts. These platforms often provide exact color codes, pin configurations, and connector types, eliminating guesswork during installations or repairs.

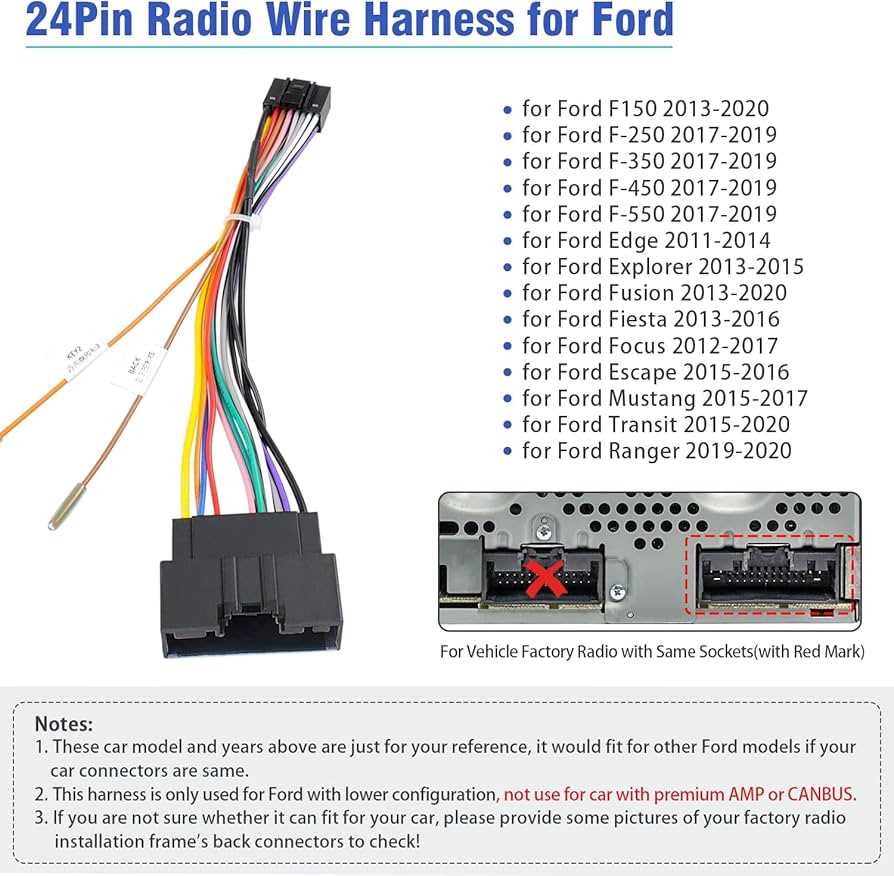

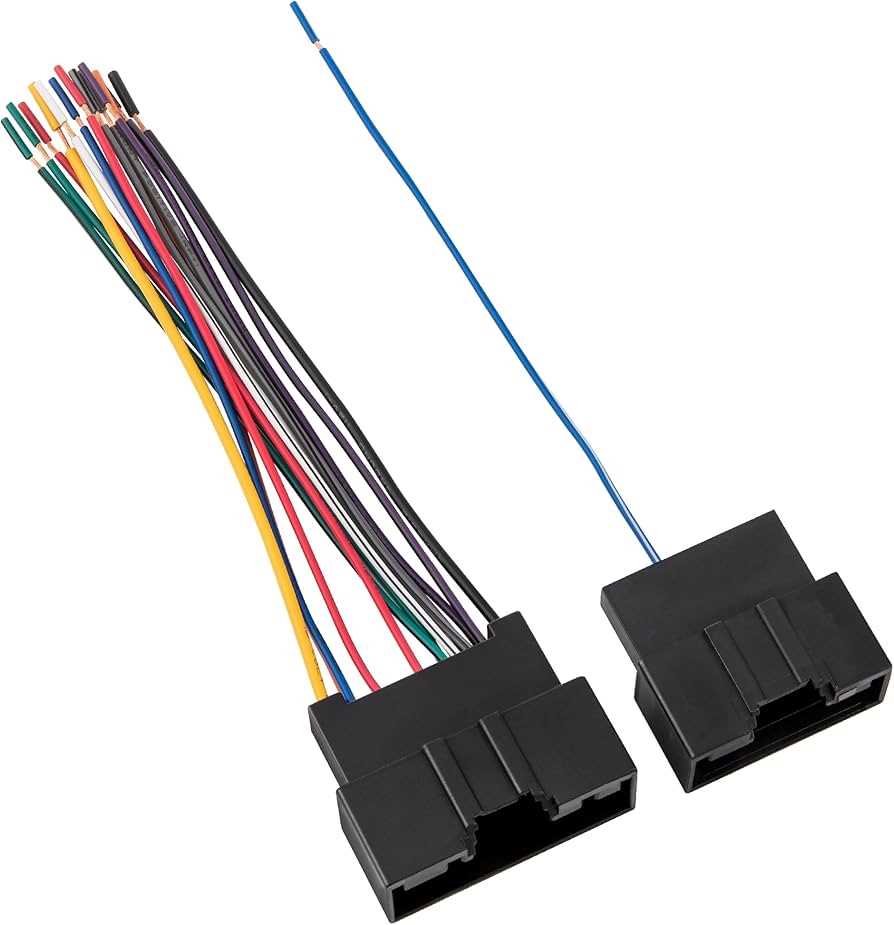

For aftermarket upgrades, refer to the harness adapter documentation–Metra and Scosche include precision maps for integrating modern head units without cutting OEM wires. Their guides list compatible models, grounding points, and required fuse ratings, reducing risk of electrical faults. Verify the adapter’s compatibility with your SUV’s trim level, as variations in speaker outputs or amplifier connections exist between base and premium packages.
If tracing circuits manually, use a multimeter set to continuity mode to confirm connections. Probe the back of the dashboard connector with the key in ACC position–active pins for power, ground, and signal wires will register 12V or appropriate resistance. Record findings in a schematic template, marking wire colors (e.g., LT BLU/VIO for illumination) and their corresponding functions. Cross-reference this data with forums like Ford-Trucks.com, where users share annotated diagrams for common retrofit scenarios.

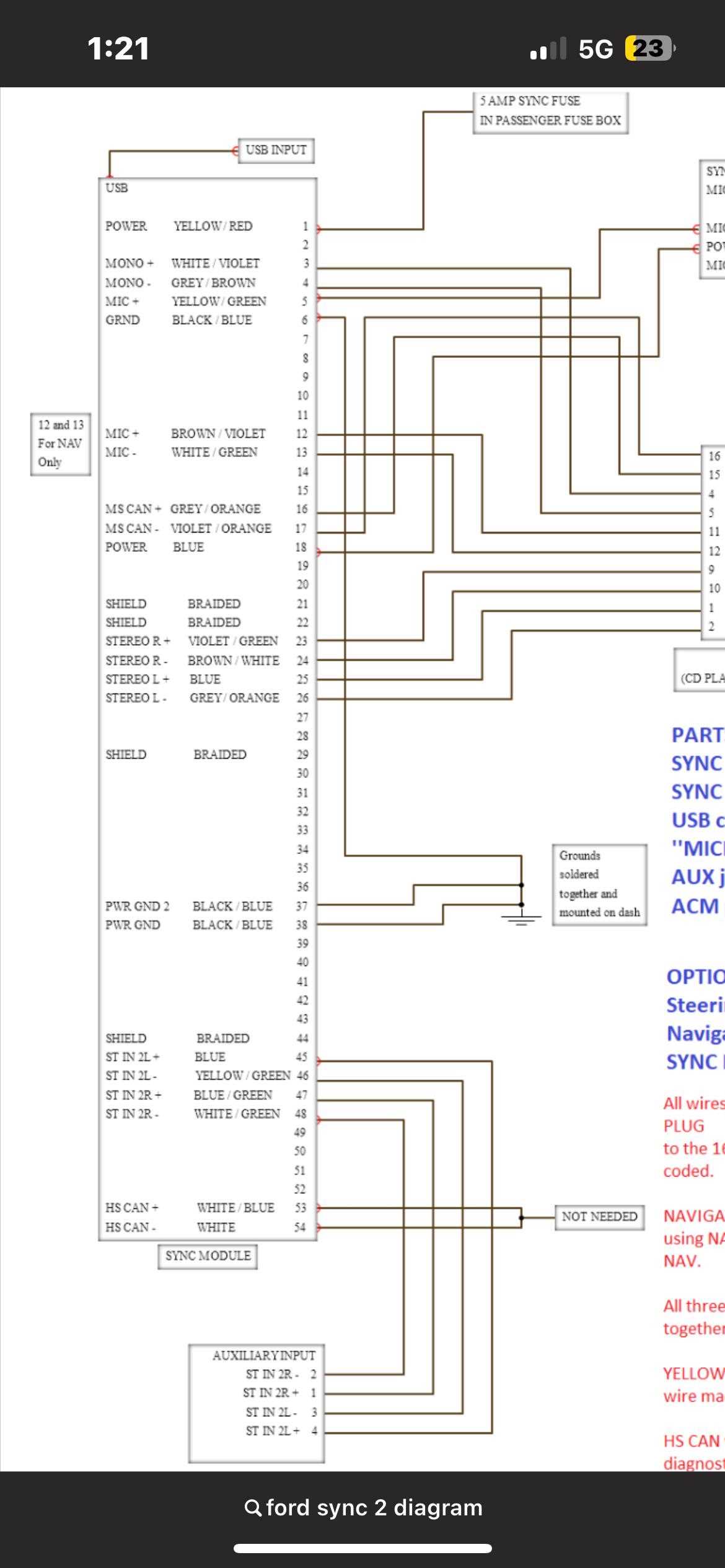

For vehicles equipped with SYNC3, isolate the APIM’s power and antenna modules–these require stable voltage from the B+ terminal to prevent system resets. Replace blown fuses with identical amperage (typically 10A–20A) and inspect the fuse box near the kick panel for labeled wiring guides. Avoid splicing into CAN bus lines, as this disrupts communication between modules and may trigger error codes.
Guide to Electrical Connections for the Audio System in a Mid-Size SUV
Start by identifying the connector types behind the unit’s fascia. The primary harness uses a 12-pin Molex plug for power and speaker outputs, while auxiliary functions like steering wheel controls and satellite inputs rely on an 8-pin mini-ISO connector. Label each wire before disconnecting to avoid misalignment during reassembly.
- Constant 12V power (yellow) – connects directly to the battery via a 20A fuse.
- Switched 12V (red) – controlled by the ignition, fused at 10A.
- Ground (black) – secure to bare metal, preferably near the mounting bracket.
- Illumination (orange) – dims with dashboard lights, requires 5V reference.
Speaker outputs follow a consistent color pattern: front left (+) gray, (-) gray/black; front right (+) white, (-) white/black; rear left (+) green, (-) green/black; rear right (+) purple, (-) purple/black. Verify impedance with a multimeter–each should read 4 ohms. Lower values suggest short circuits; higher indicates corroded terminals.
Integrating Aftermarket Amplifiers
Locate the RCA pre-out wires (brown and gray) behind the original receiver–these carry line-level signals for subwoofers or external amplifiers. Bridge these to a 4-channel amp using shielded RCA cables, ensuring the ground wire remains isolated from chassis noise. For systems exceeding 50W RMS, add a relay to prevent voltage drop to the head unit.
Factory steering wheel controls require a dedicated interface module. The data bus (blue/white) transmits CAN signals; splice this into an ASWC-1 adapter or equivalent, matching pin assignments per the adapter’s manual. Test each button function–volume, track skip, voice command–before finalizing the dash panel.
- Remove the climate control trim using a plastic pry tool, starting at the top corners.
- Disconnect the temperature sensor (black/red) before pulling the bezel–failure risks “LOST COMM” errors.
- Reinstall the ISO harness with dielectric grease on connections to prevent oxidation.
- Tighten mounting screws to 8 in-lbs to avoid stripping the dashboard threads.
Antenna retention involves a coaxial cable (thin black) terminating in an F-connector. Replace degraded cables–symptoms include weak AM reception or signal dropout above 88 MHz. For GPS-equipped models, retain the original patch antenna (silver/blue) unless upgrading to an aftermarket satellite receiver, which requires recalibrating the nav system via dealer software.
Troubleshooting Common Issues
Flickering displays or erratic power often trace to poor ground connections–clean the chassis point with a wire brush and apply anti-corrosion spray. If the unit powers but produces no sound, check the amplifier turn-on lead (blue/white) for continuity; a broken wire here disables all audio despite proper power delivery. For CD players that eject discs without reading, inspect the laser lens for dust buildup–a single swipe with isopropyl alcohol on a swab restores function in 80% of cases.
Backup camera integration requires tapping into the reverse light circuit (dark green/light green). Use a T-tap connector to avoid cutting factory wiring; confirm polarity with a test light before finalizing. For models with SYNC, the USB port (yellow/green) carries data–avoid overloading it with devices exceeding 500mA, or risk resetting the infotainment module on startup.
Finding the Audio System Connection Port in Your Vehicle
Begin by removing the lower dashboard trim panel beneath the climate controls. Use a plastic pry tool to carefully release the clips securing it–start from the right edge near the fuse box and work left. The connector is nestled behind a black plastic housing, directly above the passenger-side footwell vent. Press the red locking tab downward to release the harness, then pull straight out without twisting. If resistance is felt, check for hidden screws–some models include a single Torx T15 fastener behind the cupholder tray.
Connector Pin Layout & Signal Details
| Pin Number | Wire Color | Function | Voltage/Notes |
|---|---|---|---|
| 1 | Yellow with white stripe | Battery constant (+12V) | 3.5A fuse link |
| 4 | Purple | Right rear speaker (+) | 4Ω impedance |
| 10 | Gray with black stripe | Illumination (-) | Dims with headlights |
| 16 | Orange | Vehicle speed signal | Pulsed DC, 0-5V |
Trace each wire back to its source before splicing. Pin 16 requires a signal amplifier if integrating aftermarket navigation–factory systems reduce volume dynamically based on speed. For CAN bus-equipped variants, locate the gray 14-pin diagnostic connector adjacent to the main harness; splice only after verifying the absence of error codes.
Decoding Factory Audio Harness Wire Colors and Roles
Locate the 12-pin harness connector behind the head unit–it’s the primary interface for power, speakers, and control signals. Pin 1 (yellow striped) delivers constant 12V from the battery, while pin 2 (red striped) provides switched power via the ignition. Verify these with a multimeter: yellow should read 12V even when the vehicle is off; red only when the key is in the ACC or ON position.
- Ground: Solid black wire (pin 4) must terminate to bare metal–solder and heat-shrink the connection to prevent corrosion and signal noise. A loose ground causes static, intermittent audio, or complete outage.
- Speaker outputs:
- Front left (+): white (pin 5) / white-black (pin 6, -)
- Front right (+): gray (pin 7) / gray-black (pin 8, -)
- Rear left (+): green (pin 9) / green-black (pin 10, -)
- Rear right (+): violet (pin 11) / violet-black (pin 12, -)
Resistance between speaker wires should read 4 ohms; deviations indicate shorts or wire damage.
Two blue wires share antenna and amplifier triggers. Solid blue (pin 13) activates the power antenna or factory amplifier when the unit powers on–cap at 300mA to avoid overloading the circuit. Blue-white (pin 14) sends a speed-sensitive volume signal; splice into the vehicle’s CAN bus if retrofitting an aftermarket module requiring this input.
The brown wire (pin 3) carries a parking brake signal–required for video playback on units equipped with rear screens. Connect to the parking brake switch or simulate ground to enable DVD functionality while stationary. Failure to wire this correctly results in blank screens during operation.
Orange (pin 15) and orange-black (pin 16) control dimming. Orange adjusts illumination intensity in sync with dash lights; orange-black toggles between day and night modes. Tap these only if integrating an OEM-style interface–aftermarket harnesses often omit dimming compatibility.
Step-by-Step Guide to Locating the Audio System Harness Schematics
Begin by removing the trim panel surrounding the infotainment console. Use a plastic pry tool to avoid damaging the clips–insert it into the seam near the lower edge and gently lever the panel upward. Disconnect the retaining clips one at a time, working from the center outward to prevent warping. Once the panel is free, set it aside in a secure location to avoid dust accumulation on the exposed connectors.
Identifying the Factory Harness Connector
Locate the primary audio harness connector at the rear of the head unit. It’s a rectangular plug with 16–24 pins, depending on the trim variant–base models typically use fewer terminals. Trace the wires to the firewall-side grommet where they exit the cabin; this is where the vehicle-side harness merges with the OEM wiring. Use a multimeter set to continuity mode to verify pin assignments if color-coding differs from standard aftermarket charts.
Download the official electrical schematics from the manufacturer’s service portal using the VIN-specific access–generic diagrams often omit critical updates for steering wheel controls or amplified setups. Save the file in PDF format and cross-reference the fuse box layout; power feeds for the sound system frequently share circuits with instrument cluster or climate controls, leading to intermittent failures if overlooked.
Label each wire with masking tape before disconnecting anything. Write the pin number and function (e.g., “C201 – Illumination +”) directly on the tape–don’t rely on memory. For vehicles with premium audio, pay special attention to the amplifier’s remote turn-on lead (typically a thinner blue wire) and ground connections; improper relay of these can cause distorted output or speaker damage.
Verifying Connections with a Test Light
Reconnect the battery after any disassembly and use a test light to confirm 12V presence at the constant power wire (usually red or orange). Probe the ignition-switched lead (yellow or pink) while cycling the key–if the light doesn’t illuminate, check the fuse labeled “ACC” or “RADIO” in the under-dash panel. For rear-seat entertainment systems, locate the auxiliary power source near the middle console; these often use separate inline fuses.
If adapting an aftermarket unit, splice the new harness only after matching impedance ratings–factory speakers in luxury trims may require 2–4 ohm loads, while standard trims use 6–8 ohm. Secure all splices with heat-shrink tubing or butt connectors crimped with a ratcheting tool, never electrical tape alone. Reassemble the trim panels in reverse order, ensuring all retaining clips engage fully to prevent rattling.
