Identify the control board first–it sits behind the main console panel, typically secured by screws or clips along the upper rear edge of the appliance. Disconnect power at the circuit breaker before handling any internal components. Remove the console cover by releasing retaining tabs or unfastening screws, then tilt it forward to expose the wiring harness connections. Trace the leads from the thermal fuse, motor relay, and heating element back to their termination points on the board. Label each connector before detachment to prevent misalignment during reassembly.
For models with a digital display, the printed circuit interfaces directly with the door switch, moisture sensor, and drum motor. Examine the foil paths on the reverse side of the board for hairline cracks or scorched areas–replace the entire module if damage is visible. Analog variants rely on a mechanical timer linked to a series of cam-driven switches. Rotate the timer knob manually to verify each cam engages the corresponding contact without sticking. Lubricate worn cams with dielectric grease if the mechanism displays resistance.
Test continuity across safety thermostats and fuses using a multimeter set to the lowest resistance scale. A reading above zero ohms signals a compromised component, necessitating replacement of the part and its housing bracket. Verify the blower wheel rotates freely and check the drive belt tension by depressing the center span–deflection should not exceed half an inch. Replace stretched belts immediately to avoid slippage and overheating.
Grounded chassis designs route neutral return through an internal bonding strap connected to the rear bulkhead. Confirm this strap is intact and corrosion-free, particularly where it interfaces with the control enclosure. For units with reversible doors, note the orientation of the door switch plunger–misalignment here causes false open-door errors during operation. Adjust the mounting bracket slightly if the switch fails to depress fully when closed.
Understanding the Wiring Layout of Your Household Laundry Appliance
Start by locating the technical manual for your specific model–component placement varies between series. Look for a label on the rear panel or inside the door frame containing the model number; cross-reference it with manufacturer-provided resources. Most legacy units follow a standardized 240V circuit with a 30-amp breaker, but confirm wire gauge (typically 10 AWG) before testing.
Key elements to trace include:
- The thermal fuse–usually mounted on the blower housing–acting as a safety cutoff if overheating occurs.
- The heating coil assembly, identifiable by its metallic casing near the drum exhaust path.
- The motor centrifugal switch, which controls drum rotation cycles and may connect to multiple relays.
- Door interlock switches; bypassing these for testing requires shorting with insulated pliers–never work on live circuits.
For diagnosis, use a digital multimeter set to ohms (Ω). Expect these readings:
- Thermal fuse: 0Ω when intact; infinite resistance indicates failure.
- Heater coil: 10–50Ω range depending on wattage; consistent OL (overload) means open circuit.
- Motor windings: 2–20Ω across leads; check all terminals as some models use dual-speed configurations.
Common fault points and solutions:
- Tripped breaker: Verify voltage at terminal block with probes on L1/L2 (should read ~240V). If missing, check household panel for loose connections.
- No heat: Test heater coil continuity first. If intact, trace to thermostat sequence–standard models use 3-4 stacked thermostats that reset manually.
- Drum not rotating: Inspect belt tension (replace if stretched beyond ¼ inch slack). If belt is firm, evaluate motor relay or capacitor–capacitors fail silently and require ESR meter testing.
Safe Work Practices
Disconnect power at the breaker panel before accessing internal components–some models retain charge in capacitors even when unplugged. Label wires before removal using masking tape; 1980s–1990s models often use non-intuitive color-coding (e.g., pink for neutral). For board-level repairs, static-sensitive components require grounding straps; CMOS ICs in electronic timers fail if handled improperly.
Alternative Reference Methods
If official documentation is unavailable:
- Search online forums using the full model number + “PDF”–many repair technicians upload partial schematics.
- Compare with similar units from Whirlpool/Kenmore, which share OEM components with many 1990s machines.
- Photograph each step during disassembly–this reveals hidden conductors behind baffles not shown in generic diagrams.
Always cross-verify wire functions with a meter before reassembly; misrouted wires (e.g., neutral to live) can cause immediate damage or fire risk during operation.
How to Find the Wiring Blueprint for Your Clothes Spin Appliance
Begin by checking the manufacturer’s official support portal using the exact product serial number–this is the most reliable source for original technical documents. If the model was produced after 2010, it likely includes a dedicated downloads section for manuals and electrical layouts. Each appliance variant has distinct circuits, so avoid generic diagrams not matching your unit’s specifications.
Examine the rear panel or inside the door frame; some brands embed a small metal plaque with a QR code or direct web link to service materials. If no digital access is provided, the baseplate may list the part number–enter this into search engines with terms like “internal wiring chart” or “component map” to refine results.
Third-party repair databases often host scanned copies of discontinued documentation. Sites like AppliancePartsPros or Sears PartsDirect archive schematics indexed by brand codes. Filter by release year to exclude incompatible drawings. Do not rely on forums–user-uploaded images frequently omit critical voltage labels.
- Locate the serial number decal–usually near the lint trap or on the side wall.
- Note the firmware version if displayed; later revisions alter wire routing.
- Cross-reference any manual ID tags with supplier inventories to validate diagram authenticity.
Alternative Retrieval Methods When Online Sources Fail
Contact local service centers–authorized dealers may fax or email the correct chart if provided proof of ownership. Include the full model identifier and purchase date to expedite the request. Some organizations charge a nominal fee for high-resolution scans, especially for older variants.

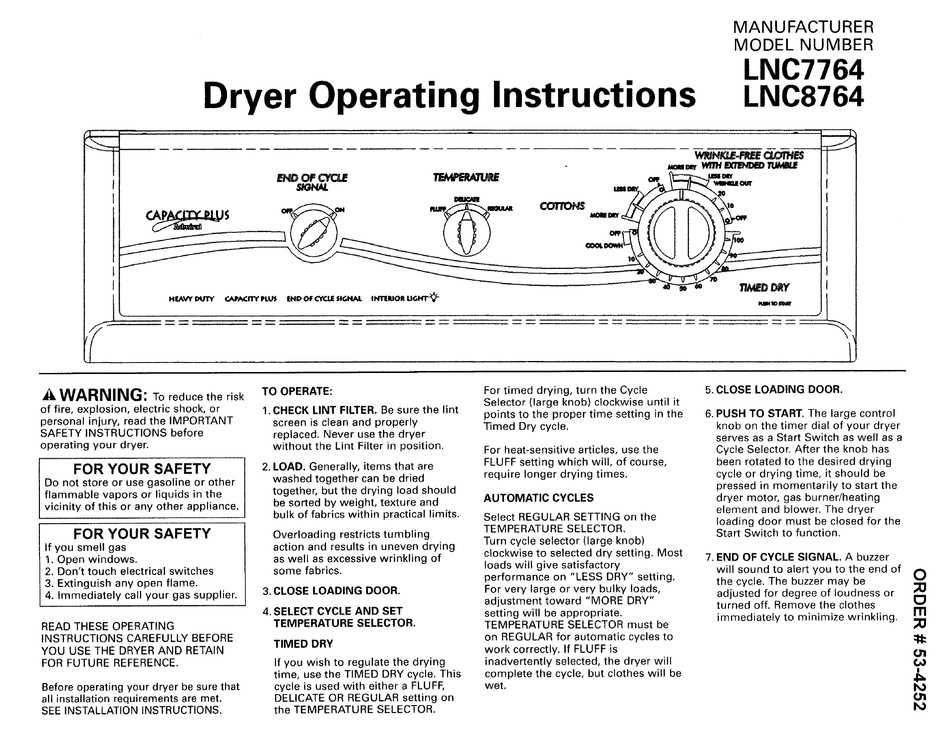

Inspect the original owner’s booklet; the troubleshooting appendix sometimes includes a condensed version of the circuit layout. If the paper guide is lost, request a duplicate through the customer support line–operators occasionally ship physical copies or share links via email.
- Verify diagram scale; printed versions often require zooming to inspect fuse placements.
- Check for color codes–mismatches between blueprint colors and actual wires indicate outdated revisions.
- Avoid guesswork–improvising connections risks damaging the heating coil or control board.
Identifying Correct Diagram Variants
Compare the motor plate label to the diagram metadata–some manufacturers produce multiple board layouts under the same product family. If wires terminate differently than depicted, the chart corresponds to a different production batch. Always confirm compatibility with a multimeter before disconnecting leads.
Electronic copies typically use layers; isolate motor circuits, timers, and thermal sensors when diagnosing malfunctions. Annotate personal notes along margins to track verified paths and prevent future errors during reassembly.
Locating Critical Parts in the Appliance Circuit Blueprint
Trace the power supply path first–identify the terminal block where the main 240V input connects. Label each screw: L1 (black or red), L2 (black or red), and neutral (white). Verify torque specifications (typically 10-12 in-lbs) to prevent arcing or overheating. Loose connections here are the leading cause of intermittent operation.

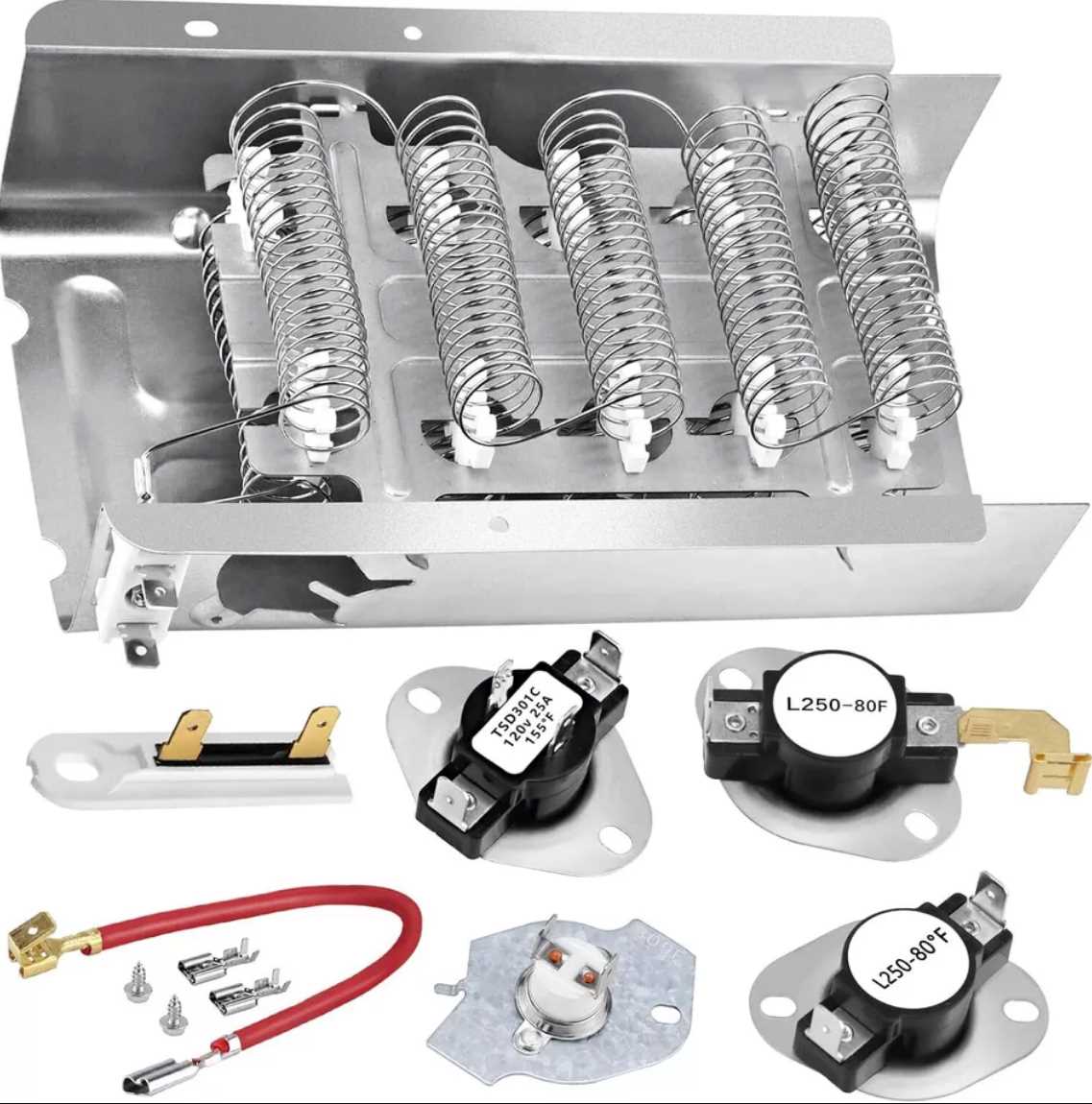

Find the thermal fuse near the blower assembly or heating element housing. This 198°F-221°F one-time fuse acts as the primary safety cutoff if temperatures exceed limits. Test for continuity with a multimeter set to ohms; a reading above 0Ω indicates failure. Replace with an exact OEM part–aftermarket alternatives may not meet thermal response requirements.
The motor assembly includes three key subcomponents: the drive motor, start capacitor, and centrifugal switch. The capacitor (usually 4-10 µF) stores energy to initiate rotor spin–check capacitance with a meter, as degraded units cause slow starts or humming without rotation. The switch disengages the start winding at ~75% of full speed; inspect for burnt contacts if the motor fails to maintain RPM.
Control Panel Dissection
Isolate the timer mechanism–its contacts direct power to the heating coil, drum motor, and exhaust fan during specific cycles. Use the wiring map to confirm each terminal’s function: NC (normally closed), NO (normally open), and COM (common). Miswired timers result in erratic cycle completion or premature shutdowns.

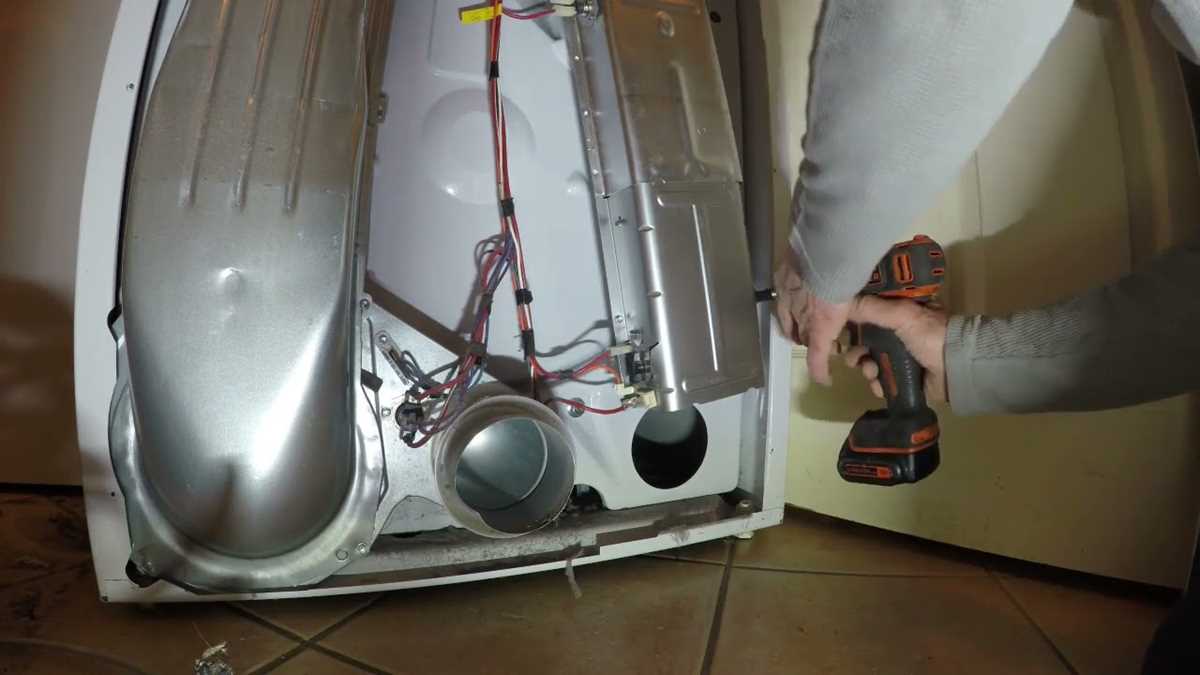

The heating coil (resistance range: 7-12 Ω) occupies the rear cabinet, often behind a protective grille. Measure resistance at room temperature–values significantly above/below range suggest partial shorts or opens. Note that dual-coil models require testing each circuit independently, as one may fail while the other remains functional.
Check the door switch–a micro-switch that halts drum rotation when opened. Its plunger must compress fully (verified with a continuity test) to allow operation. Misalignment from worn hinges or a broken actuator arm creates a safety hazard, as the drum will spin despite an open door.
Inspect the internal thermostat chain, typically consisting of 3-4 snap-disc switches mounted along airflow ducts. These regulate heat output in 50°F increments (e.g., 150°F, 180°F). Remove the back panel to access; test each for continuity at room temperature–an open circuit indicates failure. Replace thermostats as a set, even if only one shows symptoms, to maintain consistent cycle performance.
