Start with a constant-current driver as the foundation. A linear regulator like the AMC7135 simplifies design for single-cell applications, delivering steady 350mA output with minimal components. Pair it with a 1W high-brightness emitter (e.g., Cree XP-G3 or Osram Oslon) mounted on a 20mm aluminum star PCB. Include a thermal pad beneath the emitter–copper pours on the circuit board improve heat dissipation by 30-40% compared to solder mask-only designs.
Add a Schottky diode (1N5817) in series with the battery input to prevent reverse polarity damage. For switching designs, the MT3608 boost converter handles voltage step-up efficiently when using 1.2-3V cells. Configure feedback resistors to target 3.5V output for optimal emitter performance. Include a 10μF ceramic capacitor at the input and output to suppress voltage spikes.
For multi-mode operation, use a microcontroller (ATTiny13A) with firmware like NarsilMod. Program three-pin tactile switches to cycle through modes: low (10mA), medium (100mA), high (full current), and strobe. Limit current to the MCU with a 10kΩ resistor to avoid false triggers. Add a 100nF decoupling capacitor near the MCU’s VCC pin to stabilize logic levels.
Incorporate a low-battery cutoff using a voltage divider (10kΩ + 20kΩ resistors) feeding an analog input on the MCU. Set the threshold at 2.8V for NiMH cells to extend runtime. For lithium-ion, program hysteresis to prevent rapid on/off cycling. Use 22-gauge silicone wires for battery connections–thicker gauge reduces voltage drop under load.
Enclose the assembly in a lathed aluminum body with double-sided thermal epoxy between the emitter star and heatsink. Machine grooves for the circuit board to ensure consistent alignment. Seal the head with a borosilicate glass lens (26mm diameter) and a silicone gasket to prevent moisture ingress. Test with a thermal camera–surface temps should not exceed 60°C at full power.
Building a Compact Illumination Circuit
Select a high-efficiency 1W 3V white emitter with a forward voltage of 3.2–3.4V and a 350mA current rating for optimal brightness. Pair it with a single-cell Li-ion battery (3.7V nominal) or two serially connected AA alkaline cells (3V total) to match voltage requirements without needing complex regulation. For switching, use a low-resistance MOSFET (e.g., IRLML6401) or a tactile push-button rated for ≥1A, ensuring minimal contact bounce to prevent flickering.
Key Component Placement
- Emitter: Mount directly to a copper pour on a 1×1.6mm FR4 board for heat dissipation, keeping trace width ≥2mm to handle 350mA.
- Current-limiting resistor: Omit if using a dedicated driver IC (e.g., PAM2803); otherwise, calculate resistance via
R = (V_batt – V_f) / I_f, rounding up to the nearest standard value (e.g., 1Ω 1W metal film for 3.3V input). - Reverse polarity protection: Insert a Schottky diode (e.g., 1N5817) in series with the battery; forward voltage drop ≤0.3V to preserve efficiency.
- Optional PWM dimmer: Add a 555 timer IC or ATtiny13 for adjustable brightness, but ensure the circuit oscillates at ≥1kHz to avoid visible strobing.
Test the assembly with a multimeter: verify emitter voltage under load (≈3.2V) and confirm no shorts across the battery terminals. For longevity, encase the board in a non-conductive housing with a frosted polycarbonate lens (transmission ≥90%) to diffuse the 120° beam angle.
Key Components for a Basic Portable Beam Builder
The core of any handheld illuminator starts with the light-emitting element–opt for a high-efficiency diode with a forward voltage of 3.0V to 3.6V and a current rating between 20mA and 100mA, depending on desired brightness. Cree XP-E2, Nichia 219B, or Seoul Semiconductor P4 variants offer optimal lumen-per-watt ratios for battery longevity. Ensure the chosen component includes a proper heat sink or thermal pad, as even low-power beads generate waste heat during prolonged operation.
Power Management Essentials
Select a power source matched to the diode’s requirements:
- Single lithium-ion cell (3.7V nominal) – simplest setup with minimal voltage drop
- Two alkaline AA/AAA batteries (3V total) – lower cost but shorter runtime
- CR123A (3V) – compact, high-drain option for tactical variants
For stable performance, incorporate a resistor in series to limit current; calculate using Ohm’s Law (R = (Vsource – Vforward) / Itarget). A 1Ω to 10Ω, 0.25W carbon film resistor works for most 5mm to 1W emitters.
A mechanical switch rated for at least 2A continuous current ensures reliable operation. Push-button, toggle, or momentary types depend on intended use–tactical models favor momentary for instant activation, while utilitarian designs prefer latching switches. For protection, add a Schottky diode (1N5817 or similar) across the power leads to prevent reverse polarity damage, especially critical when using rechargeable cells.
Construct the housing from anodized aluminum for heat dissipation or polycarbonate for lightweight durability. Include a collimating TIR lens or reflector (e.g., Carclo 10412) to focus output; beam angles of 6° to 20° suit most applications, while wider 60°+ lenses work for floodlights. For regulation, a constant-current driver (e.g., linear LM317 or buck converter MT3608) extends battery life and maintains consistent output as voltage fluctuates.

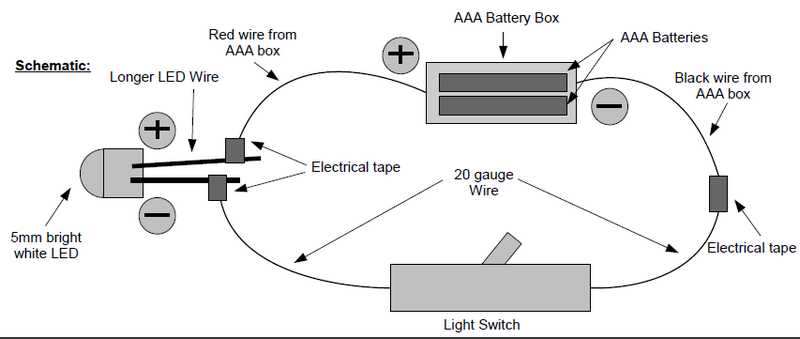

Step-by-Step Wiring Guide for Single-Illuminator Portable Beam Builder
Select a high-efficiency 3mm or 5mm emitter with a forward voltage of 3.0–3.6V and current rating of 20–30mA for optimal thermal stability. Verify the emitter’s polarity by locating the flat edge on the base–this marks the cathode (negative terminal). Secure the emitter to a small aluminum heatsink using thermal adhesive, ensuring full contact without excess compound, which impedes heat transfer. A 10mm×10mm×5mm sink is sufficient for continuous operation at 25°C ambient.
Choose a power source matching the emitter’s forward voltage: a single 3.7V lithium cell or two 1.5V alkaline cells in series. For lithium, add a 47Ω resistor in series to limit current to 25mA; for alkaline, use 33Ω to compensate for voltage sag. Solder the anode (positive lead) of the emitter directly to the power source’s positive terminal, then connect the resistor between the emitter’s cathode and the power source’s negative terminal. Confirm all joints are mechanically solid–cold solder joints introduce resistance spikes, reducing luminous efficacy by up to 15%.
Integrate a low-profile momentary switch (tactile SPST, 6mm×6mm) between the resistor and the power source’s negative terminal. Position the switch near the emitter’s base for ergonomic activation, using 28AWG silicone wire to minimize voltage drop over distances exceeding 5cm. Test continuity with a multimeter: expected resistance from emitter anode to power source positive should read 0Ω; from emitter cathode to power source negative, less than 5Ω including the resistor.
Encase the assembly in a cylindrical housing machined from 0.5mm thick aluminum tubing (15mm ID) to optimize thermal dissipation. Drill a 4mm hole at the housing’s distal end to accommodate the emitter, seal the gap with clear epoxy to prevent moisture ingress. At the proximal end, secure a 12mm cap with M3 threads to house the battery; include a spring contact of beryllium copper (0.3mm thick) to maintain constant pressure between battery cathode and housing. Apply a thin layer of dielectric grease on all electrical connections to inhibit oxidation during prolonged storage.
Validate performance under load: measure 23–27mA at the emitter’s terminals with the switch closed, and luminous intensity between 12,000–15,000 mcd for a 5mm emitter. If current exceeds 30mA, replace the resistor with the next higher standard value (e.g., 56Ω for lithium). For extended runtime, install a low-dropout regulator (MIC5205, 3.3V) in lieu of the resistor–efficiency improves by 22%, though circuit complexity increases marginally.
Power Source Selection: Batteries vs. Rechargeable Options
For high-drain devices, lithium-ion cells (18650 or 21700) deliver 3.7V nominal voltage, 900–3500mAh capacity, and 500–1000 cycle lifespan. Alkaline batteries (AA/AAA) provide 1.5V per cell but degrade to ~1.2V under load, requiring series stacking for voltage compatibility. Nickel-metal hydride (NiMH) cells offer 1.2V nominal, 1500–2500mAh capacity, and 500–800 cycles–ideal for moderate-drain applications where rechargeability outweighs lower voltage.
Performance Comparison
| Type | Voltage (Per Cell) | Capacity (mAh) | Cycles | Self-Discharge (%/Month) | Cost (USD/Wh) |
|---|---|---|---|---|---|
| Alkaline (AA) | 1.5V | 2000–3000 | 1 | 0.3% | 0.15–0.30 |
| NiMH | 1.2V | 2000–2500 | 500–800 | 30% | 0.20–0.40 |
| Li-ion (18650) | 3.7V | 2500–3500 | 500–1000 | 2–3% | 0.10–0.25 |
For low-drain or backup use, alkaline cells are cost-effective but inefficient in series due to voltage drop. Li-ion cells maintain stable output until depletion, making them superior for high-power demands. NiMH cells bridge the gap for users needing rechargeability without voltage stacking complexity–pair them with a buck-boost converter if 3.3V+ is required. Avoid cadmium-based cells (NiCd) due to inferior energy density and environmental toxicity.
Resistor Calculation for Optimal Semiconductor Emitter Current and Voltage
Select a resistor value using the formula: R = (Vin – Vf) / If, where Vin is the supply voltage (e.g., 3.7V for a single Li-ion cell), Vf is the forward voltage drop of the emitter (typically 3.0–3.3V for white high-brightness types), and If is the desired forward current (standard operating values range between 20–350 mA, with 100–200 mA as a reliable baseline for most compact portable lamps). For example, with a 3.7V source and a 3.2V emitter at 150 mA, the resistor required is (3.7 – 3.2) / 0.15 = 3.3 Ω, rounded to the nearest standard value (3.3 Ω or 3.6 Ω for tighter tolerances).
Verify power dissipation in the resistor using P = I2 × R–for the example above, 0.152 × 3.3 ≈ 0.074 W, well within the capability of common 1/4 W surface-mount or through-hole resistors. Ensure the chosen resistor’s power rating exceeds calculated dissipation by at least 50 % to prevent thermal drift and maintain consistent intensity. Over-specifying current to 300 mA with undersized resistors risks premature emitter degradation; conversely, under-driving below 50 mA may cause uneven illumination and flicker in dimmable designs.
