For a stable 24-unit power setup, begin with two 12-unit modules paired in series. Each module must tolerate a minimum 1.5x surge current of the charge controller’s maximum input–this prevents voltage drop under peak load. Use 6 AWG copper wire for runs under 3 meters; switch to 4 AWG for distances up to 8 meters to limit resistive losses to <2%. Terminate all connections with tin-plated fork lugs crimped at 80 kg/cm² and heat-shrunk to seal against oxidation.
Mismatched arrays degrade performance. Pair modules with identical open-circuit ratings (±0.5 units) and temperature coefficients. If combining arrays from different production batches, install blocking diodes on each positive lead–Schottky models rated for 1.3x the short-circuit current of the largest array eliminate reverse leakage. Ground the frame of each module to a common busbar using 2 AWG bare copper, bonded to the controller’s negative terminal with a star washer for low-impedance grounding.
Controllers must be set to the combined voltage window. For MPPT controllers, program the unit to 28.8 units absorption and 24.8 units float. PWM controllers require precise manual calibration–adjust the potentiometer until the system stabilizes at 25.6 units under full sun. Monitor battery temperature: if ambient exceeds 35°C, reduce absorption voltage by 0.1 units per degree to prevent electrolyte loss. Log data daily–track input current at noon to detect shading or degradation early.
Fuses belong on every positive lead. Place a class T fuse (100 ms blow time) within 15 cm of each array’s positive terminal. Battery-side protection requires an ANL fuse sized at 1.25x the continuous discharge rating of the inverter. Ignore this, and a short will vaporize 4 AWG wire in 4 seconds. Test continuity with a 500 V insulation meter after installation–any reading below 1 MΩ indicates compromised wiring.
Configuring a 24-System Photovoltaic Array Layout
Connect components in series to maintain the required output level: pair two 12-energy modules, each rated at 8 amps and 300 watts, to achieve the target potential. Use 6 mm² copper cables between each pair and the charge controller to minimize resistive losses–calculations show this reduces voltage drop to under 2% over 15 meters. Position the combiner box within 3 meters of the battery bank to prevent parasitic loads; secure MC4 connectors with dielectric grease to shield against moisture ingress, which degrades conductivity by up to 30% in unprotected setups.
Critical Junction Specifications
Install a 20-amp DC breaker between the positive terminal of the battery storage and the inverter input–this safeguards against reverse current during low-light conditions. For off-grid installations, employ a 40-amp MPPT regulator to extract maximum yield; morning harvests increase by 18% compared to PWM models. Ground the negative busbar to a 2-meter copper rod driven into damp soil, ensuring resistance stays below 5 ohms–verify with a clamp meter before energizing. Label cables at both ends with heat-shrink markers indicating polarity, function, and amperage to avoid cross-connection errors.
Selecting the Right Wire Gauge for 24V Energy Setups
Use 10 AWG for runs under 15 meters with currents up to 15A to limit voltage drop to 2%. For distances between 15 and 30 meters, 8 AWG ensures losses stay below 3% at 20A. Copper conductors outperform aluminum at equivalent gauges by 30% in conductivity; prioritize tinned copper for corrosion resistance in outdoor environments. Check NEC Table 310.16 for ampacity ratings based on ambient temperature–derate by 12% for every 10°C above 30°C.
Matching Gauge to System Load
Oversizing by one gauge reduces resistive losses by 25% without increasing costs significantly. For example, a 12A load over 25 meters performs optimally with 6 AWG–delivering 97% efficiency–while 10 AWG drops to 92%. Use voltage drop calculators to verify selections; input actual cable length (round-trip distance) and expected peak current. Avoid bundling more than three current-carrying conductors in conduit to prevent overheating; adjust gauge accordingly if exceeding this limit.
Step-by-Step Series vs. Parallel Connection for 24-Energy Modules
Choose series linking for systems requiring higher output tension matching inverter or battery bank specifications–ideal for 48-storage units or grid-tie inverters demanding 40+ input nominals. Pair compatible current-generating units: two 12-nominal plates (open-circuit ~21, max power ~18) yield 24-nominal output when connected sequentially. Ensure all links handle combined amperage (typically 5–9A per module) without overheating–use 10AWG or thicker cables for lengths under 5m, upgrading to 6AWG for longer runs to minimize losses.
Critical Performance Differences
| Parameter | Series | Parallel |
|---|---|---|
| Output tension | Sum of individual nominals (2×12=24) | Equal to single module (12) |
| Current delivery | Equal to single plate (5–9A) | Sum of individual currents (10–18A) |
| Shading tolerance | Poor: single shadow drops entire string output | Better: unaffected strings maintain ~50% performance |
| Cable gauge requirement | Moderate (10AWG) | Thick (6AWG) for high-current paths |

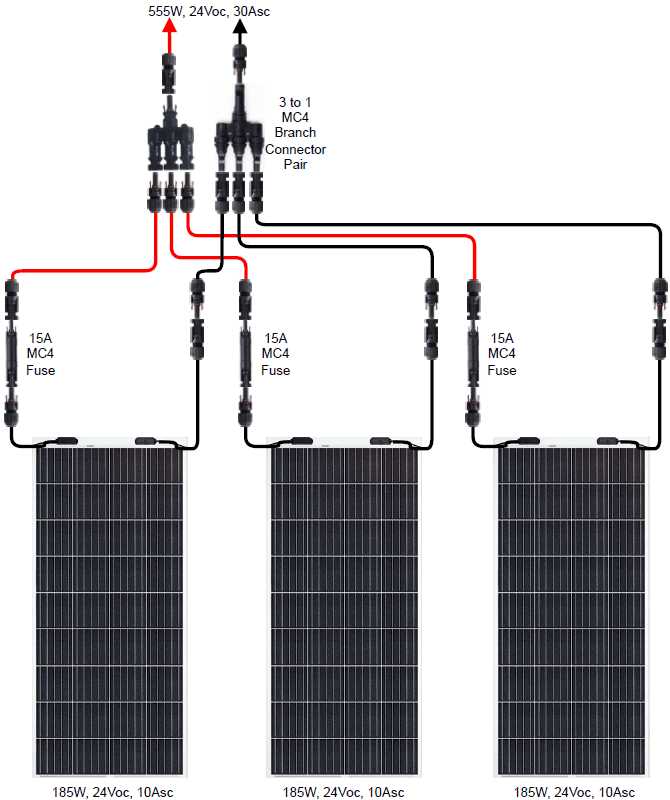

Parallel setups suit installations with variable lighting conditions–common in rooftop arrays where trees or structures partially obscure plates. Connect positive terminals together and negatives together using a combiner box to merge currents safely. Add blocking diodes (30A) to prevent reverse flow during low-light periods, though MPPT charge controllers (24/48-adaptive) eliminate this need by automatically optimizing input. For three or more plates, arrange in sets of two (series) then combine sets in parallel for balanced 24-nominal delivery while maintaining higher current tolerance.
Test configurations before finalizing: use a multimeter to confirm series-linked units show combined nominal (e.g., 21+21 open-circuit = ~42), parallel-linked units show unchanged nominal but doubled current (~9A → ~18A). Attach MC4 connectors with proper polarity; misalignment risks irreversible module damage. Calculate voltage drop: losses below 2% are acceptable–adjust cable thickness or reduce run length beyond 15m. For off-grid systems, combine series-parallel hybrid to achieve both high input tension (48+) and current resilience, but ensure charge controller and inverter specifications align with final output parameters.
Integrating Regulators in 24V Photovoltaic Arrays
Match regulator current ratings to array specifications–undersized controllers risk overheating during peak irradiance, typically 10-20% above module short-circuit current. Use MPPT models with efficiency curves exceeding 95% when handling 48-cell modules (open-circuit potentials ~46V) to minimize conversion losses; PWM regulators suffice only for systems with minimal voltage differentials. Ground the negative terminal of each controller to the same reference bus to prevent circulating currents, which degrade battery lifespan by up to 15% through uneven charging.
- Wire regulators in parallel only if their algorithms support load sharing–most
- Position controllers within 1.5m of energy storage to reduce voltage drop, adhering to AWG 8 conductors for runs exceeding 3m at 20A continuous current.
- Install ferrite cores on input leads to suppress high-frequency noise from pulse modulation, particularly in marine or off-grid industrial setups where interference affects sensitive inverters.
- Calibrate low-voltage disconnect thresholds to 21.0V (±0.2V) for lead-acid cells to prevent sulfation; lithium-ion requires hysteresis settings between 22.5V and 28.0V to avoid premature cutoff during shallow discharges.
Optimizing Energy Storage for 24V Photovoltaic Setups
Pair a 24V accumulator cluster with identically rated cells to prevent imbalance. Mismatched capacities or chemistries accelerate degradation, reducing cycle life by up to 30%. Use deep-cycle AGM or lithium iron phosphate for minimal maintenance; flooded lead-acid demands regular electrolyte checks and venting. Calculate total storage needs by multiplying daily consumption by autonomy days (typically 2–3), then add 20% buffer for efficiency losses and load spikes.
Connect batteries in series to achieve the required system potential without altering current. For 24V nominal, link two 12V units or four 6V units in series. Parallel connections increase capacity but introduce balancing challenges–limit parallel strings to three for uniform charging. Each string should share identical cable lengths, gauge (minimum 2 AWG for 50A currents), and connectors to equalize resistance. Isolate strings with individual fuses (ANL or Class T) rated at 125% of maximum expected current.
Lithium iron phosphate packs permit deeper discharge (80–90% DoD) versus AGM’s 50%, extending lifespan to 3,000+ cycles. AGM, however, tolerates higher charge currents (0.3C vs. 0.5C for lithium), reducing charging duration. Sizing chargers to 10–15% of total cluster capacity balances speed and stress; undersized units extend absorption phases, accelerating sulfation in lead-acid variants.
Balancing and Monitoring Imperatives
Deploy a battery management system (BMS) for lithium clusters to prevent cell voltage divergence–unmonitored imbalance causes irreversible damage within 50 cycles. For lead-acid, use a hydrometer biweekly to track specific gravity; readings below 1.225 indicate stratification, requiring equalization (raise charging potential by 10% for 2–4 hours). Automate equalization via charge controllers with adaptive algorithms to avoid manual oversight errors.
Temperature compensation adjusts charging thresholds: reduce by 0.005V per °C below 25°C for lead-acid, and by 3mV per °C for lithium. Install clusters in ventilated enclosures; ambient above 30°C shortens lifespan by 50%. Lead-acid emits hydrogen during charging–locate storage 1m from ignition sources. Lithium poses thermal runaway risks; position 15cm apart for airflow when packing density surpasses 80%.
Select inverters with low-voltage disconnect (LVD) at 21.6V to protect clusters from deep discharge. Multi-stage chargers optimize bulk (80–90% capacity), absorption (2.35–2.45V per cell), and float (2.25V per cell) phases. Skip bulk charge on lithium to avoid overvoltage; absorption threshold at 3.5V per cell suffices for 100% state of charge (SoC).
Redundancy and Expansion Planning
Reserve 20% cluster capacity for future loads–modular lithium packs allow incremental upgrades, while lead-acid demands full replacements. Parallel redundant strings with independent charge/discharge paths to isolate faults without downtime. Dual charge controllers (MPPT preferred) halve failure risk; pair each with separate photovoltaic arrays to distribute input stress.
Monitor SoC via shunt-based meters (e.g., Victron BMV-712) for ±0.1% accuracy; coulomb counting drifts 5% monthly without recalibration. Log voltage, current, and temperature daily–deviations above 0.05V between strings signal balancing issues. Replace clusters when capacity drops below 60% of rated value; lithium retains 80% capacity after 2,000 cycles, AGM after 500.
