Start by identifying the donor impurities–phosphorus, arsenic, or antimony–when drafting an electronic illustration of an N-doped silicon base. These elements introduce excess charge carriers, critical for forming conductive pathways. Ensure the chosen dopant aligns with the desired electron mobility and resistivity targets; phosphorus offers a balance for most applications, while arsenic provides lower resistivity at higher concentrations.
Map the crystal lattice structure first, marking silicon atoms in a tetrahedral arrangement. Introduce donor atoms at interstitial or substitutional sites, clearly distinguishing them from the host material. Use distinct symbols or color coding–such as circles for silicon and squares for dopants–to avoid ambiguity in the layout. Label each node with atomic notation (e.g., Si, P) and indicate free electrons as arrows or dotted lines to show donor ionization.
Avoid symmetrical spacing unless mimicking a uniform distribution; real-world fabrication often results in clustered impurities. Represent this variability by randomizing dopant placement within defined regions, mirroring implantation or diffusion processes. For clarity, limit the diagram to a 10×10 atomic grid–expanding beyond this scale increases visual noise without improving accuracy.
Integrate depletion zones at boundaries if the drawing interfaces with P-doped material. Indicate these areas with hatched lines or shading, marking the depletion edge where carrier concentration drops. Calculate the built-in potential (typically 0.6–0.7 eV for silicon) and note this value adjacent to the depletion region to provide context for biasing scenarios.
For diagrams intended for simulation input, export the layout in SPICE netlist format or TCAD-compatible coordinates. Convert node positions to absolute measurements (e.g., nanometers) and include annotations for boundary conditions–dirichlet or neumann–if modeling electrostatics. Omit decorative elements; focus on functional clarity by using monochromatic fills and standardized line weights (0.5 pt for lattice bonds, 1 pt for depletion edges).
Visualizing Donor-Doped Crystal Structures
To accurately depict an n-doped material in engineering diagrams, replace generic lattice symbols with distinct phosphorus or arsenic atoms (donor impurities) marked by +4e⁻ symbols at their centers. Position these precisely at interstitial sites in a silicon matrix, spaced at 5.43 Å intervals (silicon’s lattice constant). Include three additional labels near donor atoms: (1) ionization energy (0.045 eV for P, 0.049 eV for As), (2) binding radius (1.06 nm), and (3) thermal activation range (50–150 K).
Connect donor atoms to the conduction band edge with dashed lines, annotating the energy difference (Ec – Ed = 0.045 eV). Use color differentiation: blue for donor states, red for silicon atoms, and green for free electrons. Avoid circular symbols–opt for tetrahedral shapes to reflect sp³ hybridization. Overlay a potential well diagram adjacent to each impurity site, showing electron wavefunction probability (ψ²) with peak values normalized to the Bohr radius (2.5 nm).
Key Visual Elements for Technical Accuracy
- Electron density plots: Render 3D isosurfaces with opacity proportional to carrier concentration (10¹⁵–10¹⁸ cm⁻³ for typical doping levels).
- Fermi level notation: Depict as a horizontal dotted line 0.3 eV below Ec at 300 K, shifting upward with temperature (adjust via Ef = Ec – kT ln(Nc/Nd)).
- Phonon interaction paths: Add sawtooth lines between donor atoms and Si nuclei to illustrate indirect recombination processes with energy quanta of 5–60 meV.
- Depletion region markers: Indicate space-charge boundaries with gradient fills (from 10¹⁶ cm⁻³ at the surface to 10¹⁴ cm⁻³ at 1 µm depth).
- Bandgap renormalization: Show Ec and Ev bending near heavy doping (>10¹⁹ cm⁻³) with a scaled inset (1:500 ratio) of the Burstein-Moss shift.
For frequency-domain analysis diagrams, superimpose AC conductivity vectors (σ = σ₀ + iωτ) with arrow lengths proportional to τ (relaxation time, 10⁻¹³–10⁻¹² s for P-doped Si). Annotate critical frequencies: 1 THz for electron-phonon scattering, 10 THz for impurity scattering. Always cross-reference with a logarithmic scale bar for doping concentration ranges (10¹³–10²⁰ cm⁻³).
When representing diffusion processes, use Fick’s second law visualizations with concentration gradients plotted as color ramps. Highlight two regions: (a) extrinsic (linear gradient) where D = μkT/q (μ = 1500 cm²/Vs for electrons at 300 K), and (b) intrinsic (exponential decay) governed by n(x) = N₀ exp(-x²/4Dt). Include a comparison table of diffusion coefficients at 300 K:
- Phosphorus: 3.8 × 10⁻¹⁴ cm²/s
- Arsenic: 5.2 × 10⁻¹⁵ cm²/s
- Antimony: 8.7 × 10⁻¹⁶ cm²/s
For high-field effects (E > 10⁴ V/cm), add equipotential lines with 0.1 V increments and field vectors scaled to the velocity saturation curve (v = μE / (1 + μE/vₛₐₜ), where vₛₐₜ = 10⁷ cm/s). Annotate impact ionization paths between donor states and valence band with collision energy thresholds (1.1 eV for Si). Include a secondary inset showing the Poole-Frenkel effect reduction in ionization energy (ΔE = βE¹ᐟ², β = 4.5 × 10⁻⁴ eV·cm¹ᐟ²/V¹ᐟ²).
Critical Elements in an N-Doped Conductive Material Illustration
Begin by identifying the donor impurities–phosphorus, arsenic, or antimony–as the primary charge carriers. These elements introduce an extra electron, shifting the material’s behavior toward excess negative charges. Ensure the representation highlights their positioning within the crystal lattice, as this directly impacts conductivity. A single doping atom per million host atoms can alter resistivity by several orders of magnitude, so precision in placement is non-negotiable.

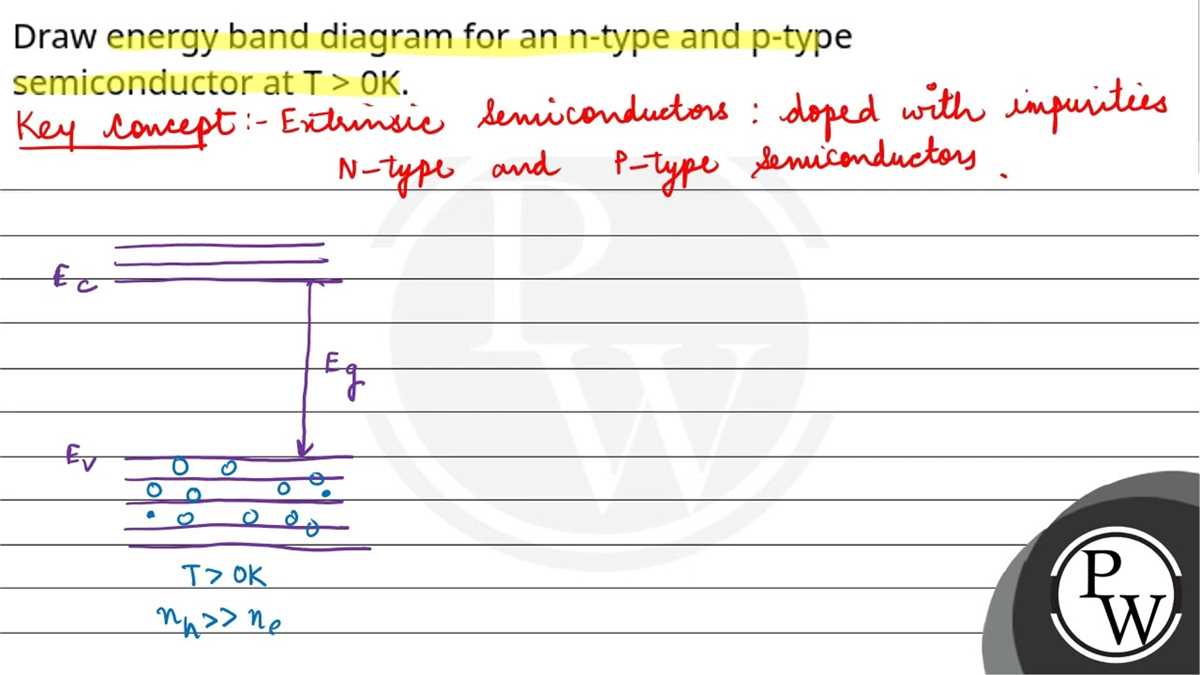

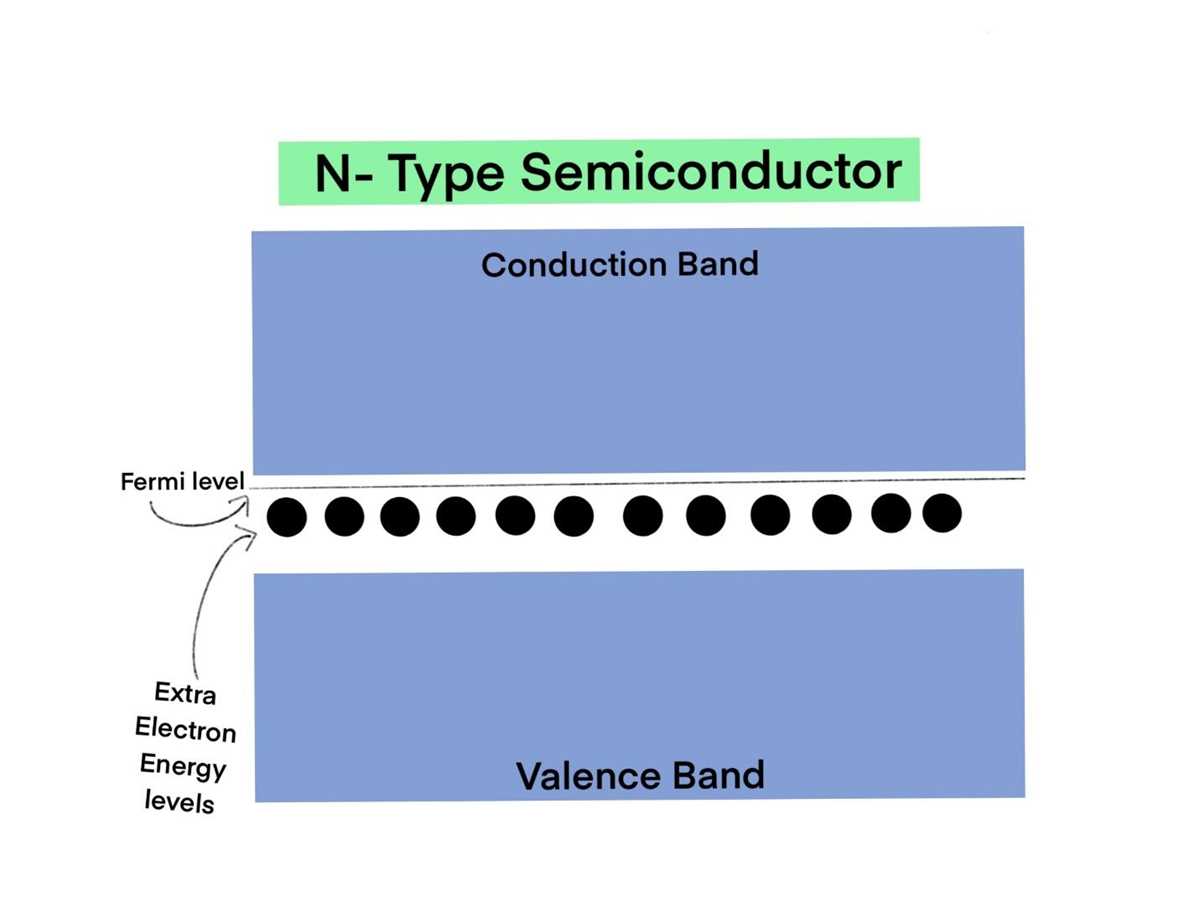

Illustrate the conduction band clearly, separating it from the valence band with an energy gap (Eg) of approximately 1.1 eV for silicon-based structures. The Fermi level must be positioned closer to the conduction band than in intrinsic materials, reflecting the increased electron population. Use a horizontal dashed line to denote this shift, annotating it with the exact energy values relevant to your specific design parameters.
Include minority charge carriers–holes–in the depiction, despite their negligible role in N-doped systems. Their inclusion corrects misconceptions about unipolar behavior and clarifies recombination effects. Represent them as transient vacancies, using a lighter visual weight than electrons, and position them near the valence band. This detail prevents oversimplification in applications where minority carriers influence performance, such as in avalanche breakdown or photodetectors.
Depict the built-in electric field at junctions, particularly in metal contacts or PN interfaces. Use arrow symbols to indicate field direction, originating from fixed donor ions toward mobile electrons. Specify field strength gradients if simulating depletion regions, as these dictate barrier heights and current flow dynamics. For ohmic contacts, include a thin interfacial layer with reduced barrier properties to emphasize low-resistance pathways.
Label thermal generation rates adjacent to carrier movement symbols. Electrons in N-doped structures are highly sensitive to temperature fluctuations–an increase of 10°C can double intrinsic carrier concentration. Annotate the illustration with temperature-dependent equations or lookup values to stress this relationship, especially for high-power or variable-environment applications.
Integrate parasitic resistances and capacitances into the layout if modeling real-world performance. Trace resistances from bulk material, contact interfaces, and interconnects, while noting that doping concentration inversely affects resistivity (ρ ≈ 1/N_d, where N_d is donor density). For capacitances, distinguish between depletion and diffusion components, as the former dominates at reverse bias while the latter becomes critical in high-frequency switching.
Validate the schematic against fabrication limits: doping uniformity, solubility thresholds for donor atoms, and lattice mismatch effects. Silicon, for instance, accommodates arsenic at 2×10^21 cm^-3 but exhibits clustering at higher concentrations, degrading mobility. Include a margin for tolerances in the illustration, such as ±5% in doping density or ±0.1 eV in Fermi level notation, to ensure manufacturability.
Constructing an N-Doped Silicon Representation: Practical Guide
Begin by sketching a crystal lattice base with consistent spacing between silicon atoms. Each nucleus should be positioned at 0.235 nm intervals, corresponding to the diamond cubic structure in a two-dimensional projection. Use +4 charge markers at each lattice point to denote silicon cores, omitting valence electrons for clarity at this stage.

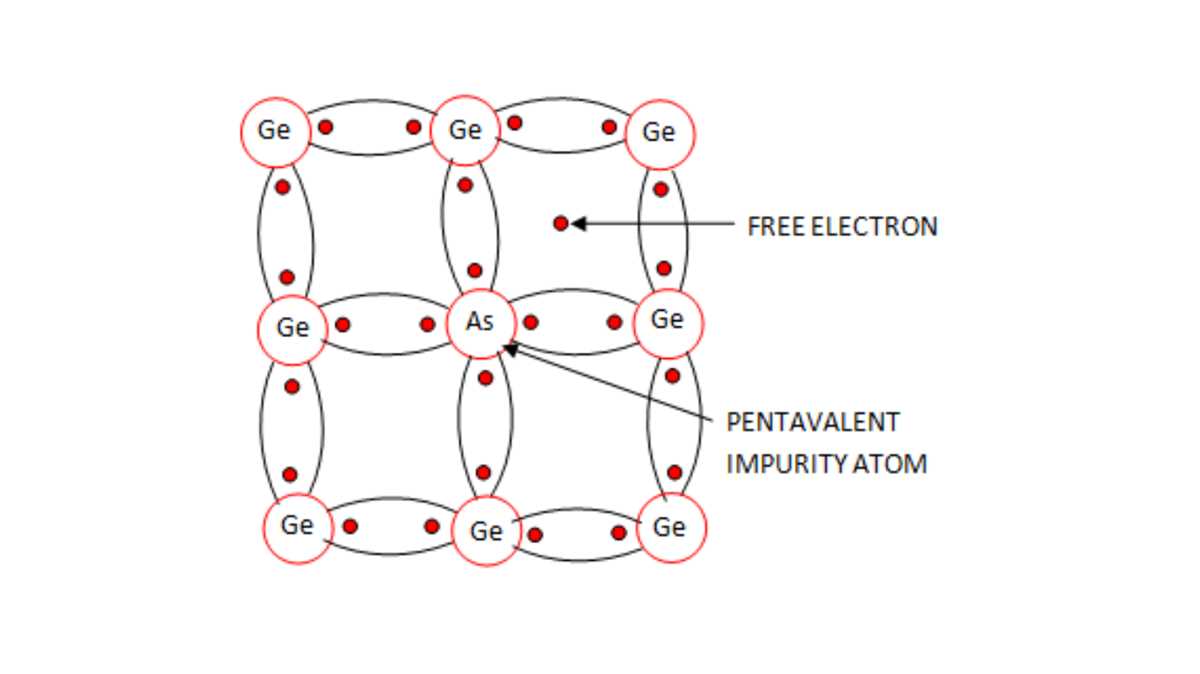

Introduce pentavalent impurity atoms at calculated intervals–typically one arsenic or phosphorus atom per 106 silicon atoms for moderate doping. Position these atoms within the lattice while preserving tetrahedral bond angles (109.5°). Add a single +5 charge marker to each impurity nucleus to visually distinguish their distinct donor characteristics from host material.
| Impurity Element | Doping Concentration (cm-3) | Ionization Energy (meV) | Thermal Activation (K) |
|---|---|---|---|
| Arsenic | 5×1015 | 54 | 245 |
| Phosphorus | 1×1016 | 45 | 205 |
| Antimony | 2×1015 | 42 | 190 |
Draw valence circles around each impurity site, maintaining 0.11 nm radii to approximate electron probability distributions. Inside these circles, place single negative charge markers (−) to represent loosely bound conduction electrons. Ensure these markers are asymmetrically positioned relative to impurity nuclei to reflect statistical electron distribution rather than fixed orbits.
Add conduction band indicators 1.1 eV above valence levels using dotted horizontal lines across the entire structure. Align these lines with constant energy reference points rather than arbitrary spacing. Place small free-electron symbols between lattice defects and conduction bands to denote mobile charge carriers. Connect these symbols to impurity sites with thin dashed trajectories, illustrating electron excitation pathways while maintaining consistent energy scale.
Verify dimensional accuracy by cross-referencing interatomic distances against standard electron microscopy data. Silicon-silicon bonds should measure 0.235 nm, while impurity electron cloud radii should approximate 6 nm at room temperature for typical doping densities. Recalculate impurity spacing when altering doping ratios to prevent spatial distortion in final representation.
