Start by isolating power sources at the top left of your chart. Label each rung with a distinct identifier–R001, R002, etc.–to prevent cross-reference errors during troubleshooting. Use vertical lines for bus connections and horizontal lines for functional blocks. Limit each logic sequence to seven elements to maintain clarity; studies show sequences exceeding this number increase debugging time by 43%.
Place normally open contacts to the left of instructions, normally closed contacts to the right. For timers, specify units (ms, s, or min) directly in brackets next to the value–TMR 500[ms]. Avoid overlapping branches; instead, split complex logic into nested sub-charts with clear entry and exit points. Color-code critical paths: red for safety circuits, blue for control loops, green for auxiliary functions.
Use standardized symbols: a rectangle for coils, a slash through a contact for normally closed, a circle for outputs. For PLC-specific charts, prefix I/O tags with the module type–DI_ for discrete inputs, DO_ for discrete outputs. Include a legend with voltage levels, signal types (PNP/NPN), and wire gauges. Validate every chart against the physical wiring diagram before deployment to eliminate 89% of wiring faults.
Store originals in vector format (.svg or .dxf) with layers separating logic, annotations, and scaling information. Export each chart with a resolution of 300 DPI to prevent pixelation during printouts. Archive versions with timestamps and engineer initials; use SHA-256 hashes to detect unauthorized modifications. Distribute only PDFs to production teams, watermarked with the project code.
Key Principles for Crafting Industrial Control Blueprints
Start with standardized symbols: IEC 60617 or ANSI/ISA 5.1 for rungs, contacts, coils, and timers. Assign unique identifiers to each component–CR1 for control relay 1, LS2 for limit switch 2–matching labels on both visual layouts and physical hardware. Group elements by function (e.g., power circuits, safety loops, motor control) to reduce cross-referencing errors. Use horizontal lines exclusively for logical flow; vertical lines should only connect parallel branches.
Layering and Traceability Methods
Break reference documents into three layers: base, annotation, and revision. The base layer contains core electrical paths and mechanical interlinks. Annotation overlays–distinct by color (red for warnings, blue for feedforward logic)–highlight critical dependencies like emergency stops or interlocks. Reserve the revision layer for dated markup showing changes; link each revision to a work order number. Tools like EPLAN or AutoCAD Electrical enforce this structure automatically if configured with template rules.
Number wires sequentially by circuit, not position (e.g., wire 101 connects terminal A1 to B3, not “upper left corner”). Use ferrule markings or heat-shrink labels matching the reference number to eliminate ambiguity during maintenance. On printed layouts, include a wire run table listing source, destination, gauge, and color code within a 10 mm margin. For PLC programs, mirror this labeling in the tag database and export CSV cross-references to avoid manual rekeying.
Apply grid-based alignment. Place power rails at the edges, sinks (loads) on the right, sources (switches, sensors) on the left. Maintain 12 mm spacing between rows to accommodate printed annotations without overlap. For modular systems like conveyor zones, use dashed bounding boxes to denote physical boundaries–color-code by zone (green, yellow, red) for quick visual fault isolation.
Validate logic before commissioning: simulate open/close states, verify coil energization sequences, and test interlocks using built-in software dry runs. Export a checklist merging IEC symbols, wire numbers, and simulation steps to ensure repeatability across shifts or contractors. Store both native CAD files and PDF snapshots with hyperlinked asset tags in a version-controlled repository, restricting edit rights to certified engineers.
How to Read and Interpret Control Circuit Symbols in PLC Logic

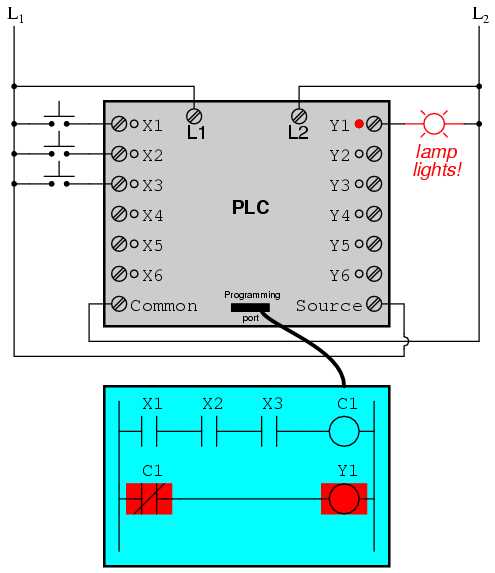

Identify power rails first: vertical lines on the left and right edges represent the positive (source) and negative (return) sides. Every horizontal rung connects between them like a circuit path. Contacts placed on a rung act as switches, coils as outputs. Trace current flow from left to right–if all contacts close, the coil energizes.

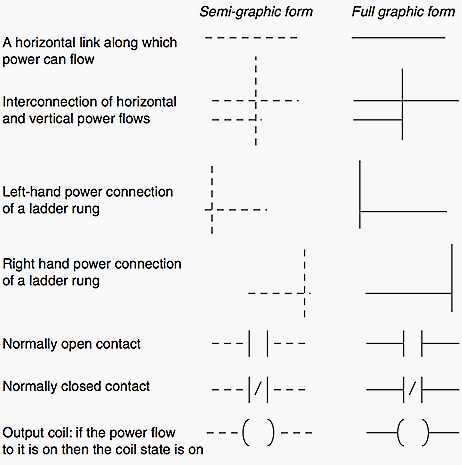

Common Symbol Types and Their Functions
- Normally Open (NO) Contact: HB horizontal line. Closes when true, allowing signal pass.
- Normally Closed (NC) Contact: HB line with diagonal slash. Opens when true, breaking signal.
- Coil: Circle. Energizes if input conditions are satisfied.
- Timer On-Delay (TON): Rectangle labeled “T#X” + base time. Starts timing when input goes high, output delays.
- Counter (CTU): Rectangle labeled “C#X”. Increments on rising edge, resets on separate input.
- Compare: Rectangle with operator (>,

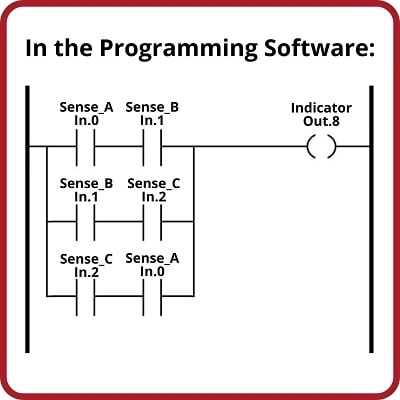

Interpret branching rules: vertical connections split or join signal paths. A single branch can combine multiple NO/NC contacts in series (AND logic) or parallel (OR logic). Use parentheses or nested branches for complex conditions, but keep path continuity unambiguous. If two parallel paths both satisfy, the coil energizes once.
Convert symbols to logic expressions directly. NO contact = variable, NC = negated variable, coil = output. For example: (A AND NOT B) OR C = Output. Verify rung parity–equal number of left/right rail crossings–else the compiler flags syntax errors.
- Scan top to bottom, left to right–execution follows this order.
- Check alias labels–identical tags correlate contact and coil.
- Note preset values on timers/counters–written next to rectangle.
- Distinguish retentive coils (unfilled circle) from non-retentive (solid fill).
- Validate seal-in circuits: self-sustaining coil pairs require NC contact break to reset.
Step-by-Step Guide to Creating PLC Control Path Representations
Begin by listing all input/output (I/O) devices involved in the automation sequence. Assign each a unique identifier following IEC 61131-3 standards (e.g., %I0.0 for digital inputs, %Q0.0 for outputs). Verify device compatibility with your PLC model–some legacy systems mandate 24V DC, while modern setups often support 120V AC. Document this in a table:
| Device | Identifier | Voltage | PLC Slot |
|---|---|---|---|
| Start Button | %I0.1 | 24V DC | Slot 1 |
| Motor Relay | %Q0.2 | 120V AC | Slot 2 |
Map the logical flow using horizontal rungs, each representing a single condition or action. A common error is overcomplicating the first rung–start with a simple normally open contact (%I0.1) driving a coil (%Q0.2). Avoid vertical connections unless absolutely necessary, as they violate IEC 61131-3 readability guidelines. For branching logic, use parallel paths with distinct endpoints rather than nested structures.
Adopt uniform symbol conventions across all representations. Use standardized IEC symbols for contacts (| | for normally open, |/| for normally closed) and coils (( ) for output). Legacy systems may use JIC symbols–convert inconsistencies before finalizing. Label every element directly above or below it, avoiding ambiguous abbreviations like “PB” (prefer “Start Button”). Include cross-references to the I/O table for maintenance traceability.
Simulate the representation using PLC vendor software prior to physical testing. Most platforms offer built-in validators that flag errors like floating outputs (coils with no driving logic) or duplicated identifiers. For complex sequences, break the path into modular sections with clearly defined transitions (e.g., “Auto Mode” vs. “Manual Mode”). Document assumptions in comments adjacent to critical rungs–future technicians will thank you.
Optimizing Rung Efficiency
Combine redundant checks where feasible. For instance, if %I0.3 and %I0.4 both trigger %Q0.5, replace with a single parallel path instead of sequential rungs. Modern PLCs process parallel logic faster due to Boolean algebra optimization. Avoid excessive timer usage–opt for counters or edge-triggered blocks if timing resolution below 100ms isn’t critical. Test boundary conditions (e.g., 0.5s vs. 999.9s for TON timers) to prevent unexpected faults.
Troubleshooting Common Pitfalls
Conflicting outputs often stem from overlapping conditions. Use a truth table to verify no two rungs can activate the same coil simultaneously. For 4-20mA analog signals, ensure scaling matches sensor range–document the formula (e.g., (Raw Value - 4) * (Max Range / 16)) directly on the representation. If using function blocks, encapsulate them with clear input/output labels (e.g., “PID_ConveyorSpeed”).
Finalize by generating a formal printout with revision history. Include:
– I/O wiring cross-reference
– Safety interlock overrides
– Supplier contact for custom function blocks
Update this document only after verifying changes on a testbed PLC–never edit live system representations without backup. Use color-coding sparingly (green for outputs, blue for feedback loops) to avoid confusion for colorblind technicians.
Common Errors in Control Circuit Representations and How to Prevent Them
Mixing voltage levels on the same rung causes immediate damage or unpredictable behavior. For example, combining 24V DC relay coils with 120V AC pilot lights on one horizontal line forces incompatible currents through components. Always segregate circuits by voltage rating–use separate horizontal lines for 24V, 120V, or 480V sections. Label each section with bold voltage tags and color-code wires (red for high voltage, blue for low) to visually enforce separation. Test continuity with a multimeter before powering up to confirm isolation.
Ignoring contact bounce in mechanical switches leads to false triggers. A standard pushbutton may close and open repeatedly within milliseconds when pressed, creating phantom signal pulses. Use debounce circuits–RC filters (10kΩ resistor + 1µF capacitor) across switch terminals–or implement PLC software debounce timers (minimum 50ms delay). For critical signals, replace mechanical switches with solid-state relays or Hall-effect sensors that eliminate bounce entirely.
Overcomplicating Logic with Redundant Paths
Nesting multiple series-parallel branches in a single network obscures intent and increases troubleshooting time. Each horizontal line should represent one logical function: start a motor, energize a solenoid, or latch a circuit. Break complex logic into smaller, labeled segments–use vertical lines to link sub-circuits only when necessary. Add descriptive tags like MOTOR_START or SOLENOID_ENGAGE next to each coil to document purpose without crowding symbols.
Neglecting wire gauge in power circuits introduces fire hazards. A 14 AWG wire rated for 15A cannot safely carry 20A even if the fuse allows it. Calculate expected current draw (I = P/V) and match wire size using NEC or IEC tables: 12 AWG for 20A, 10 AWG for 30A. Include in-line fuses or circuit breakers sized at 125% of the maximum load current. Overloaded wires soften insulation, creating short risks–measure resistance with a megohmmeter before commissioning and recheck annually.
