Begin by structuring your visual representation of gas yield assessment into three core stages: substrate characterization, reaction vessel setup, and data output. Use a standardized flow layout with clear directional arrows to avoid ambiguity–vertical progression works best for sequential stages, while horizontal branching suits conditional pathways (e.g., inoculum selection vs. blank controls). Label each stage with 2–3-word identifiers (e.g., “Feedstock Input,” “Incubation Conditions,” “Gas Measurement”) to maintain readability without overcrowding.
For substrate preparation, indicate separate containers for test samples, inoculum, and blanks–each must include precise volume annotations (100–500 mL for batch assays) and pH range (6.8–7.4). Specify temperature parameters (35±2°C for mesophilic, 55±2°C for thermophilic) near the incubation chamber, using distinct color-coding (blue gradients for mesophilic, red for thermophilic) to differentiate zones. Include a cross-referenced table adjacent to the diagram listing C:N ratios (20–30:1 optimal) and volatile solids (>75% VS for reliable results).
Integrate gas collection points with volumetric symbols–graduated gasbags (≥3L capacity) or liquid-displacement columns containing 3% NaOH solution for CO₂ scrubbing. Mark key measurement intervals (Day 1, 3, 7, 14, 28+) along the timeline, linking each to a cumulative yield curve. Use dashed lines for control comparisons and solid lines for test samples. Add a legend clarifying standard conditions (STP) and conversion factors (2.86 kWh/m³ biogas at 60% CH₄).
Embed safety annotations: highlight N₂ purging for anaerobic conditions and hydrogen sulfide scrubbers () if sulfur-rich feedstocks are used. For scalability, append a secondary branched pathway showing continuous-flow systems with hydraulic retention times (15–30 days) and organic loading rates (1–5 kg VS/m³/day). Validate the diagram with peer-reviewed benchmarks–VDI 4630 (Germany) or ISO 11734 norms–cited in a corner box.
Evaluating Anaerobic Digestion Yield Visualization
Use a flow-based layout with three distinct stages: substrate preparation, microbial degradation, and gas output measurement. For substrate preparation, include a heating jacket (35–38°C) and an automated pH adjuster (6.8–7.4 target range) before feeding into the digester vessel. Represent microbial activity with layered arrows–thicker arrows for hydrolysis and acetogenesis phases, thinner for methanogenesis–color-coded by retention time (15–30 days, dark blue to light green gradient). Place inline sensors (volatile solids reduction % and biogas volume) between layers, linking to a real-time data logger via RS-485.
Key Components to Include
- Influent feedstock: specify total solids (8–12%), volatile solids (75–85% of TS), and carbon-to-nitrogen ratio (20–30:1) in a labeled inlet box.
- Digestion chamber: show temperature zones (mesophilic 30–40°C, thermophilic 50–60°C) with optional jacket symbol for heat exchange.
- Biogas flow path: directional arrows with CH₄ (50–75%) and CO₂ (25–50%) composition, incorporating a sulfate reducer step if H₂S exceeds 1000 ppm.
- Effluent stream: include sludge dewatering (centrifuge or press) and recirculation loop (20–30% volume) for inoculum retention.
- Label retention time in days above each arrow segment; use dashed lines for recirculation paths.
- Add a secondary Y-axis on the right for cumulative gas production (L/kg VS) aligned with substrate consumption.
- Incorporate a small inset bar chart comparing yield variability (150–400 L/kg VS) across feedstocks (manure, crop residues, food waste).
Core Elements of an Anaerobic Digestion Assessment Blueprint
Begin with a substrate input module clearly labeled for organic feedstock classification–separate streams for agricultural (crop residues, manure), industrial (food waste, brewery sludge), and municipal (sewage sludge, organic fraction of MSW) origins. Specify dry matter content (DM) and volatile solids (VS) percentages directly adjacent to each feedstock icon to eliminate ambiguity; e.g., corn stover (92% DM, 88% VS) versus cattle slurry (8% DM, 75% VS). Include a volumetric throughput annotation (L or m³ per batch) to enable accurate scaling in downstream calculations.
Integrate a reaction vessel segment–depicted as a sealed, insulated chamber–annotated with retention time (HRT in days), temperature regime (mesophilic 35–40°C or thermophilic 50–55°C), and mixing method (mechanical, hydraulic, or gas recirculation). Embed a pH monitoring node upstream of the vessel, tied to an automatic dosing system for alkalinity adjustments (NaOH or Ca(OH)₂), with a target range of 7.0–7.5 to prevent acidification. Connect this to a biogas outlet leading to a purification stage: H₂S scrubbing (iron oxide or activated carbon), CO₂ removal (water scrubbing or membrane separation), and moisture condensation (chilled heat exchanger at 5°C).
Place a data acquisition layer parallel to physical components: include inline sensors for biogas composition (CH₄/CO₂ ratio via infrared spectroscopy or gas chromatography), volume meters (drum-type or ultrasonic), and VS reduction monitors (TSS/VSS analysis ports). Link sensor outputs to a centralized control unit displaying real-time BMP expressed in L per kg VS added–calibrated against a standard inoculum (e.g., digested sludge with ≥20 g VS/L and
Step-by-Step Process Flow in Anaerobic Gas Production Assay Setup
Select and prepare substrate samples immediately. Use 0.5–2.0 g of volatile solids (VS) per 100 mL of inoculum, adjusting based on expected gas yield. Dry, non-toxic materials like cellulose or food waste require finer particle size (≤2 mm) to maximize surface area exposure. Pre-treat lignocellulosic substrates with 0.5% NaOH at 55°C for 24 hours if degradation rates are critical. Weigh samples in triplicate for statistical reliability.
Inoculum must originate from a stable anaerobic digester with active microbial consortia–preferably mesophilic (35–37°C) or thermophilic (52–55°C). Screen inoculum for pH (7.0–7.5) and volatile fatty acids (VFAs

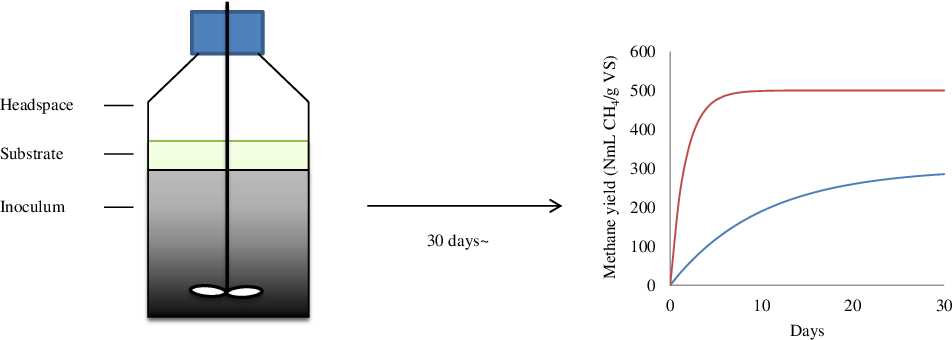

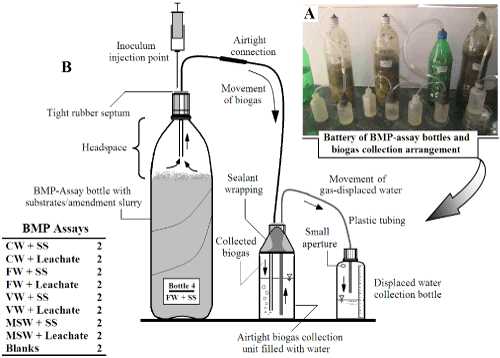

Assemble reactors in 250–500 mL glass bottles or serum vials, leaving 30% headspace. Purge each vessel with nitrogen for 3 minutes to eliminate oxygen (
Gas Collection and Analysis Workflow
Incubate reactors in a shaking water bath (100–130 rpm) or static oven at ±0.5°C target temperature. Connect each bottle to a gas-measuring device–either a graduated water-displacement column (accuracy ±2 mL) or an automated volumetric meter (e.g., Ritter TG series). Collect gas daily for the first 7 days, then twice weekly until cumulative yield stabilizes (≤2% change over 3 consecutive readings). For precise composition analysis, inject 1 mL aliquots into a GC-TCD: expected CH₄/CO₂ ratios range from 55:45 to 70:30. Calibrate the GC weekly with certified 60% CH₄/40% CO₂ standard gas.
Terminate assays after no further gas production is detected–typically 30–50 days for simple substrates, 80–120 days for complex organics. Measure final pH (should remain ≥6.5) and residual VS (ignore if
Common Equipment and Sensors Used in Anaerobic Gas Production Assays
Begin with calibrated gas-tight syringes (10–100 mL) for precise volume extraction and injection during incubation. Choose models with Luer-lock fittings to prevent leaks under positive pressure, particularly when handling high-solids feedstocks that generate rapid gas release.
Select biochemical-grade reactors constructed from borosilicate glass (250–1000 mL capacity) with PTFE-coated septa for sample sealing. Ensure septa are replaced every 3–4 punctures or after exposure to acidic/sulfurous compounds that degrade polymer integrity.
Key Measurement Devices
| Device | Specification | Critical Usage Notes |
|---|---|---|
| Pressure transducers | 0–2 bar range, ±0.1% accuracy | Install upstream of sediment traps to prevent condensation fouling; recalibrate quarterly with N₂ standards |
| Thermal conductivity detectors (TCD) | 0–100% CH₄/N₂/O₂ range, | Avoid H₂S exposure (>50 ppm) which irreversibly poisons tungsten filaments |
| Infrared gas analyzers | 0–50% range, ±0.5% full scale | Use moisture traps with silica gel to protect optical windows from humidity drift ≥10% |
| pH electrodes | 0–14 range, ±0.02 accuracy | Store in KCl solution; replace junction if response time exceeds 30 seconds after 12-month use |
Implement magnetic stirrers with PTFE-coated stir bars (30–60 mm length) operating at 120–200 rpm. Avoid speeds above 250 rpm which create vortex turbulence that traps gas bubbles, distorting volume calculations. For viscous slurries (>15% TS), switch to overhead impellers with 45° pitched blades to maintain suspension uniformity without dead zones.
Use 316 stainless steel tubing (1/8″ OD) for gas transfer lines; copper or PVC alternatives risk corrosion from trace H₂S or NH₃. Install inline filters (0.22 µm PTFE membrane) before analytical instruments to capture aerosolized particulates ≥0.5 µm that skew detector baselines. Replace filters weekly or if differential pressure exceeds 0.5 psi.
Deploy data loggers with ≥12-bit resolution recording at minimum 1-minute intervals. Configure alarms for pressure drops ≥10% from baseline, indicating septum failure or reactor seal compromise. For ambient temperature control, use water baths maintaining ±0.1°C stability or forced-air incubators with redundant heating coils to prevent sample stratification during 30–60 day runs.
Secondary Validation Tools
Combine primary gas sensors with liquid displacement apparatus (e.g., Mariotte bottles) during method validation. Fill bottles with 1% NaOH solution to scrub CO₂, allowing direct quantification of residual flammable gas volume. For high-throughput screening, pair automated headspace samplers with 96-well microplates capped with elastomeric septa; ensure septa hardness ≥45 Shore A to withstand repeated piercing without coring.
