Before assembling any energy conversion unit, map the signal path from input to output. Use a block representation with precise labels for each stage: the sensing element (e.g., piezoelectric crystal or strain gauge), conditioning circuitry (amplifiers, filters), and final output interface (analog-to-digital converters or power drivers). Missing or misplacing one block will cascade into phase shifts, impedance mismatches, or signal degradation.
For a basic force-to-voltage setup, wire the primary element to a differential amplifier with high input impedance (≥1 GΩ) to prevent loading errors. Connect a low-pass RC filter (cutoff ≤ 10 kHz) immediately after to suppress high-frequency noise. Avoid shielding gaps–ground loops between components can introduce ±10 mV of drift per meter of unshielded cable. Use twisted-pair wiring for all low-level signals under 1 V.
Power supply isolation is critical. Dedicate a separate voltage regulator for the sensing side (±2.5 V for strain gauges) and keep digital logic power (±3.3 V or +5 V) on another rail. Crosstalk between rails above 50 mV will distort readings. Include reverse polarity protection (e.g., Schottky diodes) on all power inputs–replacing a fried op-amp costs 3x the price of this safeguard.
Test incrementally: verify excitation voltage at the sensor (+1.5 V for RTDs), then measure raw output (≈20 mV for 1 kg load), then confirm amplification gain (100x for typical ADC ranges). Skip this step, and debugging a non-functional board later takes 8–12 hours longer. Keep a spare 1 kΩ precision resistor ready to validate the filter cutoff frequency before final assembly.
If interfacing to microcontrollers, use a dedicated ADC channel–shared channels create jitter up to ±1.5 LSB. For dynamic loads (e.g., acoustic waves), add an anti-aliasing filter with cutoff ≥ 0.5×sampling rate. Omitting this risks folding harmonics into the baseband, rendering frequecies above 1 kHz unusable.

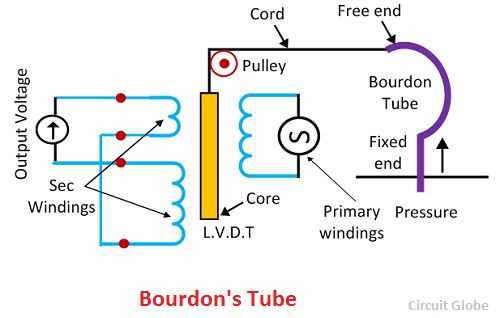

Electrical Representation of Sensor Components
Begin by identifying the core functional blocks in your sensor’s circuit layout. Typical configurations include an input stage (signal acquisition), a conversion block (mechanical-to-electrical or vice versa), and an output stage (signal conditioning). For resistive sensors, such as strain gauges, the input stage must incorporate a Wheatstone bridge to detect minute resistance changes–ensure excitation voltage matches sensor specifications, typically 5V or 10V, to avoid saturation or insufficient sensitivity.
Use this reference table for common sensor types and their critical parameters:
| Sensor Type | Key Parameter | Typical Range | Recommended Excitation |
|---|---|---|---|
| Piezoelectric (acceleration) | Charge sensitivity | 2–50 pC/g | High-impedance amplifier |
| Thermocouple (K-type) | Seebeck coefficient | 40 μV/°C | Cold-junction compensation |
| Strain gauge (metal foil) | Gauge factor | 2.0–2.1 | Wheatstone bridge (5V–10V) |
| Ultrasonic (distance) | Resonant frequency | 30–500 kHz | Pulse generator (10–20 Vpp) |
Isolate high-impedance nodes to minimize noise coupling–shielded twisted-pair cables reduce capacitive interference by 90% in environments with switching power supplies. For piezoelectric or capacitive elements, add a low-leakage JFET at the sensor’s terminals; leakage currents below 1 pA prevent signal drift during long-term measurements. Ground the shield only at the amplifier’s input to avoid ground loops.
When designing the conversion block, match the amplifier’s bandwidth to the sensor’s response. Thermocouples require DC-coupled amplifiers, while piezoelectric accelerometers need AC-coupled stages to reject DC offsets caused by thermal effects. Use the following formula to calculate the required gain: Gain = (Output Voltage Range) / (Sensor Sensitivity × Input Range). For a K-type thermocouple with 40 μV/°C sensitivity and a 0–500°C range, target an amplifier gain of 250 to achieve a 0–5V output.
Include overvoltage protection in the output stage–TVS diodes clamp transient spikes exceeding ±0.7V above the supply rails. For 4–20 mA current loops, use a precision resistor (e.g., 250 Ω) at the receiver to convert current to voltage; ensure the resistor’s tolerance is ≤0.1% to maintain accuracy. Optoisolators with a CMRR ≥ 100 dB isolate digital interfaces from analog noise, critical in industrial applications with inductive loads.
Validate the circuit with a function generator substituting the sensor–sweep frequencies from 1 Hz to 10× the sensor’s bandwidth to verify linearity. Phase shifts >5° at the upper frequency indicate parasitic capacitances requiring compensation. For digital outputs, use differential signaling (e.g., RS-485) if cable lengths exceed 10 meters; single-ended paths (TTL, CMOS) introduce errors above 1 meter due to ground potential differences.
Document component values and test voltages directly on the layout. Label test points with expected signals (e.g., “TP1: 2.5V ±0.1V”) and tolerances. Replace generic op-amps with precision models (e.g., OPA2333 for low-offset voltage
Core Elements in Sensor Conversion Blueprints
Begin by identifying the sensing element–the primary interface converting physical variables (pressure, temperature, flow) into an electrical signal. Common variants include piezoelectric crystals for vibration detection, strain gauges for mechanical stress, or thermocouples for temperature gradients. Verify material composition in the layout: quartz for stability, nickel-chromium alloys for robustness, or silicon for microfabricated designs. Ensure the element’s placement aligns with signal path optimization, minimizing parasitic capacitance or thermal drift.
Examine the signal conditioning stage next–critical for amplifying, filtering, or linearizing raw output. Key subcomponents typically include:
- Operational amplifiers (e.g., rail-to-rail op-amps for low-voltage designs)
- ADC modules (12-bit minimum for industrial applications, 16-bit for precision instruments)
- RC/LC networks for noise rejection or bandpass filtering
- Voltage references (shunt types for high-current stability, series for low-power)
Calculate gain ratios preemptively; mismatched levels introduce clipping or resolution loss. Prioritize low-noise topologies like chopper-stabilized amplifiers for sub-millivolt inputs.
Power Delivery and Interface Protocols
Trace power rails first–isolate analog and digital supplies to avoid ground loops. Note decoupling capacitors (X7R ceramic, 0.1µF–10µF per rail) placed from IC pins. For battery-powered units, incorporate:
- Switching regulators (buck/boost) with >85% efficiency at 2–500mA loads
- LDOs (low-dropout) for noise-sensitive analog sections, with
Interface protocols dictate integration ease–I²C for compact sensors (SPI for high-speed data (>10MHz), or 4–20mA loops for industrial immunity. Validate pull-up resistors on open-drain outputs (4.7kΩ typical for 3.3V logic) and termination resistors for differential pairs (120Ω for CAN/LVDS).
How to Interpret Signal Flow in Sensor Interface Drawings
Identify the input terminal first–this is where the physical quantity (pressure, temperature, vibration) enters the system. Trace the conductive paths from this point to the sensing element, noting any resistors, capacitors, or inductors that modify the raw signal before processing. The sensing element often converts the physical parameter into an electrical analog, such as a voltage drop across a strain gauge or a current from a piezoelectric cell.
Observe how the analog signal is routed to amplification stages. Operational amplifiers (op-amps) or instrumentation amplifiers typically follow the sensing element, increasing the signal strength to detectable levels. Check for feedback loops–these stabilize gain and reduce noise. If the drawing includes filtering components (RC networks, active filters), note their cutoff frequencies; these define the signal bandwidth.
Look for analog-to-digital converters (ADCs) if the interface transitions from continuous to discrete signals. ADC placement defines whether preprocessing occurs in analog or digital domains. Count the bits of resolution (e.g., 12-bit, 16-bit) to estimate precision. The downstream digital bus (SPI, I2C, UART) dictates data formatting and transmission speed.
Mark ground references–analog and digital grounds should not mix. Star grounding or separate planes prevent crosstalk. If the drawing includes isolation barriers (optocouplers, transformers), confirm where the signal crosses domains to avoid ground loops.
Common Pitfalls in Trace Analysis
Misreading power rails leads to incorrect voltage assumptions–verify supply lines feeding op-amps and ADCs, as underpowered components distort signals. Ignoring parasitic elements (trace inductance, stray capacitance) undermines high-frequency performance. Use a multimeter to confirm rail voltages if the drawing lacks annotations.
Overlooking reference voltages for ADCs or comparators skews measurements. Check if references are internal (bandgap) or external (precision voltage regulators). Lack of decoupling capacitors near ICs invites noise–place ceramic capacitors (0.1 µF) directly between power and ground pins.
Assume nothing about signal polarity–diodes and transistor configurations (common-emitter vs. common-collector) invert or buffer signals unexpectedly. Verify polarity-sensitive elements like electrolytic capacitors; reversed connections degrade performance or destroy components.
Trace enabling signals (chip-select, standby pins) last. These controls gate signal flow but are often omitted from simplified drawings. Confirm timing requirements–delays between enable and valid data can invalidate readings if overlooked.
