For optimal performance, connect the low-voltage control unit’s common terminal to the transformer’s neutral side. Use 18-gauge solid copper wire to minimize signal interference–any thinner risks voltage drop. Strip only 5mm of insulation to ensure full conductor contact without shorting adjacent terminals. If the system includes a heat pump, bypass the auxiliary stage when wiring the primary power circuit to prevents false activation.
Verify that the power source matches the unit’s rating (typically 24VAC, 50/60Hz). A mismatch will cause erratic cycling or complete failure. Before energizing, test continuity between the control input and output terminals with a multimeter set to 2kΩ range–a reading above 0.5Ω indicates corrosion or loose connection requiring re-crimping.
Label each conductor at both ends (e.g., R, W, Y, C) to avoid miswiring, especially in multi-zone setups. For single-stage systems, link the heating terminal directly to the furnace relay board; dual-stage requires a separate jumper to the stage-two output. Ground the chassis to the electrical panel’s neutral bus–never to a gas pipe–using a dedicated 12-gauge conductor.
Install a surge suppressor rated for 330V across the transformer’s primary leads if the supply is prone to spikes. Check the manufacturer’s resistance specifications–exceeding 3% deviation from the listed value may trigger safety lockouts. For outdoor units, secure all splices with waterproof butt connectors and seal with adhesive-lined shrink tubing.
Understanding Electrical Signal Control Device Connection Layouts
Start by identifying the power source terminals on your control unit–typically marked L (live) and N (neutral). Ensure the circuit is de-energized before handling any connections to prevent accidental short circuits or injury. Use a multimeter to confirm the absence of voltage at the input points.
Connect the incoming power lines to the corresponding terminals on the unit. The live wire (usually black or red) attaches to the L terminal, while the neutral (white or blue) connects to N. For models with a ground terminal, secure the green or bare wire to the designated screw.

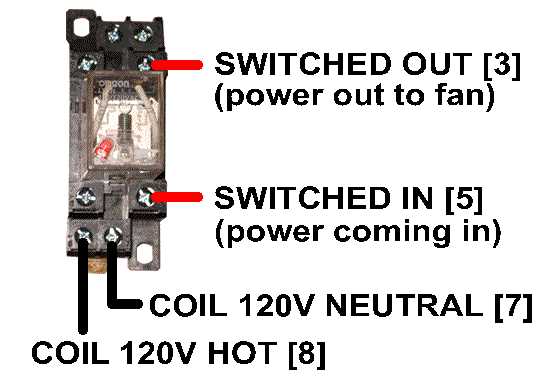

Examine the secondary side of the device, where the load will be managed. Most configurations include output terminals labeled 1 and 2, or COM (common) and NO (normally open). If the device features a changeover function, an additional NC (normally closed) terminal may be present.
For basic on/off operations, wire the load directly to the COM and NO terminals. The primary circuit will complete when the unit activates, energizing the connected device–such as a pump, valve, or fan. Verify the load’s voltage requirements match the control unit’s specifications to avoid damage.
When configuring a two-stage setup–such as heating and cooling–use the changeover contacts (COM, NO, NC). Route the first load to COM and NO, then connect the second to COM and NC. This allows the system to alternate between two outputs based on the control signal.
- Use 18-22 AWG solid copper wire for low-current signals.
- Avoid aluminum wiring due to oxidation risks over time.
- Secure all connections with terminal screws, ensuring no exposed strands remain.
- Label each wire with its function for future troubleshooting.
After completing the connections, restore power and test the operation. Activate the control signal (e.g., thermostat, timer, or sensor) and observe the load’s response. If the device fails to engage, recheck the wiring sequence and terminal tightness.
For advanced setups, consult the product manual for specific voltage ratings, current limits, and compatibility with auxiliary components like transformers or contactors. Some models support 12V, 24V, or 230V inputs–mismatches can lead to immediate failure or fire hazards.
Identifying Terminal Connections on RA89A and RA890F Control Units
Begin by locating the labeled terminals on the RA89A: “R” (power supply), “W” (load output), and “C” (common). The RA89A uses a single-pole configuration where “R” connects to a 24VAC source, “C” links to the thermostat or controller, and “W” directs current to the equipment. For the RA890F, identify four primary terminals: “R,” “C,” “W1,” and “W2.” Here, “R” and “C” function identically to the RA89A, while “W1” and “W2” split the load for staged output–ensure correct pairing to avoid misfiring stages.
Verifying Polarity and Voltage Compatibility
Use a multimeter to confirm voltage between “R” and “C” on both models; expect 24VAC (±10%). The RA890F’s “W1” and “W2” must never exceed the rated load–typically 2A per terminal. Reverse polarity (e.g., connecting “C” to the power source) will damage the internal circuitry. For single-stage applications, leave “W2” unconnected on the RA890F to prevent unintended activation.
Check for auxiliary markings like “COM” or “NO” (normally open) on some RA890F variants–these indicate dry-contact configurations. If present, “COM” replaces “C,” requiring a separate power source for the control circuit. Always refer to the etched symbols on the housing; faded labels can be cross-referenced with the product’s technical sheet for exact terminal assignments.
Step-by-Step Electrical Conversion Guide: 24V to 120V Using an Automated Control Component
Begin by disconnecting all power sources to prevent shorts or accidental activation. Identify the 24V control circuit terminals (typically marked as COM, NO, NC) and the 120V load terminals on the unit. Use a multimeter to verify the absence of voltage on both input and output sides before proceeding.
Connect the low-voltage source to the control side by attaching the positive (+) 24V wire to the COM terminal. The corresponding switching output (NO or NC) depends on the desired behavior: NO closes the circuit when energized, while NC opens it. For most applications, NO is preferred to activate the load only when triggered.
Securing High-Voltage Connections
Strip ¼ inch of insulation from the 120V load wires and insert them into the designated high-voltage terminals (often labeled L1/L2 or LINE/LOAD). Tighten screws firmly–loose connections cause overheating. For inductive loads (e.g., motors, transformers), add a snubber circuit (0.1µF capacitor in series with a 120Ω resistor) across the high-voltage terminals to suppress voltage spikes.
Route the high-voltage wiring through a dedicated conduit if the installation spans a distance greater than 3 feet. Use 12-gauge wire for currents up to 20A and 10-gauge for 30A circuits. Avoid mixing low and high-voltage wires in the same conduit to prevent electromagnetic interference.
Testing and Troubleshooting
Reapply power to the 24V control circuit only. Verify the control component clicks audibly when energized. If no sound is heard, check the 24V supply with a multimeter–voltage should read 23-28V. Next, activate the control signal; the 120V load should power on within 0.5 seconds. If not, inspect the load terminals for correct polarity and secure connections.
For intermittent failures, measure voltage drop across the high-voltage terminals while the load is active. A drop exceeding 5V suggests resistance in the circuit–recheck wire gauges, terminal tightness, and connections. If the unit operates but trips breakers, reduce the load or install a soft-start mechanism to limit inrush current.
Finalize the setup by securing all wires with zip ties and labeling both low and high-voltage sides for future maintenance. Re-energize the system and monitor for 10 minutes; no unusual heat, odor, or noise should occur. Document the configuration, including wire colors, terminal mappings, and load specifications, for reference during later adjustments.
Avoid These Frequent Errors During Control Module Installation
Skipping voltage verification at terminal points ranks as the most overlooked error during setup. Use a multimeter before connecting any leads–mismatched currents (e.g., 24VAC on a 120V line) will fry the module within seconds. Most manuals specify acceptable ranges in a table beneath the connection illustrations; refer to this before proceeding. Mistakes here often go unnoticed until the device fails, generating costly service calls.
Improper polarity ties directly to cascading failures in linked systems. Label each conductor before stripping insulation: red = positive, black = negative, green = ground. Swapping these in a low-voltage thermostat circuit causes erratic cycling, draining compressors prematurely. For zones using 7-day programmable timers, reversed polarity scrambles internal memory, resetting schedules unexpectedly. Always double-check terminal screws after tightening; slight vibration loosens connections overtime, leading to intermittent faults.
| Conductor Color | Terminal Assignment | Typical Application |
|---|---|---|
| Red | R, Rh, Rc | Power input |
| White | W, W1 | Heating call |
| Yellow | Y, Y1 | Cooling call |
| Green | Ground | Safety earthing |
Overtightening small-gauge wires onto compact terminals splits insulation, exposing live copper. Apply torque consistent with a standard flathead screwdriver–no more than 0.5 Nm. Loose strands left under screws create resistive heating, melting wire jackets and triggering shorts. For stranded conductors, use crimped ferrules instead of twisting strands; this prevents faux contact points that intermittently break circuits under vibration.
Neglecting surge protection invites transient voltage spikes from nearby motors or storms. Install a 15-amp snubber across power inputs if the environment includes inductive loads (pumps, compressors). Omitting this results in microsecond spikes exceeding 600V–far above the module’s 30V tolerance. Replace surge suppressors every 5 years; failed units silently pass damaging energy, voiding warranties when components fail.
Bypass jumper configurations during staged equipment hookups guarantees irregular operation modes often mistaken for hardware failures. Typical configurations include:
– Single transformer setups requiring Rc-Rh jumpering
– Dual transformer layouts needing isolation
Misrouting these creates phantom calls for heating or cooling, spiking energy costs by 28%. Follow the manufacturer’s stage-sequence diagram precisely; deviations confuse internal logic, triggering unnecessary defrost cycles in heat pumps.
Connecting multiple low-voltage loads onto undersized conductors causes voltage drop across runs exceeding 3%. Calculate conductor size based on NEC Table 9, adjusting for distance: 18 AWG suffices for 20 feet under 1 amp, beyond that upsize to 16 AWG. Undersized cables overheat, degrading insulation and creating intermittent shorts–PVC-rated cable reaches 167°F at sustained 120% load, accelerating jacket embrittlement.
Ignoring ambient environmental factors dramatically shortens component lifespan. Units mounted near steam pipes or direct sunlight exceed operating ratings (32° to 122°F), leading to overheating. Moisture ingress through unsealed conduit entries corrodes copper traces within weeks; apply dielectric grease to all electrical connections exposed to condensation. Humidity levels above 80% promote fungus growth inside enclosures, creating conductive paths between close-proximity traces.
