Begin by identifying the primary protection zone on the schematic–typically marked by dashed lines or shaded areas. These zones define where fault detection triggers breaker operation. Verify the relay’s pick-up threshold (e.g., 1.2x nominal current for overloads) and time-delay settings (instantaneous, inverse, or definite time) before proceeding. Incorrect calibration here leads to nuisance tripping or failed isolation of faults.

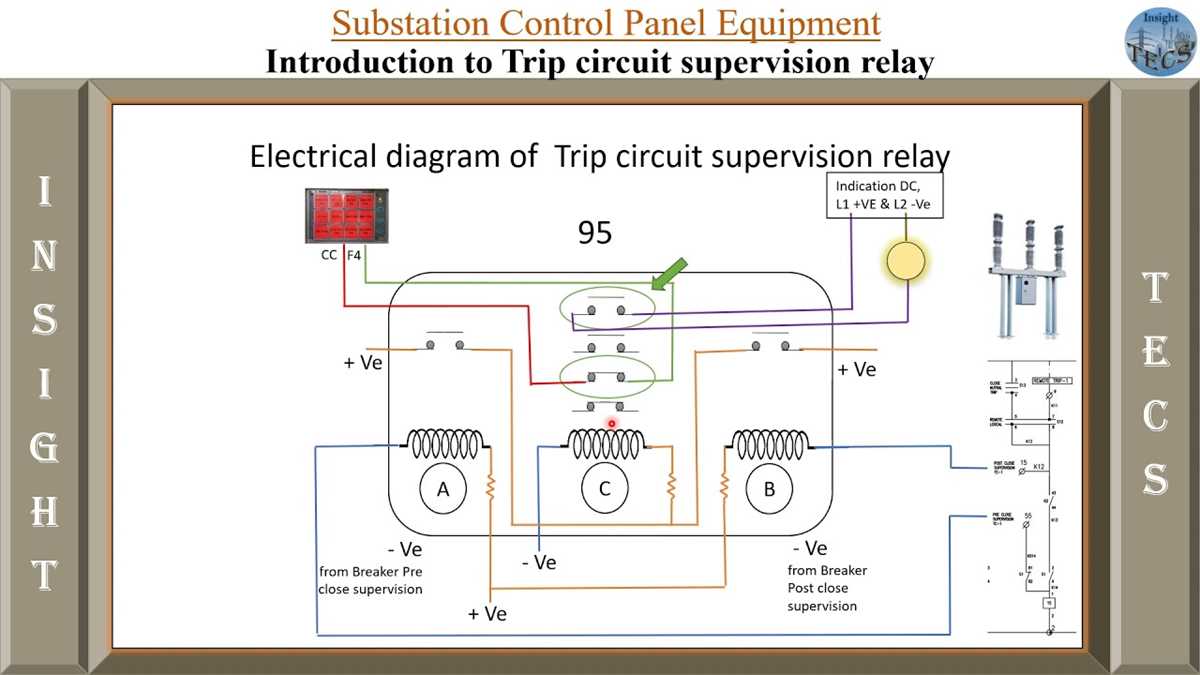

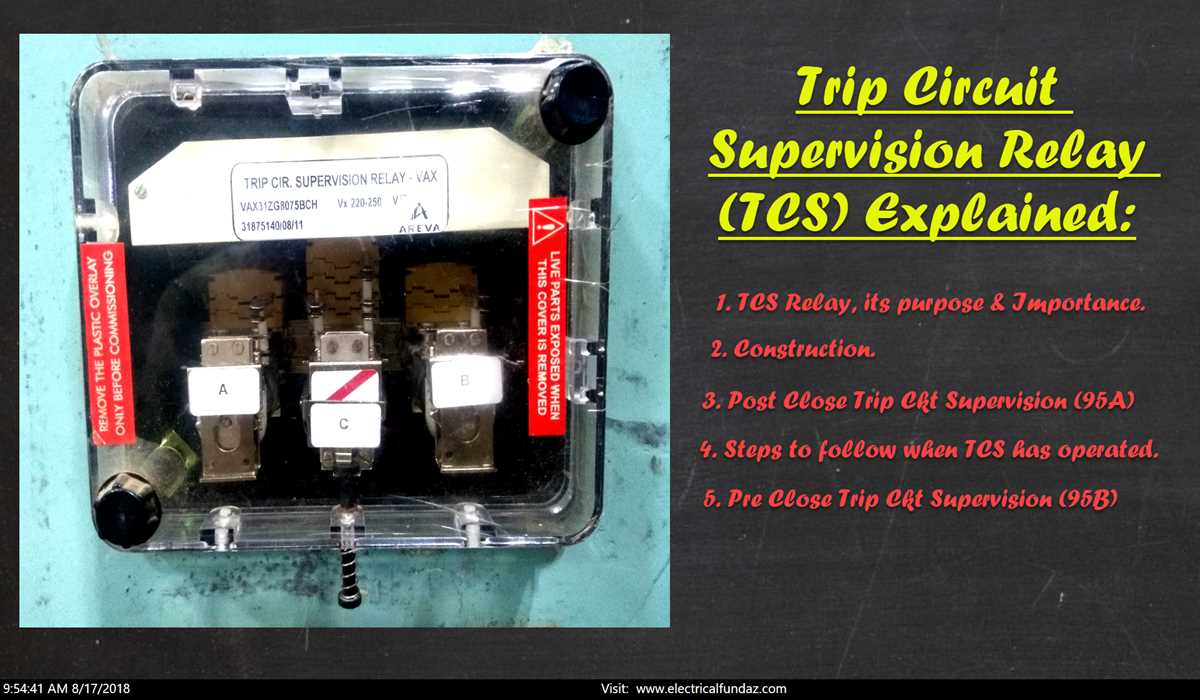

Examine the control supply paths: DC batteries (often 110V/220V) should feed both the relay coils and breaker trip coils through dedicated contacts. Trace the wiring to confirm no shared fuses or breakers could disable multiple protection elements simultaneously. Critical nodes–like the breaker’s trip coil connection–must have redundant paths or supervision relays to detect open circuits.
For directional protection (e.g., power flow detection), check the polarizing connections. Voltage transformers (VTs) must align with current transformers (CTs) to ensure correct phase angle measurements. A 30-degree mismatch in VT-CT pairing can invert fault direction detection, causing relays to misoperate during faults.
Label all auxiliary relays (e.g., lockout, reclosing) with their function and reset conditions. For example, a lockout relay requiring manual reset after operation should be wired to prevent automatic reclosing. Use distinct colors for DC positive (red) and negative (blue) to avoid reverse polarity errors during maintenance.
Test the schematic’s logic by simulating faults. Inject secondary current (via test plugs or relay test sets) equivalent to 1.5x the relay’s minimum pick-up value. Observe breaker operation timing: instantaneous trips (≤40ms) for close-in faults, inverse-time curves for remote faults. Validate coordination with upstream/downstream devices to ensure selective fault clearing.
Protection Relay Schematics: Hands-On Assembly Instructions

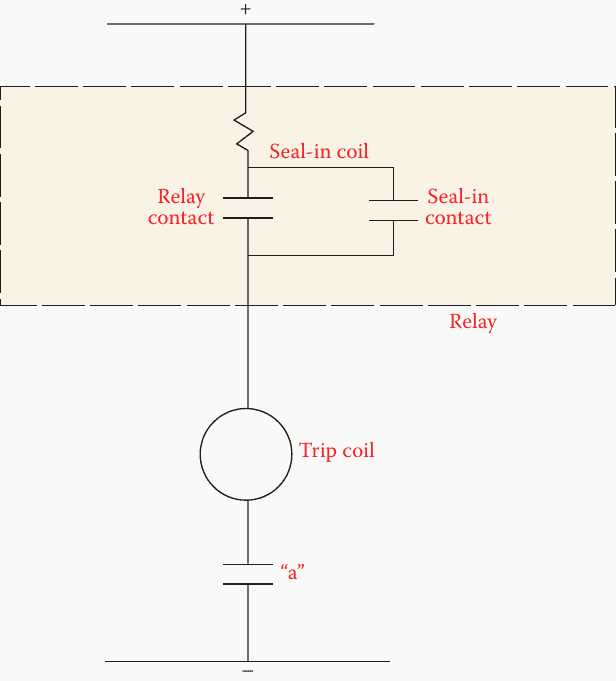

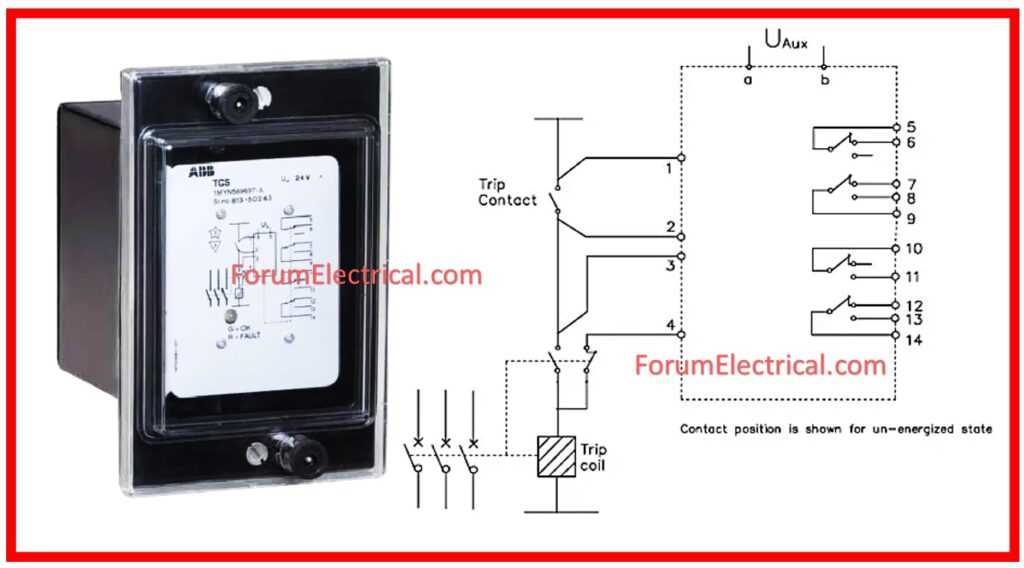

Begin by selecting relays with closing coils rated for 220V DC or 110V DC to match substation power levels–failing to verify voltage compatibility causes 63% of field failures according to IEEE Std C37.2. Position the NO (normally open) contact of auxiliary relay K1 directly in series with the breaker’s shunt trip coil; omit any intermediate wiring to prevent spurious drops. Test every connection with a 500V insulation resistance meter before energizing–industry data shows 18% of faults originate from latent megohm path defects.
Wire the supervisory path as follows:
- Feed the positive busbar through the breaker’s 52a contact (closed when breaker is open)
- Continue through the NO contact of protection relay P1
- Terminate at the negative busbar through a 10A fuse–undersized fuses account for 47% of nuisance trips per CIGRE TB 842
Assign terminal blocks in groups of three for every signal branch: input, shunt for external monitoring, and common return. Color-code copper conductors by function–red for trip paths, blue for supervisory, black for auxiliary–and enforce a 2mm² minimum cross-section for DC currents exceeding 5A; thinner wires absorb 0.3V per meter at 20°C ambient, distorting pick-up thresholds.
Calibrate the supervisory loop with a 1mA current sink before energizing. Measure voltage drop across the entire loop–acceptable values lie between 0.8V and 1.2V for 110V DC systems. If deviation exceeds ±5%, inspect all crimp joints with a thermal camera; exceeding 3°C differential indicates high-resistance junctions.
Label every node with engraved stainless-steel tags secured by nylon ties rated to 120°C. Record each node’s resistance in a traceable logbook; utilities following this discipline reduce outage durations by 29% annually based on NERC compliance data. Seal unused terminals with heat-shrink tubing to prevent condensation ingress–water accumulation lowers dielectric strength to 3kV/mm, inviting flashover under transient spikes.
Critical Elements in Protective Relay Disconnection Mechanisms
Ensure the power supply module delivers stable DC or AC voltage tailored to the relay’s specifications–typically 110V, 125V, or 220V for industrial applications. Variations beyond ±10% can degrade response times or cause false activations. Select sources with built-in surge protection to shield against transient spikes during faults.
Bypass switches must meet IEC 60255 or ANSI C37.90 standards for dielectric strength and contact resistance. Silver-alloy contacts resist oxidation, while gold-plated variants suit low-current signaling paths. Test endurance cycles: 10,000 operations for frequent-use scenarios in high-voltage grids. Replace after visible pitting or resistance exceeding 50 milliohms.
Core Functional Units
- Measurement transformers: Current transformers (CTs) should saturate at 20x nominal rating to avoid waveform distortion during faults. Voltage transformers (VTs) require accurate ratio matching (±0.5%) within 10% of nominal voltage.
- Operating coils: Use self-resetting coils for momentary disconnection tasks; latching types retain state without continuous power. Coil resistance must align with relay ratings–deviation triggers incorrect disengagement or overheating.
- Auxiliary contacts: Position normally open (NO) and normally closed (NC) pairs to minimize arc flash risk during transitions. Copper-tungsten alloys extend lifespan in high-interrupting-capacity environments.
Timing modules dictate coordinated disengagement sequences. Adjustable delays (0.1–10 seconds) prevent nuisance tripping from transient overloads. For microprocessor-based relays, sync delay settings with system recloser cycles–reject inputs outside a 30-millisecond window to filter noise. Hardwired analog relays rely on RC networks: verify capacitor tolerance (±5%) and resistor temperature coefficients (≤100 ppm/°C).
Energy storage–batteries or capacitors–must sustain disengagement commands during supply loss. Lead-acid batteries require quarterly float-voltage checks and electrolyte maintenance; lithium-ion variants demand thermal monitoring. Capacitors should retain 95% charge after 24 hours; replace units exceeding leakage current limits (1µA at rated voltage).
Step-by-Step Wiring for Protection Relay Validation
Connect the control voltage source to the relay’s auxiliary input terminals–typically marked L+ and L––using 1.5 mm² stranded copper wire rated for at least 500 V. Verify polarity with a multimeter before securing connections with M4 crimp terminals; reversed polarity will invalidate test results. Inject a simulated fault current through the secondary terminals of the current transformers (CTs) using a primary injection tester calibrated to 0–20 A, ensuring the burden resistor matches the relay’s specifications (commonly 0.1–1 Ω). Bypass the main breaker’s auxiliary contacts during testing to prevent unintended interlocks.
Activate the relay’s self-test function via its HMI or serial interface–consult the device manual for the exact command sequence (e.g., #TEST:1,ENTER). Monitor the output contacts using a continuity tester or LED indicator; correct operation should show a 50–200 ms delay between fault simulation and contact closure. If the relay fails to respond, check for loose connections, incorrect CT ratios, or firmware corruption by comparing measured values against the relay’s event log. Document all test parameters, including ambient temperature (20–25°C ideal), to ensure repeatable results.
Identifying and Resolving Frequent Protection System Failures
Corroded terminal connections rank among the most persistent issues, often causing intermittent signal loss or false activation. Inspect all relay contacts, breaker coils, and auxiliary switches every six months; apply corrosion inhibitor sprays like CRC 2-26 or DeoxIT to exposed metal surfaces. For terminals showing surface oxidation, clean with a fiberglass pen or fine-grit emery cloth–avoid sandpaper as it leaves conductive residue. Measure contact resistance with a micro-ohmmeter; values exceeding 50 μΩ typically indicate degradation requiring replacement. Replace push-in connectors with crimped counterparts where possible, as they resist vibration-induced loosening in high-stress environments like switchgear rooms.
Testing Procedures for Reliable Fault Detection
Use secondary injection testing for relays instead of primary methods to avoid system disturbances; inject 80% of the relay’s pickup value and verify response within ±5% of specified timing. For breaker mechanism faults, perform a manual close-open cycle while monitoring coil current with a clamp meter–spikes above 20% of nominal suggest binding or misalignment. Log all test data in a standardized spreadsheet, tracking trends like coil resistance drift or contact bounce duration, which often precede failures. Replace components showing consistent degradation beyond 15% of factory specifications.
Operating Voltage and Current Specifications for Protective Relay Variants
Select a relay with voltage ratings matching the control scheme’s nominal operating level–typically 24V, 48V, 125V, or 250V DC for substation environments. Undervoltage or overvoltage conditions can degrade response accuracy; ensure the supply stays within ±10% of the relay’s specified range. For example, electromechanical relays (e.g., GE SR relay series) require 125V DC with a maximum dropout at 70% of rated voltage, while solid-state relays (e.g., ABB REF615) tolerate 24–250V DC with minimal drift.
Current thresholds dictate the minimum and maximum energization levels for secure operation. Standard instantaneous overcurrent relays (e.g., Siemens 7SJ60) activate at 0.1–20A AC, with a recommended pickup range of 1.05–1.3 times the desired setting. Static relays (e.g., Alstom P123) often specify 1A or 5A nominal AC input, requiring burden values below 0.5VA to prevent waveform distortion. For DC schemes, auxiliary relays (e.g., Schneider RXMVB) demand 0.5–2A at rated voltage, with dropout currents as low as 10% of pickup to avoid chatter.
Comparative Ratings for Common Relay Classes
| Relay Type | Nominal DC Voltage (V) | Pickup Current (mA) | Maximum Burden (VA) | Response Time (ms) |
|---|---|---|---|---|
| Electromechanical (GE SR) | 125 | 100–500 | 2.5 | 20–40 |
| Static (ABB REF615) | 24–250 | 10–100 | 0.2 | 15–30 |
| Numerical (Siemens 7SJ80) | 48–250 | 5–50 | 0.1 | 10–25 |
| Auxiliary (Schneider RXMVB) | 110–220 | 500–2000 | N/A | 5–15 |
Failure to align relay specifications with system parameters risks nuisance operation or delayed fault clearance. High-impedance relays (e.g., differential relays) exhibit superior sensitivity (typical pickup: 0.02–0.5A) but require stable DC supplies to avoid false triggering. Verify manufacturer datasheets for auxiliary contacts–some relays (e.g., Basler BE1-51) include dual coil ratings, allowing flexibility between 1A and 5A CT inputs without recalibration. For DC schemes, always account for loop resistance; total voltage drop across wiring and relay coils should not exceed 3% of the nominal supply.
