Start with a differential signaling layout using RS-485 transceivers for noise immunity–critical in environments with electromagnetic interference. Select MAX485 or SN75176 chips for reliable data transmission over long cable runs up to 1200 meters without signal degradation. Ground the transceiver’s RE (receiver enable) and DE (driver enable) pins together and pull them high via a 4.7kΩ resistor to +5V to ensure continuous transmission mode.

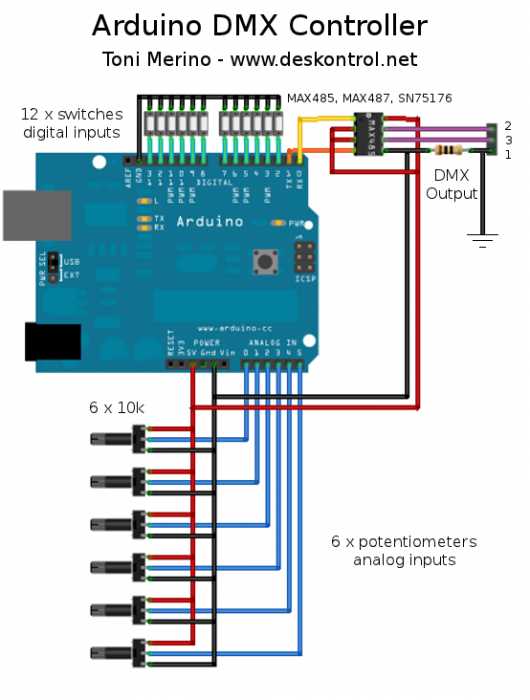

For microcontroller integration, prioritize ATmega328P or STM32F103 for their UART capabilities–the latter supports hardware flow control, simplifying packet handling at 250 kbps. Connect the transceiver’s RO (receiver output) pin to the MCU’s RX pin, and the DI (driver input) pin to TX. Isolate the power supply for the transceiver with a 10μF decoupling capacitor near the VCC pin to prevent voltage spikes.
Avoid common grounding pitfalls: separate the analog and digital grounds, then tie them at a single point near the power source. Use a 120Ω termination resistor at both ends of the data line to match impedance and prevent reflections–omitting this will cause erratic flickering or failed packet delivery. Test signal integrity with an oscilloscope; a clean waveform should show ±2V differential with minimal ringing.
For address decoding, implement a DIP switch or rotary encoder connected to three GPIO pins (for 8-bit addresses). Pull-down resistors (10kΩ) prevent floating inputs, ensuring stable address selection. If using DMX input/output, add an optocoupler (e.g. 6N137) between the transceiver and MCU to isolate the bus from potential voltage surges on connected fixtures.
Power distribution requires a 5V regulated supply with at least 500mA capacity–linear regulators like LM7805 introduce heat; consider a buck converter (e.g. LM2596) for efficiency. Fuse the input with a 500mA resettable PTC to protect against shorts in high-wattage lighting rigs. For safety, add a flyback diode (1N4007) across inductive loads like relays or solenoids.
Debugging starts with verifying packet structure: use a logic analyzer to confirm 512-byte frames with 1 start bit, 8 data bits, 2 stop bits, and no parity. A missing break signal (≤8μs low) will cause slave devices to ignore commands. If flickering persists, check cable shielding–foil-shielded twisted pair (Belden 9841) outperforms unshielded alternatives in electrically noisy venues.
Building a Lighting Control System Schematic
Begin with an isolated 5V power supply for the microcontroller and signal processing stage to eliminate noise. Use a MAX485 transceiver for RS-485 communication at 250 Kbps–its failsafe bias resistors (120Ω across A/B lines) ensure reliable packet delivery even with long cable runs up to 1,200 meters. Connect the transceiver’s RO and DI pins to UART TX/RX with 100nF decoupling caps near the IC’s VCC and GND.
For address decoding, use an 8-bit DIP switch wired to a 74HC151 multiplexer, allowing selection of up to 256 channels. Add a 10kΩ pull-up resistor on each switch line to prevent floating inputs. The multiplexer’s output feeds into an ATmega328P’s interrupt-capable pin (INT0/PD2) for real-time updates without polling delays–critical for maintaining 44μs break detection timing.
Isolate the output stage with optocouplers like PC817 (2.5kV isolation) driving MOSFETs or TRIACs for dimmable LED loads. For incandescent fixtures, use MOC3021 zero-crossing optoisolators paired with BT139 TRIACs. Place a 100Ω resistor in series with each data line at the output connector to dampen reflections in high-frequency signals–this prevents phantom channel activation during power-up sequences.
Breaking Down the Core Elements of a Lighting Protocol Control System
Start with an isolated transceiver module–opt for MAX485 or SN75176–since these ICs handle differential signal conversion. Pair them with a 120Ω termination resistor between signal lines A and B at the endpoint to prevent reflections. Without proper termination, data corruption occurs at baud rates above 250 kbps, especially in setups longer than 15 meters. Test resistance values with a multimeter; incorrect readings indicate faulty wiring or missing resistors.
Microcontrollers like STM32, PIC, or AVR serve as the processing core, but prioritize those with hardware UART for stability. Allocate at least two interrupt pins for signal reception and transmission; software-based serial handling introduces latency. For example, an STM32F103C8T6 offers three UARTs–dedicate one to protocol parsing and another to user input, avoiding shared resources. Memory constraints matter: ensure 8KB+ RAM for buffer storage, particularly if managing 512+ channels.
Power supply requirements vary–3.3V or 5V for logic, but 12V or 24V for fixture drivers. Linear regulators (LM7805) suffice for low-current setups, while switched-mode converters (LM2596) prevent overheating in high-load configurations. Include a 10μF decoupling capacitor near the microcontroller’s VCC pin and a ferrite bead on the power line to suppress noise. Verify voltage stability with an oscilloscope; ripple above 50mV degrades signal integrity.
Avoid using generic shift registers for address decoding. Instead, deploy a dedicated EEPROM (e.g., 24LC64) or flash memory to store fixture profiles. This eliminates the need for manual reprogramming after power cycles. Interface memory via I2C or SPI–use pull-up resistors (4.7kΩ) on I2C lines to ensure reliable communication. For dynamic addressing, implement a rotary encoder or dip-switch array; multiplexers (74HC4051) simplify wiring by consolidating multiple inputs into a single pin.
- RS-485 transceivers: MAX485 (half-duplex), MAX481 (full-duplex).
- Signal cables: shielded twisted pair (STP), 120Ω characteristic impedance.
- Isolation: optocouplers (6N137) for noise immunity.
- Firmware: prioritize interrupt-driven code over polling loops.
- Debugging tools: logic analyzer (Saleae) for real-time signal validation.
Overcurrent protection is non-negotiable–fuses (500mA) or PTC resettable devices on each output channel prevent damage from short circuits. For fixtures with high inrush current (e.g., LEDs or motors), add a soft-start circuit using a MOSFET (IRFZ44N) and RC network (10kΩ + 10μF). Ground loops are a common failure point; use a star topology for ground connections and isolate analog/digital grounds with a 0Ω resistor or inductor.
Step-by-Step Signal Router Assembly Instructions
Begin by securing a 5-pin XLR connector to a stable surface using a vise or clamp–pins facing upward. Strip 15mm of insulation from three 22 AWG stranded copper wires (or equivalent, maintaining ≤0.5Ω resistance per meter). Crimp or solder the exposed ends to the connector’s terminals: wire 1 (green) to pin 1 (ground), wire 2 (red) to pin 2 (data–), and wire 3 (white) to pin 3 (data+). Verify continuity with a multimeter; readings should match:
| Pin | Wire Color | Expected Resistance | Signal Type |
|---|---|---|---|
| 1 | Green | 0Ω (common) | Reference |
| 2 | Red | ≤120Ω (±10%) | Inverted |
| 3 | White | ≤120Ω (±10%) | Non-inverted |
Route the wired connector through a 16mm diameter plastic grommet into an IP65-rated enclosure. Inside, attach the wires to a RS-485 transceiver IC (e.g., MAX485) observing pin assignments: green to GND, red to A (receiver input), white to B (driver output). Solder a 120Ω termination resistor between A and B at the farthest node only; omit for intermediate nodes. Connect a logic-level microcontroller (e.g., STM32) to the transceiver’s DE/RE pins–set DE high and RE low for data transmission. Flash firmware confirming baud rate at 250 kbit/s, with a 88 μs break and 8 μs mark-after-break timing. Test signal integrity using an oscilloscope; differential voltage between A and B must exceed ±200mV peak-to-peak.
Error Prevention Checks
Ensure no two nodes share identical addresses; sequential addressing avoids conflicts. Shielded twisted pair cable (minimum 24 AWG, ≤100pF/m capacitance) eliminates crosstalk over distances >50m. Power the transceiver with a regulated 5V supply (5μA leakage current after 24-hour burn-in.
Selecting the Right Microcontroller for Your Lighting Protocol Project
Begin with an ARM Cortex-M series processor if real-time response and deterministic timing are critical. Chips like the STM32F103 or NXP LPC1768 deliver 72 MHz performance with hardware timers optimized for precise signal generation. Their built-in UARTs handle 250 Kbps baud rates effortlessly, eliminating the need for external transceivers in most cases. Prioritize models with DMA controllers–these offload CPU tasks during frame transmission, freeing resources for effects calculations or user input processing.
For projects under tight power constraints, consider 8-bit AVR microcontrollers despite their slower clock speeds. The ATmega328P runs at 20 MHz and draws less than 5 mA when active, making it ideal for battery-powered installations. Its USART module supports asynchronous communication at the required 250 Kbps rate, though bit-banging may be necessary for multi-channel configurations. Pair it with a MAX485 transceiver for EIA-485 compliance if driving more than four fixtures.
Avoid microcontrollers lacking interrupt-driven USART capabilities unless you supplement them with dedicated hardware. PIC32MX devices, for instance, require careful configuration of their PMP module for reliable data streaming. Problems arise when the core struggles to maintain timing synchronization during simultaneous LED refresh and communication tasks–symptoms include flickering and sporadic command failures. Test any candidate device with a logic analyzer before committing to a layout.
Opt for chips with built-in bootloaders if field updates are anticipated. The ESP32-S3 includes a USB-OTG interface alongside its wireless connectivity, allowing in-circuit firmware updates via a simple drag-and-drop utility. Its dual-core architecture separates communication handling from effect rendering, ensuring consistent frame rates. For wired-only applications, the RP2040 offers an economical alternative with its programmable I/O state machines–these accelerate bit-level protocol handling without CPU intervention.
Verify electrical compatibility before integration. Older microcontrollers may lack 3.3 V tolerance on their USART pins, necessitating voltage dividers or level shifters when interfacing with modern EIA-485 transceivers. Conversely, high-performance chips like the Teensy 4.0 operate at 600 MHz but require careful PCB layout to avoid signal integrity issues–keep trace lengths under 10 cm for clock signals and add termination resistors at stub ends.
Evaluate package options based on assembly constraints. QFN packages permit compact designs but complicate hand soldering. TSSOP variants sacrifice some pin density for easier rework during development. For textured installations, flex PCB-compatible chip-scale packages like the STM32L4Q5’s WLCSP enable bendable designs without sacrificing GPIO count–ensure your manufacturing process supports 0.4 mm pitch pads.
Calculate memory requirements early. Each fixture channel consumes 3 bytes per frame, meaning 512 channels demand 1.5 KB RAM just for transmission buffers. Additional memory is needed for effect patterns–128 KB flash serves basic applications, while 1 MB allows complex animations or LED mapping tables. External SPI flash becomes necessary for storing fixture profiles in professional installations, though it adds latency if accessed mid-frame.
