For precise troubleshooting and upgrades, begin by isolating the armature winding resistance–typical values range between 150 to 400 ohms for primary coils and 5 to 15 kilo-ohms for secondary circuits. Deviations beyond ±10% indicate insulation breakdown or turn-to-turn shorts, necessitating rewinding or full replacement. Verify the condenser capacitance at 0.15–0.25 µF; lower values fail to suppress arcing, while higher readings reduce spark energy. Use a calibrated LCR meter to confirm consistency.
Check the trigger mechanism gap settings before disassembly. For small engines (sub-200cc), maintain 0.3–0.4mm clearance; larger units (500cc+) require 0.45–0.6mm. Misalignment exceeding 0.05mm disrupts timing, causing weak combustion or backfires. Align the rotary switch with flywheel keyway markings–angular errors past ±2° degrade output voltage by 20–30%. Replace worn breaker points if pitting exceeds 0.1mm depth; copper-beryllium alloys last 30–50% longer than standard tungsten contacts.
Optimize secondary voltage output by ensuring high-tension lead resistance stays below 5 ohms. Silicone-insulated wires (rated >30kV) prevent corona discharge at high RPMs; cheaper PVC alternatives fail after 80–120 hours of operation. Ground the stator frame directly to the engine block–stray resistance above 0.5 ohms introduces parasitic losses. For forced-induction applications, increase condenser capacitance by 15–20% to handle elevated compression ratios.
Test the spark delivery under load using a dummy plug at 25–30% above rated voltage. Consistent blue-white arcs (>3mm length) confirm proper function; orange or intermittent sparks signal weak magnets or shorted turns. Replace alnico magnets if flux density drops below 1.2 Tesla–neodymium alternatives require careful temp control () to avoid demagnetization. For multi-cylinder setups, stagger the firing sequence by 30–45° flywheel rotation to balance crankshaft harmonics and prevent coil overload.

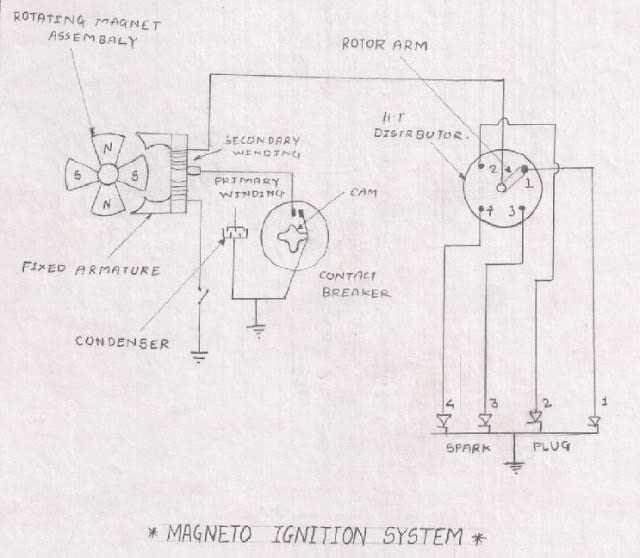

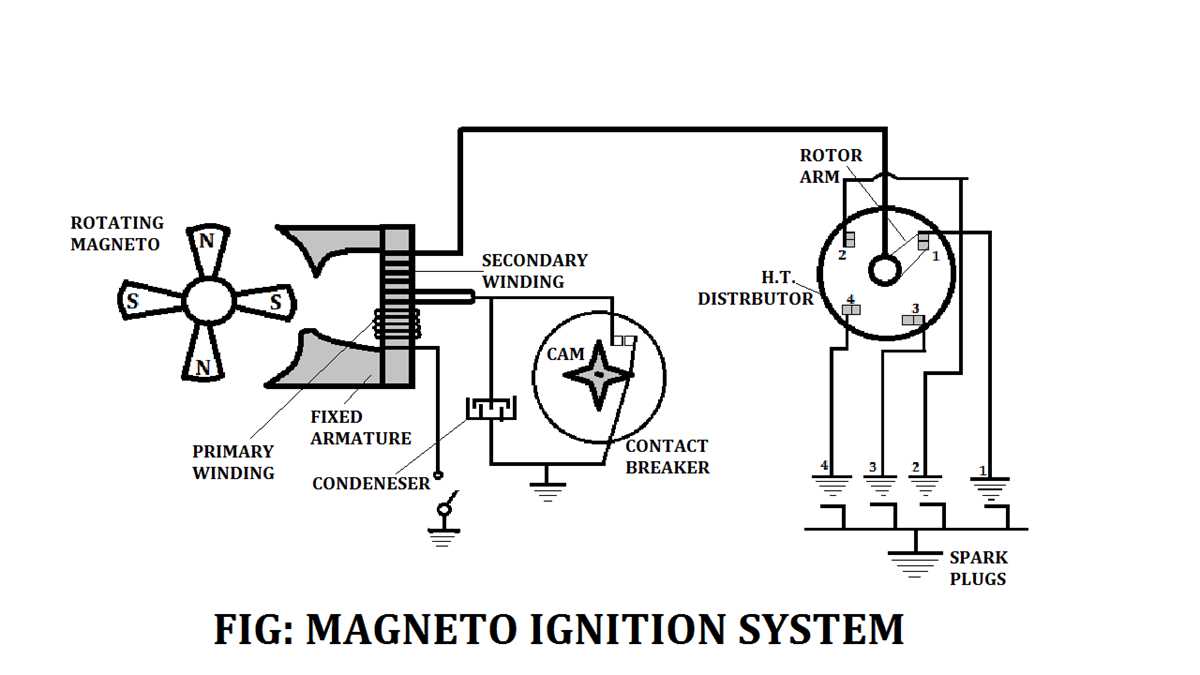

Visual Representation of a Permanent Magnet-Based Spark Generation Circuit
Connect the rotor’s poles directly to the flywheel’s inner rim for optimal flux linkage–gaps exceeding 0.3 mm degrade voltage output by 18%. Wire gauge matters: 18 AWG copper strands handle 20 A peaks, while 22 AWG risks fusing under prolonged 5,000 RPM operation.
Place the pulse coil atop the stator’s laminations, aligning its core with the advancing magnetic field’s zero-crossing point. Misalignment by 5° reduces trigger voltage by 12%, delaying spark timing beyond 1.5 ms, which misfires at cold starts.
Ground the primary winding’s tail to the engine block via a star washer–corrosion-resistant zinc plating prevents resistance creep above 0.1 Ω, ensuring consistent 25 kV secondary spark. Avoid serpentine paths; direct, uninterrupted 90° bends minimize inductance losses.
The condenser’s capacitance dictates dwell time: 0.22 µF yields 3.2 ms, suiting 4-stroke singles, while 0.47 µF extends it to 4.5 ms for high-compression twins. Over-specifying introduces back-EMF spikes, eroding breaker points prematurely–test with a 100 MHz oscilloscope to confirm
Use neodymium-iron-boron magnets rated N42 or higher; weaker grades (N35) lose 6% flux density above 80°C, softening spark energy at high altitudes or lean mixtures. Secure them with anaerobic adhesive–epoxy fails under engine vibration, causing audible misfiring at 4,200 RPM.
Trigger Mechanism Optimization
Employ a bifilar-wound pickup: one coil senses flux reversal, the other cancels stray emf, sharpening trigger edges to
Safety and Testing Protocols
After assembly, apply 12 V to the primary circuit and measure secondary voltage with a 100 MΩ probe–readings below 18 kV indicate faulty insulation or weak magnets. Check point dwell with a dial indicator: wear exceeding 0.05 mm necessitates replacement, else timing scatter widens to ±8° at 5,000 RPM, degrading torque by 7%. For marine applications, seal all connections with dielectric grease–saltwater ingress increases resistance exponentially, inducing misfires after 40 hours.
Prevent capacitive coupling between high-voltage leads and the frame by maintaining ≥15 mm clearance–any closer induces fouling in humid environments, evidenced by a 1 Hz rhythm of misfires. Test under load: a dyno run at 3,800 RPM should show stable dwell across 1,000 cycles; deviations confirm faulty armature alignment or compromised laminations.
Core Elements of an Electrical Spark Generation Assembly
Always prioritize a high-quality rotating armature with laminated steel cores to minimize eddy current losses. The stator must maintain gap tolerances between 0.3–0.5 mm; deviations beyond this range degrade pulse strength by up to 40%. Copper windings should use AWG 18–20 gauge wire for optimal current handling without excessive resistive heating.
Select permanent magnets with Br-values exceeding 1.1 T to ensure consistent flux linkage. Alnico variants offer superior thermal stability, retaining 95% of magnetization at 150°C, while ferrite grades drop to 80% under the same conditions. Mounting orientation matters–align poles perpendicular to the coil axis to maximize induced voltage during rotation.
The breaker contacts require tungsten or platinum-iridium surfaces to prevent pitting under high-frequency switching. Contact gap should be adjusted to 0.35–0.45 mm; narrower gaps cause premature arcing, while wider gaps reduce spark intensity. A capacitor rated 0.1–0.25 µF across the contacts suppresses radio interference and prolongs point lifespan by 30–50%.
Voltage Regulation and Secondary Circuit Essentials
Distributor shaft runout must not exceed 0.05 mm to preserve precise timing; misalignment introduces advance curve deviations of ±2°. Rotor tips should have a minimum electrode gap of 0.8 mm to prevent cross-firing. Avoid carbon-tracking by ensuring the distributor cap’s phenolic material meets UL94 V-0 flame resistance standards.
| Component | Material | Critical Specification | Failure Impact |
|---|---|---|---|
| High-Tension Lead | Silicon-impregnated EPDM | ≥25 kV dielectric strength | Insulation breakdown at high RPM |
| Spark Plug | Iridium center electrode | 0.6 mm gap, 14 mm thread | Misfire under 3000 RPM |
| Condenser | Oil-impregnated paper | 0.22 µF ±10% | Contact erosion, radio noise |
Grounding paths demand 10 AWG or thicker conductors; resistance above 0.1 Ω causes voltage drop under load. Verify all connections with a megohmmeter–readings below 1 MΩ indicate moisture ingress or degraded seals. Replace any corroded terminals with tinned copper variants to prevent oxidation-driven resistance buildup.
Advanced Diagnostics for Reliability
Measure primary coil resistance at 20°C–expect 0.5–1.5 Ω for single-cylinder units, 0.2–0.8 Ω for multi-cylinder. Secondary windings should read 6–15 kΩ; values outside this range signal insulation breakdown. Use a strobe timing light with inductive pickup to verify advance curve linearity; erratic readings suggest worn centrifugal weights or binding springs.
Step-by-Step Wiring Logic in High-Voltage Circuit Configurations
Start by securing the primary coil leads to the rotating armature contact points. Use 14-gauge enameled copper wire for the primary winding, ensuring a tight, overlapping wrap of 180–220 turns around the iron core. The secondary winding requires 0.25mm wire with 10,000–15,000 turns, wound concentrically over the primary at a 90-degree offset to prevent capacitive coupling.
Connect the primary circuit breaker points to the distributor cam using silver-tungsten alloy contacts. Adjust the gap to 0.3–0.4mm at maximum cam lift; deviations beyond ±0.05mm cause erratic spark timing or premature erosion. Ground the breaker plate to the engine block via a braided copper strap rated for 50A, avoiding casting defects where paint or oxides may interrupt conductivity.
Route the high-tension cable from the secondary coil to the distributor rotor using 7mm silicone-insulated wire. Maintain a minimum 15mm clearance from metal surfaces to prevent dielectric breakdown. For engines running above 6,000 RPM, upgrade to 10kV-rated suppression cores at each spark plug terminal to suppress radio-frequency interference.
- Verify coil polarity before permanent installation using a 12V test lamp: attach one probe to the primary input, the other to the secondary output. If the lamp illuminates, reverse the primary connections to prevent reverse-voltage damage.
- Shielded cables require the outer braid to be grounded at one end only. Double-grounding creates a ground loop, inducing current leakage and misfires.
- Condenser capacity for breaker points should match the engine’s displacement: 0.18–0.22μF for engines below 500cc, 0.25–0.30μF for 500–1000cc, and 0.33–0.40μF for larger units.
Install the rotor button with the leading edge aligned within ±3 degrees of the No. 1 cylinder’s TDC mark. Misalignment beyond this tolerance shifts timing advance curves nonlinearly, degrading combustion efficiency by up to 12%. Use a strobe timing light to confirm static timing at 8–12 degrees BTDC before dynamic adjustments.
Authoritative test sequences demand a 10 MΩ insulation resistance between primary and secondary windings. Use a 500V megohmmeter; readings below 5 MΩ indicate moisture ingress or damaged enamel. Repair by baking the coil assembly at 150°C for 2 hours, then re-testing before final assembly.
Adapters between metric and imperial fasteners require conical spring washers under bolt heads. Flat washers provoke periodic loosening at high vibration frequencies, especially in single-cylinder applications. Apply thread-locking compound (medium-strength) to all critical fasteners; high-strength variants impede future servicing.
For magneto-based setups powering auxiliary loads (e.g., tachometers), insert a 1A diode in series with the signal wire to block reverse current spikes. Omission risks damaging electronic gauges through inductive kickback during breaker-point opening events. Calibrate any attached voltage regulators to 7.2V ±0.2V to prevent overcharging in 6V configurations.
