If your aftermarket receiver isn’t powering up, begin by verifying the constant 12V (yellow) and accessory wire (red) connections. These two leads must be spliced correctly–merge the constant supply to both the head unit’s memory feed and the ignition-controlled line to prevent battery drain. Double-check fuse integrity near the harness; a blown 10A fuse often mimics wiring failure.
Locate the ground connection (black) beneath the dashboard trim, typically secured to a bare metal chassis point. Rust or paint can disrupt conductivity–scrape the surface clean before reattaching. For amplified systems, route the remote turn-on (blue/white) directly to the amplifier’s trigger input; avoid daisy-chaining to prevent signal degradation.
Factory harness adapters exist for plug-and-play installation, but manual splices yield fewer errors. Use crimp connectors for speed or solder + heat shrink for longevity. Confirm speaker polarity by testing each wire with a 9V battery–positive leads will push the cone outward. Antenna power (pink or purple) often shares a circuit with the amplifier relay; ensure the connection is tight to avoid intermittent FM reception.

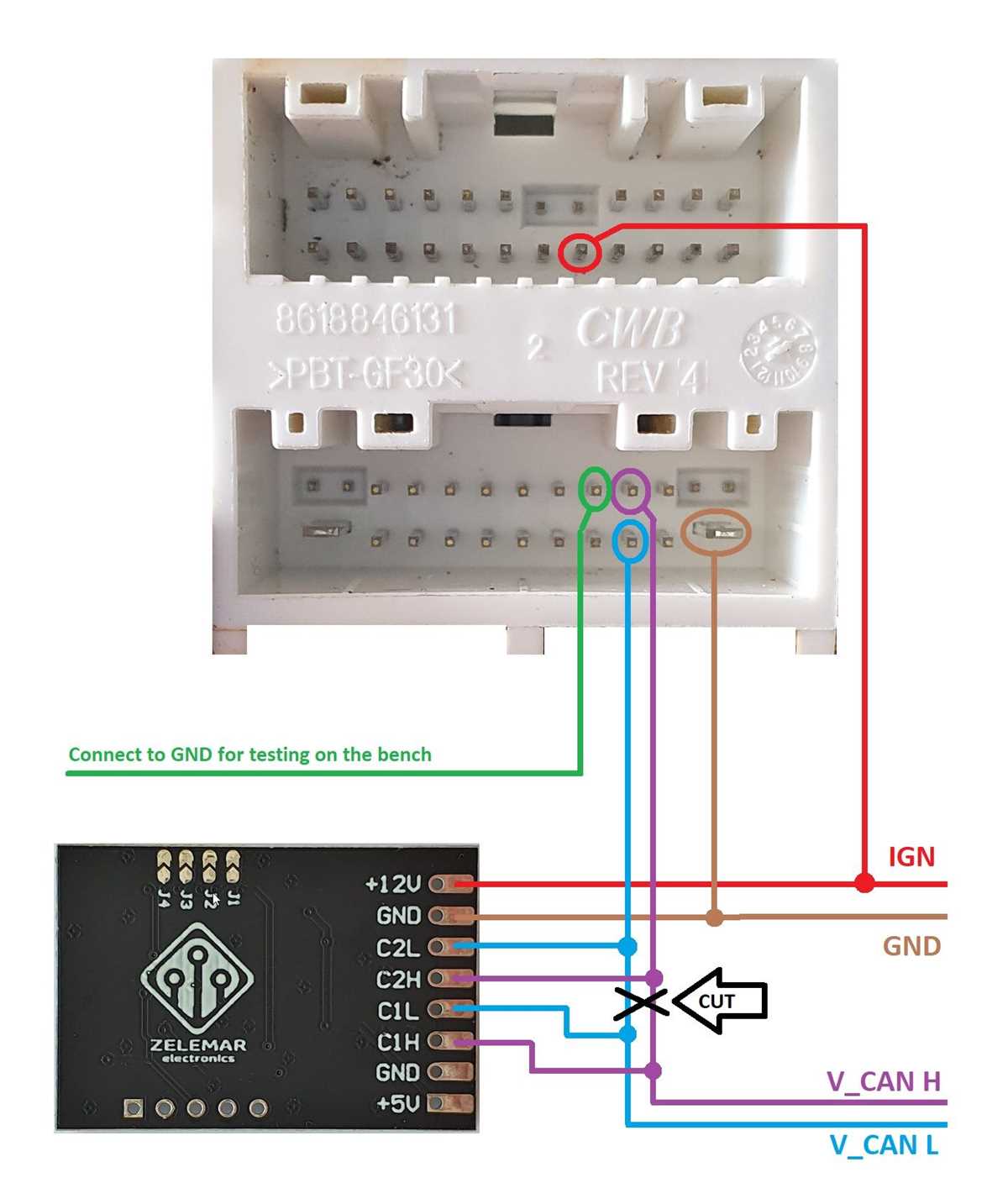

Refer to your specific trim’s pinout chart–hatchback models add subwoofer outputs not found in base versions. If installing a navigation unit, the CAN bus wires (green/white and green/black) must remain intact to retain steering wheel controls. Isolate wires with electrical tape before powering up to prevent shorts; a multimeter set to continuity mode will catch crossed circuits before damage occurs.
Electrical Connections for the 2011 Compact Crossover Audio System
Locate the harness behind the dashboard cluster–typically bundled with a 14-pin connector for primary power and speaker outputs. Pin 1 supplies constant 12V (yellow), pin 4 handles ignition-switched 12V (red), and pin 7 delivers ground (black). Verify continuity with a multimeter before disconnecting factory plugs.
Front left speaker wiring uses a twisted pair: violet (+) and violet/black (-) at pins 8 and 9. Front right follows suit with gray (+) and gray/black (-) on pins 10 and 11. Rear outputs (pins 12-13 for left, 14-15 for right) mirror this pattern with green and white wires, respectively. Avoid reversing polarity to prevent phase cancellation.
Amplifier triggers, if present, connect via a smaller 8-pin harness. Pin A carries remote turn-on (blue/white), while pins B and C handle left/right RCA signals. For non-Bose systems, omit the pink/blue amp data wire–it’s redundant and may disrupt aftermarket units.
Steering wheel controls interface through a separate 6-pin connector near the fuse box. Pins 1-2 carry resistive signals (typically 0-5V); consult the vehicle’s service manual for exact resistance values. Aftermarket adapters like iSimple or PAC decode these automatically, but manual wiring risks irreversible damage to the BCM.
Key Harness Colors and Functions:
- Orange/black – Illumination dimmer (pin 6)
- Brown – Mute signal (pin 3, shared with navigation)
- Pink – Memory keep-alive (pin 5, voltage drops below 11V triggers reset)
Troubleshooting Non-Factory Integrations
If static persists after installation, check for stray ground loops–relocate the head unit’s ground wire to a bare metal chassis point at least 12 inches from amplifier grounds. Shielded RCA cables reduce interference but require proper shielding at both ends. Avoid routing audio cables parallel to power wires for more than 8 inches.
For vehicles with factory navigation, retain the teal/red GPS antenna wire (pin 14 on the main harness). Disconnecting it disables map updates and satellite radio until the system reboots–a process requiring battery disconnect for 10+ minutes. For non-nav units, this wire can be safely capped.
Backup camera integration demands a secondary harness. The purple/white reverse signal wire (pin 15) triggers the display–tap into the reverse light harness near the tailgate, not the fuse box, to maintain proper voltage timing. Camera ground must tie to the same chassis point as the head unit to avoid flickering.
Locating the Factory Head Unit Power Link Plug for Safe Disassembly
Start by consulting the vehicle’s original service manual for the exact connector designations–these vary slightly depending on trim levels. Most base models use a 16-pin ISO harness labeled A-01, while premium trims may include a secondary 8-pin auxiliary plug for amplifier integration. Verify the pinout arrangement before touching any terminals; meter testing is critical to prevent short circuits.
Aftermarket removal tools won’t always match OEM plugs, so retain the stock connector block intact. Use a high-quality multimeter set to continuity mode to trace each wire’s function–key circuits include constant 12V (typically orange), switched ignition (yellow), ground (brown/black), and speaker outputs (solid colors with stripes). Avoid cutting wires unless replacing the entire harness; crimp connectors or solder repairs are prone to corrosion over time.
The factory harness often hides behind climate control knobs or trim panels–require removal of the center console faceplate first. A plastic pry tool prevents damage to clips; never force brittle tabs, as they snap easily. Label each wire with masking tape before unplugging, noting orientation for reinstallation if needed later. Pay extra attention to fiber optic connections (where present) found in Bose audio systems; these fragile cables carry digital signals and cannot tolerate bending or kinks.
- Look for reversed polarity indicators–some units mark positive wires with solid colors and negatives with stripes.
- Bypass aftermarket adapter blocks if present; they introduce unnecessary resistance and can degrade signal quality.
- Factory connectors use a push-lock mechanism–press the release tab fully before attempting removal.
- If the vehicle has steering wheel controls, locate the separate plug behind the dashboard glove box area.
Once disconnected, store the original harness in a labeled plastic bag to prevent dust or moisture damage. Reinstallation requires aligning connector blocks precisely–misalignment can trigger fault codes in the onboard computer. Test all functions before reassembly: illumination, amplifier muting, and antenna activation should respond immediately upon key turn. If surges or popping noises occur, revisit grounding points near the chassis rails; poor grounding is a common failure source after modifications.
Step-by-Step Color-Coded Wire Connections for Aftermarket Head Units
Begin by identifying the vehicle’s 12-pin harness adapter–match each wire to the aftermarket stereo’s ISO connector using the following color codes. The yellow constant power lead (B+) must connect to the car’s thickest yellow wire, rated for 10-15A withstanding fuse protection. Disconnect the battery’s negative terminal before splicing to prevent shorts. Use crimp connectors or solder with heat-shrink tubing for durability; twist-and-tape methods degrade within months under vibration.
Critical Wire Pairings
- Red (accessory): Link to the car’s ignition-switch-controlled wire (typically thin red) to enable power only when the key is turned. Avoid pairing with yellow, or the stereo will drain the battery when off.
- Black (ground): Attach to a bare metal chassis point with a 10-gauge ring terminal; sand paint off the grounding spot to ensure conductivity. Test resistance with a multimeter–values above 0.5 ohms indicate corrosion.
- Blue/white (remote amp turn-on): Bridge to the factory amplifier’s remote wire (usually solid blue) to prevent no-audio scenarios. If the vehicle lacks an amp, cap this wire to avoid signal noise.
- Orange (illumination): Connect to the dimmer switch wire (dark green or gray) for dash-light synchronization. Polarity matters here; reverse pairing dims lights when headlights are off.
Speaker wires follow a non-universal but consistent pattern for this model: solid color (e.g., gray) is positive; stripped color (gray/black) is negative. Front speakers use purple (right) and gray; rears use green and white. Cross-check with a 9V battery–brief contact should produce a thump, confirming correct polarity. Factory speaker outputs can handle 20W RMS; aftermarket units delivering 50W+ require an external amplifier to avoid distortion or blown fuses.
- Strip 5mm of insulation from each wire using precision strippers–avoid nicking copper strands.
- Twist exposed strands clockwise, then insert into corresponding harness slots or crimp connectors.
- Secure connections with electrical tape or adhesive-lined heat shrink; wrap tape spirally from wire toward connector for water resistance.
- Route harness away from moving parts, sharp edges, or exhaust components; bundle excess with zip ties.
- Reconnect the battery, then test each function–volume, balance, fader, and mute–before reinstalling the trim panel.
Locating and Testing the Primary Power, Accessory, and Return Leads
Begin by probing the harness connector at pin C104 (typically a 16-pin white plug) with a multimeter set to 20V DC; a stable 12.6–14.4V reading across pins 4 (B+) and 12 (chassis) confirms the permanent feed without key insertion–verify by observing voltage retention during accessories-off tests. Use a back-probe technique on pin 6 (IG1) to detect a 12V drop within 0.5 seconds of ignition activation, distinguishing it from parasitic drains via oscilloscope or clamp meter to measure current spikes below 50mA.
Scrape oxidation from the ground lug beneath the dashboard mount near the fusebox–confirm continuity with less than 0.3 ohms resistance to the negative battery terminal using a Kelvin connection test; false grounds often manifest as intermittent display resets during high-current loads (e.g., bass peaks >12A).
