Begin with a three-phase inverter bridge composed of six power MOSFETs or IGBTs–arranged in complementary pairs for each phase. Gate drivers like the DRV8305 or IR2104 deliver isolated switching control, ensuring dead-time between high-side and low-side transitions to prevent shoot-through. Supply the DC link with a bulk capacitor (typically 220µF to 1000µF) to absorb regenerative energy and stabilize voltage ripple.
Integrate Hall-effect sensors or a magnetic encoder (AS5600, TLE5012B) positioned at 120° intervals for commutation feedback. For sensorless operation, employ zero-crossing detection via phase voltage monitoring using comparators (LM339) or a microcontroller’s ADC–filter noise with a 10kΩ resistor and 1nF capacitor RC network to sharpen zero-crossing edges.
Regulate speed through a PID controller implemented in firmware (STM32, dsPIC) or hardware (UC3637 analog IC). Compensate for load inertia by tuning proportional (Kp = 0.5-2), integral (Ki = 0.01-0.1), and derivative (Kd = 0.01-0.05) gains based on mechanical time constants. Limit integral wind-up to ±5% of full-scale output to prevent overshoot during rapid acceleration.
Protect the system with overcurrent detection via shunt resistors (0.01Ω-0.1Ω) and comparators, triggering gate driver disable within 5-10µs of fault conditions. Add a freewheeling diode (Schottky) across each switching device to clamp inductive kickback during commutation–avoid standard PN diodes due to reverse recovery delays. Ground all control signals through a star-point configuration to minimize noise coupling into analog paths.
For high-power applications (>1kW), split the DC link into two series capacitors (470µF each) with balancing resistors (1kΩ/1W) to equalize voltage sharing. Route high-current traces (>10A) with 2oz copper and thermal vias under MOSFET pads, spaced at 2-3mm intervals. Terminate signal ground separately from power ground, connecting them at a single point near the power input to avoid ground loops.

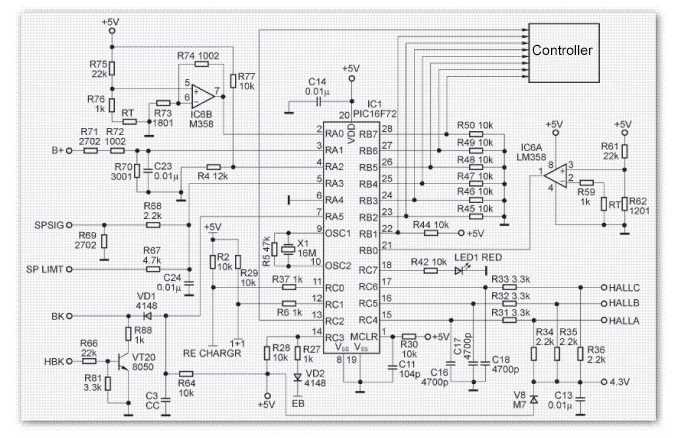

Blueprint for Brushless Drive System Wiring
Start with a three-phase inverter bridge–six MOSFETs (IRFB3077 for 30A applications or IXFN32N120 for higher currents) arranged in complementary pairs. Ensure each transistor has a dedicated gate driver (DRV8305 or UCC21520) with isolated power supplies to prevent shoot-through.
Place current-sensing resistors (0.01Ω, 5W) on the low-side of each phase leg. Connect their outputs to differential amplifiers (INA180) with a gain of 20V/V, then route signals to an MCU’s ADC (STM32F405, 12-bit resolution). Calibrate offsets at startup by averaging 100 samples with the drive inactive.
Use Hall-effect sensors (A3144) spaced 120° apart for rotor position feedback. Mount them on a PCB aligned with the stator teeth, ensuring air gap clearance ≥1mm. Route sensor outputs through Schmitt triggers (74HC14) to eliminate noise before feeding them to the MCU’s timers (TIM2/3).
- For sensorless operation, implement back-EMF zero-crossing detection. Add a comparator network (LM393) to monitor phase voltages relative to a virtual neutral point (constructed via 3x 10kΩ resistors in star configuration).
- Filter comparator outputs with RC circuits (1kΩ + 10nF) and connect to external interrupt pins (EXTI) for real-time commutation.
- Disable drive outputs during startup–use open-loop ramping (5Hz increments) until back-EMF exceeds 10% of bus voltage.
Incorporate overcurrent protection via a fast-acting comparator (TLV3501) monitoring the DC link. Set the threshold at 1.3× nominal current; trigger a hardware latch (CD4013) to shut down the gate drivers within 2µs. Use a dedicated watchdog timer (MAX6369) to reset the latch if the fault clears.
Optimal PCB layout rules:
- Keep high-current paths (phase outputs, DC link) ≥10mm wide for 1oz copper. Use 2oz copper for traces carrying >15A.
- Separate analog and digital grounds–connect at a single point near the power input.
- Place gate resistor (10Ω) and diode (1N4148) directly at each MOSFET’s gate to suppress ringing.
- Add snubber networks (10Ω + 10nF) across each transistor’s drain-source to dampen voltage spikes.
For closed-loop speed control, configure a PI regulator in software with these parameters:
- Proportional gain (Kp): Start at 0.1 × (bus voltage / max speed) and increase until overshoot ≤5%.
- Integral gain (Ki): 0.01 × Kp, with anti-windup clamping at ±90% of PWM limit.
- Sample rate: ≥10kHz; low-pass filter reference commands through a 10Hz cutoff digital filter.
Power stage decoupling requires bulk capacitance (470µF/50V electrolytic) near the inverter input, plus 10× 1µF/100V ceramic capacitors distributed across the DC bus. For EMI suppression, add common-mode chokes (WE-SL2) on the DC lines and ferrite beads (BLM21PG) on sensor/signals lines. Test conducted emissions per CISPR 25 Class 3 with a peak hold setup.
Firmware Commutation Table
Use this lookup table for 6-step trapezoidal drive (Hall sensor states → phase activation):
| Hall State (Binary) | Active High-Side | Active Low-Side |
|---|---|---|
| 001 | Phase A | Phase B |
| 010 | Phase C | Phase A |
| 011 | Phase B | Phase C |
| 100 | Phase A | Phase C |
| 101 | Phase B | Phase A |
| 110 | Phase C | Phase B |
Key Components of a Brushless Drive Control System
Select a microcontroller with dedicated PWM outputs capable of handling at least 20 kHz switching frequencies to avoid audible noise while ensuring precise commutation timing. For 3-phase applications, prioritize units like the STM32F3 or ESP32-S3, which include complementary PWM channels with dead-time insertion preventing shoot-through in power stages, a critical feature when driving high-side and low-side MOSFETs in half-bridge configurations. Ensure the chosen unit supports Hall sensor feedback or back-EMF sensing for sensorless operation, with sufficient ADC resolution (≥12-bit) to detect zero-crossing events within 5 μs for optimal torque response.
Power Stage and Feedback Elements
| Component | Specification | Critical Consideration |
|---|---|---|
| MOSFETs (N-channel) | 30V–100V, RDS(on) | Thermal resistance ≤1°C/W; gate charge ≤50nC for 1MHz+ switching |
| Gate Drivers | Isolated (Si827x) or bootstrap (DRV8305) | CMTI >50V/ns; propagation delay |
| Current Sensors | Shunt + INA240 (≤1mΩ) | ±40A range with 100kHz bandwidth; layout-free Kelvin sensing |
| Capacitors (Bus) | Low-ESR polymer, 100μF–470μF | ESL |
Design the power stage with a star-point connection for winding phases, using 100V-rated MOSFETs for 24V–48V systems to withstand inductive voltage spikes during commutation. Implement a 3-phase inverter topology with a DC bus capacitor bank sized at ≥100μF per amp of nominal load current, positioned within 1cm of the MOSFETs to minimize parasitic inductance. For closed-loop control, deploy differential amplifiers with ≤5μV/°C drift for accurate current measurement, synchronizing sampling with PWM edges to eliminate switching noise. Include a hardware overcurrent comparator (5μs reaction time) to protect against stall conditions without relying on firmware interventions.
Step-by-Step Assembly of a Hall Sensor-Based Brushless Driver
Begin by securing a 3-phase inverter module capable of handling at least 30% above the anticipated load. Verify the module’s input voltage range matches the power supply–typically 12V to 48V–before connecting. Solder the six MOSFETs or IGBTs to a heat-dissipating base, ensuring thermal paste is applied uniformly between the semiconductor and heatsink. Use a multimeter to confirm the absence of shorts across all power terminals prior to energizing the assembly.
- Align the Hall sensors perpendicular to the rotor’s magnetic poles at 120-degree intervals. Misalignment by even 5 degrees can introduce torque ripple or failure to commutate.
- Connect the sensor outputs to the microcontroller’s interrupt-capable pins; opt for hardware interrupts over polling to achieve sub-microsecond response.
- Calibrate sensor thresholds using an oscilloscope–adjust hysteresis settings if the controller supports it to suppress false triggers caused by electromagnetic noise.
Verify rotor positioning via back-EMF testing before final power-up. Inject a low-current pulse through two phases while the rotor is stationary, then measure voltage on the third phase; correct polarity indicates proper Hall sensor phasing. Once validated, upload the commutation table to the microcontroller’s firmware–ensure the sequence matches the rotor’s pole count (e.g., 4-pole rotor requires a 6-step pattern). Power the driver, monitor current draw with a shunt resistor or Hall-effect sensor, and limit acceleration to prevent overshoot during initial tests.
How to Design a 3-Phase Inverter for Permanent Magnet Synchronous Drives
Select a gate driver IC rated for at least 20% more than the peak coil current to prevent thermal runaway. For a 10A steady-state system, use drivers like STMicroelectronics L6384E (16A capability) with built-in dead-time generation to eliminate shoot-through risks. Ensure the IC’s propagation delay matches the switching frequency–target 50-100ns for 20kHz operation to maintain precise PWM control.
Calculate the DC link capacitor value using C = Iload / (2 * π * fripple * Vripple), where fripple is twice the switching frequency. For a 400W system at 48V with 5% ripple tolerance, this resolves to ~470µF. Use low-ESR polymer electrolytic capacitors (e.g., Panasonic OS-CON) to handle high-frequency currents. Place capacitors within 1cm of the power stage to minimize parasitic inductance.
Implement a current sensing method using shunt resistors or Hall-effect sensors. Shunt resistors (e.g., 10mΩ, 1% tolerance) combined with differential amplifiers (Texas Instruments INA188) offer ±0.5% accuracy but require Kelvin connections to avoid voltage drops. Hall sensors (Allegro ACS712) simplify layout but introduce ~5µs delay–compensate in firmware via predictive algorithms.
Choose MOSFETs based on VDS ≥ 1.5 × Vbus and RDS(on) ≤ 5 × (Vbus / Ipeak). For 48V/15A systems, Infineon IPB049N10N3 (100V, 4.9mΩ) reduces conduction losses by 30% versus planar devices. Opt for TO-247 packages with isolated pads to simplify heatsink mounting–apply Sil-Pad 2000T for thermal conductivity (3.5W/m·K).
Generate PWM signals using a microcontroller with dedicated hardware timers (STM32F405: 168MHz, 12-bit resolution). Configure complementary outputs with 1-2µs dead time to prevent cross-conduction. For sensorless control, use back-EMF zero-crossing detection via comparator inputs (STM32’s internal op-amps or separate LM311) with hysteresis to reject noise. Sample at ≥10× the electrical frequency (e.g., 5kHz for a 500Hz fundamental).
Route high-current paths (>10A) on the PCB with 2oz copper and >5mm trace width. Separate analog and power grounds using a star-point topology to avoid ground bounce. Place vias (0.5mm diameter, ≥6 per trace) under MOSFET pads to improve thermal dissipation. Use a 4-layer stackup: signal-ground-power-signal, with the power plane split to isolate noisy sections.
