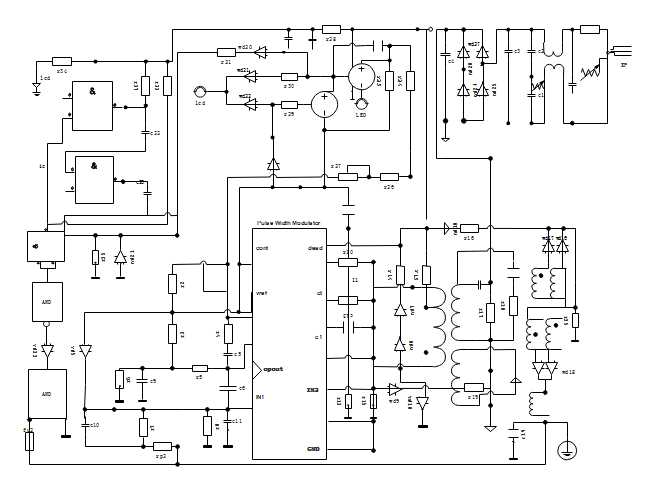

Start with a single power source–whether a battery, generator, or mains supply–and map its path to the load. Use standard symbols: zigzag lines for resistors, parallel lines for capacitors, and arrowheads for diodes. Label every component with its value (e.g., R1 10kΩ, C2 22μF) to avoid ambiguity during assembly or debugging. For complex layouts, split the design into modules (power, control, sensors) and connect them last.
Ground connections must be consistent. Use the symbol ⏚ for earth and tie all grounds to the same point to prevent noise. Failing to do this causes erratic behavior in analog circuits, especially amplifiers. For digital logic, keep signal paths under 15 cm when operating above 1 MHz to maintain integrity. Vias introduce inductance–minimize them near high-frequency traces.
Always include a fuse (slow-blow for motors, fast-acting for ICs) in series with the main supply. Specify its rating at 1.2× the circuit’s maximum current draw. Use decoupling capacitors (0.1μF ceramic) within 2 cm of every IC’s power pin to filter voltage spikes. For microcontrollers, add a 10μF electrolytic capacitor across the supply to stabilize power during sudden load changes.
Color-code wires: red for positive, black for ground, yellow for signals. Number every wire and connector (e.g., J1-3) in the legend. Test continuity with a multimeter before powering on–shorts between adjacent pins are common in breadboard prototypes. If voltage readings drift, check for cold solder joints or insufficient wetting.
Print the final version on 1:1 scale layout paper for verification. Check trace widths: 0.5 mm for signals, 2 mm for power. For PCB etching, use 1 oz copper thickness as a baseline. Overlap cross-hatched grounds by 0.2 mm to improve shielding. Always include a silk screen layer for component designators–future repairs depend on it.
Creating a Practical Blueprint for Circuit Design
Start with a clear objective: define the circuit’s purpose before placing components. For a power supply unit, calculate input voltage, output requirements, and load current first. Use 7805 regulators for consistent 5V outputs with input voltages up to 35V, but ensure heat dissipation for currents exceeding 500mA. Bypass capacitors (0.1μF ceramic) near the regulator’s input and output terminals stabilize voltage under transient loads.
Group related elements logically. Keep high-frequency paths (clock signals, switching converters) away from sensitive analog traces. Use star grounding for mixed-signal circuits, connecting digital and analog grounds at a single point near the power supply. For digital ICs, decouple each VCC pin with a 0.1μF capacitor placed physically close to the pin to minimize noise.
Key Layout Rules
- Place connectors and switches along the edges for easy access.
- Route high-current traces (battery, motor drivers) wider: 2.5mm/A for copper thickness of 35μm.
- Avoid right angles in traces; use 45° bends to reduce EMI.
- Label nets clearly (e.g., “VIN_12V”, “GND_SENSOR”) to simplify debugging.
- Include test points for critical voltages and signals–use through-hole pads with 1mm diameter.
For microcontroller circuits, follow this sequence: power tree first (regulators, capacitors), then ground plane, clocks, reset circuitry, and finally I/O peripherals. STM32 MCU’s require a 10kΩ pull-up resistor on NRST pin if using an external reset button. Crystal oscillators need load capacitors (typically 15–22pF) matched to the oscillator’s specifications; place them within 5mm of the crystal pads.
Include protection circuitry where necessary. Polyfuses (e.g., 500mA) protect USB ports from overcurrent. TVS diodes (SMBJ5.0A) clamp voltage spikes on exposed inputs like sensor lines. For battery-powered designs, add a 1N4007 diode in series with the positive terminal to prevent reverse polarity damage. Use PTC thermistors (e.g., 60R) in series with lithium battery leads for overtemperature protection.
Validation Steps
- Verify all components against the parts list, checking footprints and values (e.g., resistor tolerances ±1%).
- Measure continuity between connected nets; resistance should read
- Power the circuit with a lab supply, limiting current to 100mA initially. Monitor for unexpected voltage drops.
- Check thermal performance using a FLIR camera or touch test; regulators should operate below 60°C.
- Test with an oscilloscope: probe clocks, PWM outputs, and analog signals for ringing or noise.
Document revision history directly on the layout. Add a table with columns: “Revision”, “Date”, “Changes”, and “Author”. For example, Rev A: “Initial design”, Rev B: “Added pull-down on GPIO5”. Export Gerber files in RS-274X format, including drill files and IPC-D-356 netlist for automated testing. Use KiCad’s “Plot” function or Altium’s “Fabrication Outputs” to generate these.
Core Elements for a Fundamental Circuit Blueprint

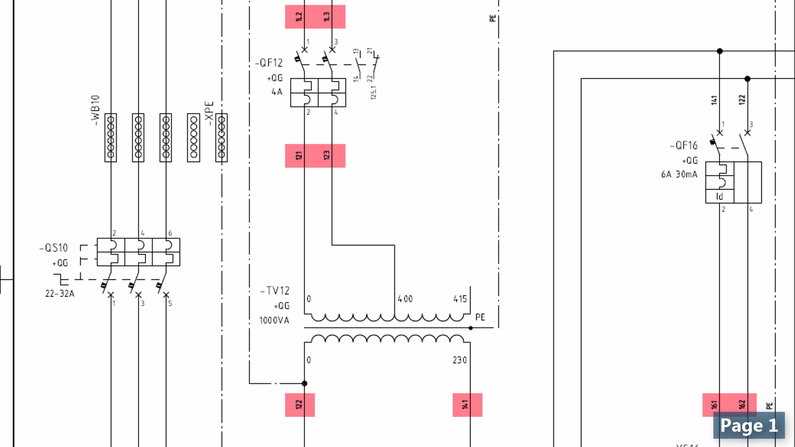

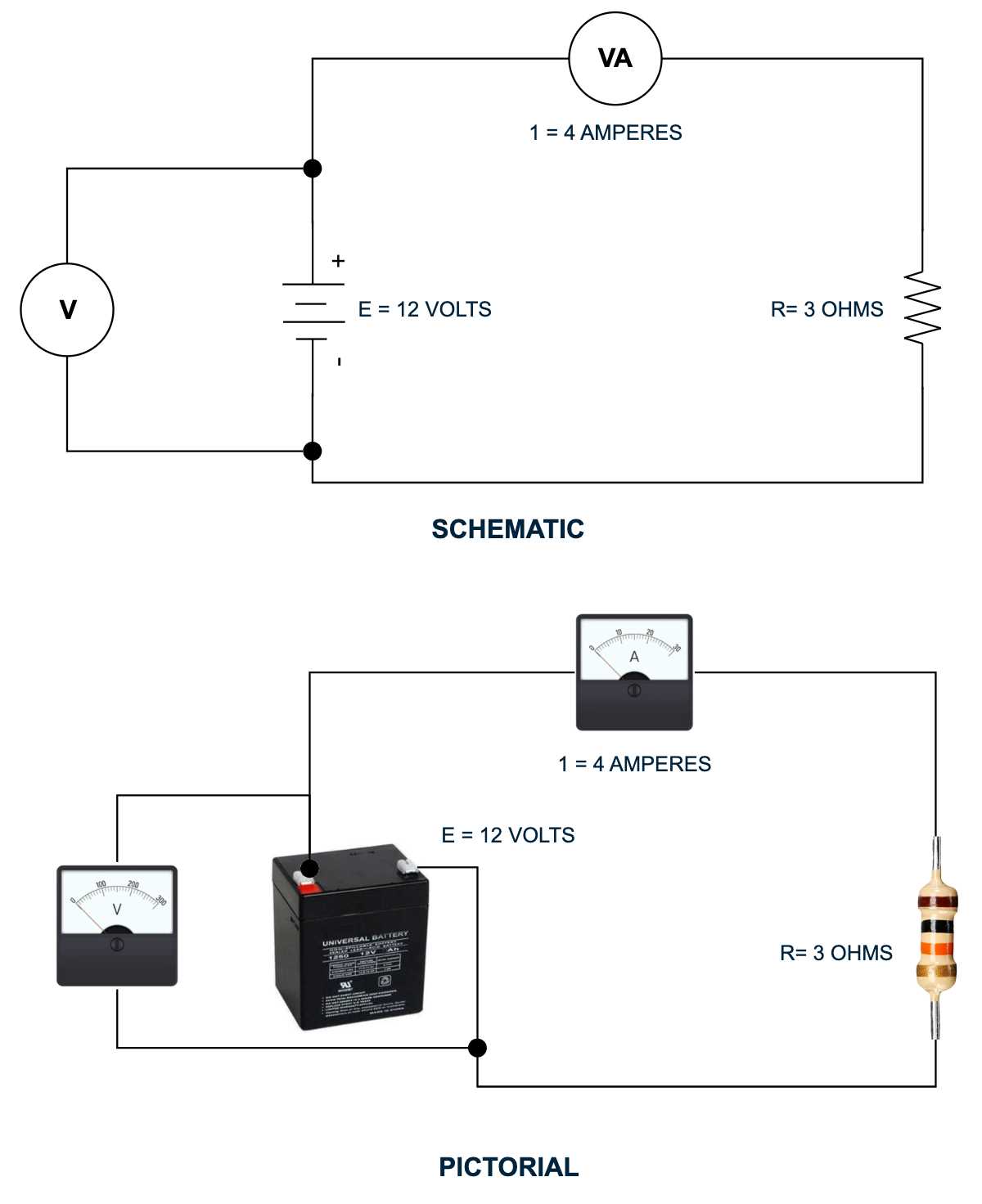

Start with a power source symbol–batteries or a DC/AC supply–positioned at the edge of the layout to establish flow direction. Label voltage values (e.g., 5V, 12V) and polarity using standard IEC/IEEE symbols (⊕/⊖ for DC, sinusoidal wave for AC). Include a fuse or circuit breaker rated 20-30% above maximum expected current, placed immediately downstream of the supply to prevent overload. Specify the fuse type (e.g., 250mA glass fuse, 5A resettable PTC) and interrupt rating (e.g., 10kA) if known.
Signal Path and Load Prioritization
| Component | Symbol Requirement | Annotation Notes |
|---|---|---|
| Resistors | Rectangular block (IEC) or zigzag (ANSI) | Add resistance value (e.g., 1kΩ) and power rating (e.g., ¼W) if critical. |
| Capacitors | Parallel lines (polarized) or curved lines (non-polarized) | Note capacitance (e.g., 100nF), voltage rating (e.g., 25V), and dielectric type (e.g., X7R, NP0). |
| Switches | SPST, SPDT, or momentary contact symbols | Label throw count and current rating (e.g., “SPDT 2A, 250VAC”). |
| LEDs | Standard diode with arrows | Include forward voltage (e.g., 2.1V) and color in parentheses. |
Group related components into functional blocks (e.g., “Amplifier Stage,” “Power Regulation”) and separate them with dashed outlines. For ICs, use a rectangle with pin numbers and signal names (e.g., “VCC,” “GND,” “OUT”) adjacent to each pin. Add test points (marked “TP1,” “TP2”) at critical nodes–especially after voltage dividers or before sensitive inputs. Include ground symbols (⏚ for chassis, ⏊ for signal ground) with a clear hierarchy if multiple grounds exist, avoiding ground loops by connecting them at a single star point.

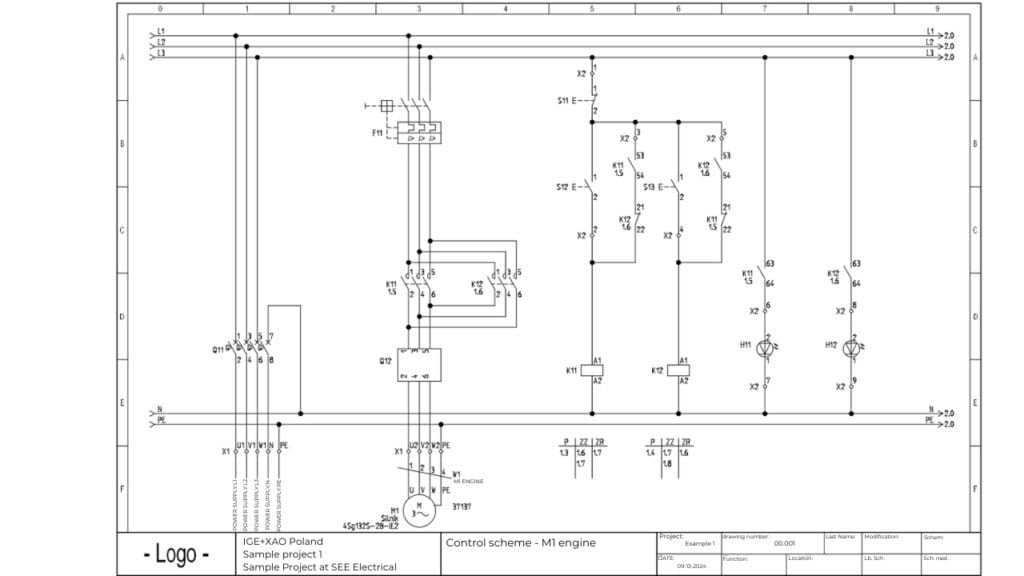

Step-by-Step Guide to Drawing a Circuit from Scratch
Select a clear schematic symbol library before starting. Use IEEE 315 or IEC 60617 standards for consistency–avoid mixing conventions in a single design. Confirm symbol dimensions (e.g., resistors at 10mm length, capacitors with 3mm spacing between plates) to prevent misalignment later. Define grid spacing (1.27mm for through-hole, 0.5mm for SMD) and lock it to maintain precision.
Sketch the power rail first. Place the battery or supply symbol at the top-left corner, then extend two horizontal lines: the positive rail at the top, ground at the bottom. Use bus tapping (dashed lines) for branches, labeling each junction with net names (e.g., “VCC_5V”, “GND_DIGITAL”). Add decoupling caps (0.1µF ceramic) directly between rails near IC power pins–omitting these causes noise in high-speed circuits.
Route critical paths next. For microcontrollers, draw the clock line straight from the crystal oscillator pins (keep traces under 2cm for stability). Signal traces should be 45-degree angles; 90-degree bends increase EMI. Use via stitching (multiple small vias) for high-current paths–consult IPC-2221 for trace width calculations (e.g., 1oz copper at 1A requires 0.25mm width per 1mm/A rule). Label all pins with functional names (“PWM_OUT”) instead of generic numbers (“D13”) for easier debugging.
Validate before finalizing. Check ERC rules: ensure all outputs have a defined load, inputs aren’t floating, and polarities (diodes, electrolytics) are correct. Generate a netlist and cross-verify with a SPICE simulation for transient responses. Export Gerber files only after confirming drill hole sizes–manufacturers reject submissions with missing 0.3mm annular rings. Print a 1:1 scale proof on paper to test component footprints against physical parts.
Common Symbols and Their Real-World Applications

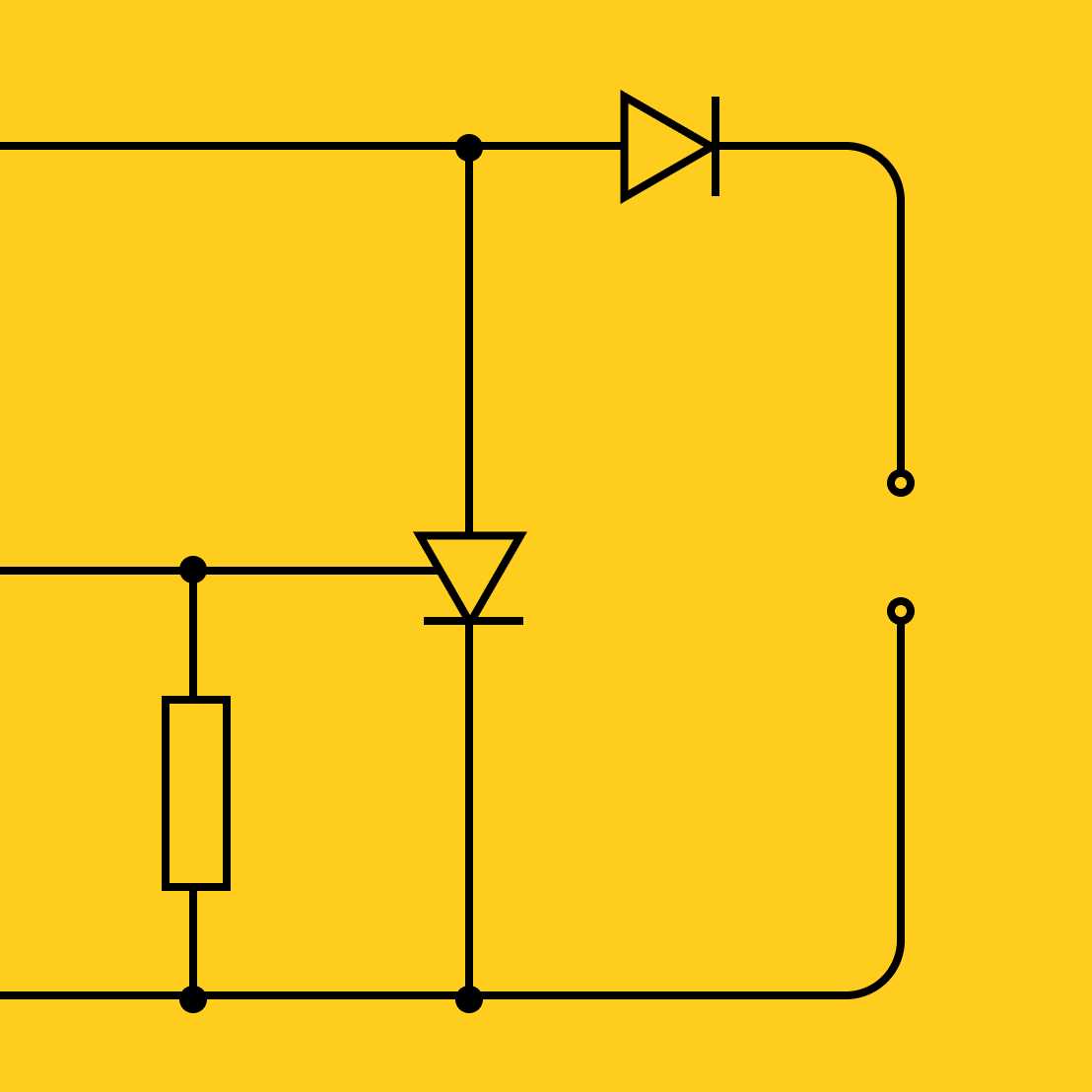

Always begin by verifying resistor symbols match their intended use. A zigzag line represents a fixed resistor, but variations like thermal-sensitive (NTC/PTC) or variable (potentiometer) demand precise annotation. For instance, a 10kΩ potentiometer in audio equipment must use the correct symbol to avoid miswiring volume controls.
Capacitor symbols split into polarized and non-polarized types. Electrolytic capacitors–marked with a curved line for the negative terminal–are critical in power supply filtering, where reverse polarity destroys components. Polypropylene or ceramic capacitors use parallel lines and appear in high-frequency circuits like RF modules. Label values directly: “10µF” prevents ambiguity in prototyping.

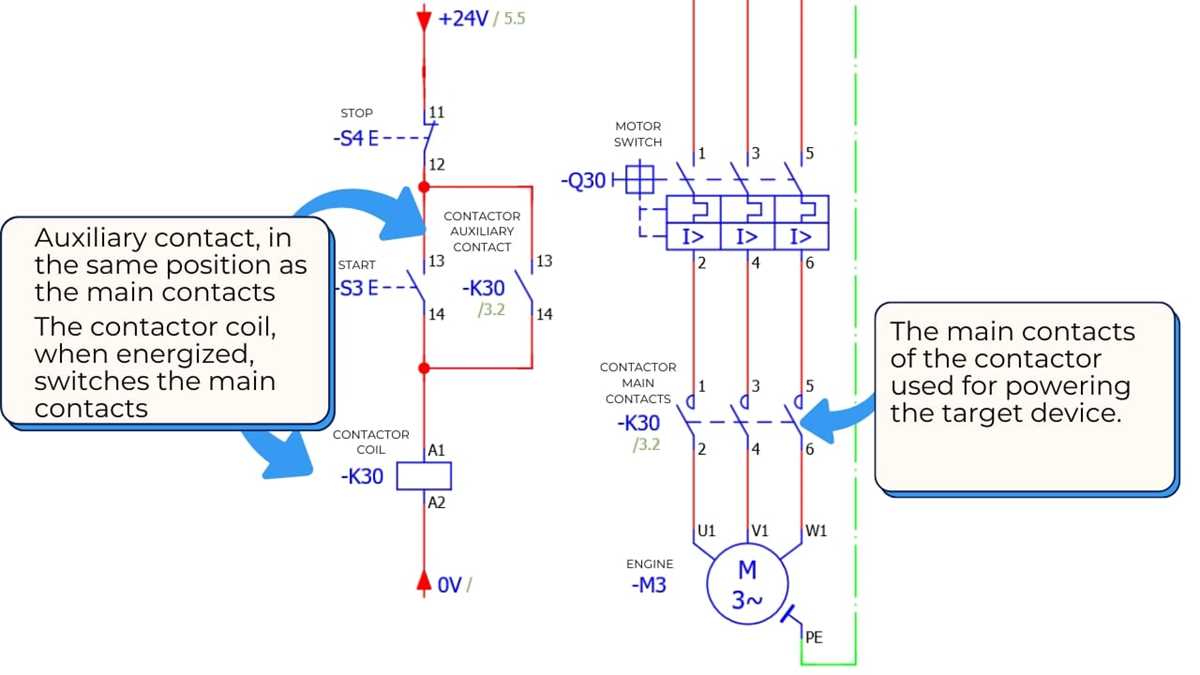

Switches require distinct symbols based on function. A simple on/off toggle uses a basic break in the line, while momentary push-buttons (NO/NC) need arrows or diagonal lines to denote transient action. In industrial machinery, emergency stop buttons use a mushroom-head symbol with a red circle to comply with safety standards. Mislabeling here risks hazardous failures.
Transistors (BJTs or MOSFETs) must reflect their package type. A TO-92 (common for small-signal BJTs) differs from a TO-220 (power MOSFETs), which often includes a heatsink tab. Diodes–specifically LEDs–use a triangle with a line for standard types but add two arrows for light-emitting variants. In PCB design, omit these details and you’ll face debugging delays during assembly.
Integrated circuits simplify complex functions but rely on pin-accurate symbols. A 555 timer IC, for example, must show trigger, threshold, and discharge pins mapped to their schematic positions. Microcontrollers like the ATmega328 use a rectangular block with numbered pins–errors here void firmware compatibility. Always cross-reference datasheets when drafting.
Ground symbols split into three categories: earth (three downward lines), chassis (triangle), and signal (single line). Mixing them causes noise in analog circuits or shorts in high-current systems. Test points, depicted as circles with identifiers (e.g., “TP1”), are mandatory in troubleshooting layouts. Omit them, and tracing faults becomes guesswork.
